Axunworks is at it again this time with a JAMMA Extractor.
This device can be used to get the audio and video from your boards and into capture devices.

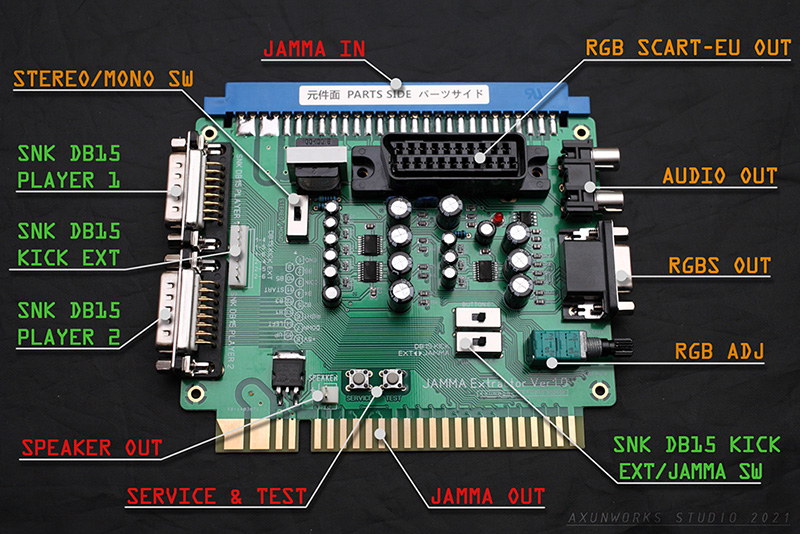

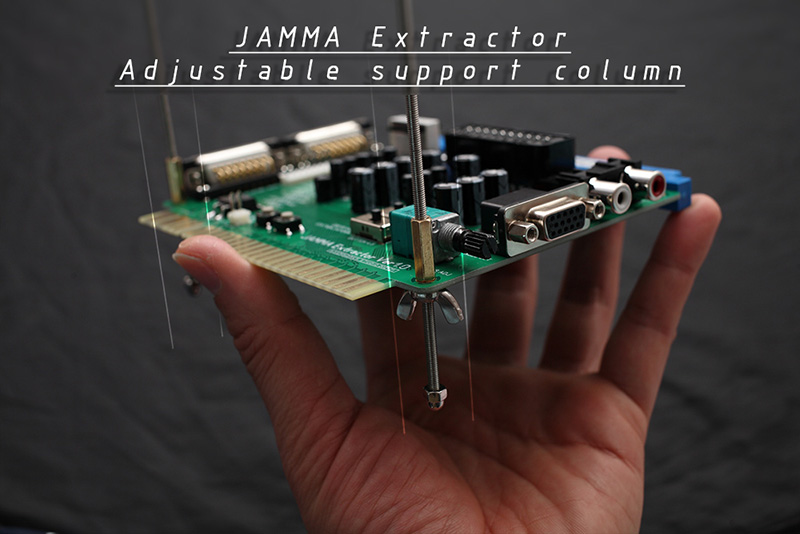

Axunworks JAMMA Extractor: (Picture #1 and #2)
Features:
Video output: JAMMA / VGA-RGBS / EU SCART (all can be used at the same time)
Audio output: RCA Mono and Stereo (use the switch)
RGB ADJUSTMENT: only controls the brightness of the two sets of RGB signals (SCART/VGA-RGBS) on the JAMMA Extractor.
Controller input: 2 DB-15 (neo geo) These are just spare.
Kickharness connection
Test and Service buttons

Axunworks JAMMA Extractor: $80.00 USD + Shipping

CPS2 Videos of JAMMA Extractor:

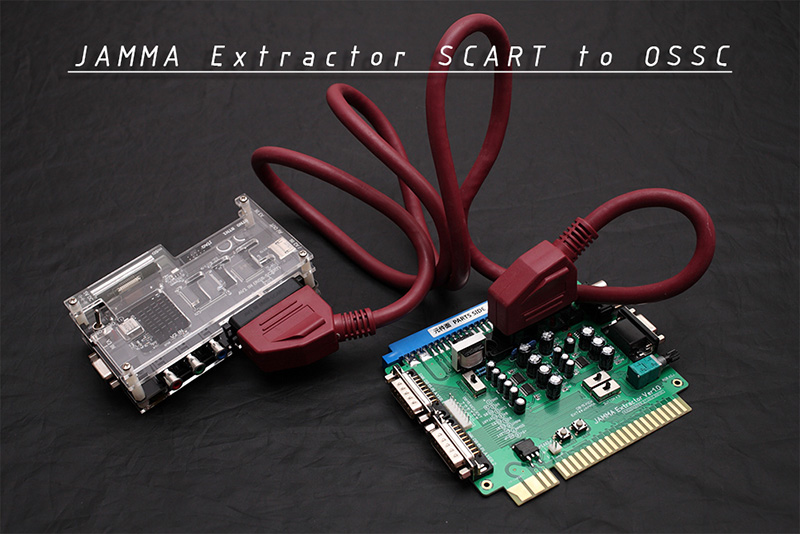

Notes: CPS2 > JAMMA Extractor > OSSC x4 (1280x960 @ 60fps) > Startech USB3HDCAP

View: https://www.youtube.com/watch?v=m3-hSkvS4lg&ab_channel=SamiAckerman

EXTRA NOTES:
Magewell capture card ordered to do 1080p and 4K from OSSC.
Videos coming soon

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
OPTIONAL ACCESSORY:

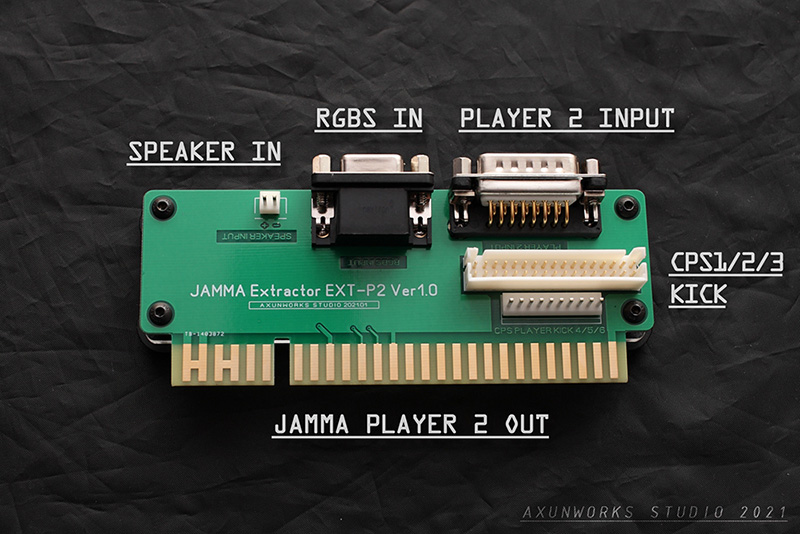

Axunworks 2P-Extender Accessory for the JAMMA Extractor: (Picture #3)

Features:
Player 2 can be assigned to another arcade machine.

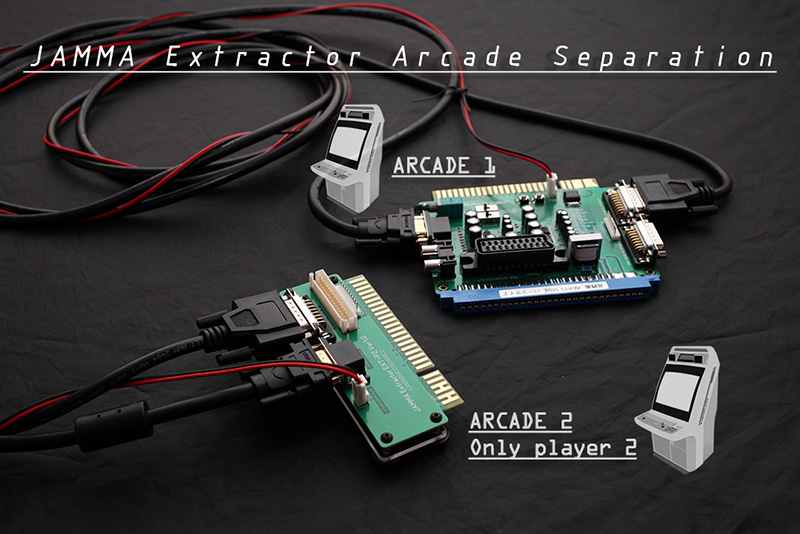

For example, an arcade machine has only one player console. Two arcade machines play against each other, similar to the arcade machines used in competitions. Back to back.

Axunworks 2P-Extender Accessory with cables: 60.00 USD + Shipping (Check picture below)

ON SALE NOW:
http://www.axunworks.com/h-product-detail.html?goods_id=583683

View: https://youtu.be/yN7tZ7rl13o

View: https://youtu.be/rO14yCygxN8


Attachments

  • WeChat Image_20210113150532.jpg
    WeChat Image_20210113150532.jpg
    213.8 KB · Views: 174
  • WeChat Image_20210113150558.jpg
    WeChat Image_20210113150558.jpg
    146 KB · Views: 152
  • WeChat Image_20210113150545.jpg
    WeChat Image_20210113150545.jpg
    141.6 KB · Views: 120
  • WeChat Image_20210113150552.jpg
    WeChat Image_20210113150552.jpg
    137.8 KB · Views: 116
  • WeChat Image_20210106130640.jpg
    WeChat Image_20210106130640.jpg
    217.1 KB · Views: 157
Last edited:

drfunk2k

Grand Master
Joined
Dec 31, 2018
Messages
558
Reaction score
811
Location
Nanjing, China

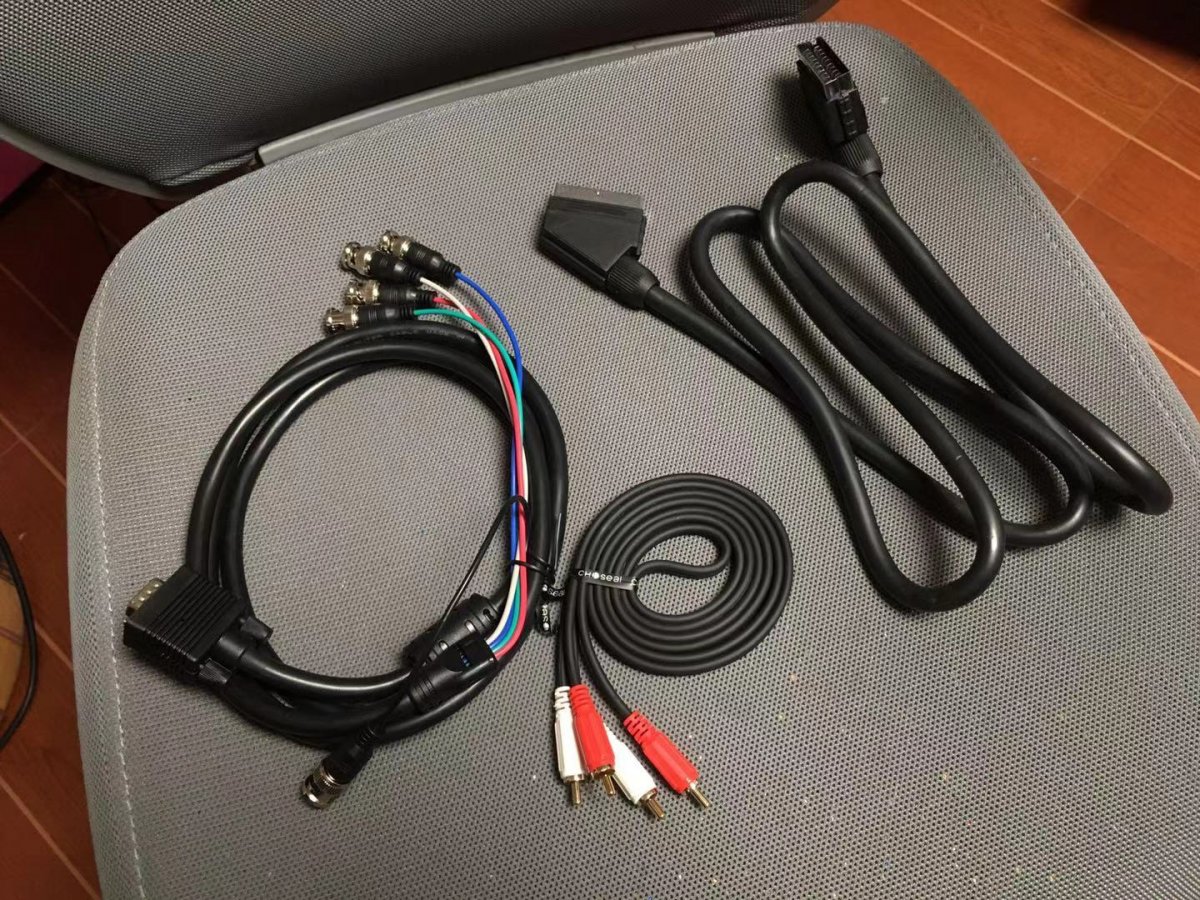

Accessories:
Axunworks cables all hand made.
VGA-RBGS BNC
EUR-SCART
Stereo cable


Attachments

  • WeChat Image_20210106185545.jpg
    WeChat Image_20210106185545.jpg
    318.5 KB · Views: 75

drfunk2k

Grand Master
Joined
Dec 31, 2018
Messages
558
Reaction score
811
Location
Nanjing, China
coming soon, some other additions are coming! ill post soon!!!


drfunk2k

Grand Master
Joined
Dec 31, 2018
Messages
558
Reaction score
811
Location
Nanjing, China

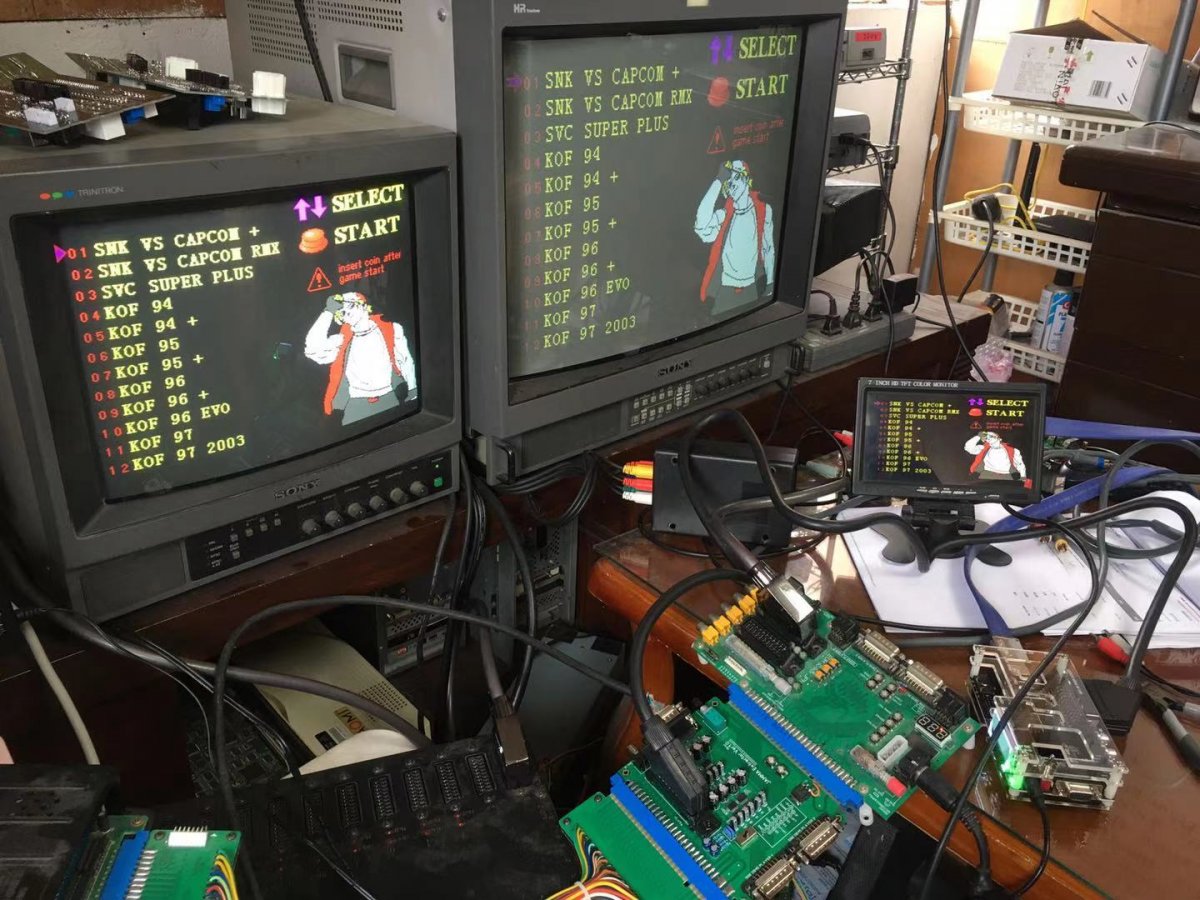

Pics 1-3 JAMMA Extractor hooked up to an OSSC, via SCART, VGA, VGA-RGBS
Pic 4 is an accessory you can add to the Axunworks JAMMA Extractor, we call it 2P-Extention
What does it do?
"Player 2 can be assigned to another arcade machine. For example, an arcade machine has only one player console. Two arcade machines play against each other, similar to the arcade machines used in competitions. Back to back."

more pics and info coming!


Attachments

  • Eri-NoGVEAEtaEq.jpg
    80.1 KB · Views: 56
  • Eri-NoJUcAcbpMR.jpg
    80.4 KB · Views: 57
  • Eri-NoNVkAcDk-_.jpg
    82.5 KB · Views: 54
  • Eri-NpzUYAsTl6b.jpg
    76 KB · Views: 57

drfunk2k

Grand Master
Joined
Dec 31, 2018
Messages
558
Reaction score
811
Location
Nanjing, China

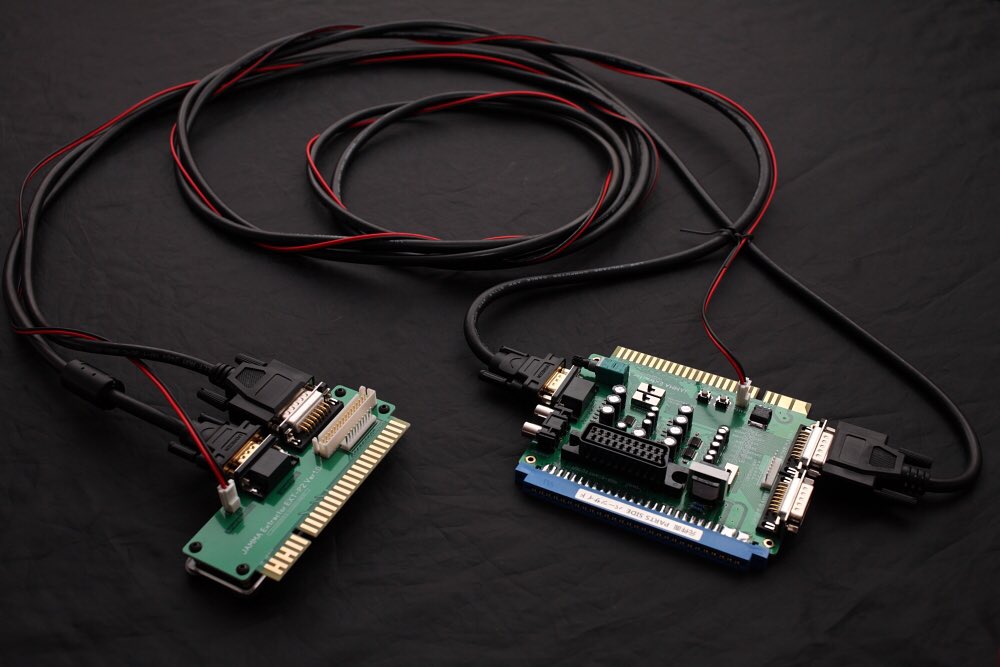

2P Extention for the JAMMA Extractor
