Havent built any in a while due to being lazy.
I make them by hand, so takes some effort :)

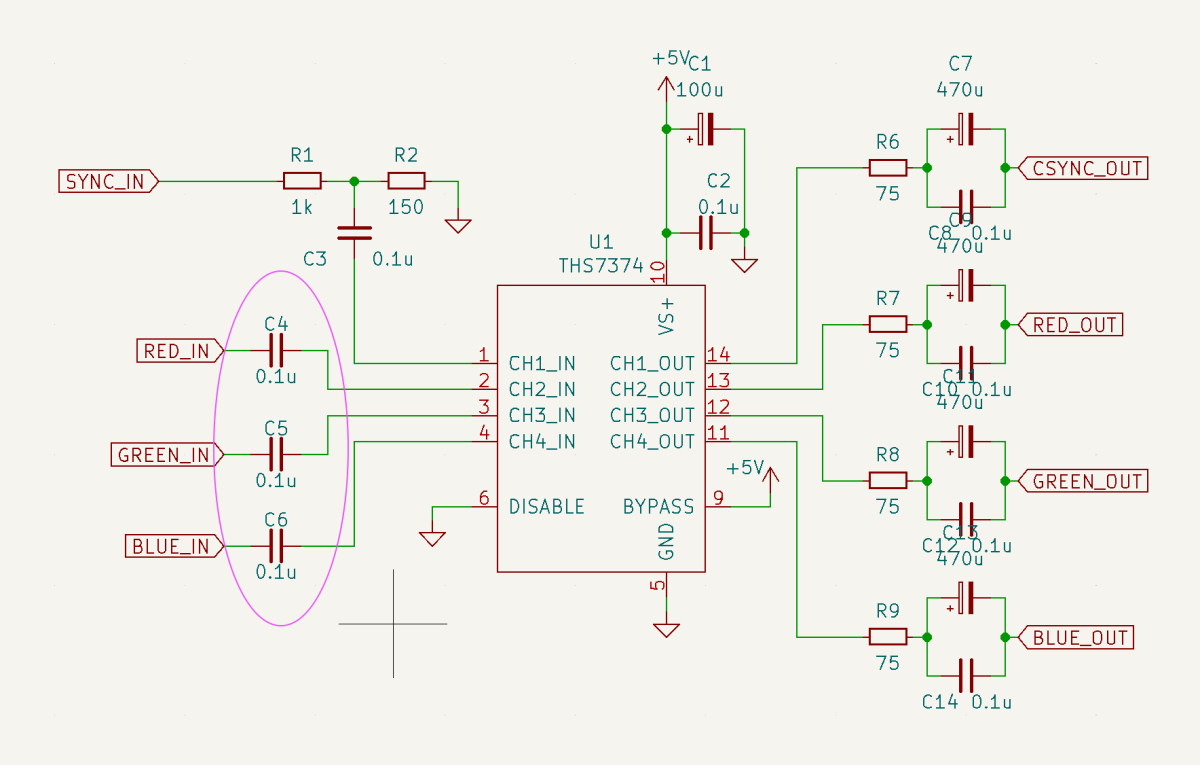

Design is open, so others are fine to build them too though.


Velyks

Student
Joined
Jul 31, 2019
Messages
53
Reaction score
6
Location
London
Looks like the TY-250P is out of stock until December :( Are there any alternatives for that part?


mbg

Beginner
Joined
Aug 23, 2020
Messages
11
Reaction score
1
Location
Racing capitol of the world
I am building one now, if it works out, I'll make a few available....


Softdrink

Enthusiast
Joined
Jun 26, 2020
Messages
58
Reaction score
141
Location
Southern California
Just wanted to say that I purchased a BetsuBetsu assembled from @RandomRetro a few weeks ago, and it's been a fantastic addition to my setup. I'm still ironing out some other kinks with my cabinet streaming setup, but this device has dramatically improved the quality of what I can get from my cabinet. Thanks @buffi for designing it and answering some of my questions!


RandomRetro

Professional
Joined
Jan 19, 2020
Messages
493
Reaction score
315
Location
United States
Just wanted to say that I purchased a BetsuBetsu assembled from @RandomRetro a few weeks ago, and it's been a fantastic addition to my setup. I'm still ironing out some other kinks with my cabinet streaming setup, but this device has dramatically improved the quality of what I can get from my cabinet. Thanks @buffi for designing it and answering some of my questions!
Glad it is working out @Softdrink, and agree a special thanks to @buffi for open sourcing the design. I have a couple more boards if anyone is looking for one.


buffi

Grand Master
Joined
Aug 12, 2019
Messages
523
Reaction score
681
Location
Sweden
Just wanted to say that I purchased a BetsuBetsu assembled from @RandomRetro a few weeks ago, and it's been a fantastic addition to my setup. I'm still ironing out some other kinks with my cabinet streaming setup, but this device has dramatically improved the quality of what I can get from my cabinet. Thanks @buffi for designing it and answering some of my questions!
Glad you are liking it and thanks RandomRetro for building them :)


psychicdrive

Student
Joined
Jan 13, 2018
Messages
39
Reaction score
45
Location
Warren, Michigan
thanks for making all these files available! I just made my first JAMMA passthru for a different project and thought about trying to make something like this for myself since I'll be wanting roughly 10 of them so that any of the cabinets I bring to an event can have an output panel on the back.


RandomRetro

Professional
Joined
Jan 19, 2020
Messages
493
Reaction score
315
Location
United States
Hello,

Are you still making them? I'd like to order one or two...
Shoot me a direct message @Hackcell. I may have one, but worst case need some parts for the next batch, but can get something out likely in the next month or two if you can wait.


RandomRetro

Professional
Joined
Jan 19, 2020
Messages
493
Reaction score
315
Location
United States
Thanks for building them. I'm still way too lazy
Haha, nah, you are too busy with dumping some crazy ROMs and 1CCing games.

I enjoying building them to be honest, and learning off your design. My 2021 goal is to make a pull request to the project!


Psyko-M1

Champion
Joined
Jun 10, 2018
Messages
1,133
Reaction score
1,699
Location
Chicago
I do wish the Betsu formula had the same magic in them to balance the sync from the Taito F3 / other odd arcade boards with an OSSC or Capture card.
I've tried everything to get them to sync properly, including a litttle sync cleaner that converts the 8pin DIN to 15pin.


Psyko-M1

Champion
Joined
Jun 10, 2018
Messages
1,133
Reaction score
1,699
Location
Chicago
Haha yeah, it definitely doesn't handle that well.
It shakes all over the place for me

View: https://www.youtube.com/watch?v=cMSzxQjj6ZE
So I learned a fun hack that kinda works.
If you are not getting a stable signal from the OSSC from an F3/Betsu setup, switch to the active (AV2 or AV3) known-good input, and back to the F3.
You MUST have something connected and running on the OSSC to lock onto in AV2 or AV3.
Eventually the OSSC will lock onto the F3, and be stable AF. (BUT only when you are streaming out of the betsu as SCART to AV1 on the OSSC)
Sometimes you need to flip back and forth a couple of times until it works.
It's stupid, but that's what I saw on some development notes here about it

http://junkerhq.net/xrgb/index.php?title=F3.

In my dual cabinet setup, my Blast city has a splitfire (VGA), and my NAC has a Betsu (scart) going into my OSSC.
The OSSC is default settings outputting to a Datapath E1S capture card via HDMI.
I lose signal out of the OSSC to my capture card. (YES I've also lost image from the OSSC with a monitor directly connected to it)
The OSSC can't handle some of the output from the betsu as good as the Splitfire does.
Meanwhile the splitfire in my Blast sends a buttery locked signal to the OSSC to digest, no matter the PCB.

Usually I see this happen with boards that have low video output, flashy graphics, or weird sync.
The below boards and conditions have been noted.
-Taito F3 - almost all games
-Irem M72/92
-Some STV games (like Diehard that switch resolutions quickly)
-SETA SSV (I get flicker/jumping, or no signal at all
-Seibu Kaihatsu games (when you bomb the screen with massive flicker - Raiden fighters series)
-CPS2 (also when you bomb the screen with flicker. Diamahoo does this)
-CAVE EsPaRaDe (Magician boss when he moves with echo flicker pattern around screen)

I know I have a list of more, but that's off the top of my head with concern to streaming my PCBs on a rotating and regular basis.

@evilsim makes these sweet 8pin DIN to VGA sync cleaners.
They're convenient if you want to run all your cabs with a VGA splitter into your OSSC vs SCART + VGA
They didn't solve my problems, but they are nice to have around.


In a perfect world, I get a scaler per cabinet, set individual profiles for board sets, and run a HDMI switch into my capture card.
For now the above solution of both cabinets (NAC w/ SCART, and Blast w/ VGA going in the OSSC) is the best I can do despite screwing with timings, and other OSSC tweaks.

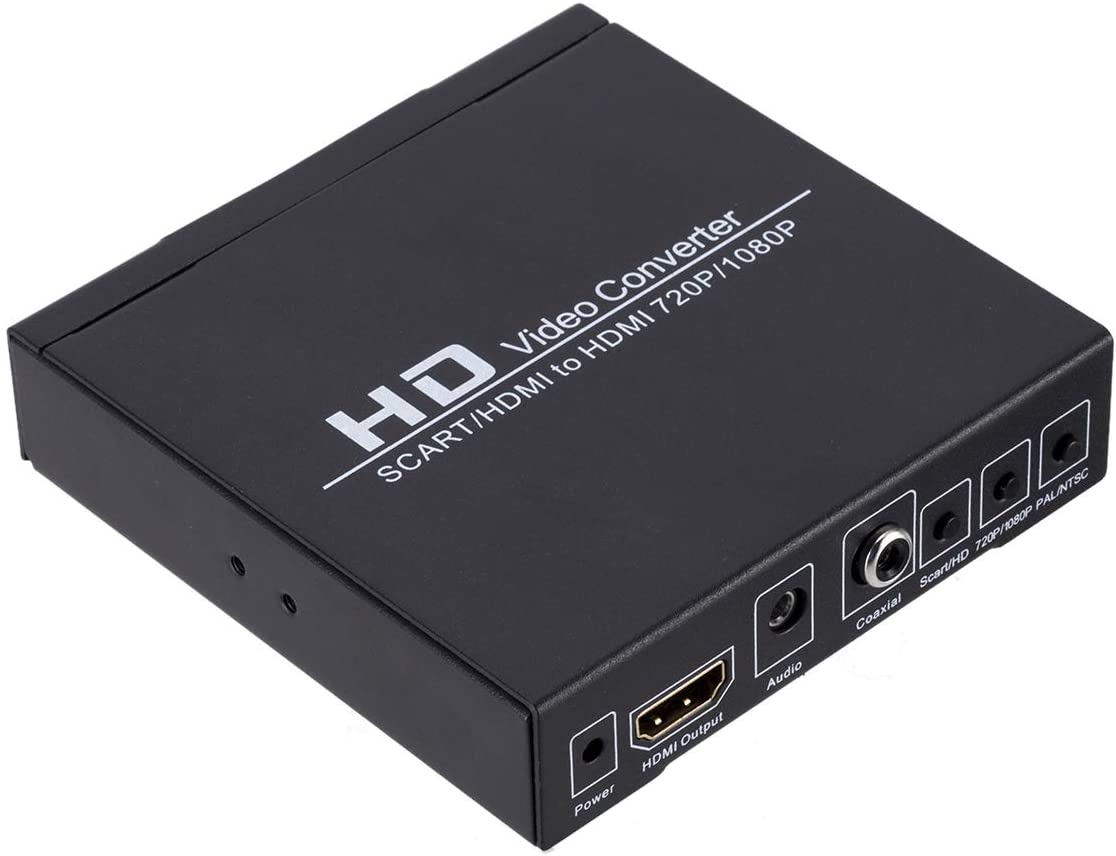

for now... this stupid shit-scaler is the only thing that seems to take whatever signal I throw at it, and it handles it. (not great, but it does the job enough)

My solution is really solved by either finding another Splitfire, or a compatible scaler with the above solutions.

If ANYONE would be willing to sell me a spare Splitfire they have collecting dust on a shelf, please contact me ASAP.
I will love you long time.


nem

Enlightened
Joined
May 29, 2016
Messages
4,029
Reaction score
3,148
Location
Finland
@evilsim makes these sweet 8pin DIN to VGA sync cleaners.
They're convenient if you want to run all your cabs with a VGA splitter into your OSSC vs SCART + VGA
They didn't solve my problems, but they are nice to have around.

It's a @Frank_fjs design if anyone wants to build one:

https://www.arcade-projects.com/thr...open-source-supergun.9408/page-40#post-176279

Personally I use a Backporch:

https://www.arcade-projects.com/thr...tool-for-classic-consoles-connectivity.16694/

Likely no real difference between the two.
