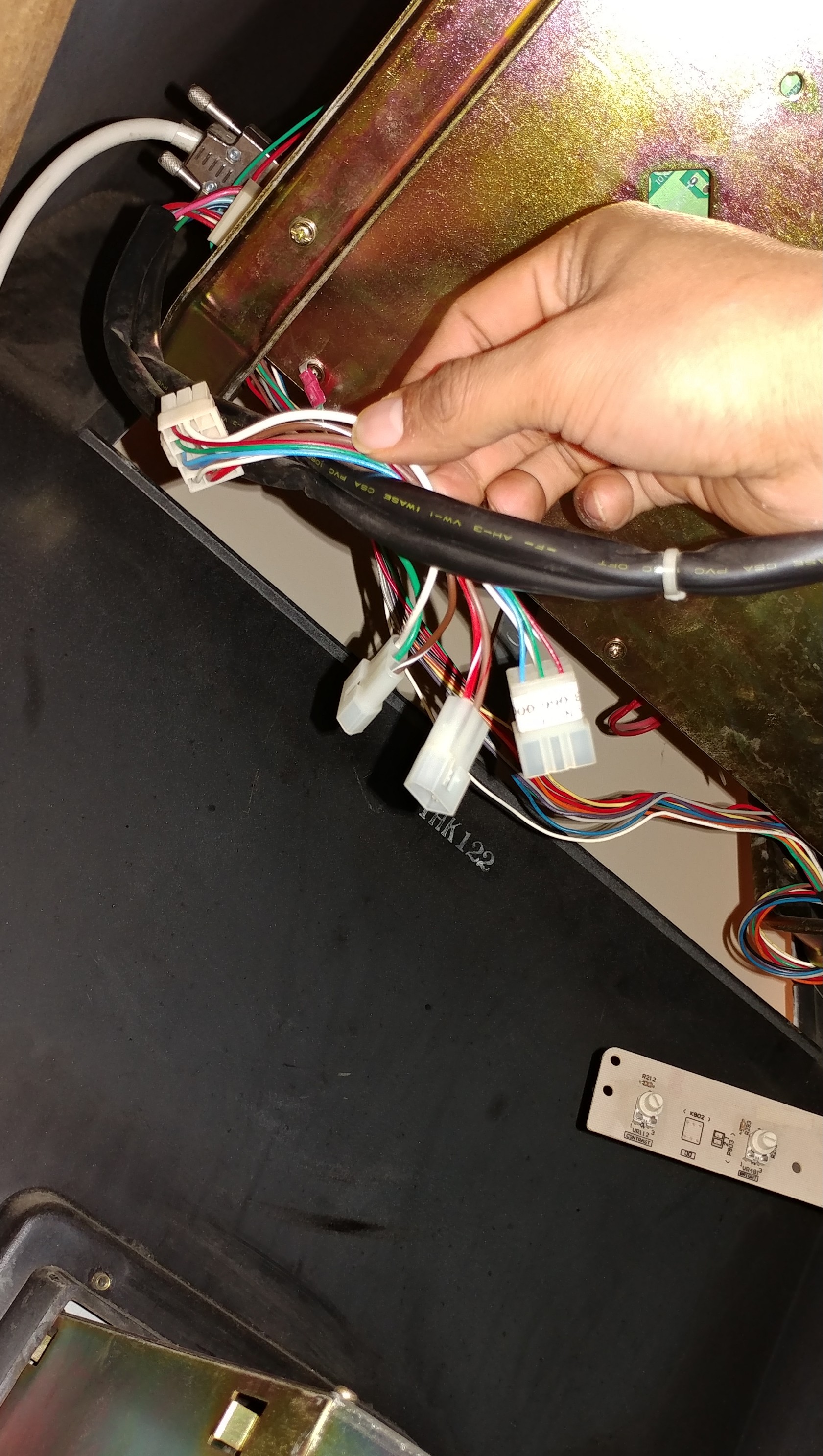

Hey, I have a blast city that is only getting video signal thru vga but not thru Jamma.
Is there a switch or a connection I need to have to have picture thru Jamma?
Any any to resolving this is greatly appreciated thanks!
(There is a connection hanging that says monitor but do not know if thats it or where its connected)


Attachments

  • 20180125_145732-1.jpg
    904.5 KB · Views: 485

SNK-NEO-GEO

Enlightened
Joined
Jul 21, 2015
Messages
3,176
Reaction score
1,800
Location
Virginia
I will take a look at my blast when I get home tonight. The cable on the right seems to be the video cables and the middle the power but not sure..


ThisGuy

Professional
Joined
Feb 18, 2017
Messages
486
Reaction score
215
Location
New york
Try taking monitor shroud off. Under shroud I have plugs for my monitor on my blast.


SNK-NEO-GEO

Enlightened
Joined
Jul 21, 2015
Messages
3,176
Reaction score
1,800
Location
Virginia

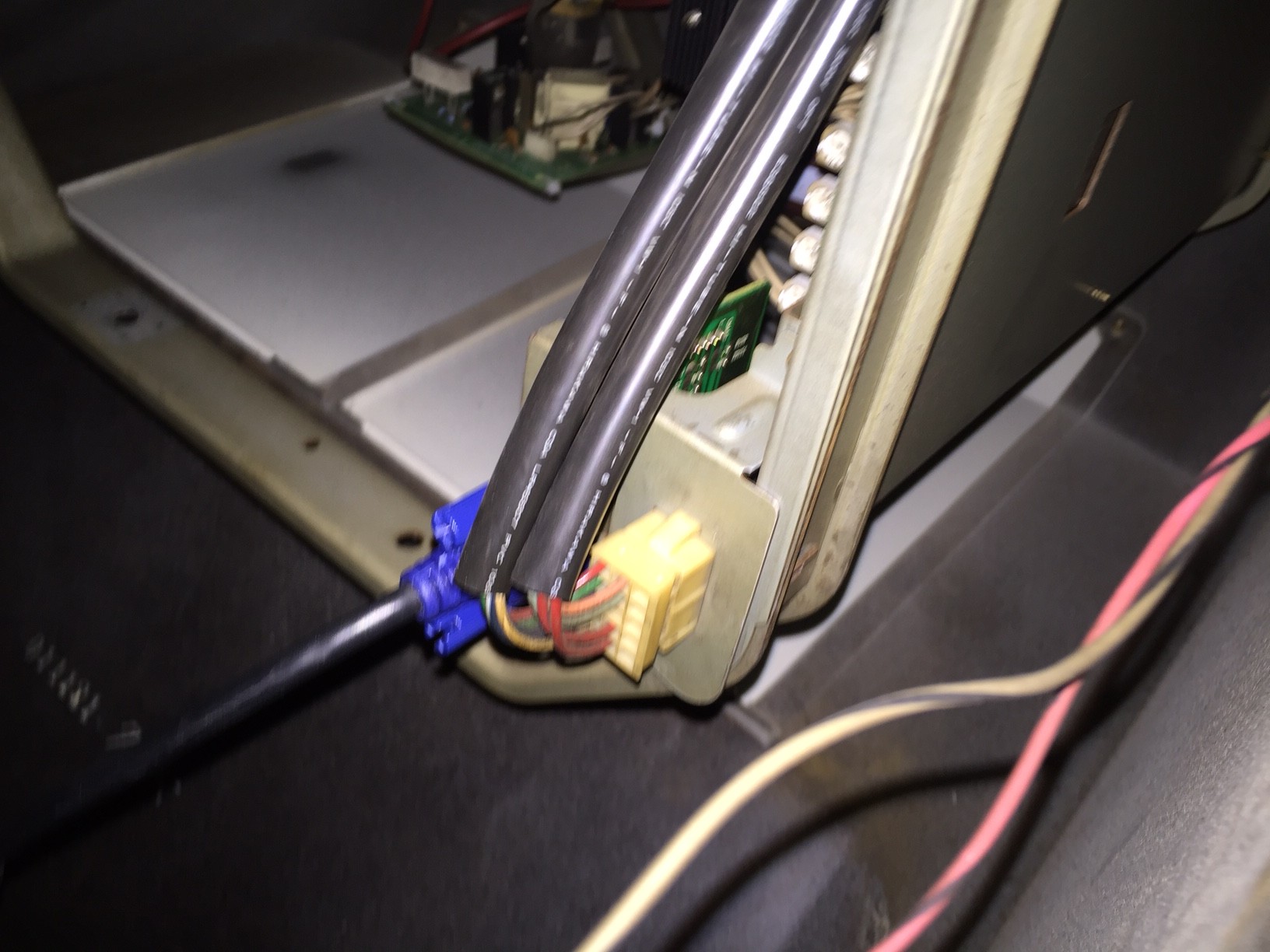

I looked at my blast and I could not locate wires that look like those..


Attachments

  • image1.JPG
    293.9 KB · Views: 222

nem

Enlightened
Joined
May 29, 2016
Messages
3,728
Reaction score
2,775
Location
Finland
What monitor do you have? That remote boards looks weird.

The stock monitor is either the MS-2930 or the MS-2931. If you have the first, there's dip switches on the remote board you have to set correctly. The latter is autosync.

However, the remote doesn't look like it belongs to either of these monitors ?(


ThisGuy

Professional
Joined
Feb 18, 2017
Messages
486
Reaction score
215
Location
New york
What monitor do you have? That remote boards looks weird.
Good point that remote board is definitely not a board ive seen on any blast city cabs before.
Try to follow the wires coming out of the chassis next to the vga plug(the ones with the black shielding on it)
Although my blast has different remote board the wiring coming out of chassis kinda looks the same
On my blast they go to plugs mounted on the monitor frame located behind shroud


Legend

Student
Joined
Dec 12, 2017
Messages
117
Reaction score
15
Location
USA
was looking and comparing to a friends blast city and yes looks like the monitor is different and was replaced.


Legend

Student
Joined
Dec 12, 2017
Messages
117
Reaction score
15
Location
USA

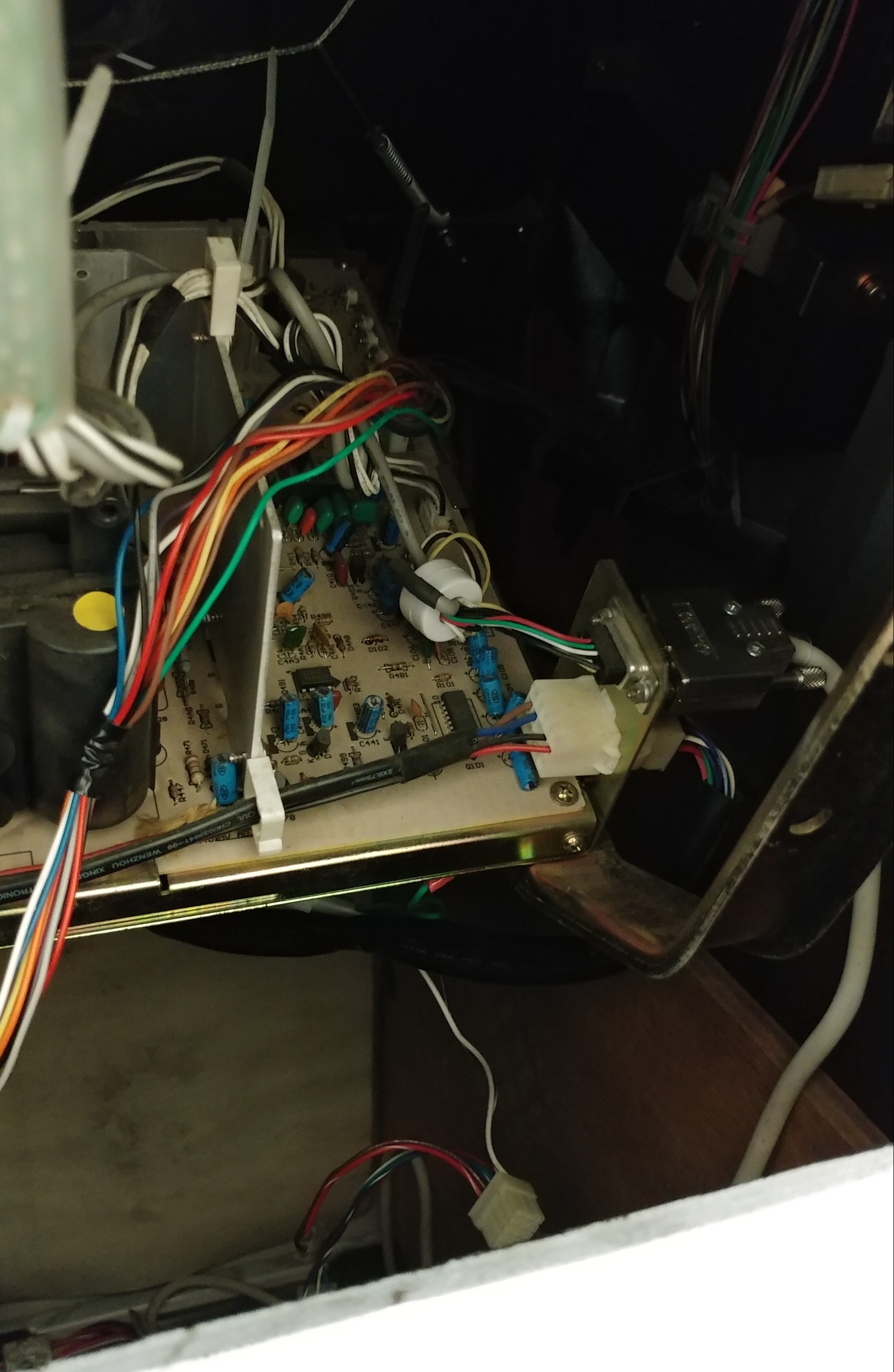

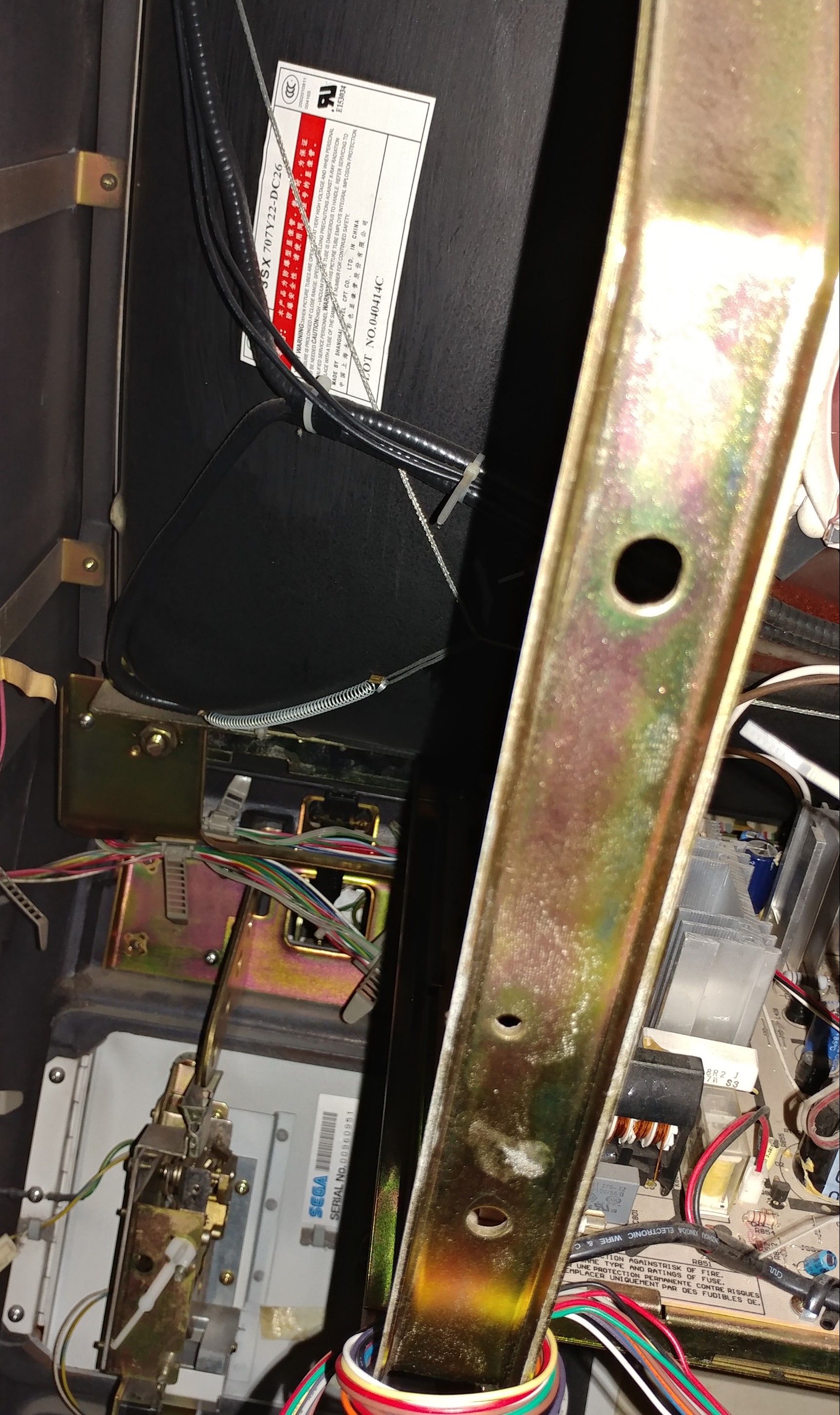

this confirms the monitor is not original and if you look close to the crt.connection under the vga not all wires go to the connection. But I can't see where I could run them and connect to have video thru Jamma.
Or is it a vga only monitor?


Attachments

  • 20180125_185440-1.jpg
    931.1 KB · Views: 208
  • 20180125_185223-1.jpg
    604.2 KB · Views: 212

Legend

Student
Joined
Dec 12, 2017
Messages
117
Reaction score
15
Location
USA
don't think its a sanwa as the tag doesn't match the one on the link.
But it may indeed only be vga


ThisGuy

Professional
Joined
Feb 18, 2017
Messages
486
Reaction score
215
Location
New york
don't think its a sanwa as the tag doesn't match the one on the link.
But it may indeed only be vga
Take a better picture of chassis or any identification numbers on chassis. Hopefully we can identify it


nem

Enlightened
Joined
May 29, 2016
Messages
3,728
Reaction score
2,775
Location
Finland
don't think its a sanwa as the tag doesn't match the one on the link.
But it may indeed only be vga
What, the sticker on the tube? It's just a different tube, that's all.

It's a Sanwa.


SNK-NEO-GEO

Enlightened
Joined
Jul 21, 2015
Messages
3,176
Reaction score
1,800
Location
Virginia
a way to know if the monitor is VGA only is to feed it a 15khz signal over the VGA input. Naomi set to 15khz will do the trick, or GroovyMame with an arcadeVGA or a compatible ATI card..

Also, look on the monitor board to see if there is a switch to toggle the frequency.. I had a Mickvision monitor that did this.


Legend

Student
Joined
Dec 12, 2017
Messages
117
Reaction score
15
Location
USA
/\ Yes! Thays true ill do that as it had a naomi with IO board before I tryed hooking up a cps2. And will get better pic to identify monitor.


Legend

Student
Joined
Dec 12, 2017
Messages
117
Reaction score
15
Location
USA
welp its confirmed that the monitor is 31khz vga only.
Oh well that meams naomi, atomiswave only.

One more question, whats the key # for the cash box sega cabs come with. My cab came with #5575 key that opens CP only.


nem

Enlightened
Joined
May 29, 2016
Messages
3,728
Reaction score
2,775
Location
Finland
The cash box keys are uniquely keyed. There's no master key for them. If you don't have a key, you will have to either pick it or drill it.
