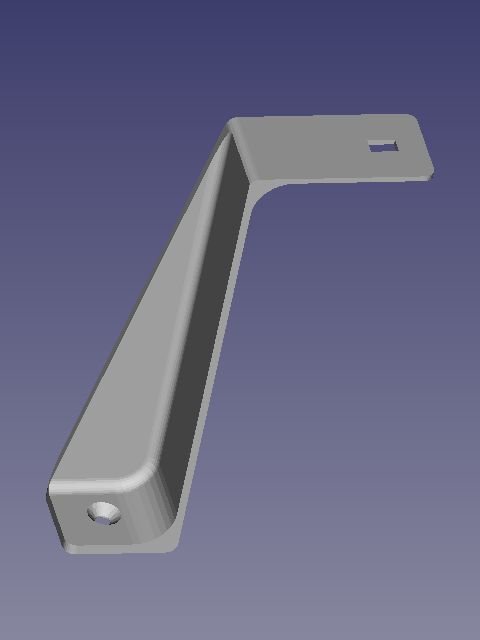

I modeled these tall feet / legs for the Capcom IO:

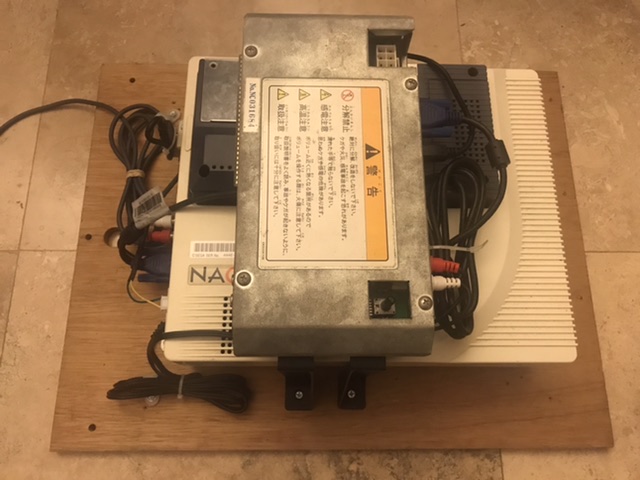

With these you can position the IO above the Naomi, like in this pic by @kikaso:



In the zip there's both left and right models for symmetry. You'll want to print two of each. Remember to print with supports to make sure the holes come out OK.


Attachments

  • capcom_io_legs.zip
    19.8 KB · Views: 101

West

Grand Master
Joined
Jul 24, 2015
Messages
476
Reaction score
686
Location
Brooklyn, NY
Very nice @nem! Thanks for making these. Pushes me that much closer to "needing" to get a 3D printer ;)

If I was to print these on their side, what kind of dimensions are we looking at, ie. how big of a print volume will I need to print these?


nem

Legendary
Joined
May 29, 2016
Messages
5,645
Reaction score
5,734
Location
Finland
It's not going to be an issue. You can easily print all four at the same time on a 20 x 20 cm printer (are there even any that have a bed that small? My Sovol is 30 x 30cm).

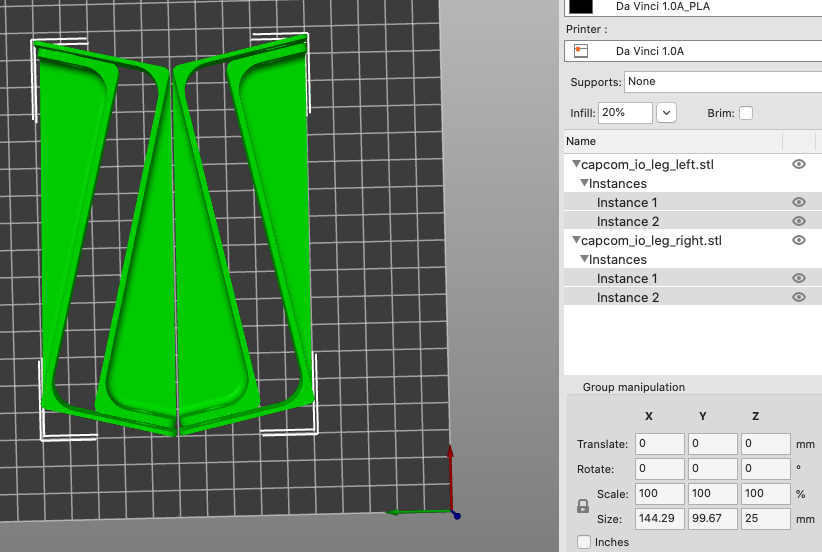

One leg is roughly 127 x 78 mm, but it's an S shape, so you can do this:



The above would need a surface area of 140 x 196 mm to print.
