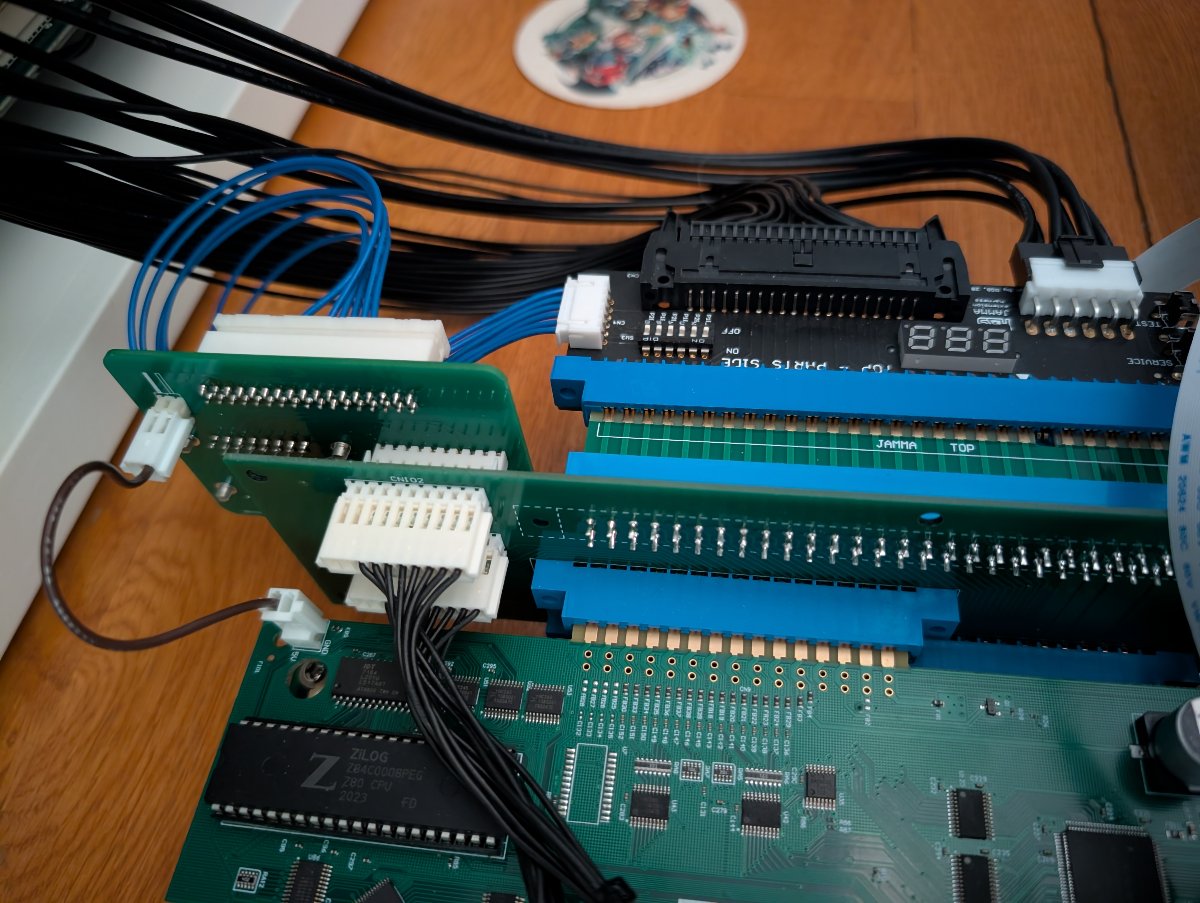

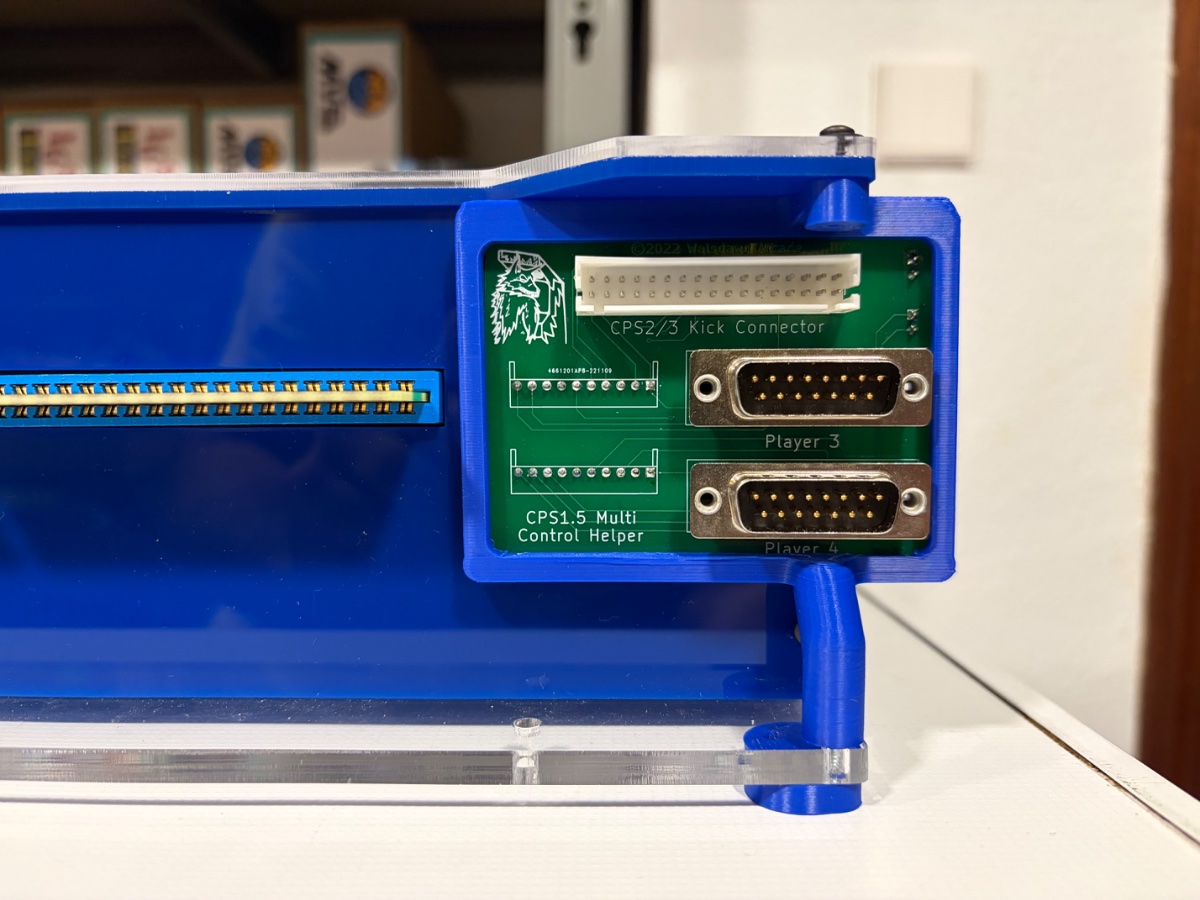

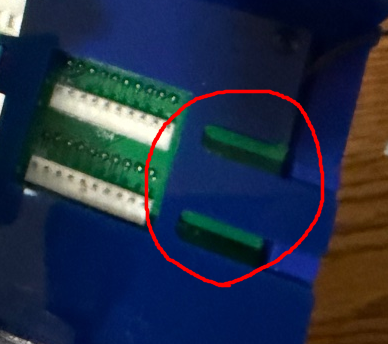

mR_CaESaR Champion Joined Jul 10, 2018 Messages 1,362 Reaction score 1,987 Location Sydney, Australia Apr 27, 2023 #21 Yeah I figured it out. Thanks. I'm just using the hole on the case instead of rerouting through the jamma edge fingerboard
Yeah I figured it out. Thanks. I'm just using the hole on the case instead of rerouting through the jamma edge fingerboard

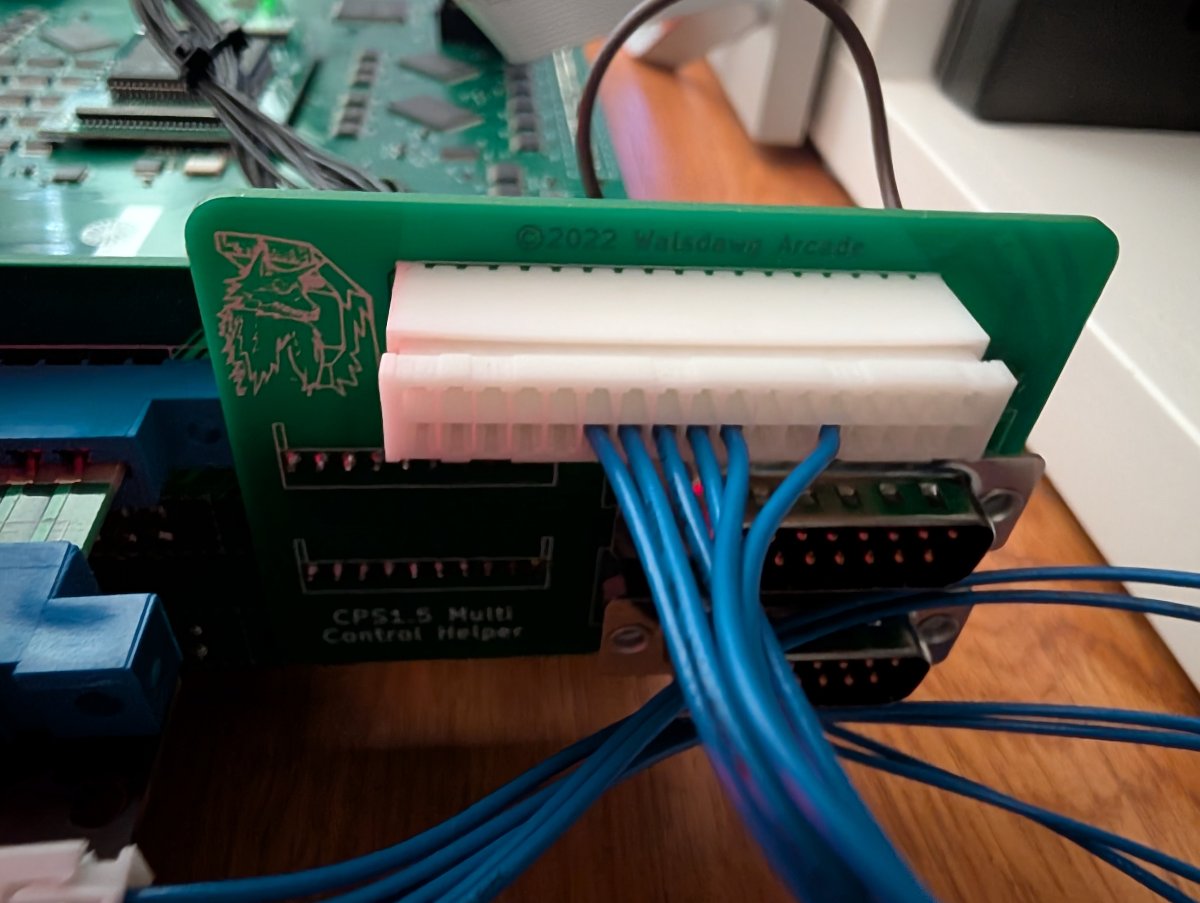

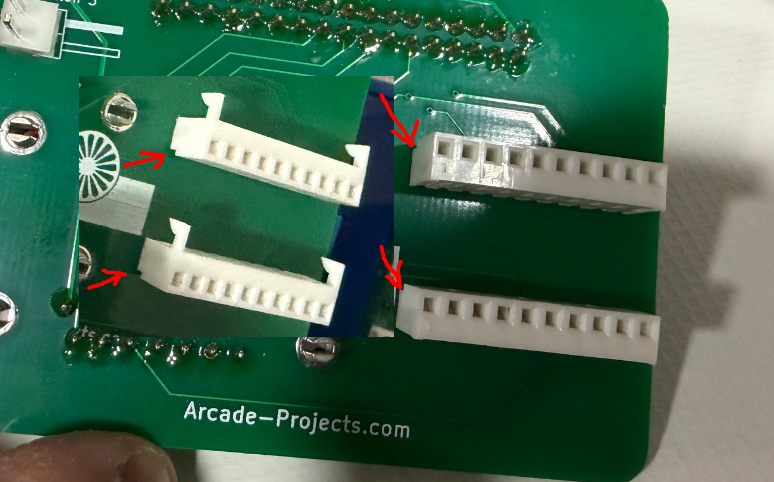

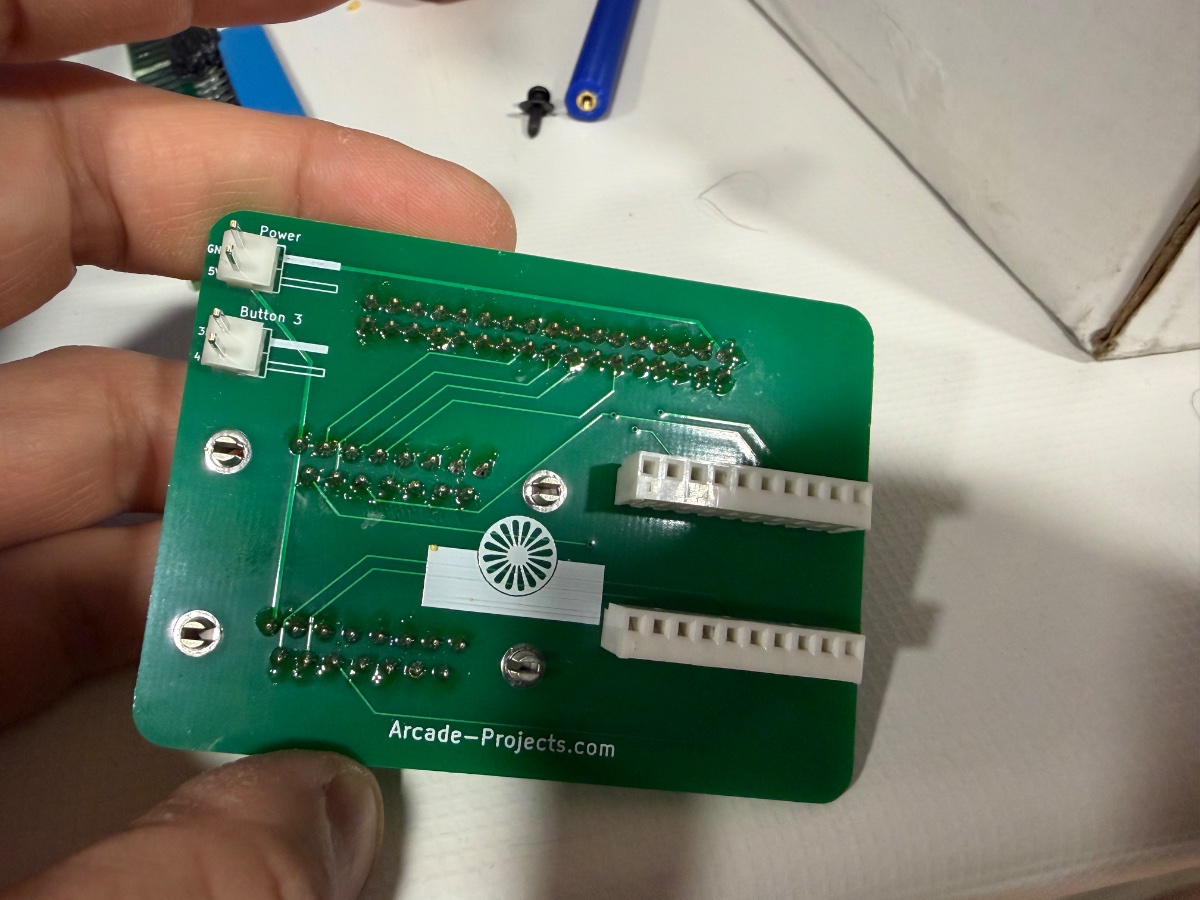

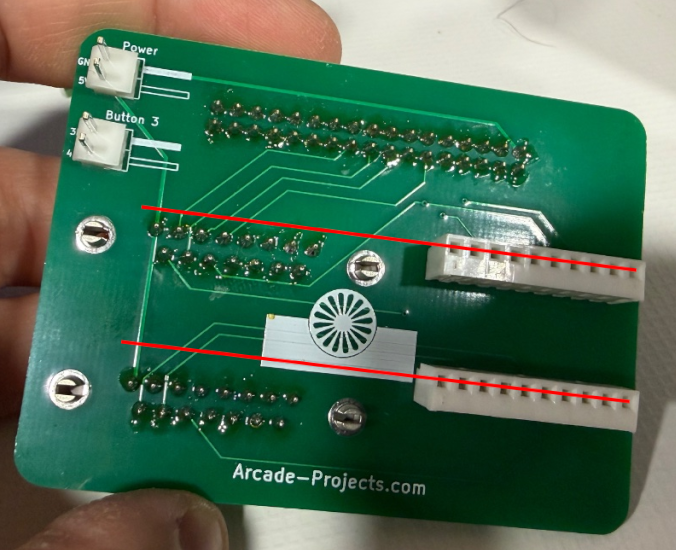

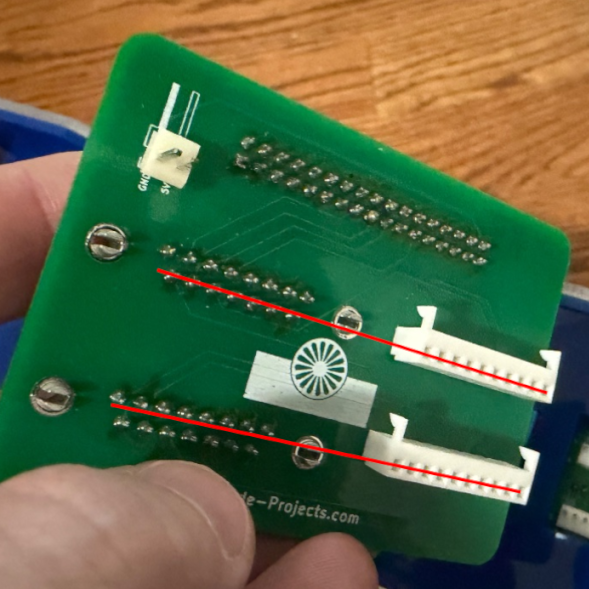

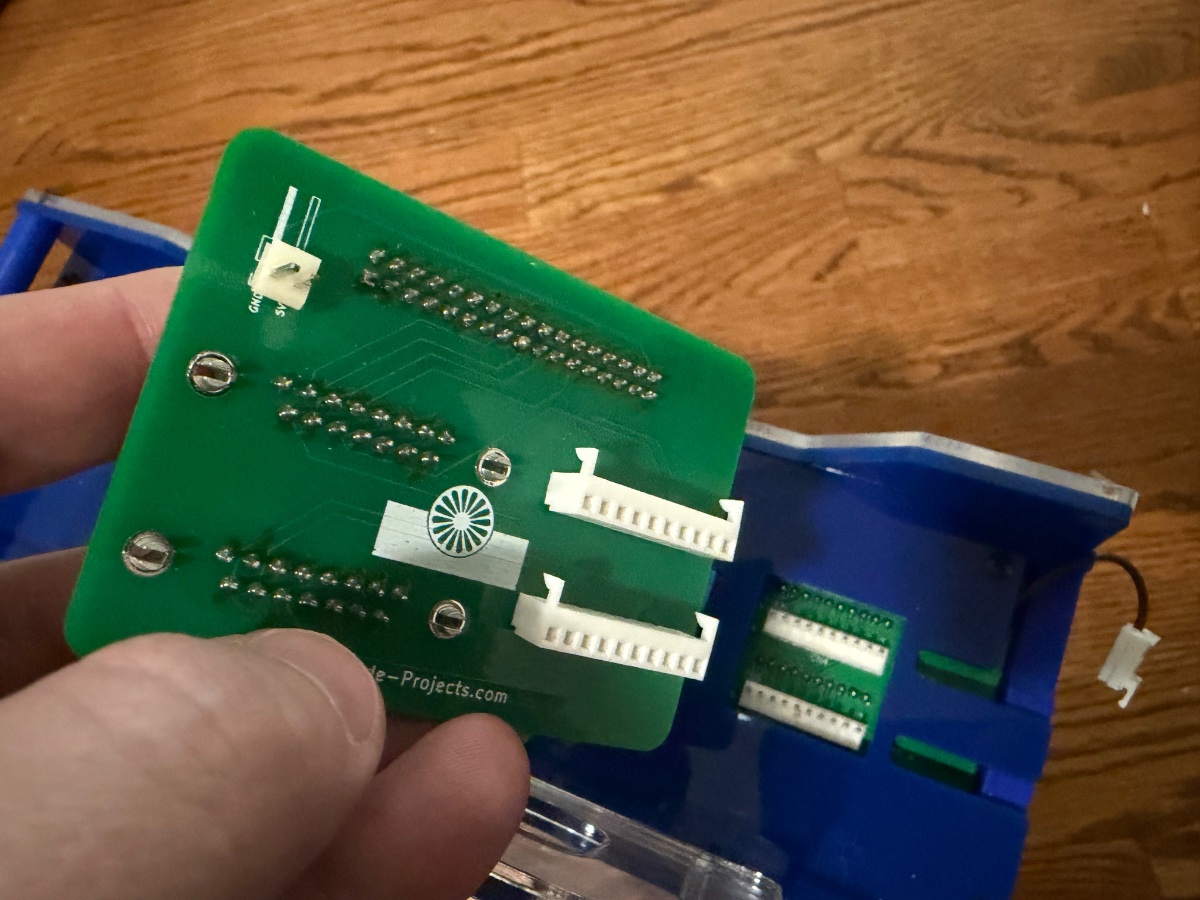

lilo-san Beginner Joined Nov 11, 2022 Messages 9 Reaction score 6 Location Switzerland Jun 3, 2023 #22 Mitsurugi blue/yellow cables on the first photo seem to have all 10 cables on the connector. But other people photos that I seen have only 8 of the 10 cables. Can someone explain the details of why these extra cables are or not needed?
Mitsurugi blue/yellow cables on the first photo seem to have all 10 cables on the connector. But other people photos that I seen have only 8 of the 10 cables. Can someone explain the details of why these extra cables are or not needed?
Mitsurugi-w Arcade Admini-Moderator Staff member Immortal Joined Jun 12, 2015 Messages 7,951 Reaction score 10,227 Location New Bern, NC USA Jun 3, 2023 #23 The blue and yellow cables were made by me before I knew that only 8 wires are used for each connector.
The blue and yellow cables were made by me before I knew that only 8 wires are used for each connector.
lilo-san Beginner Joined Nov 11, 2022 Messages 9 Reaction score 6 Location Switzerland Jun 3, 2023 #24 So last 2 cables are just connected to nothing? Why the boards have a 10 pin instead of a 8 pin?
Mitsurugi-w Arcade Admini-Moderator Staff member Immortal Joined Jun 12, 2015 Messages 7,951 Reaction score 10,227 Location New Bern, NC USA Jun 3, 2023 #25 Because thats what Capcom used on the CPS1 pcbs.
N Newbill New User Joined Apr 12, 2023 Messages 3 Reaction score 1 Location France Jul 8, 2023 #26 Hello, PM to get adapter and cables...
D danringer Student Joined Jan 6, 2024 Messages 70 Reaction score 43 Location US-MA Feb 12, 2024 #27 DRAGONKZ said: Are you able to shed any light on that extra wire needed for slam master? Thanks! Click to expand... @Mitsurugi-w where does this wire go?
DRAGONKZ said: Are you able to shed any light on that extra wire needed for slam master? Thanks! Click to expand... @Mitsurugi-w where does this wire go?
Mitsurugi-w Arcade Admini-Moderator Staff member Immortal Joined Jun 12, 2015 Messages 7,951 Reaction score 10,227 Location New Bern, NC USA Feb 12, 2024 #28 3 player shot 3 is jamma pin 25 4 player shot 3 is jamma pin lower case c You can solder them to the filterboard on those pins.
3 player shot 3 is jamma pin 25 4 player shot 3 is jamma pin lower case c You can solder them to the filterboard on those pins.
