hopefully one gets found soon. I bought this panel specifically to install a volume knob and really dont want to drill and potentially mess the panel up


VxD

Student
Joined
May 18, 2019
Messages
79
Reaction score
79
Location
Japan
In a gamble, I bought this volume controller from Amazon Japan and ended up with the same (wrong) potentiometer as everyone else: the thread ends just below the top of the panel and the nut is not usable.

Other potential candidates:
I may try and order the last one; since it is deeper than the others, I am hopeful it would do the trick, but there is no way to be sure without potentially wasting yet another $20.
Would anyone be willing to give it a try, for science?

Worst case scenario, I guess one should be able to secure the potentiometer to the panel with superglue or tape from below.

Last edited:

VxD

Student
Joined
May 18, 2019
Messages
79
Reaction score
79
Location
Japan
Thanks for the updates, @jermz1.

As I would still rather prefer a non-permanent solution, I am currently thinking about using a rivet nut or something similar. If all else fails, the last resort is the adhesive route indeed.


VxD

Student
Joined
May 18, 2019
Messages
79
Reaction score
79
Location
Japan
Sadly @nem, that won’t do.
You need two gangs to keep both the left and right stereo channels separate while adjusting them both at the same time.


nem

Legendary
Joined
May 29, 2016
Messages
5,175
Reaction score
4,919
Location
Finland
Sadly @nem, that won’t do.
You need two gangs to keep both the left and right stereo channels separate while adjusting them both at the same time.
Oh right X/

Nevermind then.


Epyc

Enthusiast
Joined
Apr 10, 2018
Messages
237
Reaction score
194
Location
CA, USA

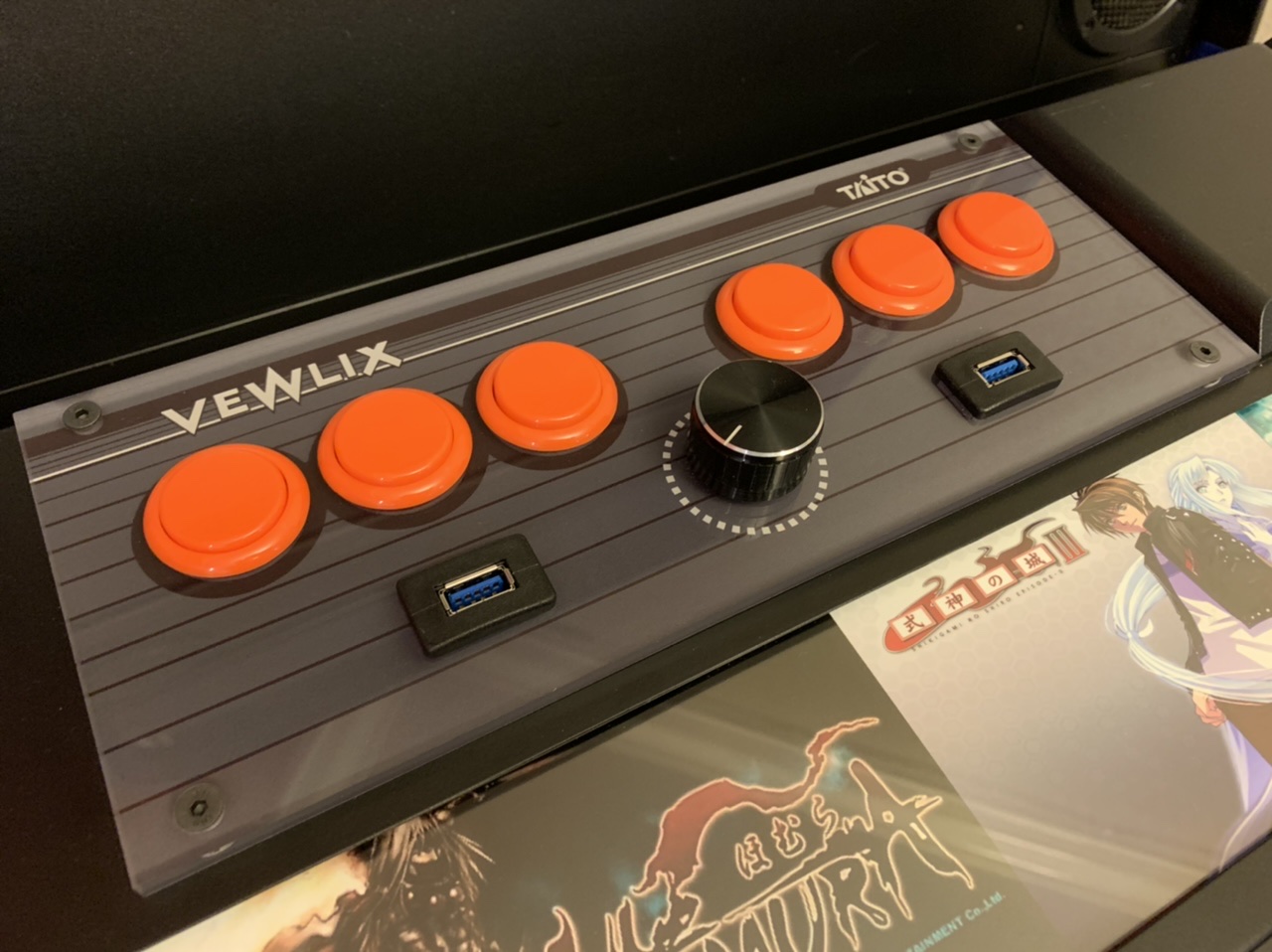

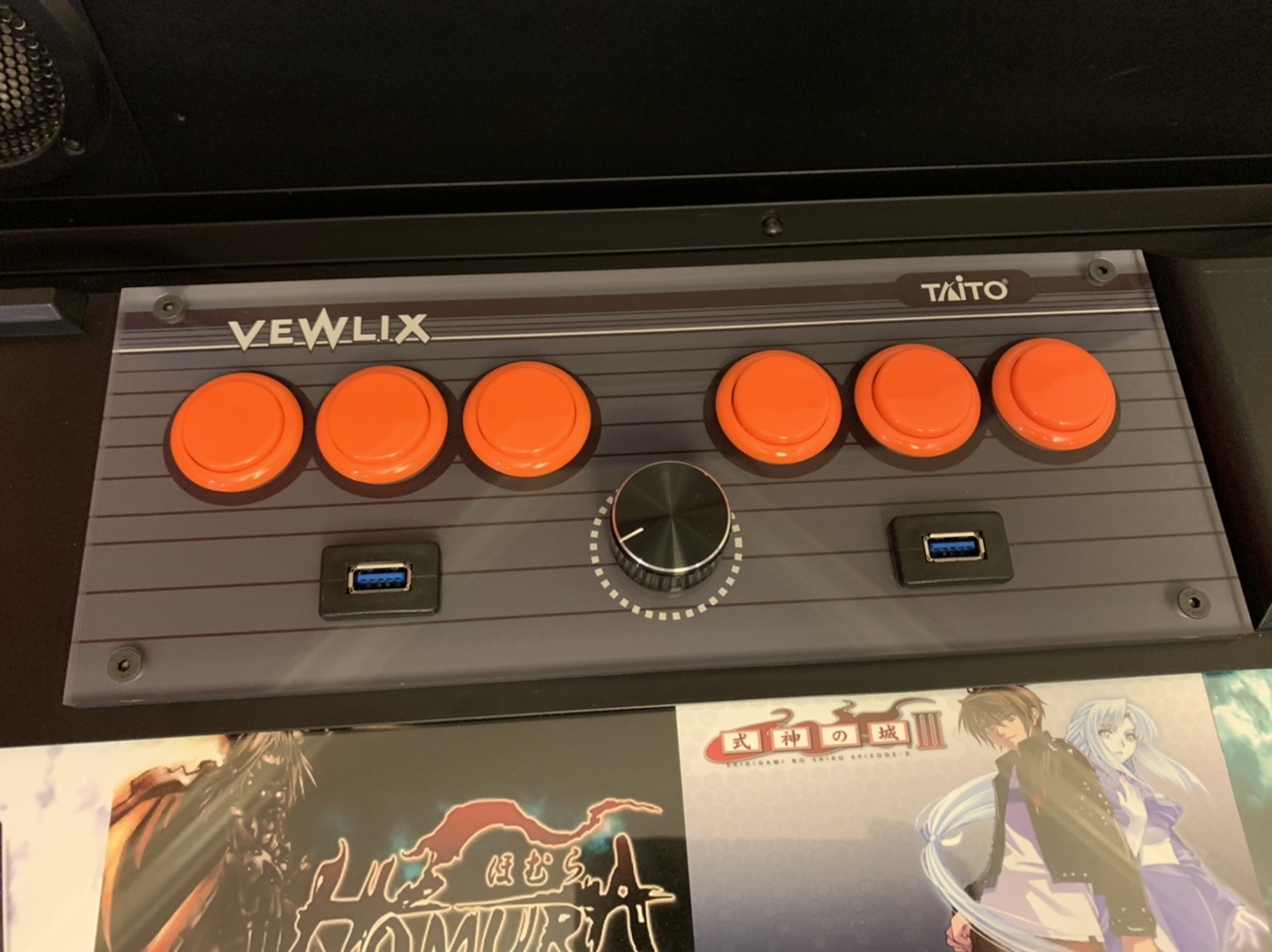

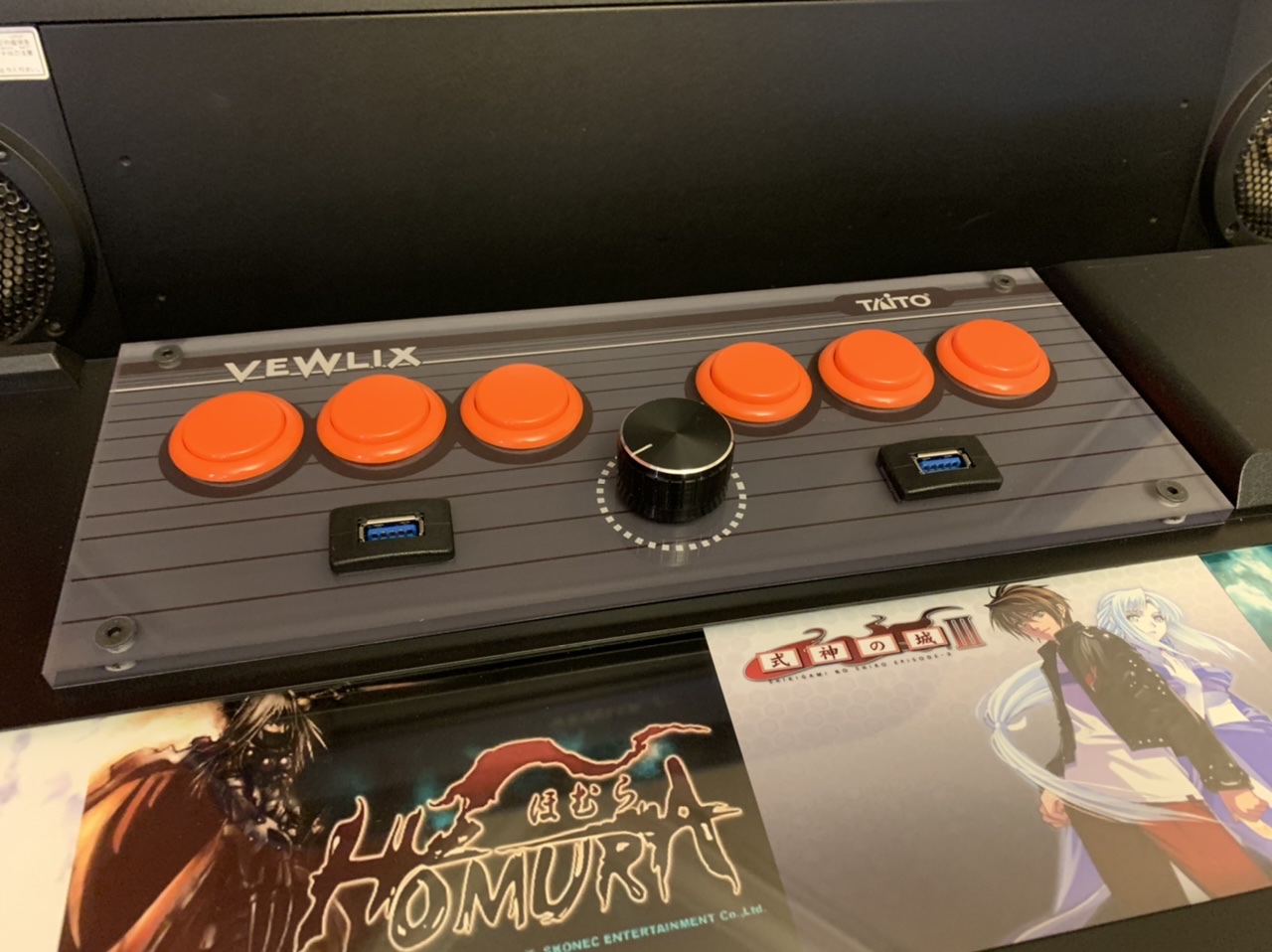

The panel looks amazing! Really professional looking. My thread on the volume knob was also short. Here’s what I ended up doing..

Epoxy a small plexi to top of the knob. I shaved it down to get it as flat as possible.

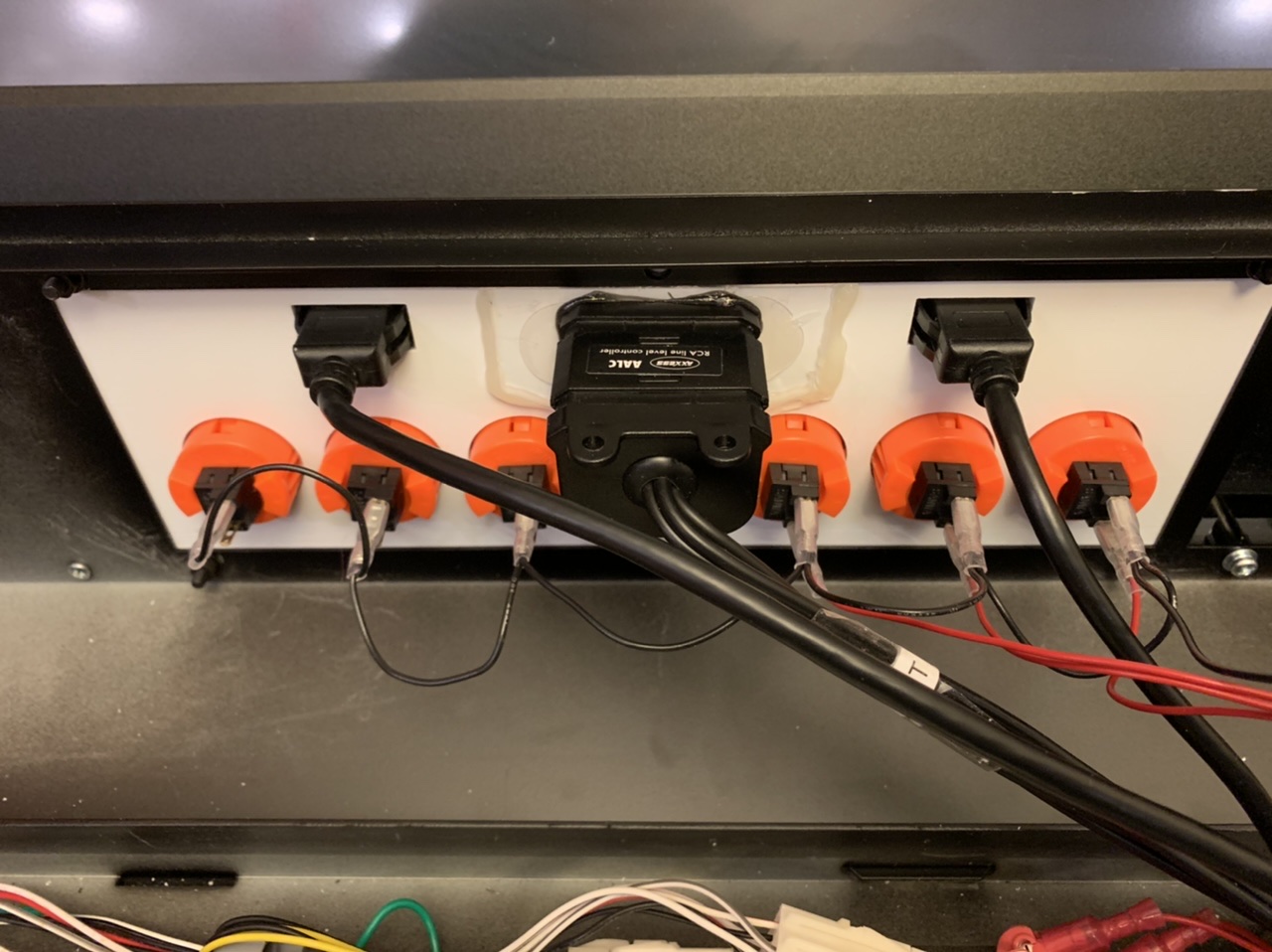

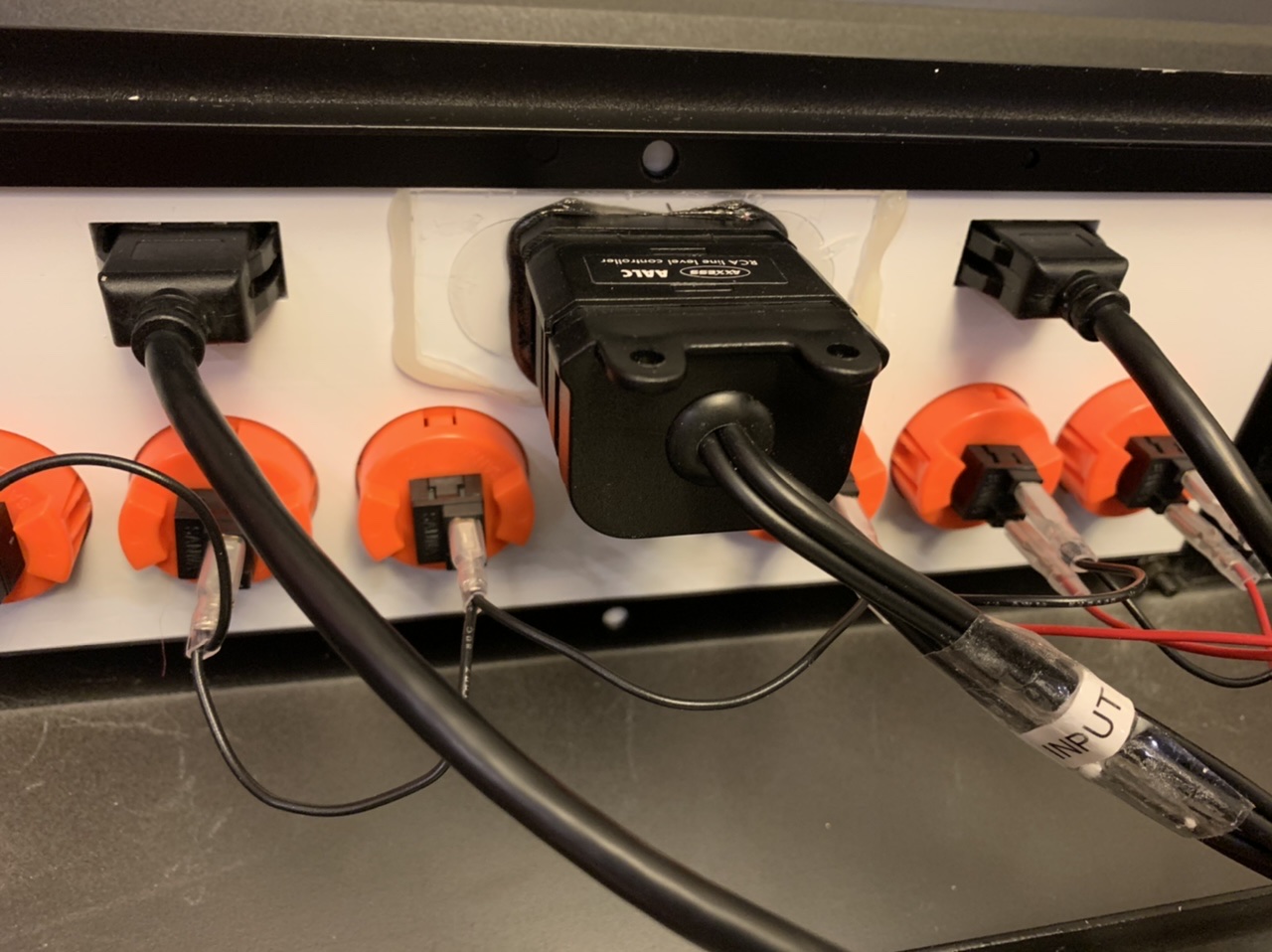

I then mounted that plexi to the bottom of the panel and used hot glue to adhere them together. I used hot glue here because it’s easily removable if I ever need to.


Attachments

  • F88AAFCB-C9DC-4C40-BE5C-AF81A2163AF2.jpeg
    268.6 KB · Views: 346
  • 4353FE1E-B60F-40B8-BDAF-2450955F73E0.jpeg
    261.3 KB · Views: 370
  • 9A4A5532-2705-4D8F-93F7-E11307C7338E.jpeg
    256.1 KB · Views: 358
  • 00BEB6AF-6DA4-435C-ADAC-1C1B20C107D3.jpeg
    270.6 KB · Views: 321
  • EF719990-3248-4D6C-AFCA-F8B532E98952.jpeg
    262.8 KB · Views: 338
Last edited:

VxD

Student
Joined
May 18, 2019
Messages
79
Reaction score
79
Location
Japan
Thanks @Epic for the description!
That’s a great idea.

What I did for now is stick some double-sided tape on the volume controller front panel, remove the nut from the potentiometer, and simply stick the controller to the aux panel from the botttom.

Now the next problem is that the actuator is too small to fit into the volume knob, but it’s easier to solve with everyday items.


yuro

Student
Joined
Mar 2, 2017
Messages
168
Reaction score
81
Location
Dublin, CA
Anyone else made any progress? I'm inclined to go the route that @Epic did.

@Epic, I like the counter sunk screws. Got a link for those specific screws?


Epyc

Enthusiast
Joined
Apr 10, 2018
Messages
237
Reaction score
194
Location
CA, USA
Anyone else made any progress? I'm inclined to go the route that @Epic did.

@Epic, I like the counter sunk screws. Got a link for those specific screws?
I believe I used the M4 bolt in this kit. I slowly countersunk the holes by hand to make sure I removed just the perfect amount of material off panel for it to sit flush.

Comdox 500pcs Alloy Steel Socket Cap Screws Hex Head Bolt Nuts Assortment Kit with Box, Allen Socket Drive, Fully Threaded, Black Oxide Finish (M3 M4 M5) https://www.amazon.com/dp/B071VBL355/ref=cm_sw_r_cp_api_i_BDagEbACG3HM0


jermz1

Professional
Joined
Dec 2, 2017
Messages
332
Reaction score
364
Location
South Korea
Alright guys, i think i found a fix for this.
went to my local hardware store, looked through every piece of hardware, and narrowed it down to this rubber grommet.
It fits snug between the stem and panel. Might take a bit of work to get it in just right but it works.
Vid of it in Action
