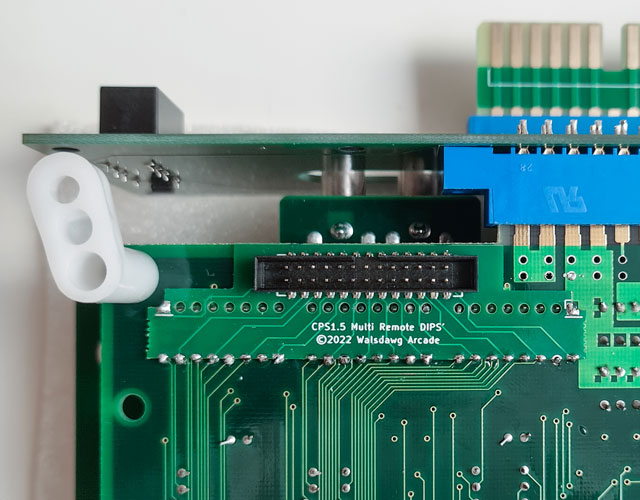

You are soldering to the leads of the original dips that are sticking through the bottom. The pcb fits snuggly around the leads so IMHO soldering should be super easy. Maybe some of the others who have installed the other remotes can chime in.


Mitsurugi-w

Arcade Admini-Moderator
Staff member
Immortal
Joined
Jun 12, 2015
Messages
7,448
Reaction score
8,727
Location
New Bern, NC USA

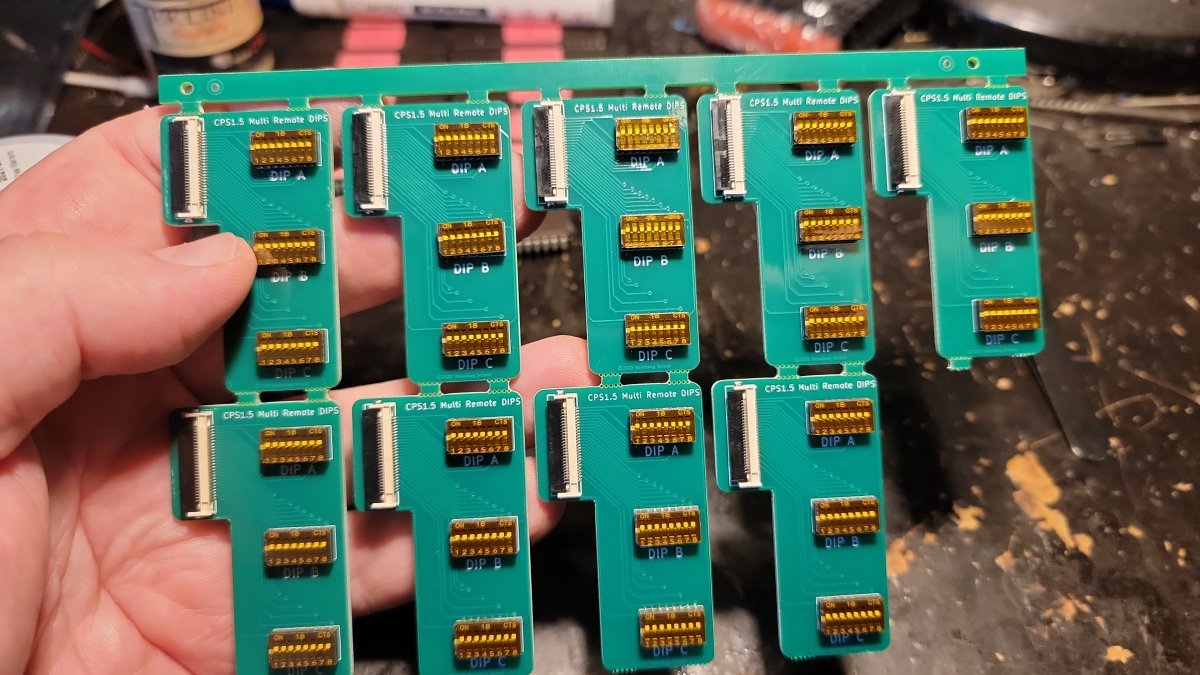

Filter dips have arrived!



Discuss here: https://www.arcade-projects.com/threads/cps1-remote-dipswitch-options.21830/post-335648


Mitsurugi-w

Arcade Admini-Moderator
Staff member
Immortal
Joined
Jun 12, 2015
Messages
7,448
Reaction score
8,727
Location
New Bern, NC USA
I begin shipping orders with filter dips tomorrow. If you want a specific cable length message me tonight. Otherwise I will default to 20cm cable. I also have 25cm and 40cm.


Mitsurugi-w

Arcade Admini-Moderator
Staff member
Immortal
Joined
Jun 12, 2015
Messages
7,448
Reaction score
8,727
Location
New Bern, NC USA

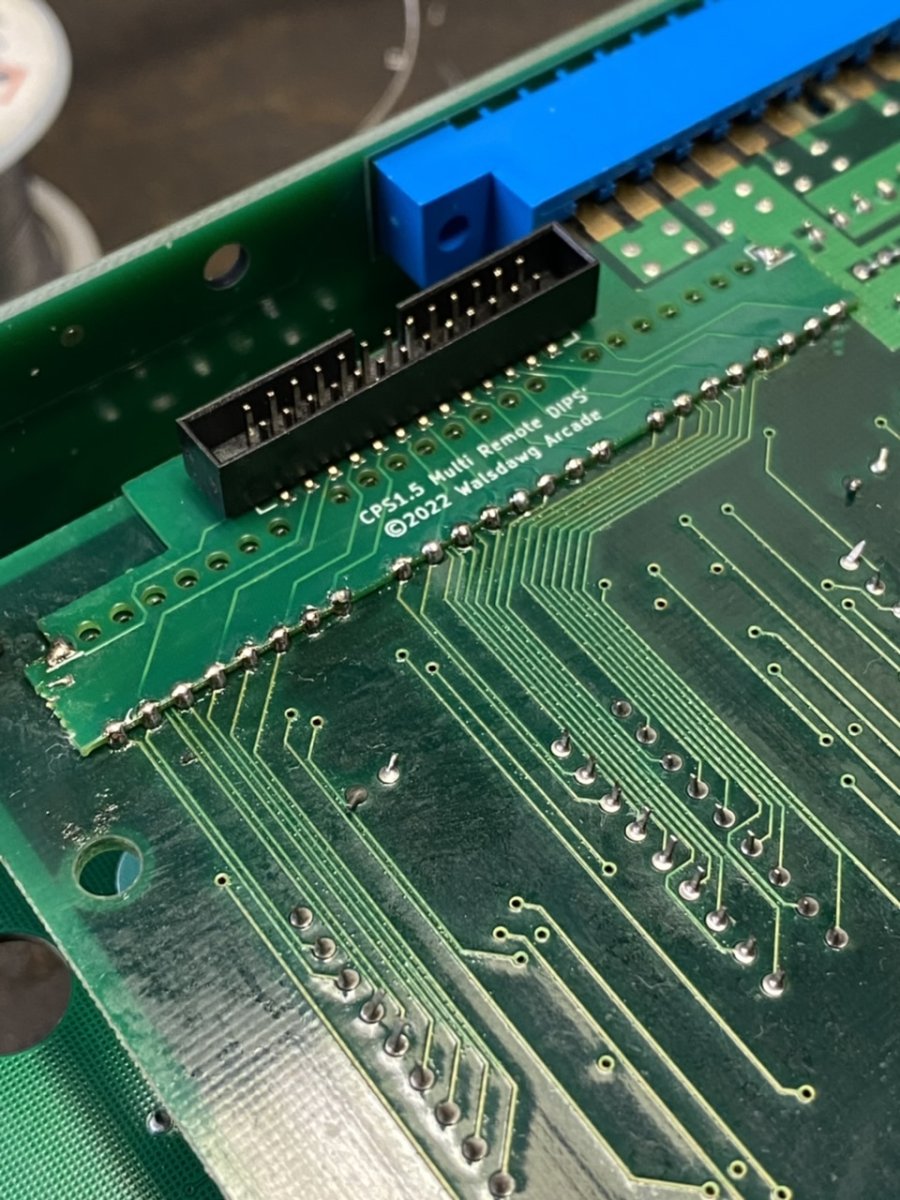

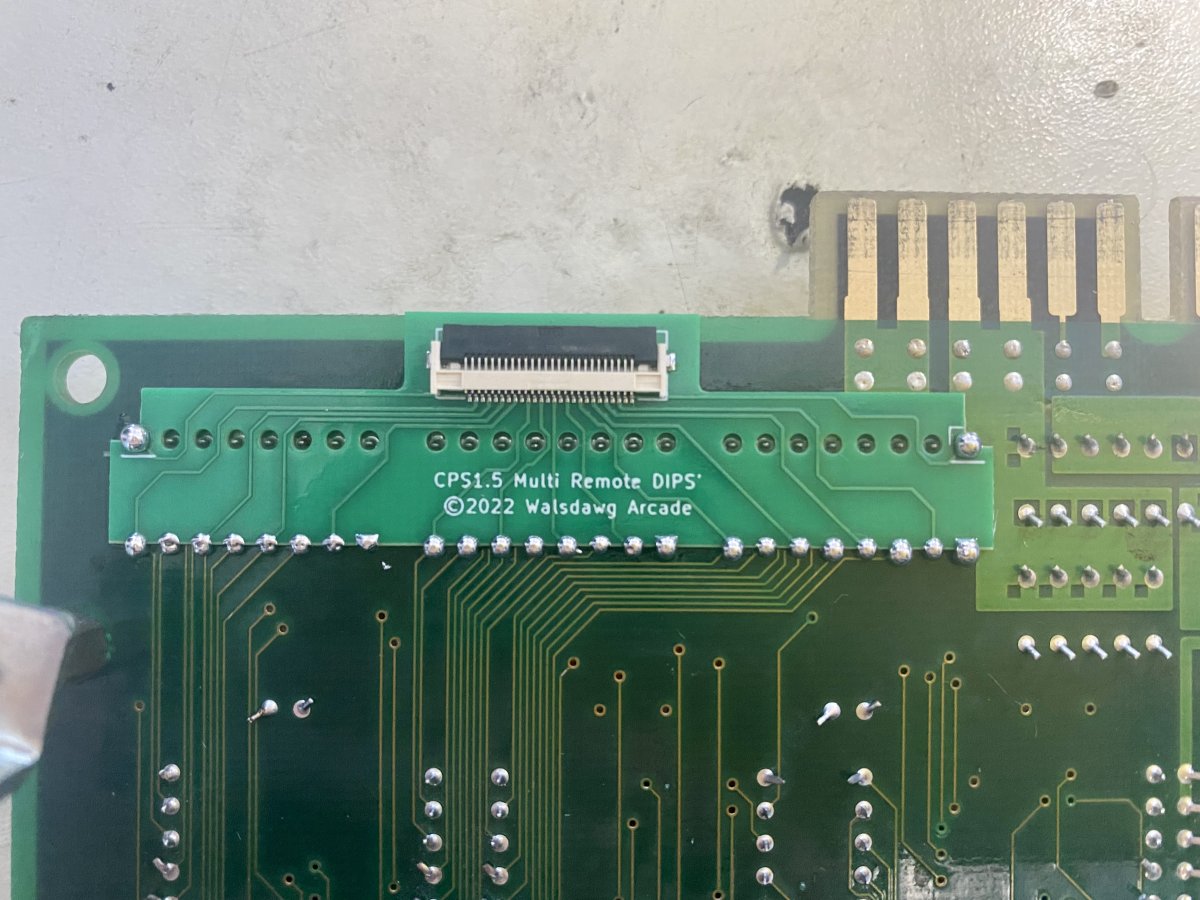

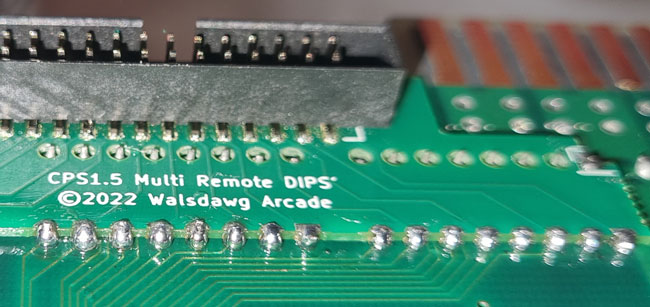

If you add some more flux and just tap every joint with a hot iron those joints will look perfect. Looks like you missed second pin from right, tho. ;)


Roch

Student
Joined
Jun 1, 2022
Messages
92
Reaction score
91
Location
France
If you add some more flux and just tap every joint with a hot iron those joints will look perfect.

Thanks for the advice.

Looks like you missed second pin from right, tho. ;)

That's exactly what I thought when I saw the photo. But I checked in a test menu and all the dips work well. So honestly, I'll leave it like that. Electronics are fun, but now I really want to play :D.


arcadeaction

Enthusiast
Joined
Oct 28, 2015
Messages
156
Reaction score
128
Location
FL, USA
Looking forward to the mono/stereo addon for playing mono games in a stereo wired cab.


Mitsurugi-w

Arcade Admini-Moderator
Staff member
Immortal
Joined
Jun 12, 2015
Messages
7,448
Reaction score
8,727
Location
New Bern, NC USA
I just assembled a fresh batch of spinner pcbs! Come n' get em.


arcadeaction

Enthusiast
Joined
Oct 28, 2015
Messages
156
Reaction score
128
Location
FL, USA
Just thought I'd check back if a mono/stereo addon for playing all the mono games in a stereo wired cab is in the works yet. I realize I could otherwise wire something up.


opt2not

Multi Boyz Pixeler
Legendary
Multi Boyz
Joined
Nov 10, 2015
Messages
2,668
Reaction score
5,212
Location
California

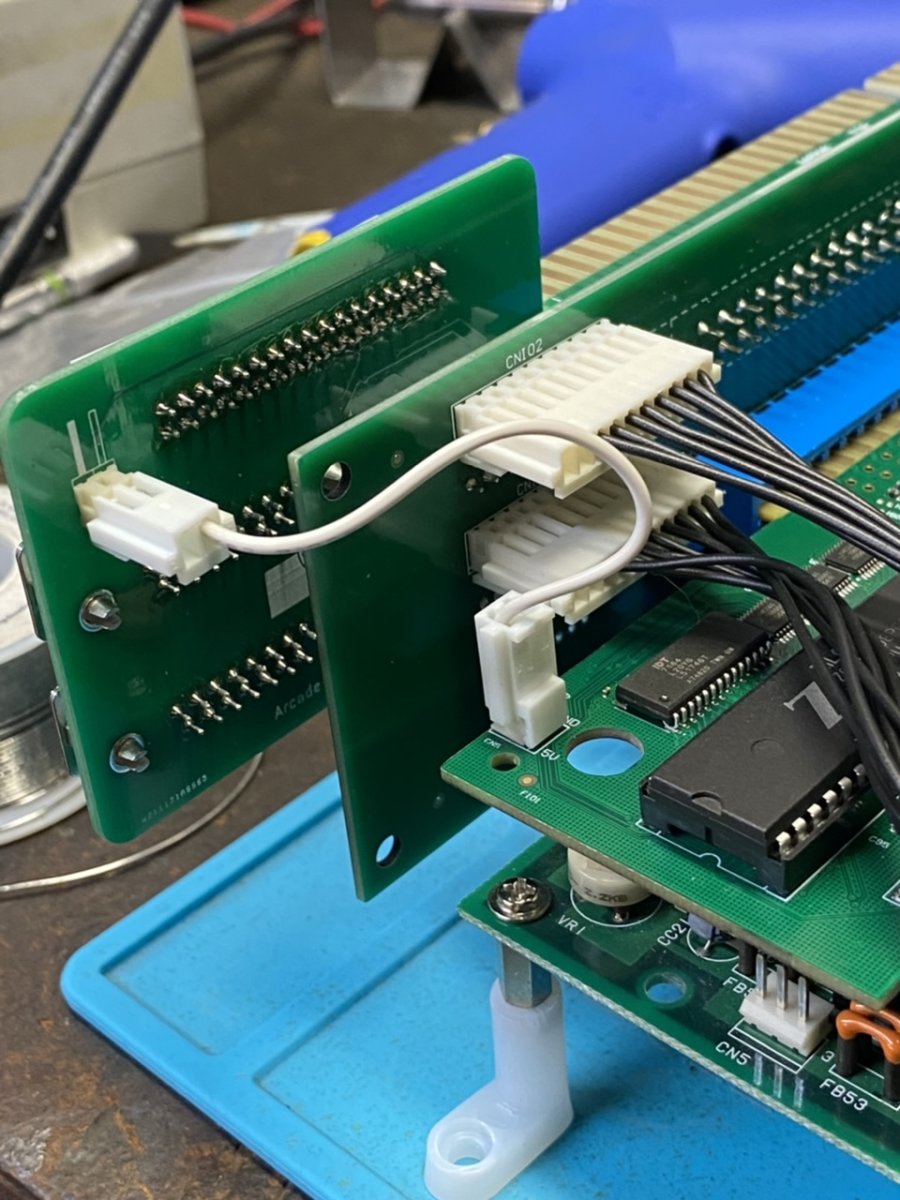

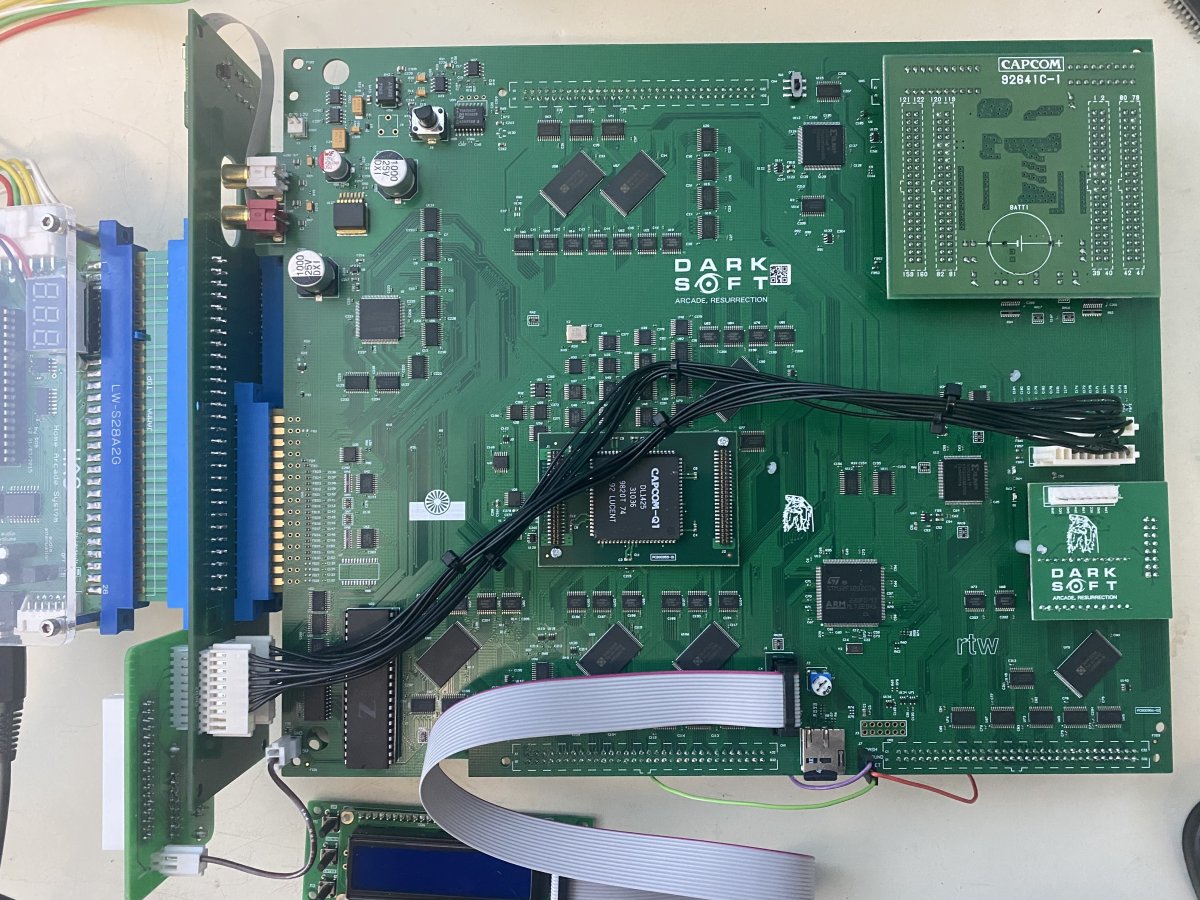

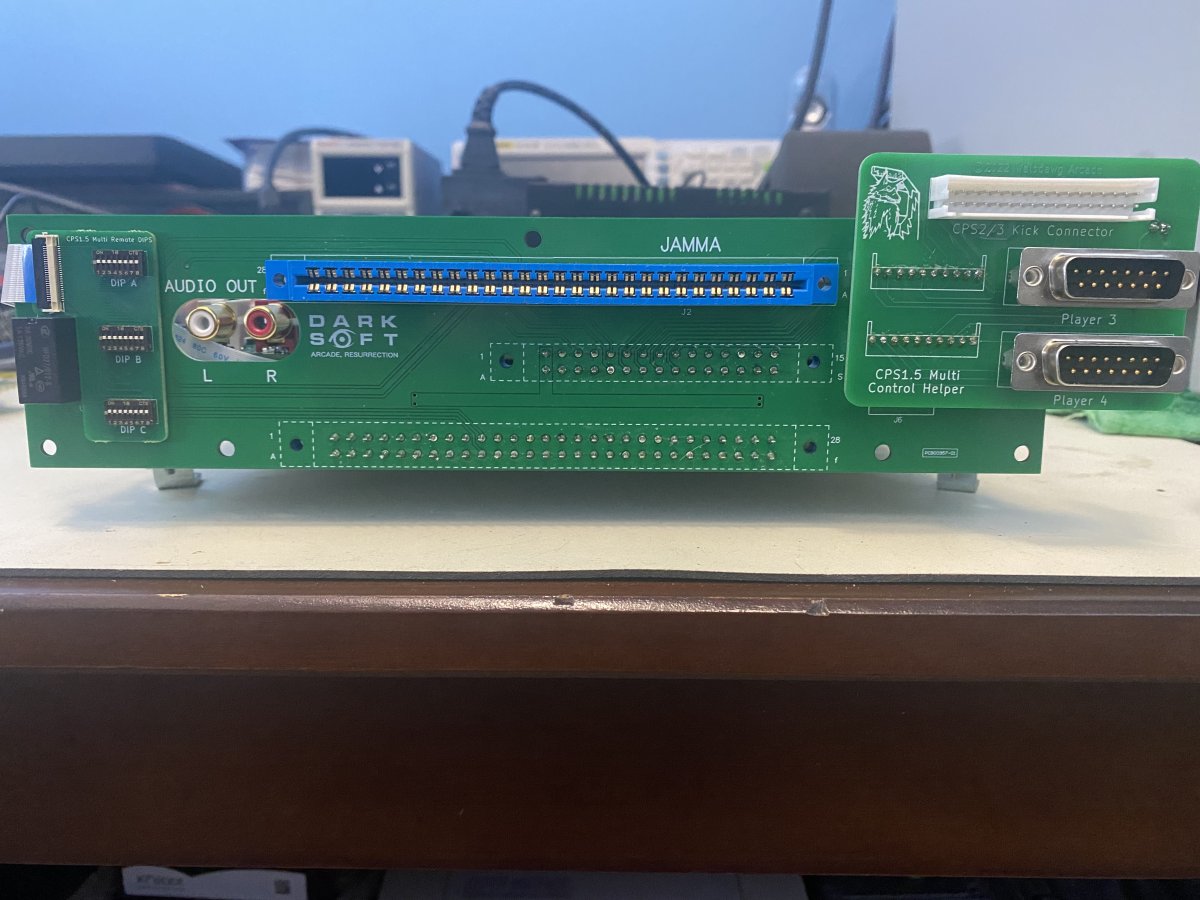

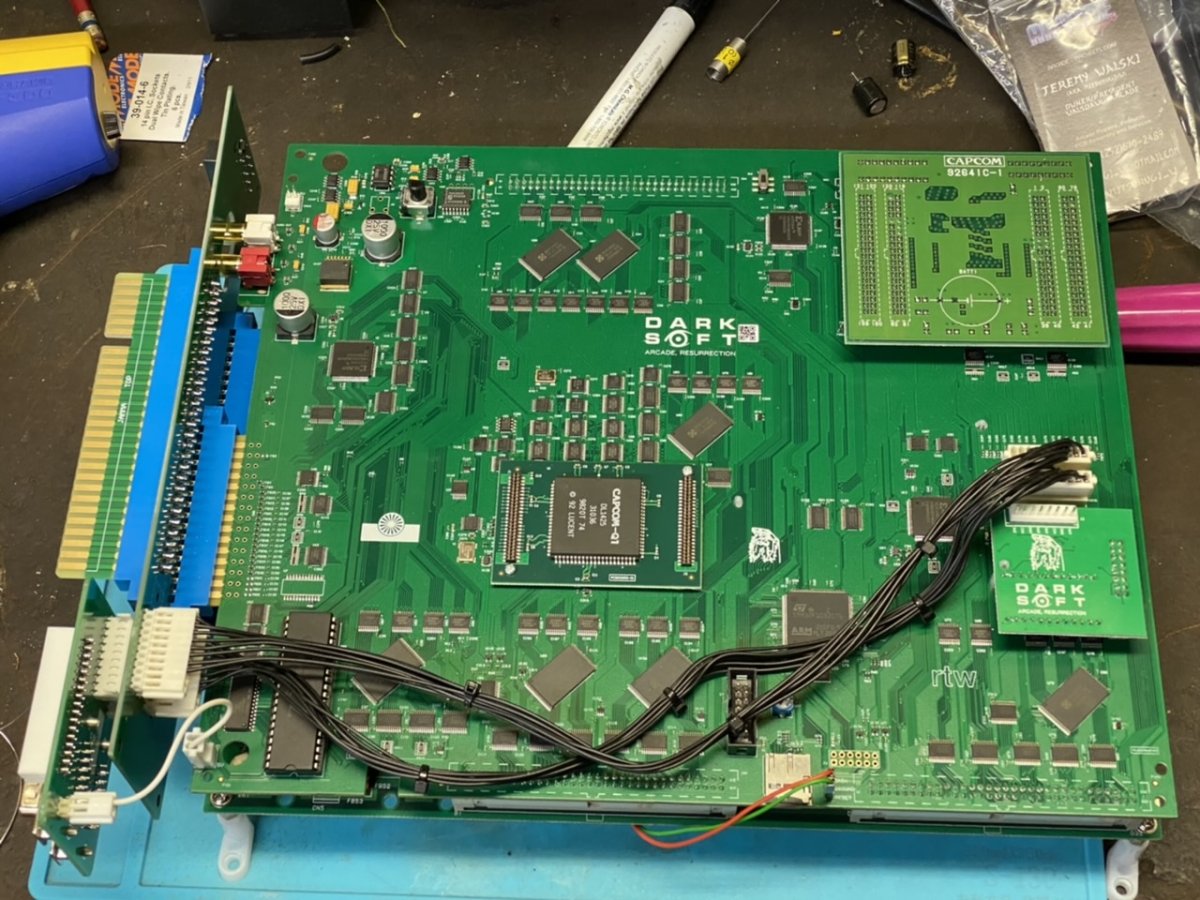

Finally got around to installing all the addons, as well as swapped out the yellow rca jacks.

Everything’s working great so far, though I haven’t tried the spinner stuff yet. Will do so soon.





Now just waiting on the dual crystal and stereo boards, oh and a case.


ShootTheCore

Legendary
Joined
Jan 20, 2016
Messages
2,910
Reaction score
5,680
Location
Utah USA

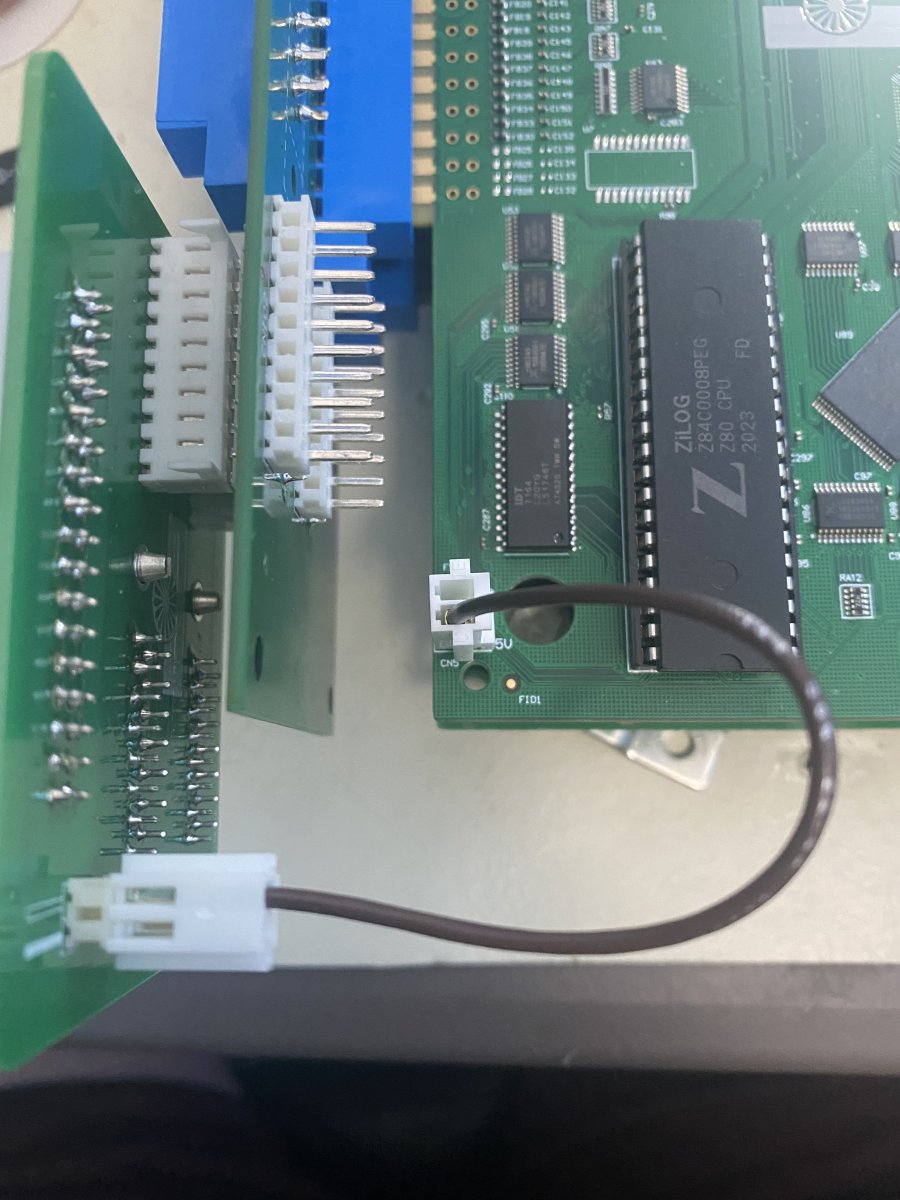

Is this 5V cable necessary to connect, are there any games that requiry it? Thanks in advance. :)

It's required to supply power to the Neo Geo controllers you plug into the P3 & P4 daughterboard. The kick harness port alone doesn't supply a 5V voltage feed.


Mitsurugi-w

Arcade Admini-Moderator
Staff member
Immortal
Joined
Jun 12, 2015
Messages
7,448
Reaction score
8,727
Location
New Bern, NC USA
Neo Geo controllers don't require 5v. However some controllers with lighted buttons or people who want to use undamned adapter or similar (Saturn controllers adapters, etc) need 5v.

If you are using standard neo geo controllers you don't need 5v.
