Hey guys! As you may you may not know, I make harnesses and looms for Sega and Taito cabinets as well as various other adapters. I've decided to make a running stock of the basics and I'd like to put them up here for sale :D All prices include paypal fees, and orders over $100 in the USA get free shipping :D

Please PM me with your order, your paypal email address and your physical address (I ship through paypal so I need to verify it's correct) and I'll get an invoice to you.

ONE FREE LEMON-NADE STICKER WITH EACH ORDER!!

Here's a list of things I have pre-made, ready to go:

Sega CP loom - $26.00



Control panel loom for player one or player two. Compatible with sega New/Astro City, Blast City, and New/Net City Cabinets.

Sega Extra Button Harness (EBH) - $16.00



Extra button harness for both player one and player two. Connects the CPS kick harness in the PCB bay for JAMMA cabinets, and connects to the IO board for JVS cabinets. Compatible with sega New/Astro City, Blast City, Naomi Universal and New/Net City Cabinets. (Please specify if you are ordering for Naomi Universal or New/Net City Cabinets)

Blast City CPS2 kick harness - $16.00



Connects the Extra button harness under the CP through The CN8 header on the Blast City's IO to the Kick harness socket on CPS2/3 or compatible games/adapters. Compatible with Sega Blast City Cabinets only.

Blast City PCB door bypass - $6.00



Allows for the Blast City cabinet to be powered on while the PCB door is removed. Compatible with Sega Blast City Cabinets only.

Blast City Internal power adapter - $20.00



Connects to CN13 on the Blast City's IO board to allow for an internal power outlet that powers on when the cabinet main switch is flipped on. Compatible with Sega Blast City Cabinets only.

New/Astro City CPS2 Kick harness - $16.00



Connects to the 10 pin connector in the PCB bay to allow for kick buttons to be used with CPS2/3 or compatible games/adapters. Compatible with Sega New/Astro City cabinets only.

Naomi Filterboard power adapter for RaspberryPi netboot - $8.00



Connects to the 4 pin connector on the Naomi's filterboard to allow a RaspberryPi to be powered by the motherboard.

Signal Extension adapter - $3.00



Need one more ground connection? Perhaps a duplicate button in your vewlix? This is for you. Comes as a single unit.

Lemon-nade sticker - $1.00


You have a sign in your neighborhood that needs some color? I got ya, fam ;)

Sega Control panel Grounding wire - $8.00




Connects the grounding stud on the control panel to the 2 pin connector under your control panel. Compatible with Sega New/Astro City, Blast City, Naomi Universal and New/Net City Cabinets.

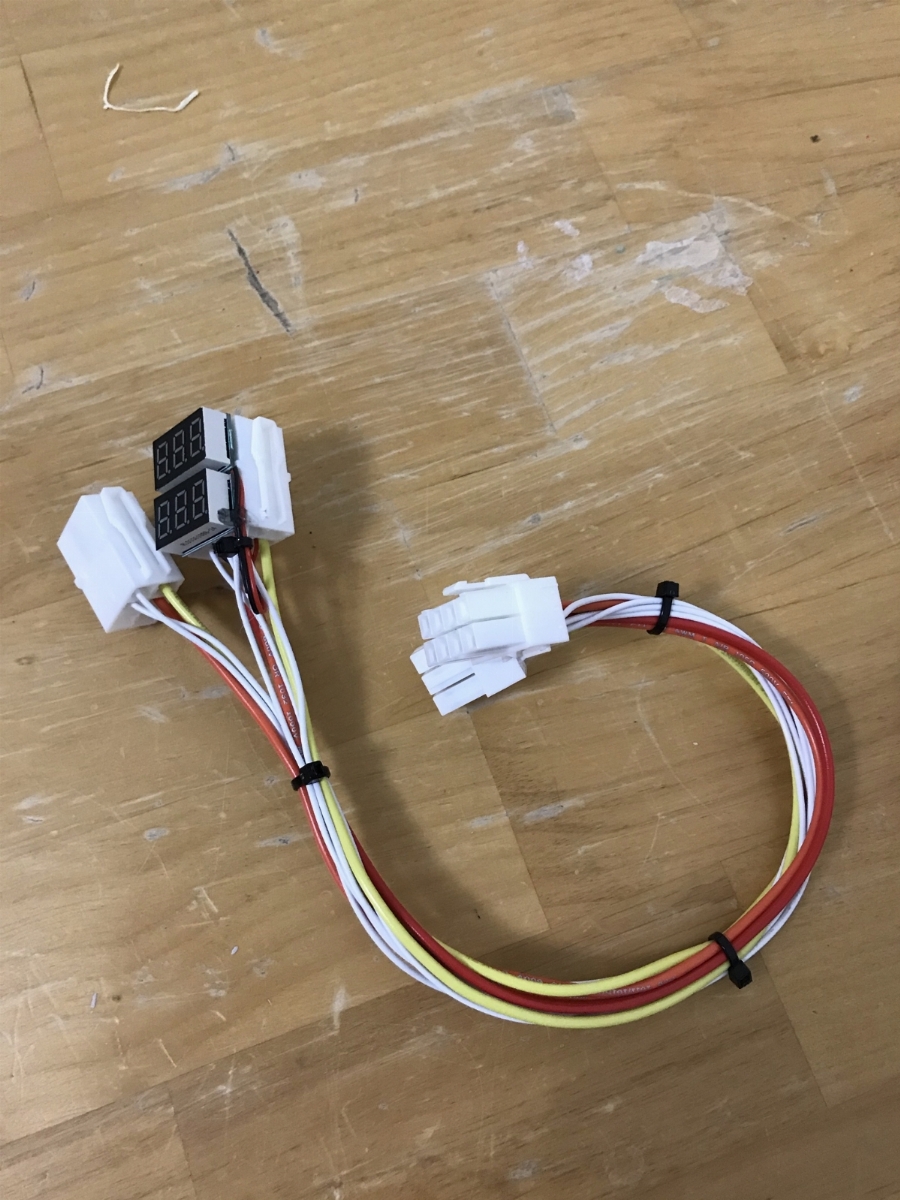

JVS Voltmeter extension - $25



Extends your existing puny JVS connections by 1.5 feet. Includes two digital displays for 5V and 3.3V

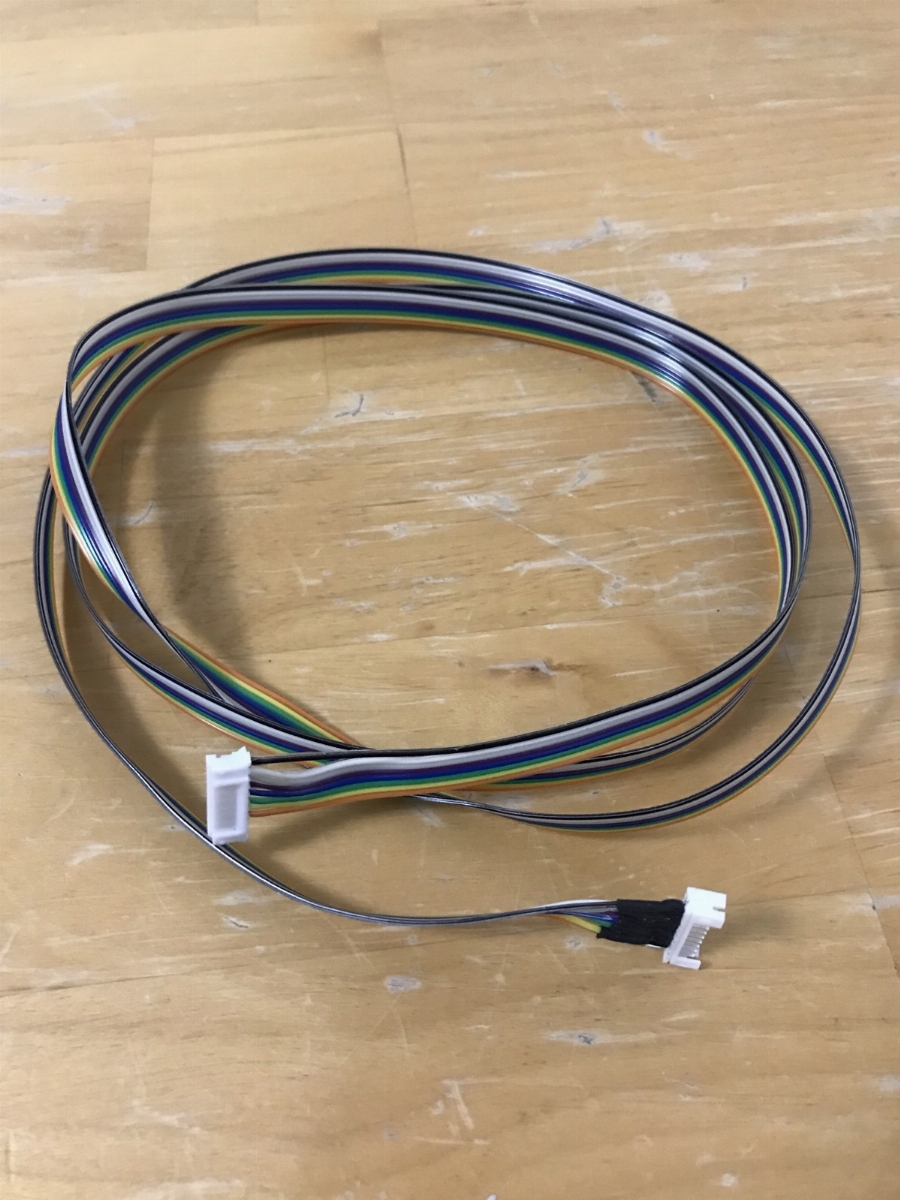

Chewlix (Chinese Clone Vewlix L) Remote board extension - $20



That Damn remote board is so freaking out of the way in the Clone Vewlix L, Isn't it? I hated it so I made an extension and moved it to where it SHOULD be (behind the Coin mech, next to the test/service buttons.

5 Foot long extension cable. Terminated in a 10 pin connector. PLEASE NOTE: Due to how random Clone/bootleg cabinets can be, It is YOUR responsiblity to determine if this will work your cabinet. PLEASE pull the monitor and determine if this will work with your setup BEFORE reaching out to me. (Also, a picture of the connector would be nice as well.

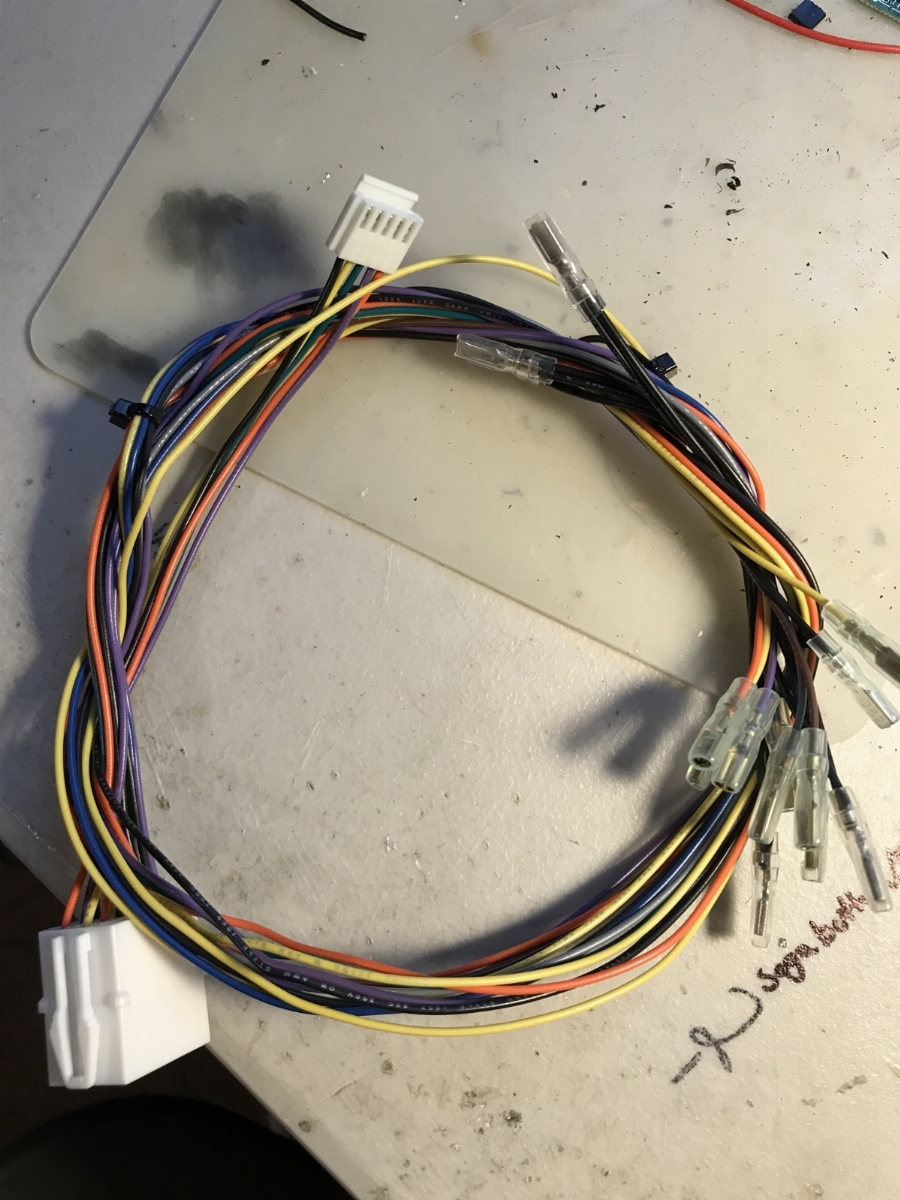

Taito J Control Panel harness - $26



Need a harness for player one? Don’t want to pay $95 to get one from taito? (YIKES)? I’ve got your back. Compatible with egret 29/2/3 and vewlix cabinets.

Taito K Control Panel harness - $26



Have a 2 player panel in your taito cabinet and need a harness for the 2nd player? Don’t want to pay $95 to get one from taito? (YIKES)? I’ve got your back. Compatible with egret 29/2/3 and vewlix cabinets.

CPS2 Multi Key-Writing harness for CN9 - $7



Harness that will allow for key writing for CPS2 boards that have a CN9 header. Stripped and Pre-tinned.

These are just some of the things I will have a running stock of. I'll be adding things like:

New Net City Jamma Looms
Sega JVS IO adapter for Vewlix cabinets

and many more.


NOTE: There are many things I make on-demand (such as JAMMA consoles, console adapters, and controller adapters) that I'm not adding here as I don't plan on having a running stock. If you don't see something you want, ping me and we'll talk :D

Last edited:

PlayYing

Enthusiast
Joined
Jul 26, 2018
Messages
371
Reaction score
130
Location
Jacksonville
I have two blast cities that I would need the works done to it (converting from bass fishing) to get to an operational 2L12B setups.

I would need two of everything right? CP loom, Sega EBH, Blast City CPS2 kick harness , door bypass and power adapter? Also would want to throw in 2x Naomi pi power adapters for good measure.


Lemony Vengeance

Grand Master
Joined
Jul 21, 2015
Messages
575
Reaction score
688
Location
Mormon Mecca
I have two blast cities that I would need the works done to it (converting from bass fishing) to get to an operational 2L12B setups.

I would need two of everything right? CP loom, Sega EBH, Blast City CPS2 kick harness , door bypass and power adapter? Also would want to throw in 2x Naomi pi power adapters for good measure.
For two cabinets converted from bass fishing to full 2L12B, you'll need the following:

4 x Sega CP Looms
2 x EBH
2 x Blast City CPS2 harnesses
2 x Blast City PCB door bypass
2 x Naomi RPi power adapters

The internal power adapters are optional (great for powering MAME PCs/Consoles)


KalessinDB

Grand Master
Joined
Jul 22, 2015
Messages
1,196
Reaction score
831
Location
Rochester, New York
Oh my! I've been looking at redoing the wiring in my Astros...

Question: Do your Sega CP looms (the standard ones, not the extra button ones) have button 4 wired? I currently have 1 machine 2l8b and 1 machine 2l12b, so for the 8b one I wouldn't be getting an extra-button harness...


PlayYing

Enthusiast
Joined
Jul 26, 2018
Messages
371
Reaction score
130
Location
Jacksonville
I have two blast cities that I would need the works done to it (converting from bass fishing) to get to an operational 2L12B setups.

I would need two of everything right? CP loom, Sega EBH, Blast City CPS2 kick harness , door bypass and power adapter? Also would want to throw in 2x Naomi pi power adapters for good measure.
For two cabinets converted from bass fishing to full 2L12B, you'll need the following:
4 x Sega CP Looms
2 x EBH
2 x Blast City CPS2 harnesses
2 x Blast City PCB door bypass
2 x Naomi RPi power adapters

The internal power adapters are optional (great for powering MAME PCs/Consoles)
I'm in for what you listed as 2x the power adapters


Lemony Vengeance

Grand Master
Joined
Jul 21, 2015
Messages
575
Reaction score
688
Location
Mormon Mecca
added three new products:

Sega Control panel Grounding wire - $8.00
Lemon-nade sticker - $1.00
Signal Extension adapter - $3.00


Zerrminator

Enthusiast
Joined
Jan 28, 2019
Messages
87
Reaction score
121
Location
Vancouver, BC
"New Net City Jamma Looms"

Can you give more details on this? Is this a full Jamma to JVS adapter? Thanks


SNK-NEO-GEO

Enlightened
Joined
Jul 21, 2015
Messages
3,286
Reaction score
2,031
Location
Virginia

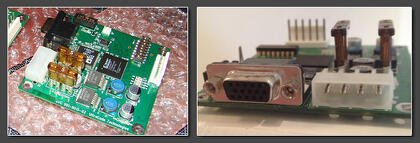

@Lemony Vengeance - I am looking for 6 cables for 2 Ultracade UVC.. cable (2) to provide power to board from a normal power outlet.. cables (2) to provide video from the card and to and Extron 203 RGB.. cables (2) to provide video from the UVC and to a Scart switch. Can you help with that? Thanks


Attachments

  • IMG_3198.JPG
    27 KB · Views: 80

Lemony Vengeance

Grand Master
Joined
Jul 21, 2015
Messages
575
Reaction score
688
Location
Mormon Mecca
@Lemony Vengeance - I am looking for 6 cables for 2 Ultracade UVC.. cable (2) to provide power to board from a normal power outlet.. cables (2) to provide video from the card and to and Extron 203 RGB.. cables (2) to provide video from the UVC and to a Scart switch. Can you help with that? Thanks
2 x Power cable
2 x Video to Extron 203
2 x Video to Scart

Shoot me a PM :)


Paul79

Student
Joined
Jul 21, 2015
Messages
71
Reaction score
11
Location
Dublin Ireland
Hey , I’m looking for a female scart to db15 cable to input to an Extron 580xi from a console are you making anything like that?


BlinG

Grand Master
Joined
Jul 26, 2017
Messages
779
Reaction score
670
Location
Arizona
I know this is a long shot, because of how labor intensive it is, but do you happen to make jamma vs kits for head to head play?
