Hey everyone,
I’m in the process of building a fully dedicated Mahjong harness for a PANA TWIN M-92.

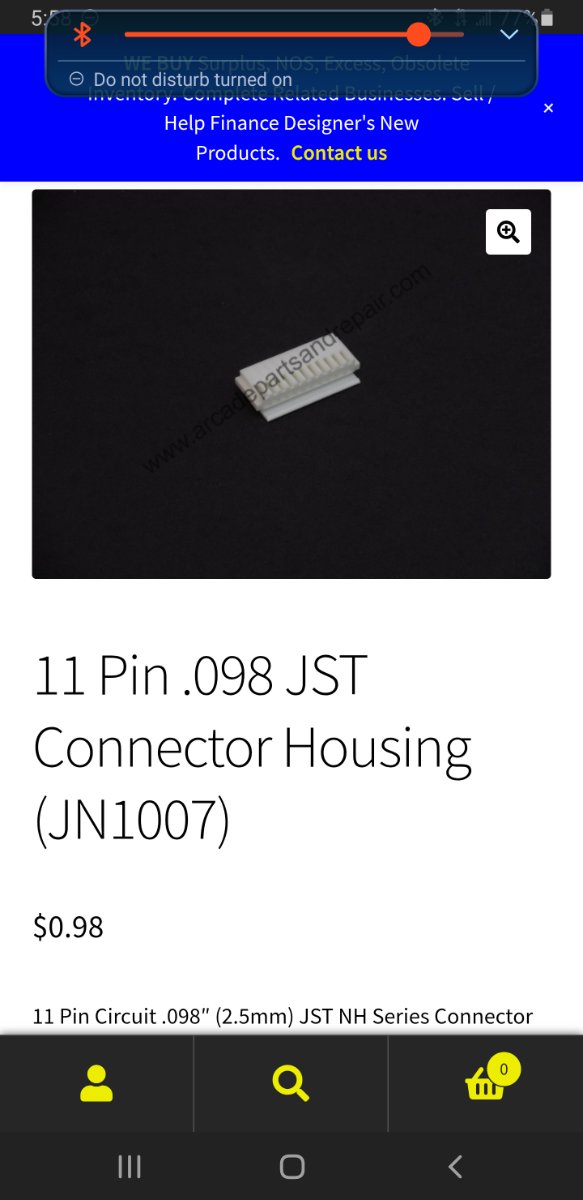

Can anyone confirm the Mahjong portion uses a JST XH connector (2.5mm pitch) with 11 pins?
If you happen to have one of these setups or can share any detailed pictures of your harness, diagrams, or pinout references, it would be incredibly helpful for the build. The more detail, the better!
Really appreciate any help you can provide—thanks in advance!

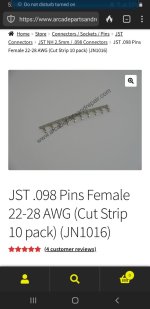

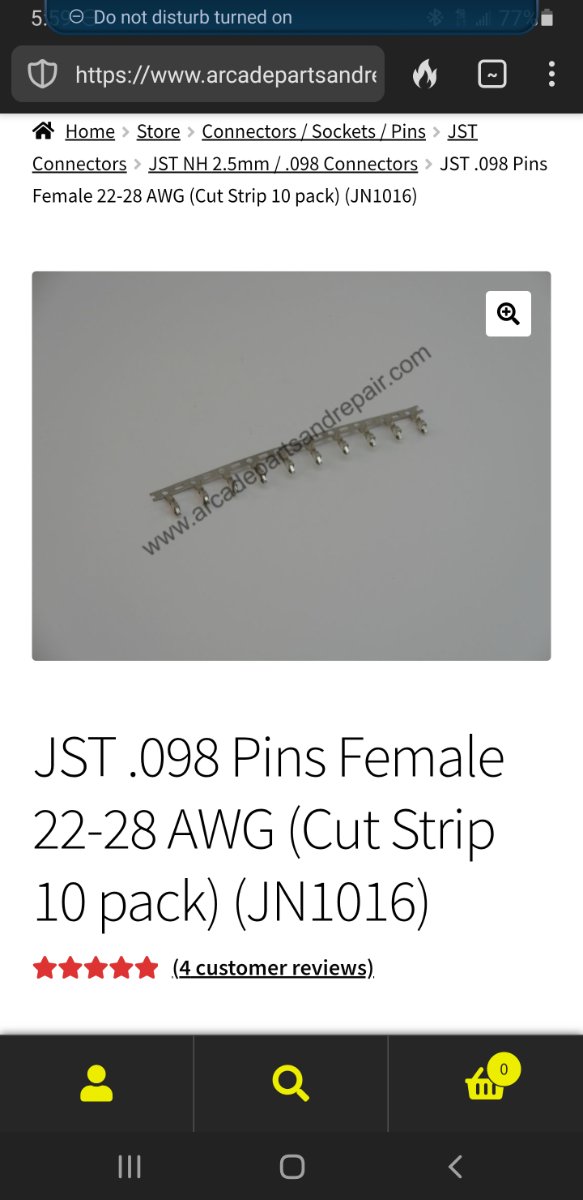

P.S. I did checked Arcade Otaku, but the image for the dedicated harness is blurry. The JTS says 11 pins, but it does not give me the pitch. I used my calipers to measure the pins on the Pana and arrived at 2.5mm pitch, just want to confirm.
