Do you happen to the name of this connector? Looking to order a male/female
- Thread starter Kavas
- Start date
TE Connectivity Universal Mate-N-Lok
https://www.digikey.com/en/products/detail/te-connectivity-amp-connectors/1-350779-3/5157528
@speedswan awesome, thanks!!
Can you show me what hardware is used to secure the control panel housing to the rest of the cab? I had to remove my panel to fit in the car but that was over a year ago and I lost the bolts or whatever.
Yeah accept that's not the aero city. Looks like NNC?

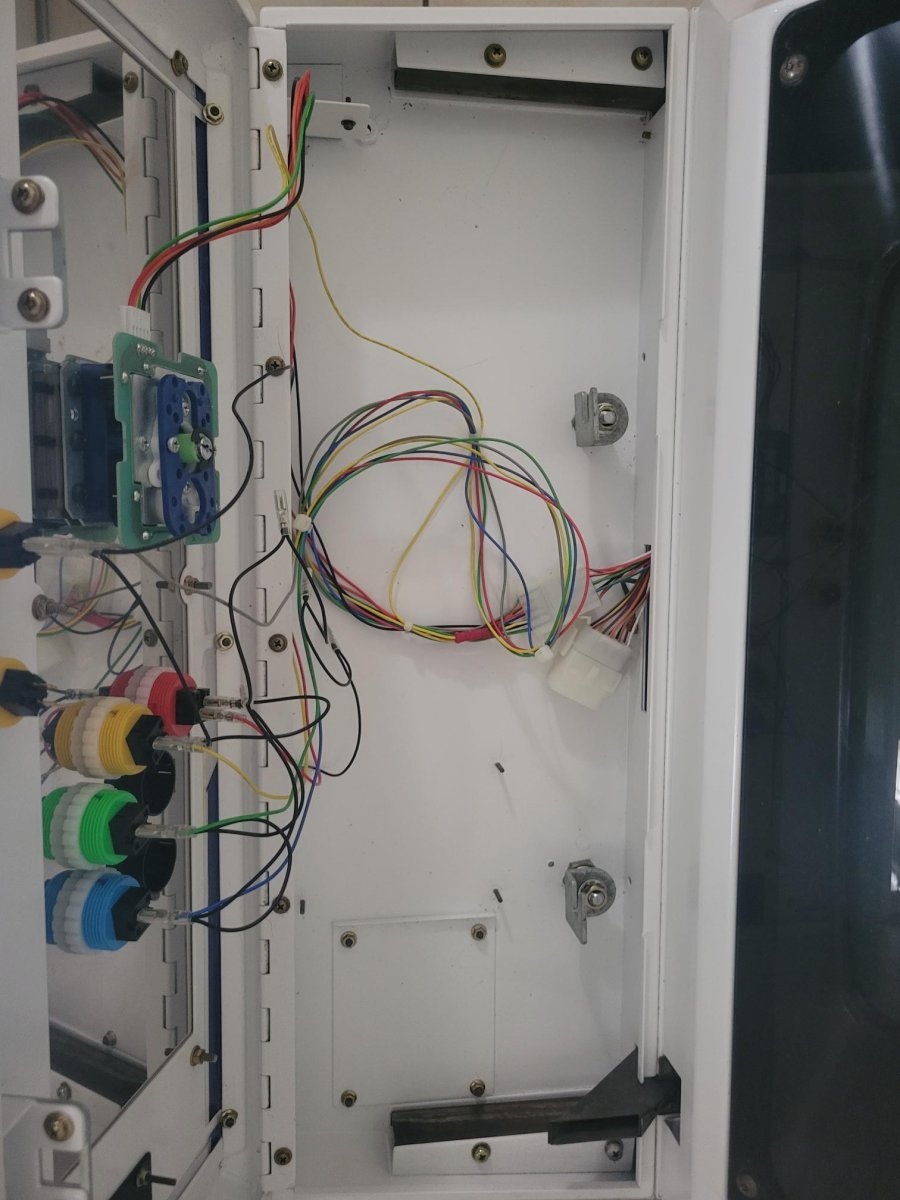

The aero CP has to metal arms on the sides that slide into slots in the cabinet and then are secured by bolts. I wanted to see how they secure exactly.
The aero CP has to metal arms on the sides that slide into slots in the cabinet and then are secured by bolts. I wanted to see how they secure exactly.
Sorry im a moron, I thought this was my other restoration thread on my versus cabinet. It's been so long since I've had activity in this thread.

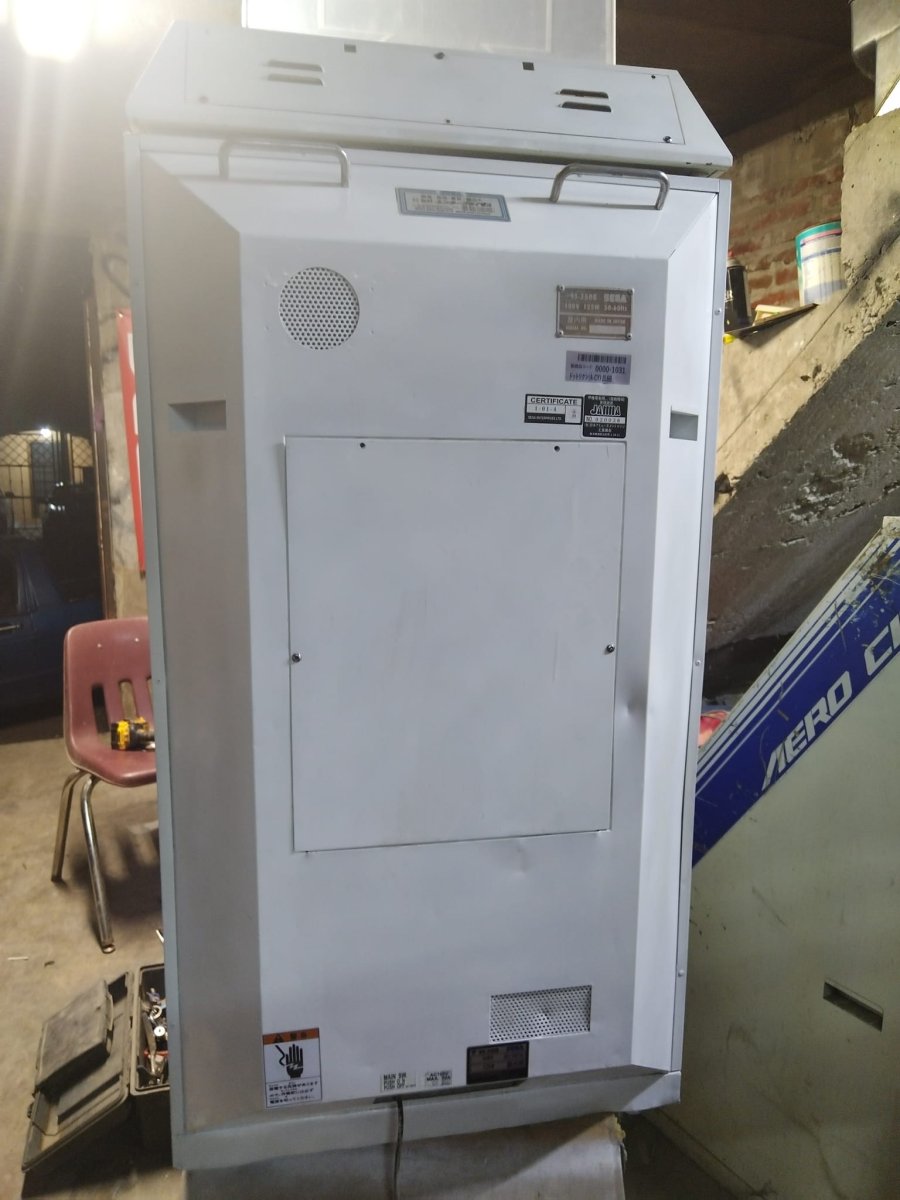

Let me know if theres a particular angle or piece your interested in.

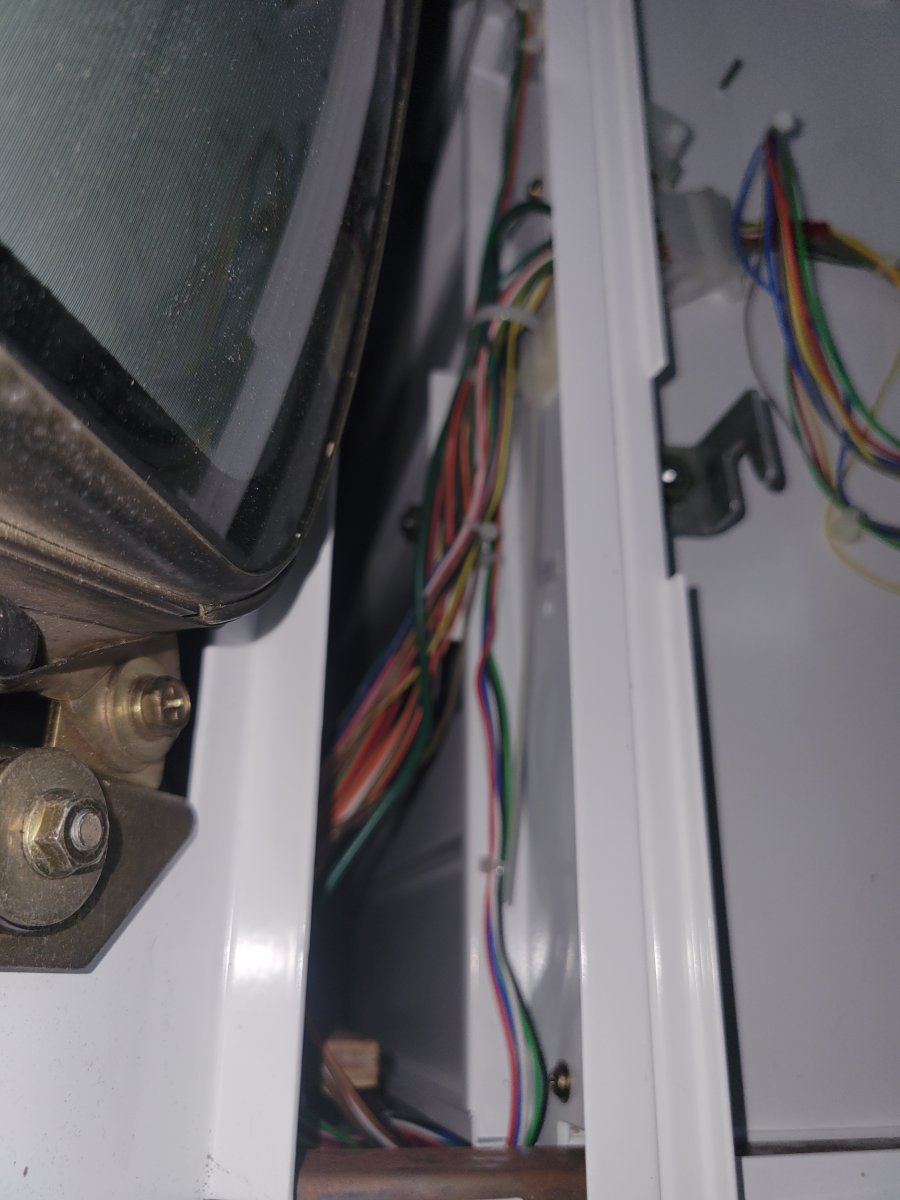

Let me see how they attach inside the cabinet, please.

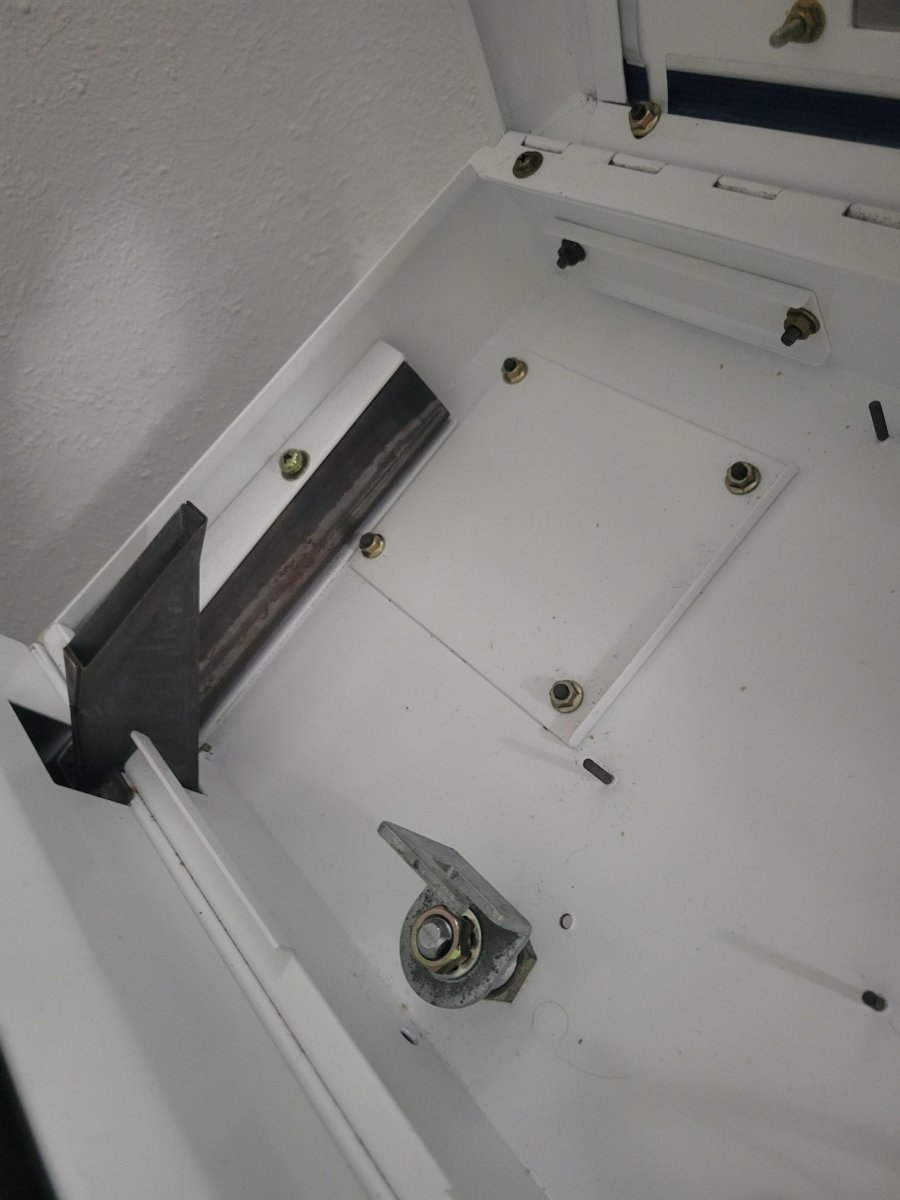

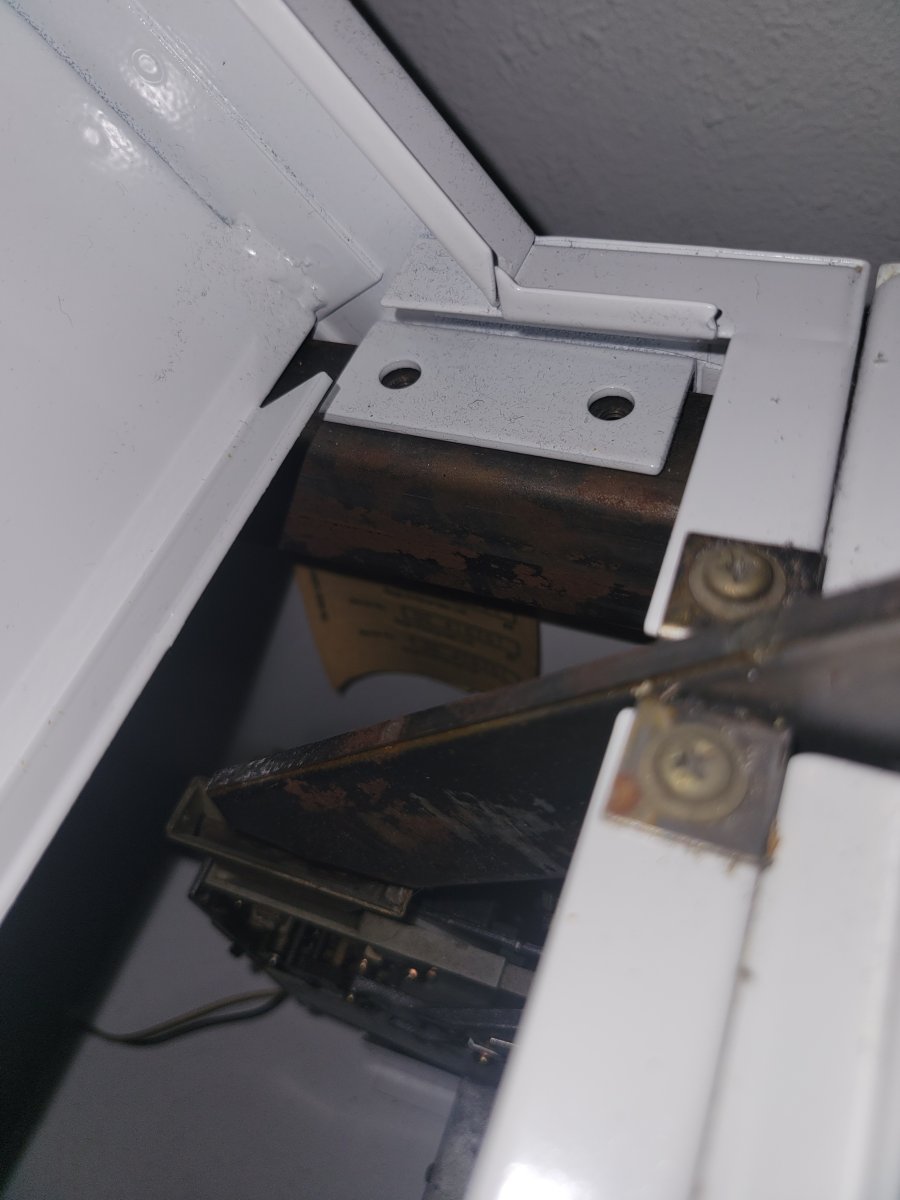

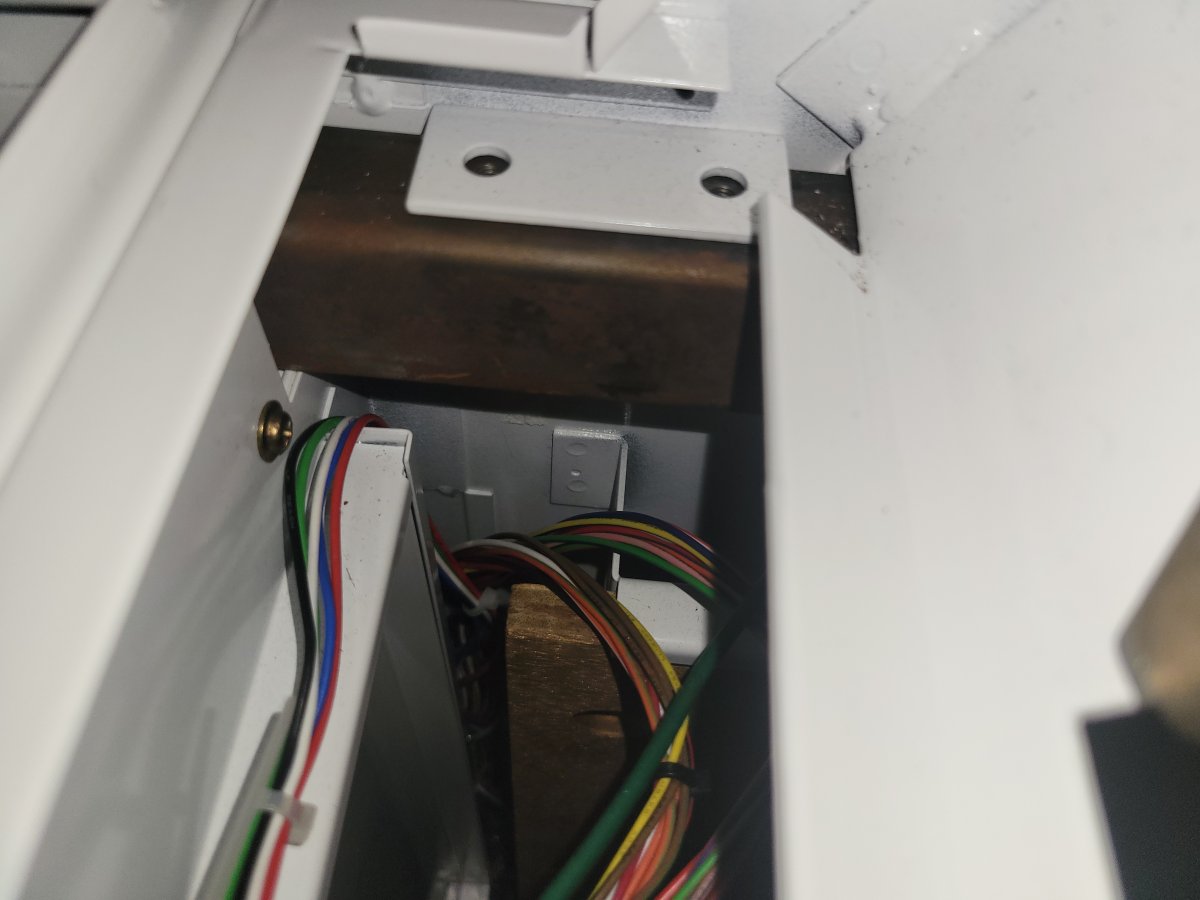

On the underside is where the screws going up are. For whatever reason I recall them being that way instead of from the top down.
Cool. Thx
Does anyone have the headphone pcbs we can repro?
Oh cool. Let me see if he still has any.
He has them but not the other part needed to fully connect them. At least anyone I know who has bought the repro hasn't connected it up.
I have the @XianXi repro hooked up. the harness is inside the cabinet already. There's a small bracket that the pcb screws onto. I 3d printed spacers to make it the perfect offset, but you could also just use nylon spacers. The audio is split to the headphones and the speakers. It doesn't cut the speakers if you plug in headphones, if I recall.
Can you show what that part hooks into? Because my speakers are wired directly to the jamma loom I never had any sort of amp or whatnot.

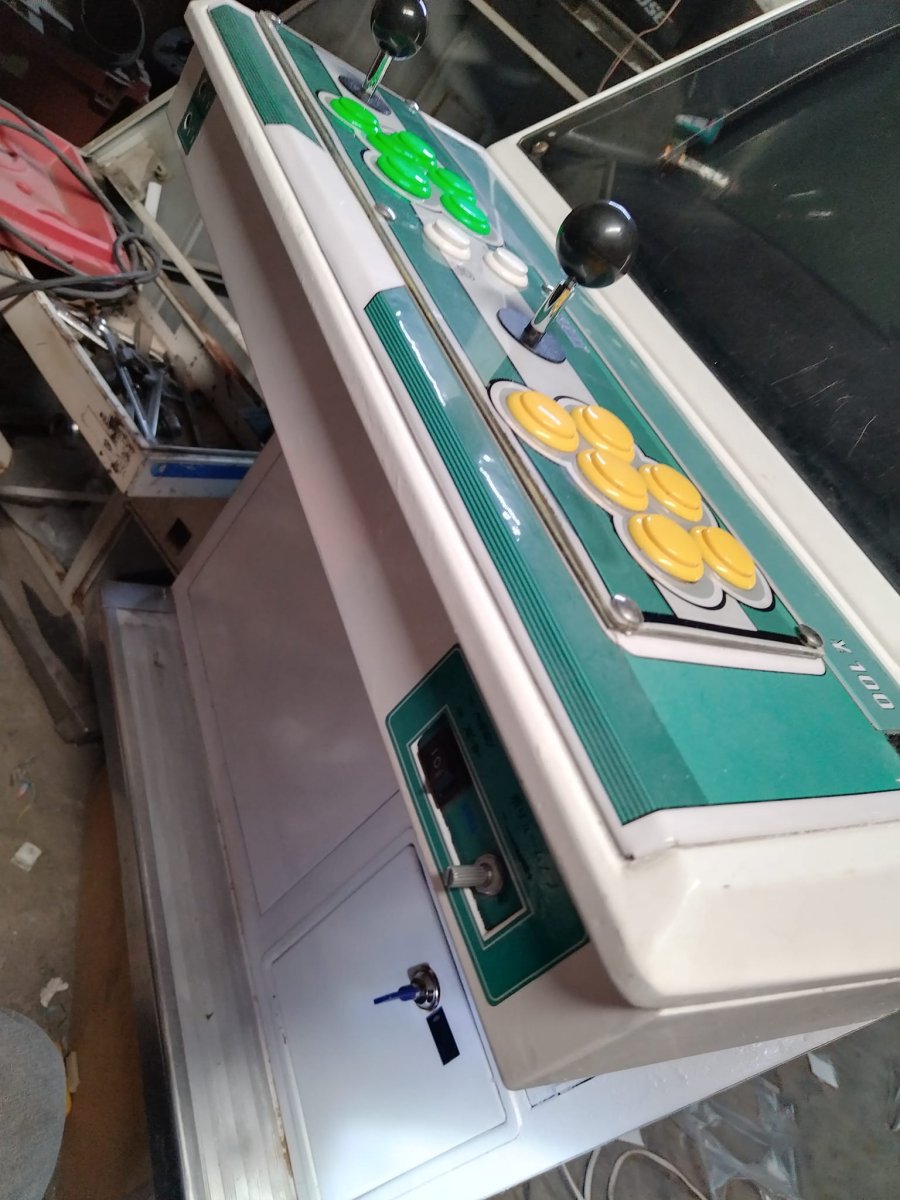

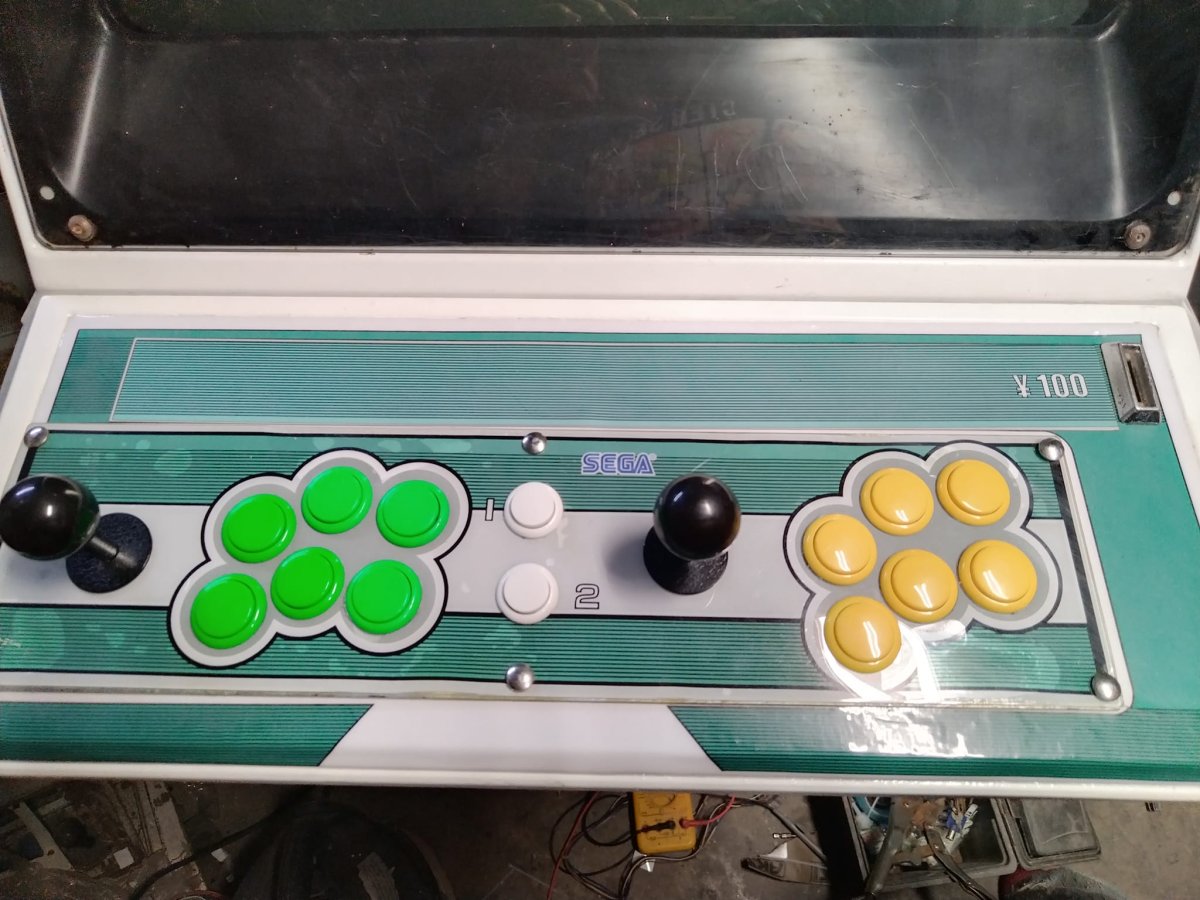

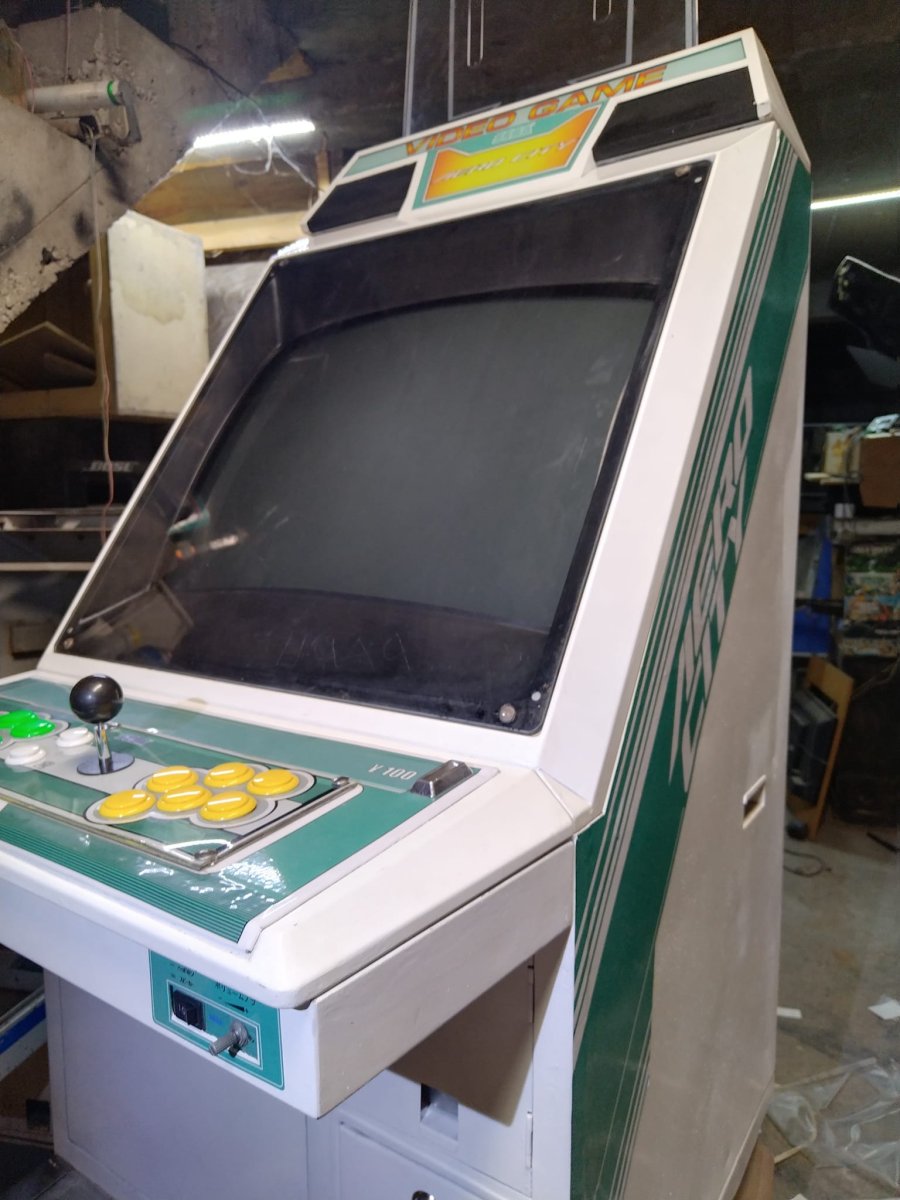

Pics stolen from a facebook sales ad. He said it was "green" but this is the rare teal variant. The aero doesn't have any kind of amp, it uses mono that is amplified by the jamma pcb. If you are using a game that doesn't have its own amp built in then you need a separate amp (I had centipede set up like this for a while in one of mine).
Not sure about the wiring for this panel, since my non-teal aeros don't have it. I don't have this port hole on my control panel either. Can anyone translate what the - and = power types are? Is that for the headphones?
edit: there is a video on fb with these pictures. It shows the owner flipping the switch and it does cut the speaker audio, so that's cool. And the pot on the right is for the volume as I expected.
Not sure about the wiring for this panel, since my non-teal aeros don't have it. I don't have this port hole on my control panel either. Can anyone translate what the - and = power types are? Is that for the headphones?
edit: there is a video on fb with these pictures. It shows the owner flipping the switch and it does cut the speaker audio, so that's cool. And the pot on the right is for the volume as I expected.
Attachments
-
310696711_5569788983068158_8490069181251194391_n.jpeg -
310841774_5569788499734873_1728919895038192121_n.jpeg -
311153402_5569789126401477_127472262330377828_n.jpeg -
311316992_5569788693068187_901289098245641699_n.jpeg -
311460730_5569788339734889_8562760544697160859_n.jpeg -
Last edited:
What I am referring to is the transformer board listed on page 16&17 of the Aero City ManualPics stolen from a facebook sales ad. He said it was "green" but this is the rare teal variant. The aero doesn't have any kind of amp, it uses mono that is amplified by the jamma pcb. If you are using a game that doesn't have its own amp built in then you need a separate amp (I had centipede set up like this for a while in one of mine).
Not sure about the wiring for this panel, since my non-teal aeros don't have it. I don't have this port hole on my control panel either. Can anyone translate what the - and = power types are? Is that for the headphones?
edit: there is a video on fb with these pictures. It shows the owner flipping the switch and it does cut the speaker audio, so that's cool. And the pot on the right is for the volume as I expected.
https://wiki.arcadeotaku.com/images/e/e5/Sega_Aero_City_Manual.pdf
There is also a write up by random retro about this.
https://www.arcade-projects.com/threads/jnx-sega-839-0158-repro-headphone-board.2256/page-2
I never got around to installing it because of that transformer board.
