I always wanted a Monkey Ball Panel but they are quite expensive and hard to find.

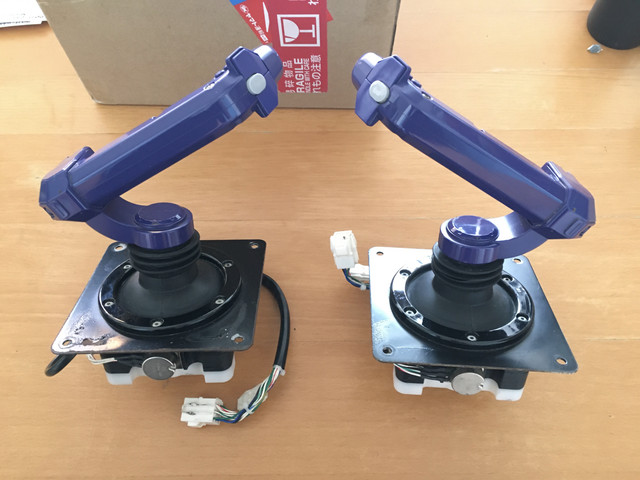

A while ago I stumbled uppon these on YAJ:


the joystick itself is the same Sanwa base as the Monkey Ball stick. Only difference is a shorter and thicker shaft.

A friend was kind enought to lend me his Monkey Ball panel to do some measuring and checking.

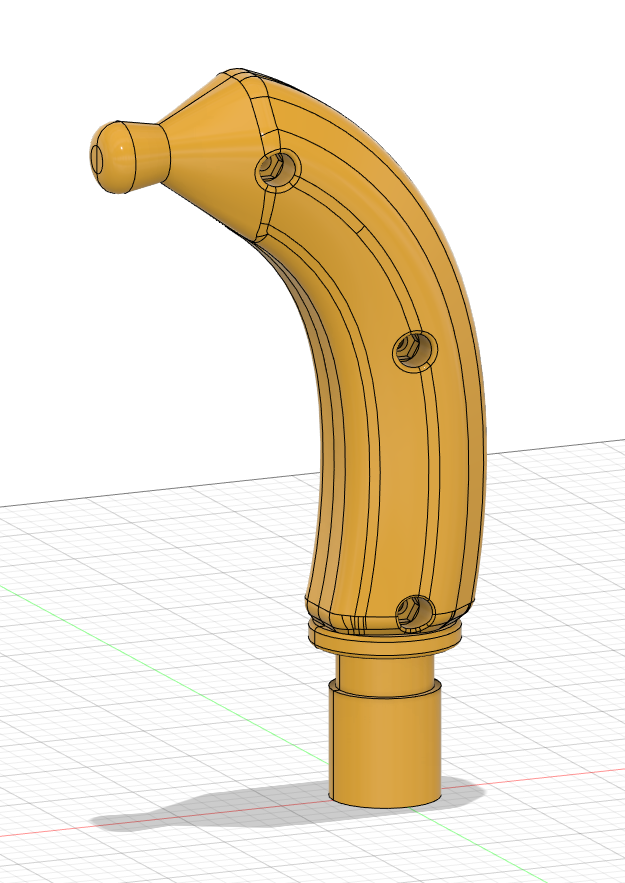

So next up was designing a Banana in Fusion 360 for 3D printing

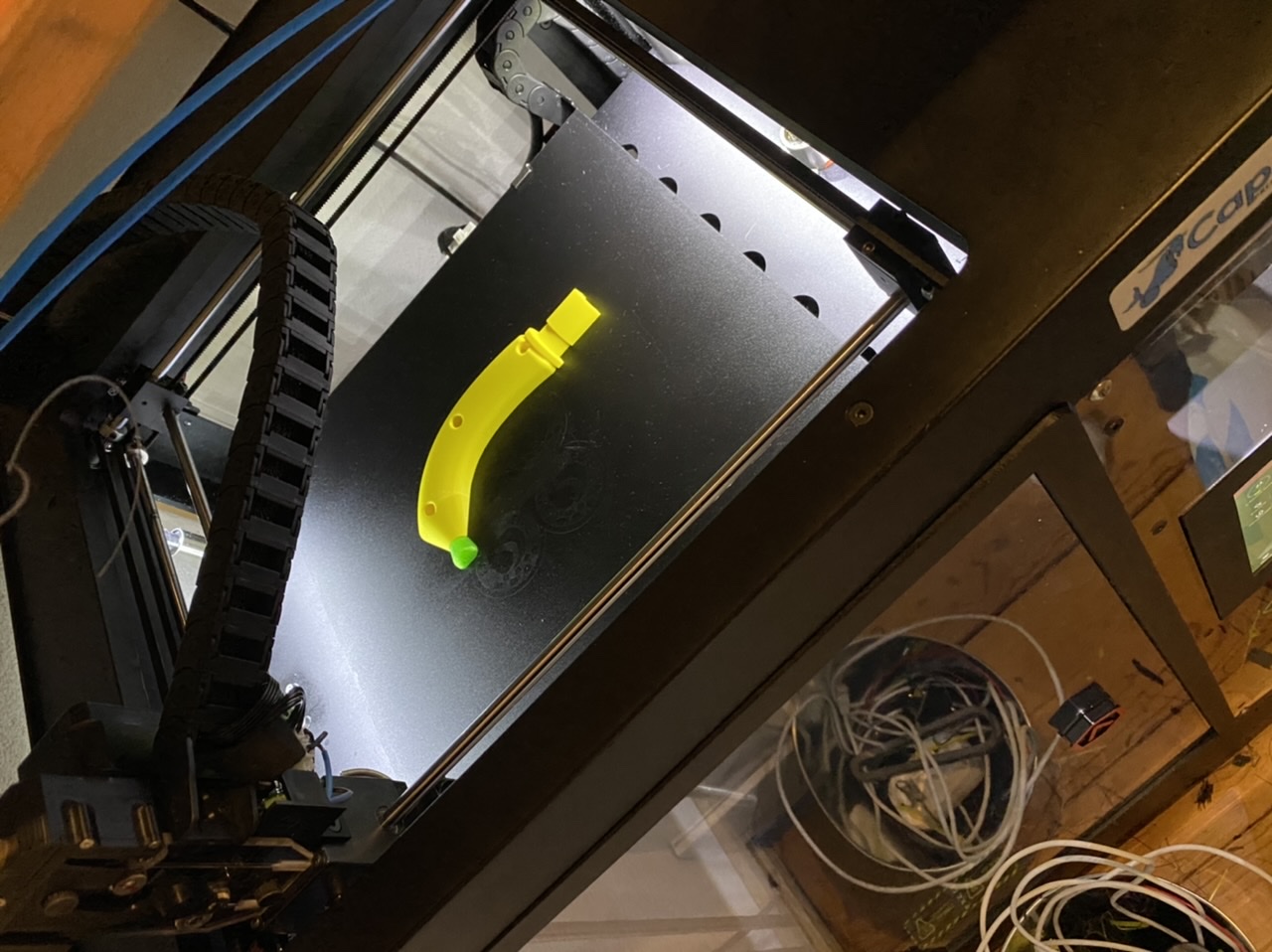

Split it into two halves and started printing


It took a couple of iterations to get to the end result (rightmost is the original banana)


Looks nice on his panel but I could not keep it.


So I went back to Fusion to create a template for laser cutting

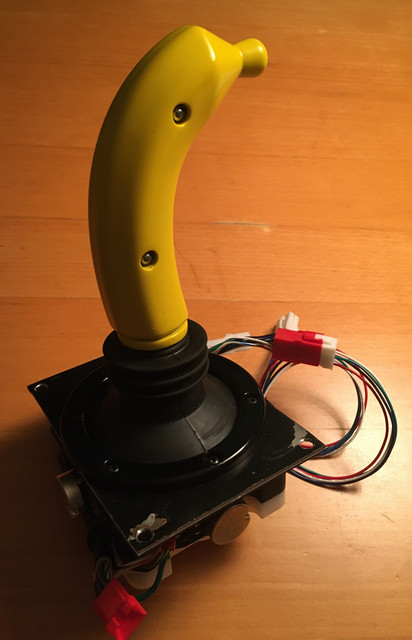

Whilst I was waiting for the panel, I did some work on the stick. Painted the banana, adapted the mounting plate and made a custom harness to connect the stick to my NUC with the same pinout as the original stick


Once the panel came in, I put everything together and hooked it up. The whole setup works great and I am super happy with it. The only thing missing is the CPO which I still have to finish.



On a side note. The original panel has a pot amp on it. Several sources on the net claimed that it is not required. I can confirm this. As the game itself has a calibration screen, the stick works just fine after calibration.

I did reverse engineer the little PCB and had a couple produced with osh park but I never got around to actually assemble one and test it out.



Thingiverse Link for the Bananas
Original Monkey Ball Stick: https://www.thingiverse.com/thing:4590355
Gundam Monkey Ball Stick: https://www.thingiverse.com/thing:4590353


next up, Afterburner Climax :thumbsup:

Last edited:

djsheep

Multi Boyz Overlord
Immortal
Multi Boyz
Joined
May 20, 2016
Messages
5,806
Reaction score
8,400
Location
Brisbane, Australia
Amazing work! Will you be selling the Repro at all?


zero238

Grand Master
Joined
Nov 3, 2015
Messages
1,085
Reaction score
606
Location
Raleigh, NC
I'll take 2 if it ever goes on sale. I wanna put it on location but I don't like the thought that people might break it and be super expensive to get another joystick.


AMS

Grand Master
Joined
Mar 28, 2020
Messages
741
Reaction score
577
Location
Amsterdam/Netherlands
Cool! I still have the original disc and chip here . And 3/4 original panel plates without art NOS


nnap

Professional
Joined
Aug 28, 2018
Messages
235
Reaction score
256
Location
Switzerland
I do not plan on selling these but am happy to share the models if somebody wants to make their own. I also have a version of the banana that will fit the original shaft.


AMS

Grand Master
Joined
Mar 28, 2020
Messages
741
Reaction score
577
Location
Amsterdam/Netherlands
Would love the files on both. Then I can print them .As I also have an original that’s needs replacement.

Thx


KaPH33n

Grand Master
Joined
Sep 30, 2018
Messages
772
Reaction score
804
Location
CA
how big are the files? are you offering the fusion files or stl?

if they're small can you just attach them to the first post? possibly putting them on thingiverse will get much more exposure... if that's something you're willing to do.


nnap

Professional
Joined
Aug 28, 2018
Messages
235
Reaction score
256
Location
Switzerland
Good idea regarding thingiverse. I do have an account there. Will upload them there and share the link in the first post. If you want to tinker with the fusion file I am happy to share it with you.


nnap

Professional
Joined
Aug 28, 2018
Messages
235
Reaction score
256
Location
Switzerland
Added thingiverse link for the banana that fits the original stick. Will upload another one for the Gundam stick later.


KaPH33n

Grand Master
Joined
Sep 30, 2018
Messages
772
Reaction score
804
Location
CA
Are the prints pictured above done with PETG? or PLA?

When I wired up a Night Striker harness for a friend I also used a sanwa analog joystick. It has a built in amp pcb board that is also not necessary. I was able to attach b5k pots to it directly and achieve the same thing. I guess it might matter though how the software is set up. What values it's looking for and how it calibrates to the input might make that external hw adjustment handier...


nnap

Professional
Joined
Aug 28, 2018
Messages
235
Reaction score
256
Location
Switzerland
Prints are PETG, had issues with PLA.
Yes, as long as the software can see a good range from the stick, there should be no issues. The Sega Pot Amp is not even adjustable, so it is just boosting the values. Depending on the game, you have to flip the pots around on the stick or switch the axis on the wiring harness to get correct movement in the game.


nnap

Professional
Joined
Aug 28, 2018
Messages
235
Reaction score
256
Location
Switzerland
Thanks for lending the original panel to me ;)


zero238

Grand Master
Joined
Nov 3, 2015
Messages
1,085
Reaction score
606
Location
Raleigh, NC
for the dumb person in the back; meaning me. What joysticks are they and who wants some money in their pockets to do me a solid and make them for me?
