Monkey Ball Panel Reproduction

Looks stunning! Are you sharing the files for this one too @nnap? I've almost got my own panel together, I have a panel from @alberto1225, gundam stick, @plasticfactory restrictor disc and purchased all the connectors to crimp my harness. Just need a banana still, was going to print your old model but this new one looks even better!

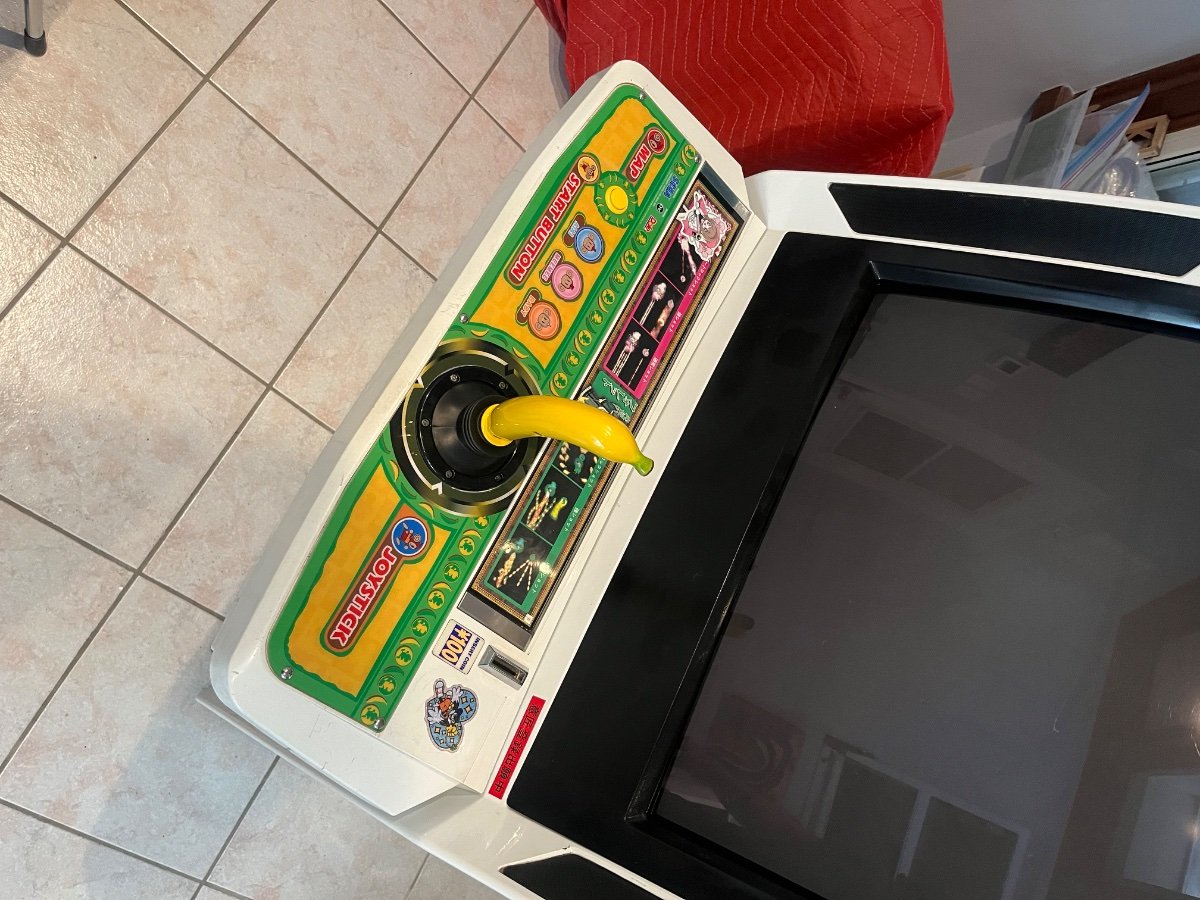

Thanks @nnap the banana turned out great.


Attachments

  • IMG_1255.jpeg
    214.7 KB · Views: 47
the one in my pic is for an original sanwa stick, for a gundam stick he posted the print file on the previous page

It is the one with the narrower longer shaft versus the gundam which is shorter. I have a banana design for both versions.

Lswanson1049 said:
is the sanwa stick your refering to the JLK GF2 EV?
Click to expand...

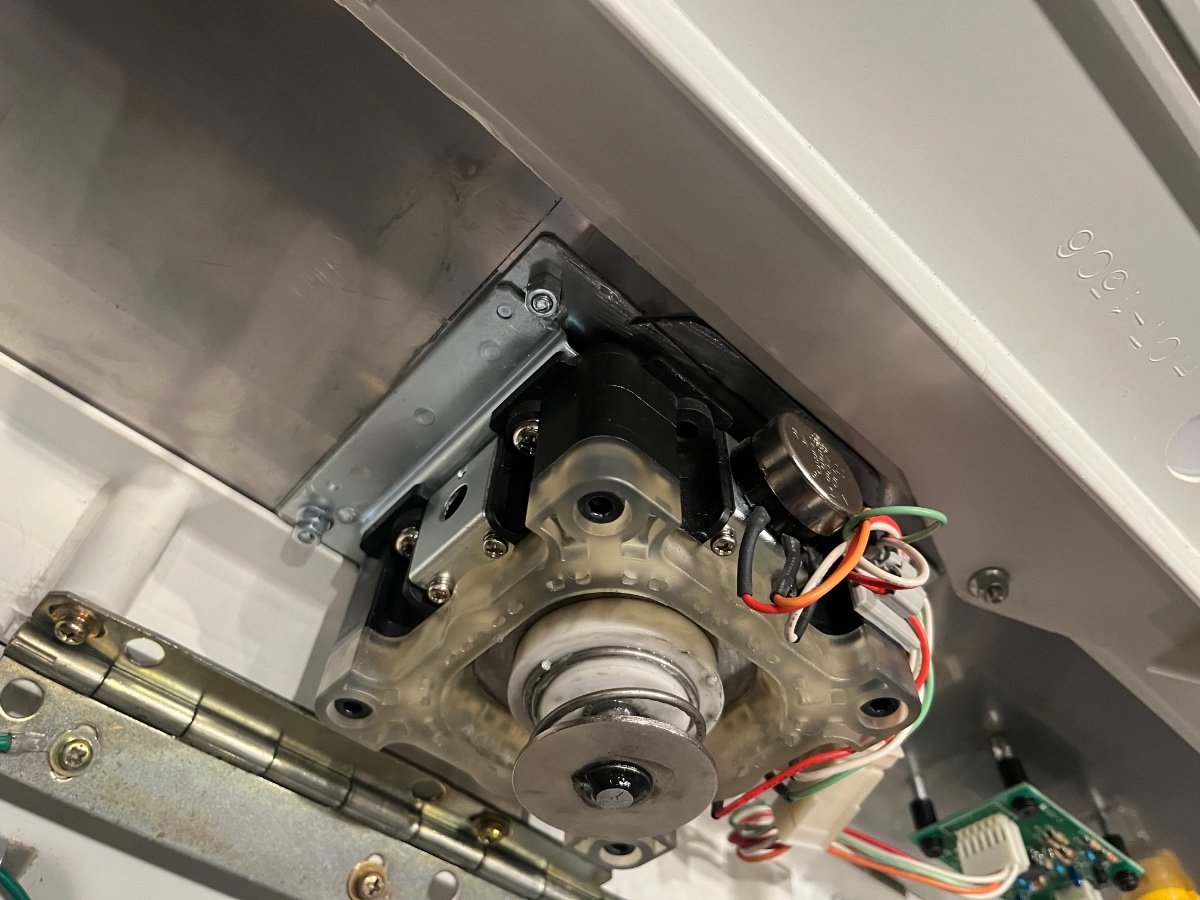

I’m not 100% sure but I believe it is the EV version as I had to cut the mounting plate to fit inside the cp. the AT version doesn’t have as big of a mounting plate.


Attachments

  • IMG_1284.jpeg
    155.2 KB · Views: 28
The EV model replaced the AT model. I believe mine is the EV model. The print works perfectly

Guys I don't have a clue on 3d printing and was looking at jlcpcb.to get some gundam ones printed.

They have lots of options but no yellow.

Any suggestions on these?

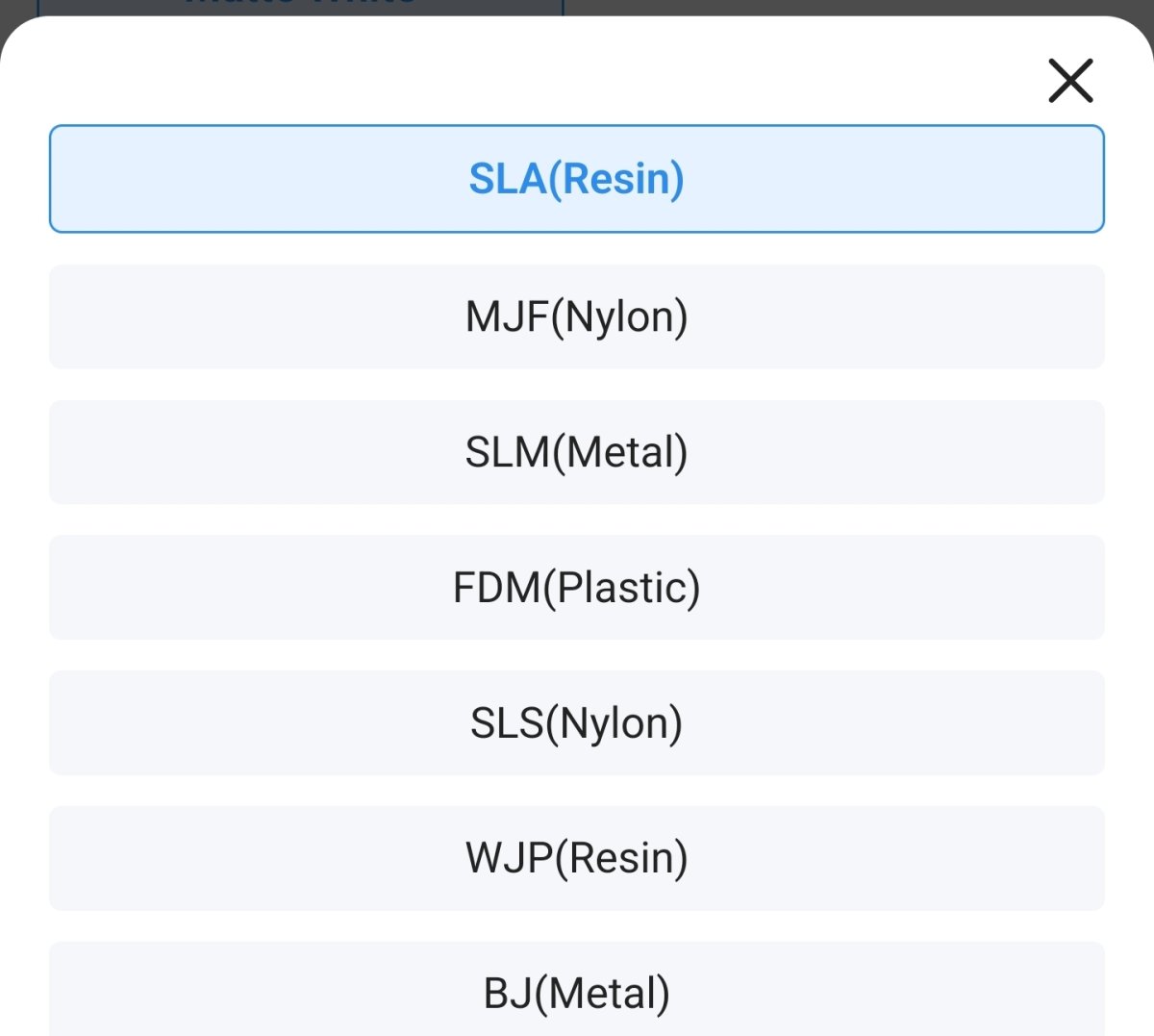

3d technology options:

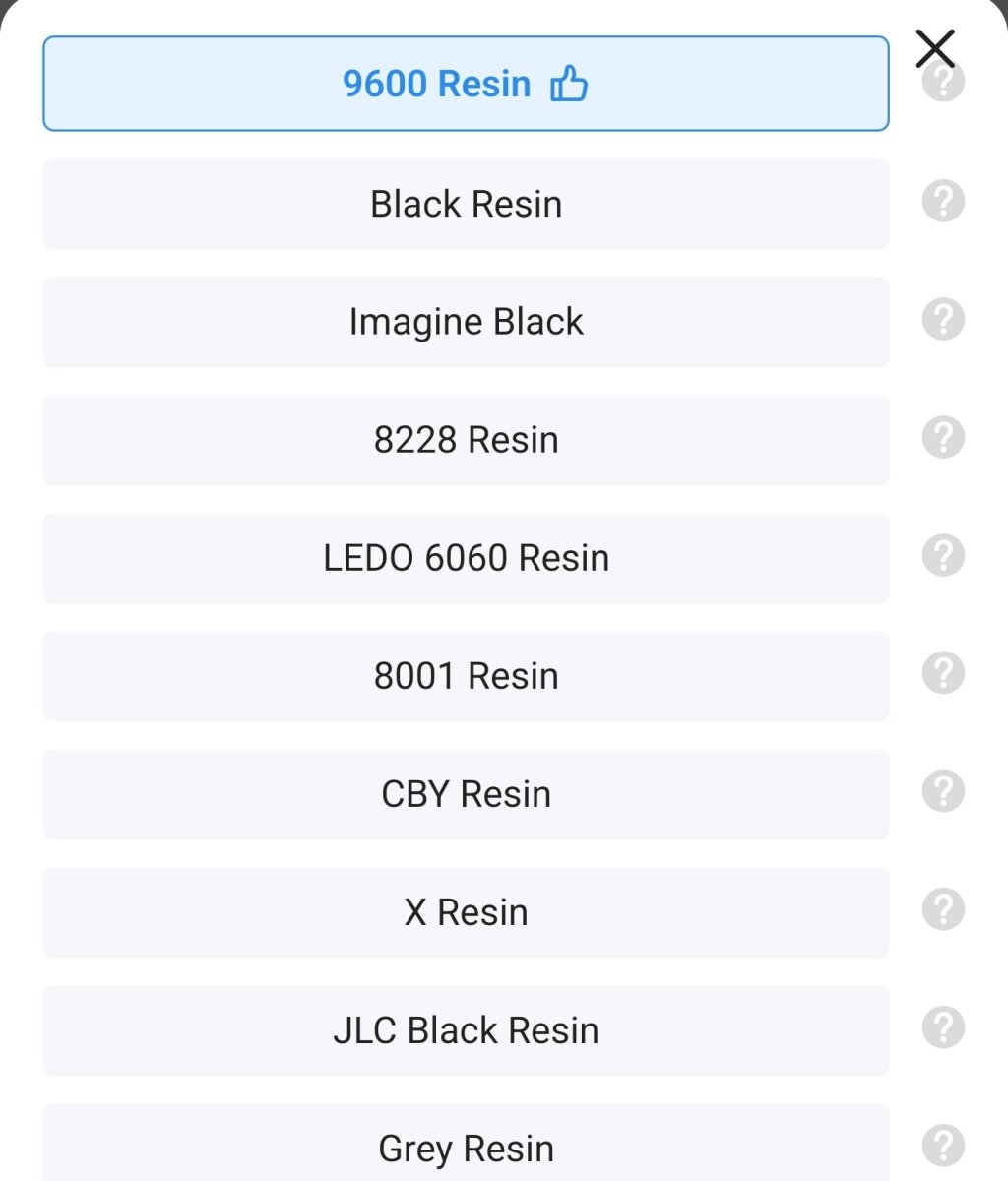

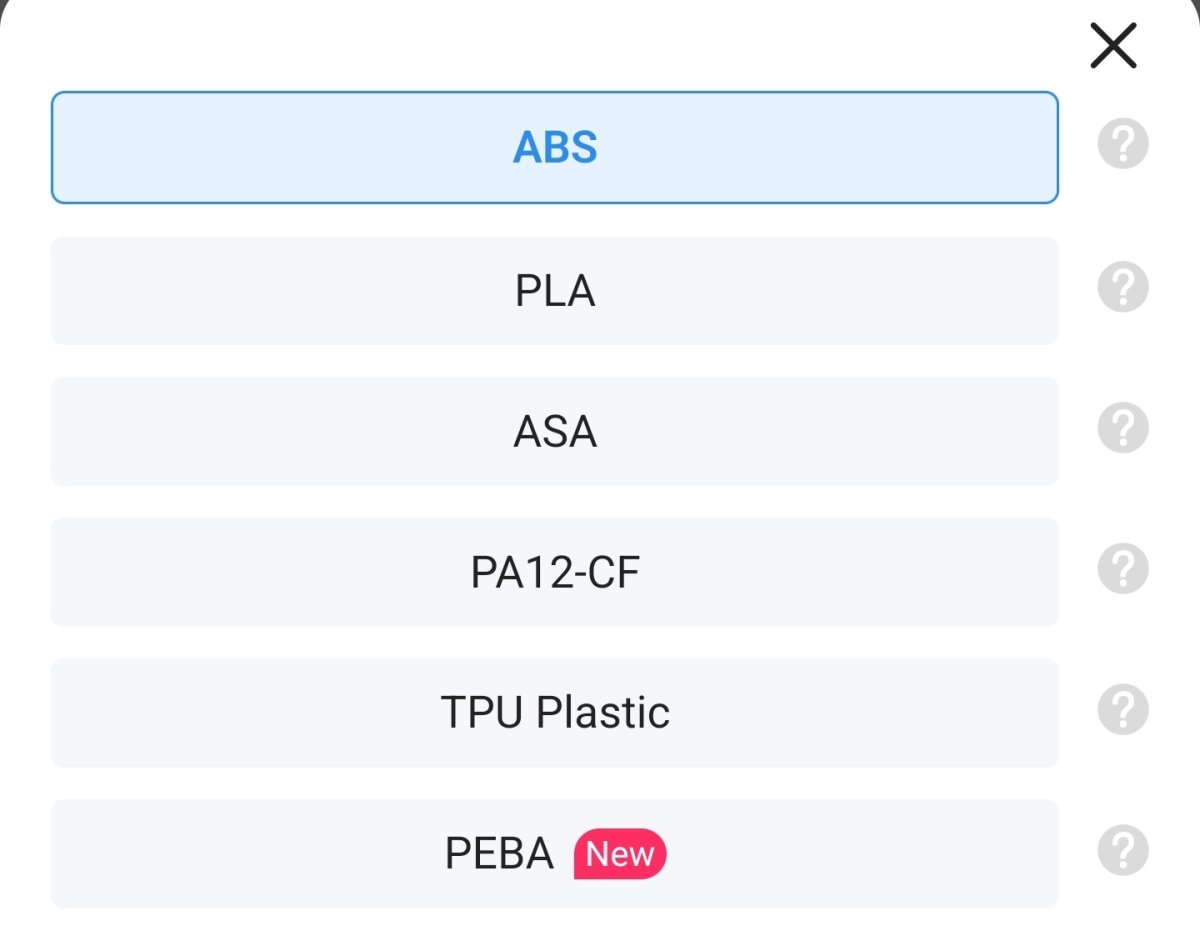

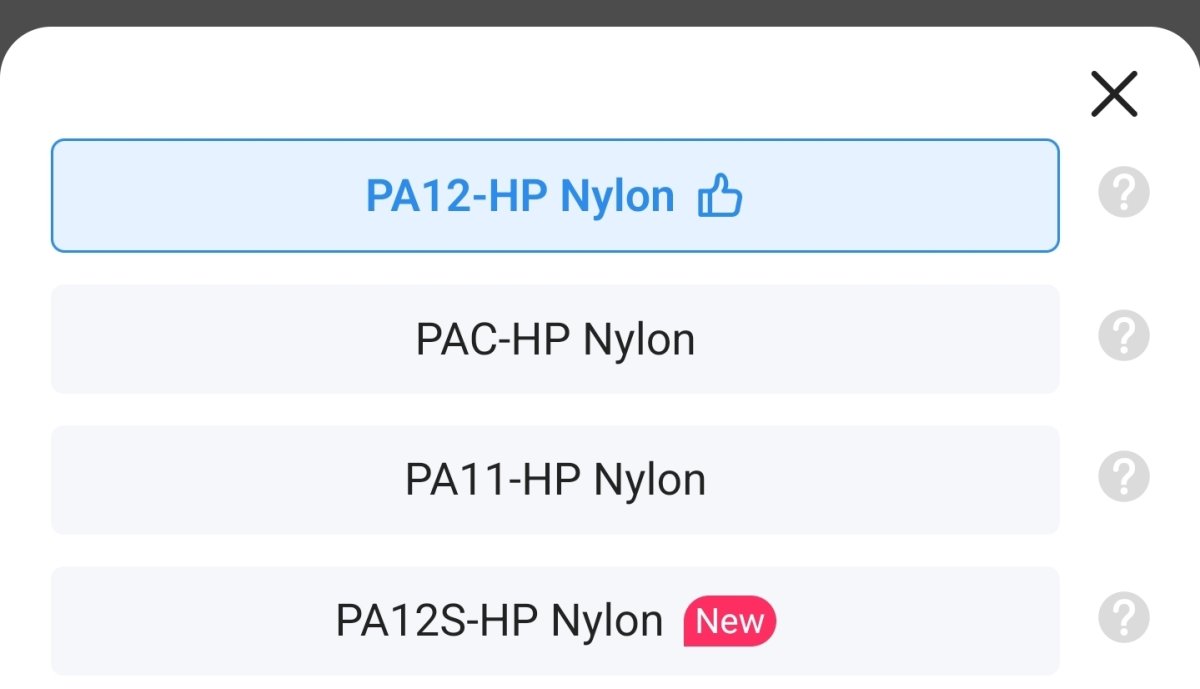

Material options:







I used petg and printed it in black. I then sanded it used high build primer, base (yellow) and clear coat to finish it. No need to print in yellow
