FS MS9 Yoke Flip Kits

[FrancoB]

Updated version of a kit I used to make.

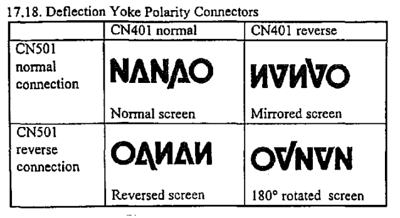

The kit plugs into the CN401 (Vertical) and CN501 (Horizontal) connectors of the MS9 chassis. Flipping the switches reverses the polarity/image:

This is useful for games that are output 180 degrees from 'standard' and can not be rotated via dips and/or it's not possible to physically rotate the CRT.

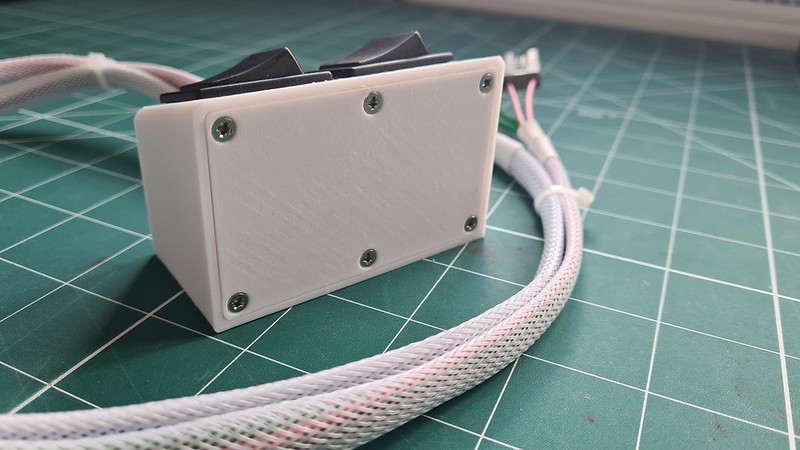

Egret 2 Version:

NAC Version:

Similar to E2 version but with longer wires to suit having the monitor set either horizontally or vertically. Further pictures to be added.



Egret 2 Install Video:

View: https://www.youtube.com/watch?v=Y5MgDVeumlk


I include adhesive backed Velcro which you can stick to the underside of the enclosure and your cab if you should wish, or you can just install it loose like in the video above. The braided wires will be cable tied but I'll include a few extra too in case you want to do any further cable management.

The price is £50 + shipping.

I've created a Google Form to capture data/orders and with information on shipping rates etc. If you're interested or you've already expressed interest then please fill in the details in the link below:

[MS9 Yoke Flip Kit Information and Order Form]

Thanks for looking



[XtraSmiley]

I'm in for one to the USA.



[fuzzbuddy]

2 my good man



[plasticfactory]

In for 2.



[AlxUnderBase]

Very glad you offer these useful MS9 flip yoke adapter switches again (anyone who have E2 / AC / NAC's need them imho)
Im interested in 2 with intention to use on [NAC+ Astro 2 , but im using same chassis (automatic MS9-29) in both cabinets] .
Also i like how the switches case looks like



[9999 Damage]

I'm in for one! Edit: It would be for an MS9 in an E2.

Is there any case where you'd want to mirror one axis but not the other?



[dmg01]

I'm interested, +1 for me, thanks



[Mitsurugi-w]

In for one, maybe 2.



[onekei]

I’m in for 1



[themisterfalcon]

Please put me down for two, Egret 2 style, thank you!



[kidpanda]

I'd like two for NAC please



[ShootTheCore]

I’ll take one for an Egret 2. I’m in the US.



[FrAshi]

1 for NAC for sure



[caldwert]

I'll take 4 for NAC's.



[SnakeGrunger]

2 sets for E2 MS9, please.



[Ape Cosplay]

Is there any case where you'd want to mirror one axis but not the other?

For games that use a mirror.
I don't know many but for sure Pontoon on S18 does.



[fuzzbuddy]

Nootnoq by Ages is a great game!



[tonyt76]

Will these work on MS8-29 and MS-2931? If so in for 2.



[PASTBLASTER]

In for one Astro MS9 please!



[mybff]

I’ll take 1 for an Astro!
