I ordered two, but I didn't see a way to adjust the quantity. So it might look like a duplicate or an accident, but it isn't.


GeeDee

Professional
Joined
Jun 2, 2019
Messages
380
Reaction score
415
Location
Kodak, TN
Any chance this is the same site that VS kit you posted a while back may end up on? :love: Still VERY excited about that one


Anselmo

Professional
Joined
Jan 8, 2019
Messages
382
Reaction score
501
Location
Bakersfield, Ca
will an adapter like this: VGA TO HDMI work to pass the video onto an El Gato 60s capture card? Or do I need a higher end device like an OSSC?


Hatsune Mike

Champion
Joined
Dec 8, 2017
Messages
658
Reaction score
1,794
Location
San Francisco Bay Area
will an adapter like this: VGA TO HDMI work to pass the video onto an El Gato 60s capture card? Or do I need a higher end device like an OSSC?
That depends on if the HDMI device will accept 15KHz horizontal scan rate and with composite sync over the HDMI port. In theory, it could work, but in practice I would not expect it to. The El Gato ones are famously picky as it is, as I remember.
The OSSC is a recommended prescaler. I use mine at 4X for this purpose.


opt2not

Multi Boyz Pixeler
Enlightened
Multi Boyz
Joined
Nov 10, 2015
Messages
2,040
Reaction score
3,366
Location
California
That depends on if the HDMI device will accept 15KHz horizontal scan rate and with composite sync over the HDMI port. In theory, it could work, but in practice I would not expect it to. The El Gato ones are famously picky as it is, as I remember.
The OSSC is a recommended prescaler. I use mine at 4X for this purpose.
OSSC is flawless. I’ve also done testing with the GBS-C AIO and the RetroTINK 5x.

The GBS-C AIO works as well, without issues. Albeit you gotta adjust the Splitfire brightness a bit to compensate for the unit’s dimmer capture.

The RetroTINK 5x works well with boards which are close to “standard” sync levels. Granted, you’ll need a HD-15 (VGA) to SCART adapter or cable to connect it up.
If you use this with the Splitfire I recommend a middleman device or circuit to regenerate the sync. I’ll be testing an Extron 192V device for this purpose very soon.


imbord3rlin3

Enthusiast
Joined
Jul 14, 2021
Messages
101
Reaction score
178
Location
shelton, CT
Im gonna be trying vga to component this weekend with the tink 5x and the splitfire. Ill see how that goes. I got an ossc on the way either way, but itl be interesting to see how it fares.


insatiate

Beginner
Joined
Feb 7, 2020
Messages
11
Reaction score
3
Location
Washington, USA
Quick question about the gain knobs. The video gain had an obvious effect in OBS capture, but the other knob (audio gain, presumably?) didn't seem to make any difference. The desktop prompted me for "line in" or "mic in" when I connected audio; I assumed line in was the correct choice. I didn't have anything handy to listen directly, was just watching the peak meter in OBS. Is it expected that at min or max the level meter seems to read the same? Do I just need to dredge up some headphones with a mini jack to listen directly to adjust it?


LemmyBarnett

Student
Joined
Feb 29, 2020
Messages
85
Reaction score
66
Location
UK
Arrived today - only took 7 days from San Francisco to UK. Can't wait to try it out!


Arikado89

Enthusiast
Joined
Oct 30, 2020
Messages
50
Reaction score
140
Location
UAE

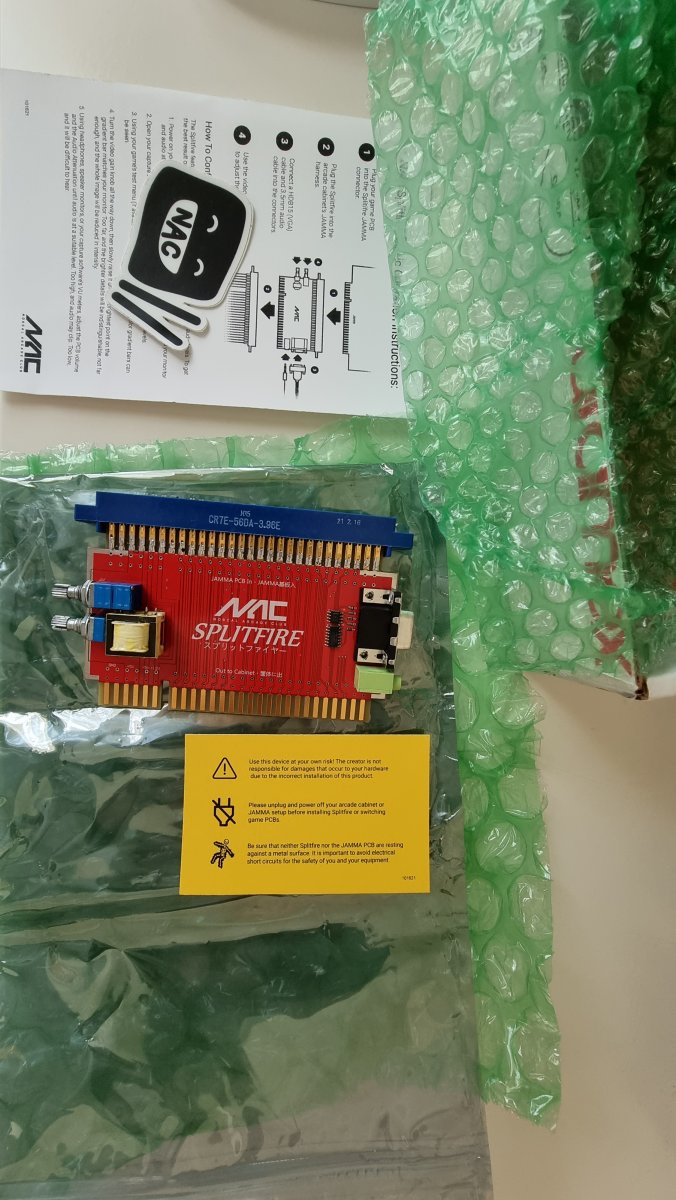

received it today :D


Attachments

  • 20211030_113452.jpg
    158.1 KB · Views: 16

kingcar

Enthusiast
Joined
Oct 26, 2015
Messages
183
Reaction score
81
Location
Solingen, Germany
Got mine Today.
I don't know when I can test, but I'll put on a video when I'm done. :D


kazuyajin1080

Student
Joined
Mar 18, 2018
Messages
44
Reaction score
22
Location
Los Angeles, CA
does anyone have a recommendation about which scart to vga adapter to use or buy for the retro tink 5x? I remember, at least I think, it was stone age gamer having some, but they are sold out. Are there are others that will work fine with the Splitfire? Thank you~
