Hi,

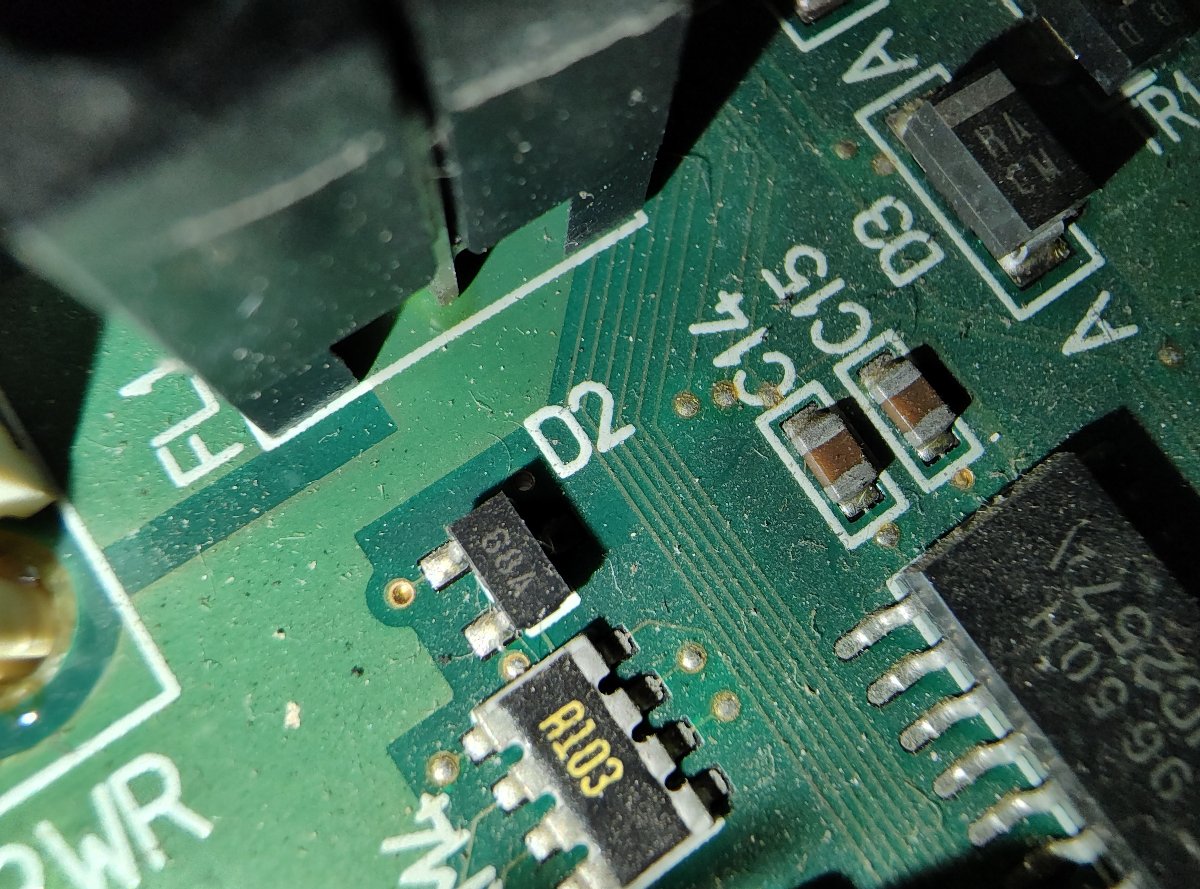

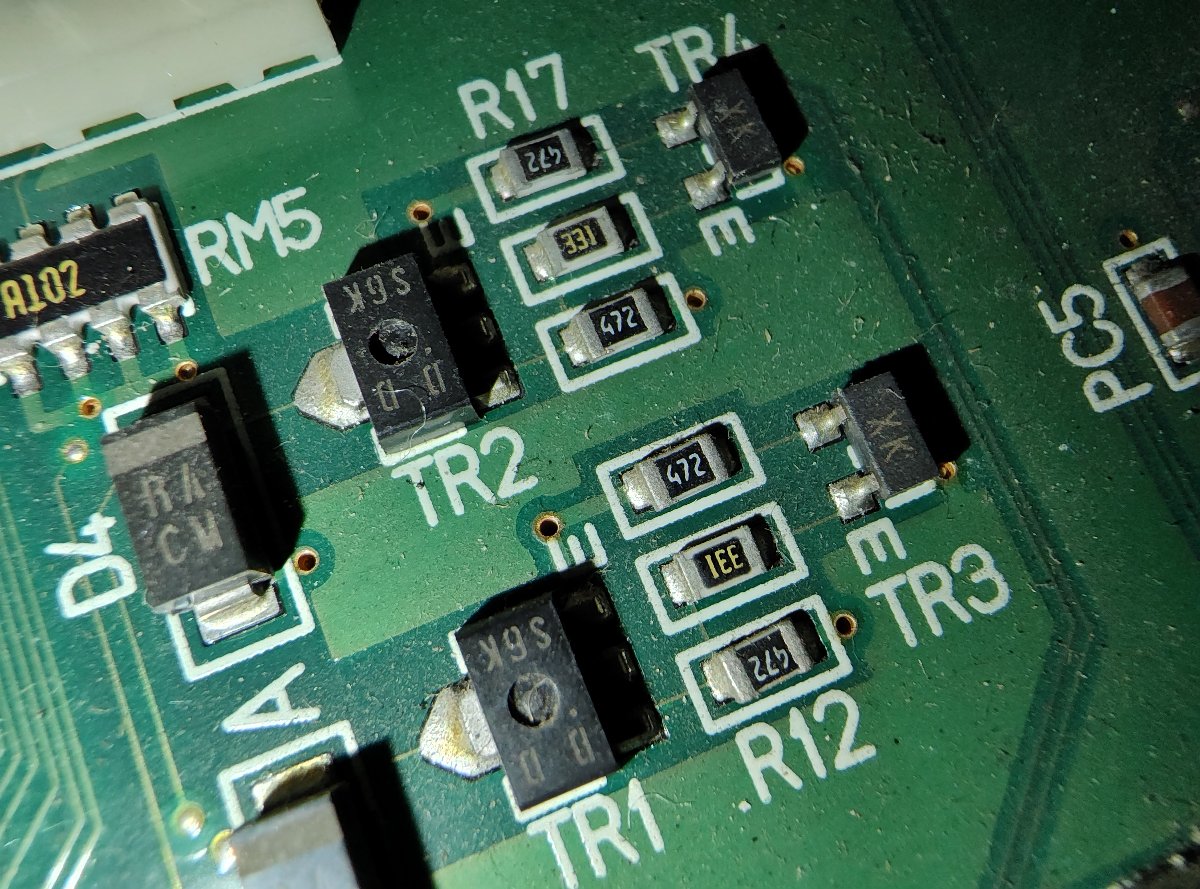

thank you so much! I apologize in advance, but I can't see the D2, TR1, and TR2 references because of the flash.
Could you tell me what's written on them, please?
thank you so much! I apologize in advance, but I can't see the D2, TR1, and TR2 references because of the flash.
Could you tell me what's written on them, please?
winterflame
Student
That's perfect, thank you so much! I'll order the components and let you know if it worked.
aussiearcade
New User

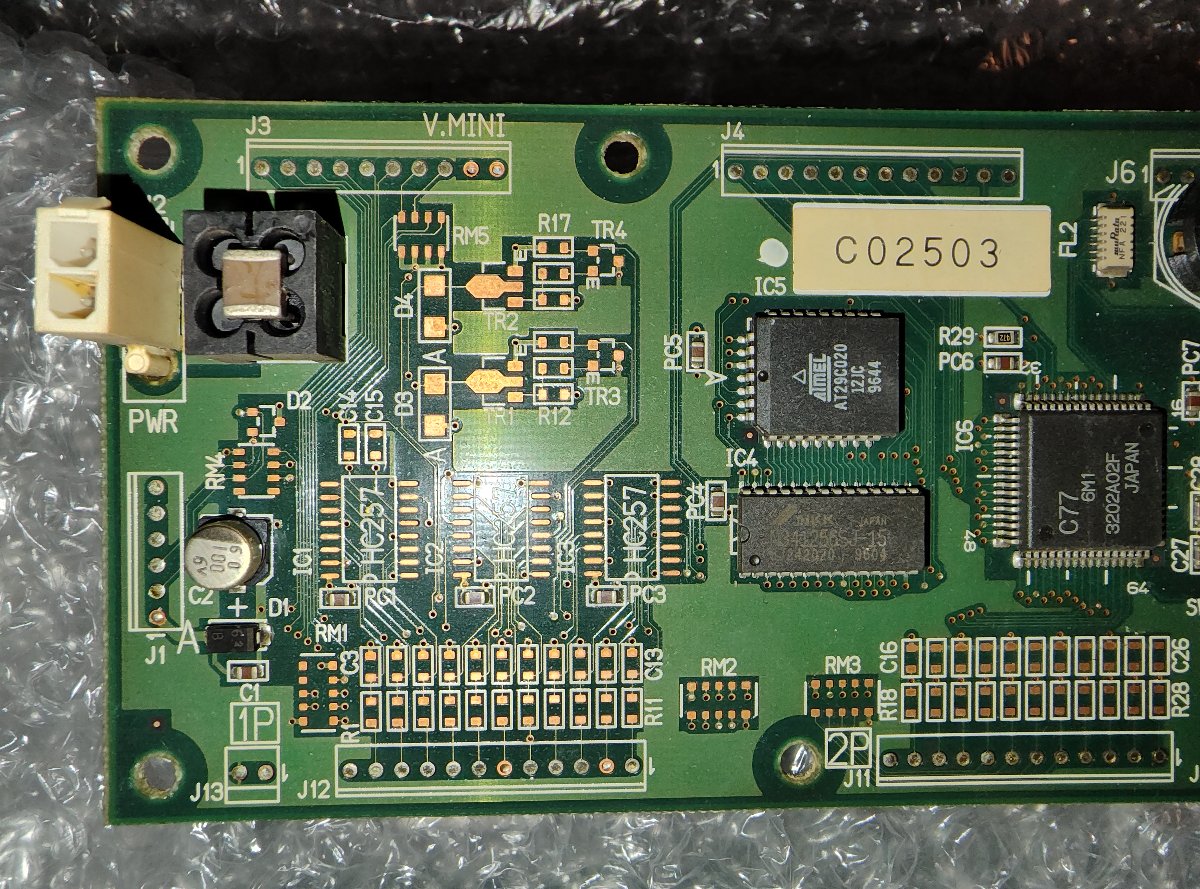

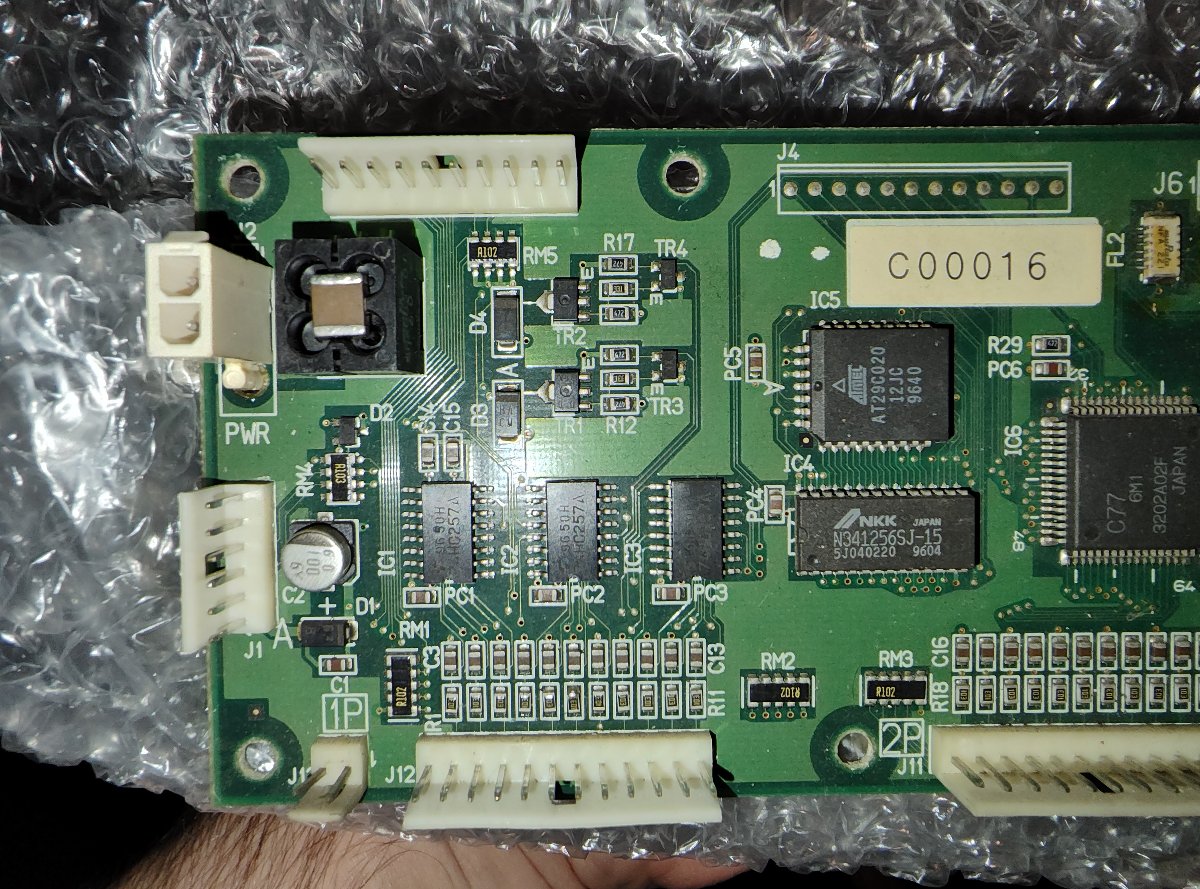

Hey everyone! I'm new here to the forum! I have used this thread many years ago when I originally purchased my cyberlead DMD, control board and I/O board from eBay! I had wired it all up and surprisingly it worked! Anyway fast track to a few months ago I had powered it on again but with 12V.... Now it's not working anymore unfortunately! Just wondering if anyone has any tips or clues on what I could be looking at first?
Welcome fellow Aussie... introduce yourself here: https://www.arcade-projects.com/threads/australian-roll-call-registry-deals-thread.8352/
chacal231077
Grand Master

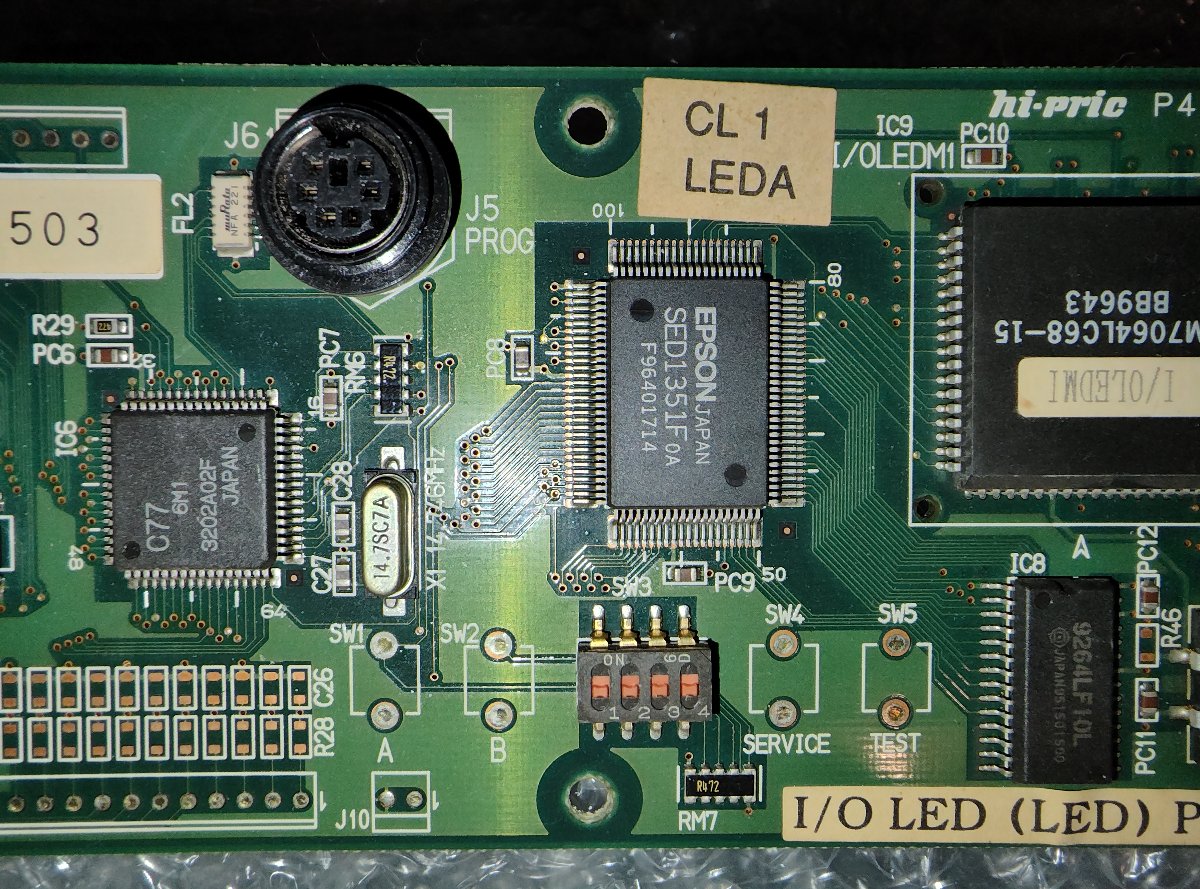

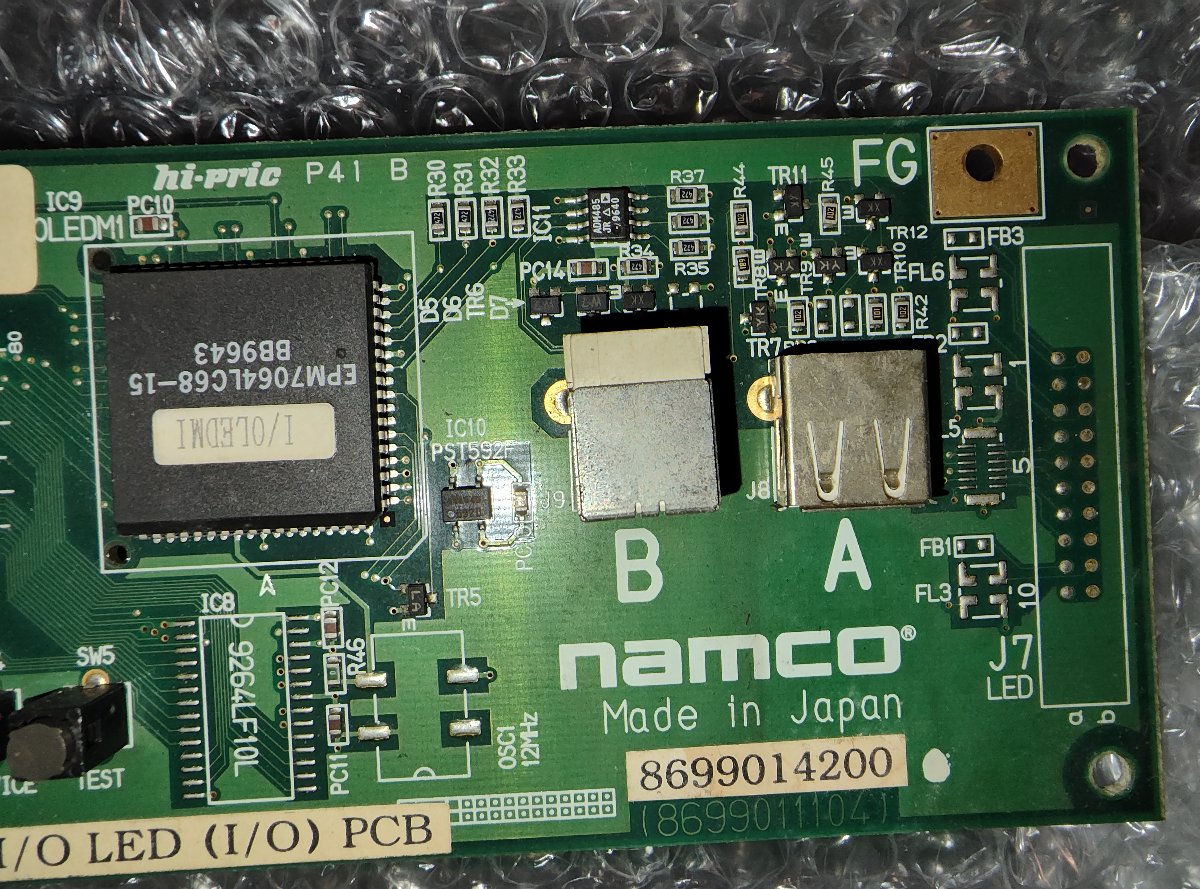

Hi!

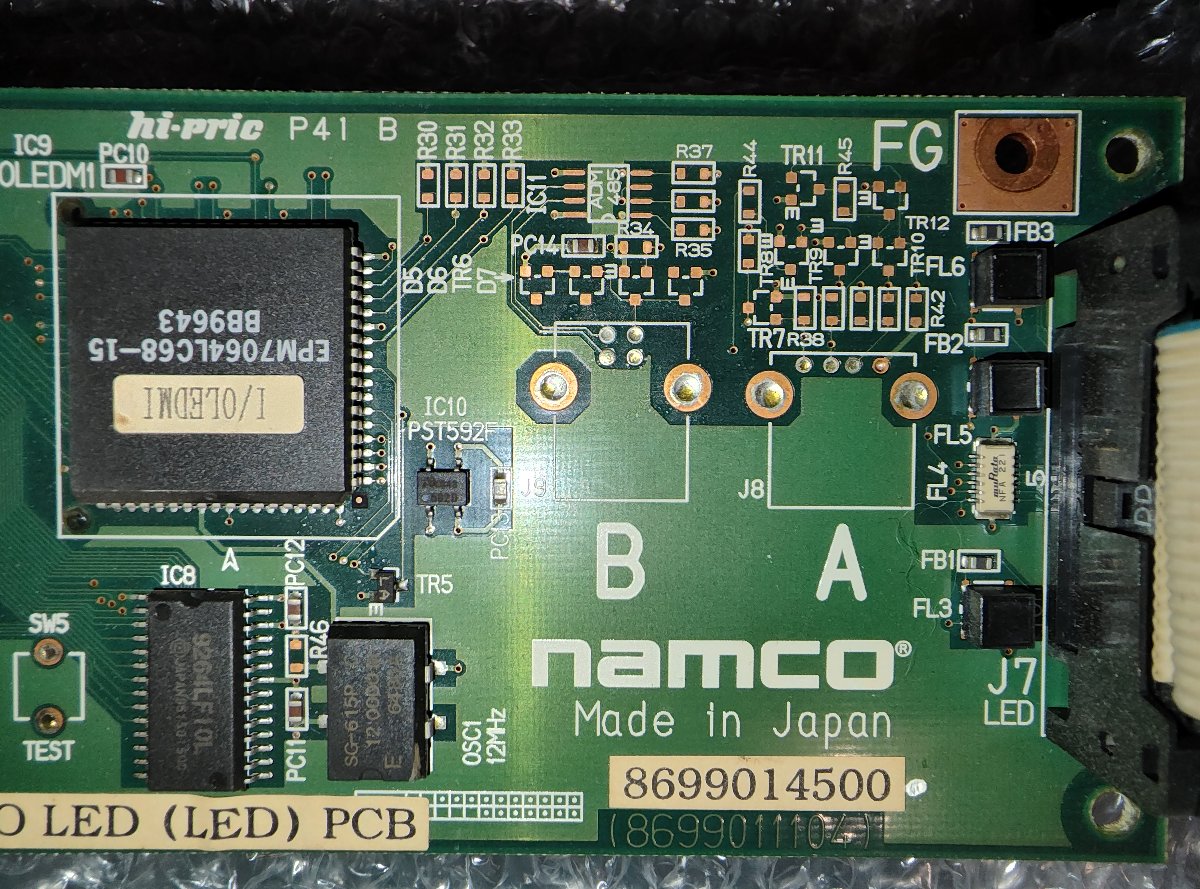

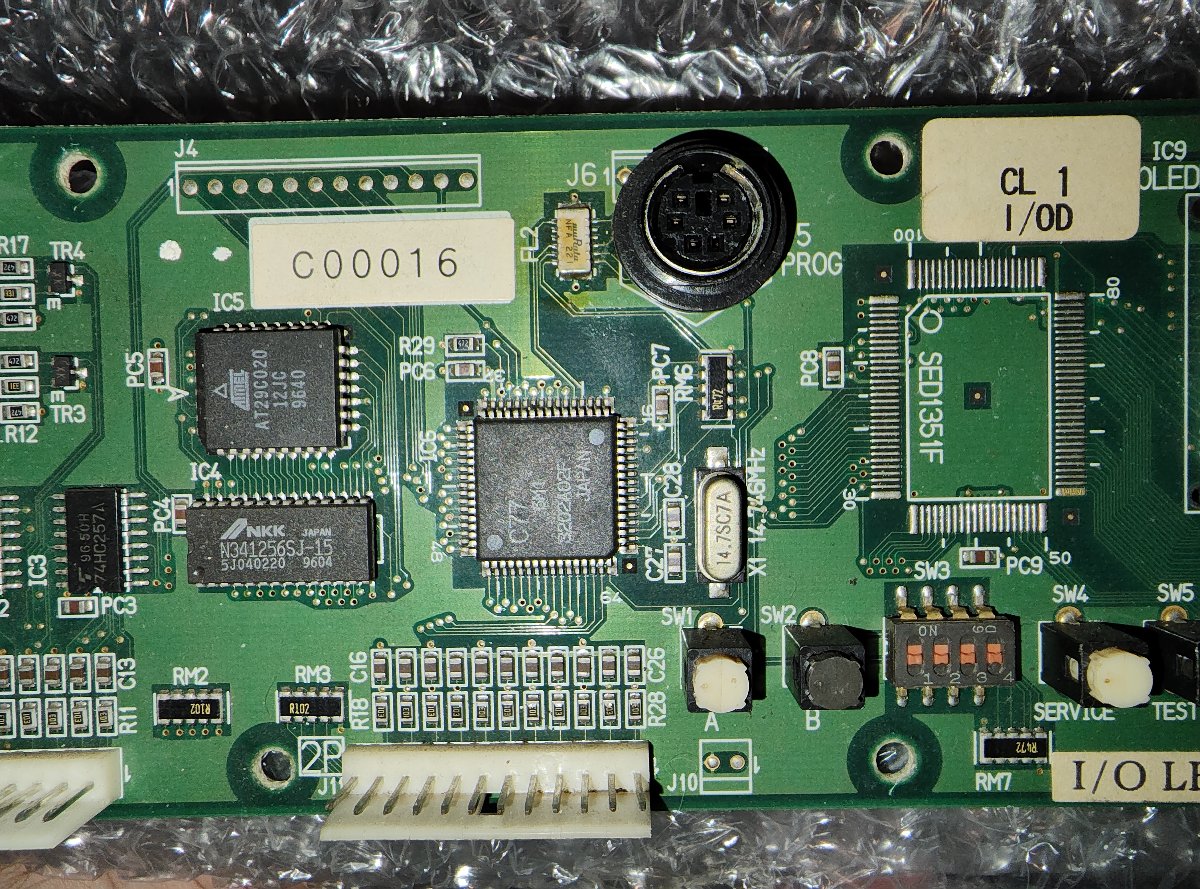

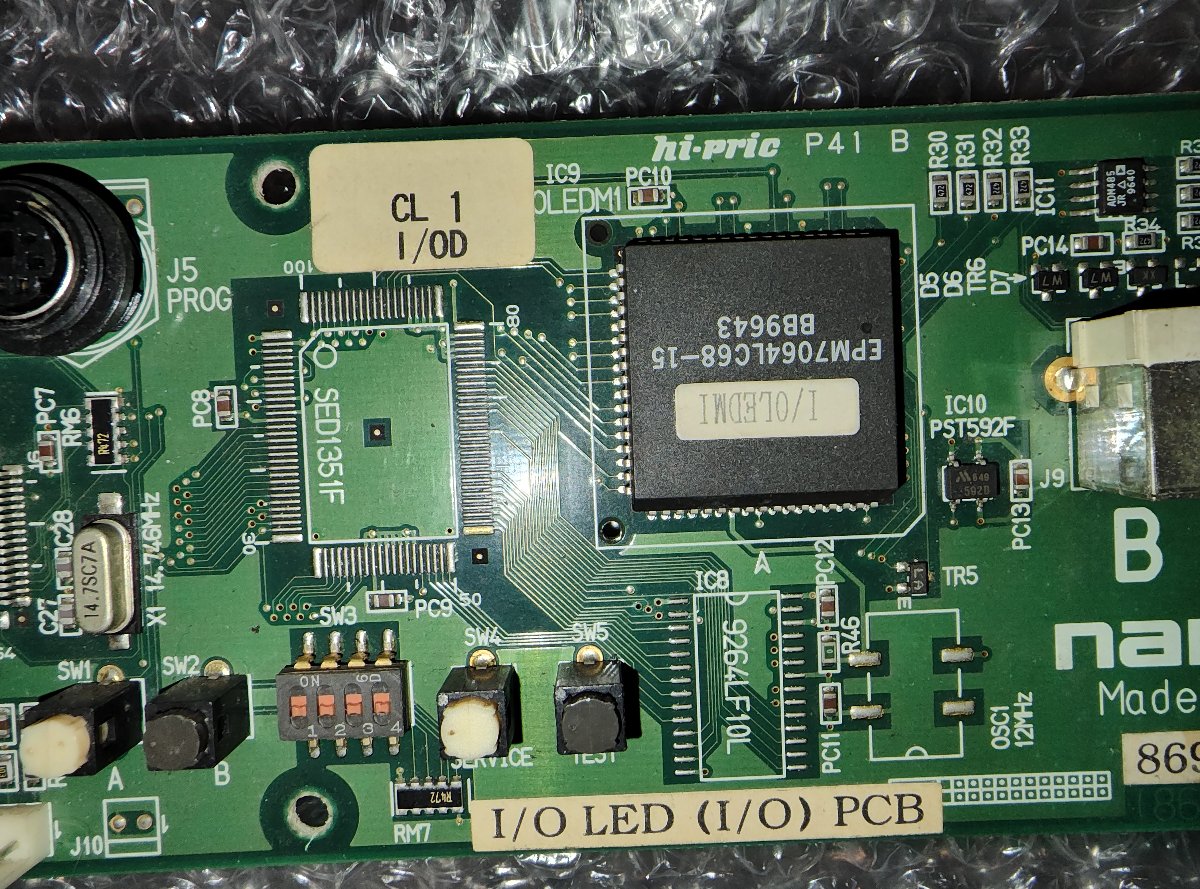

I’ve just noticed that one of the three chokes/filters is damaged. The ferrite casing is completely gone; only the coil remains, still hanging by one of the wires.
I would like to replace it. I think it might be a Murata component.
Unfortunately, there are no markings, numbers, or other identification on the component, so I don’t know its exact specifications or electrical values.
All I know is that the package is approximately 4 mm high and 5 mm wide. It is an SMD 4-pin component.

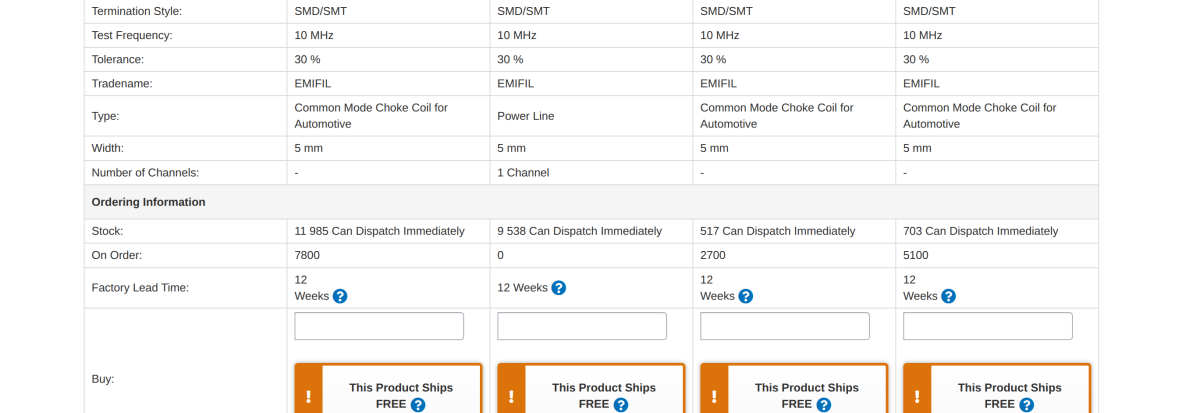

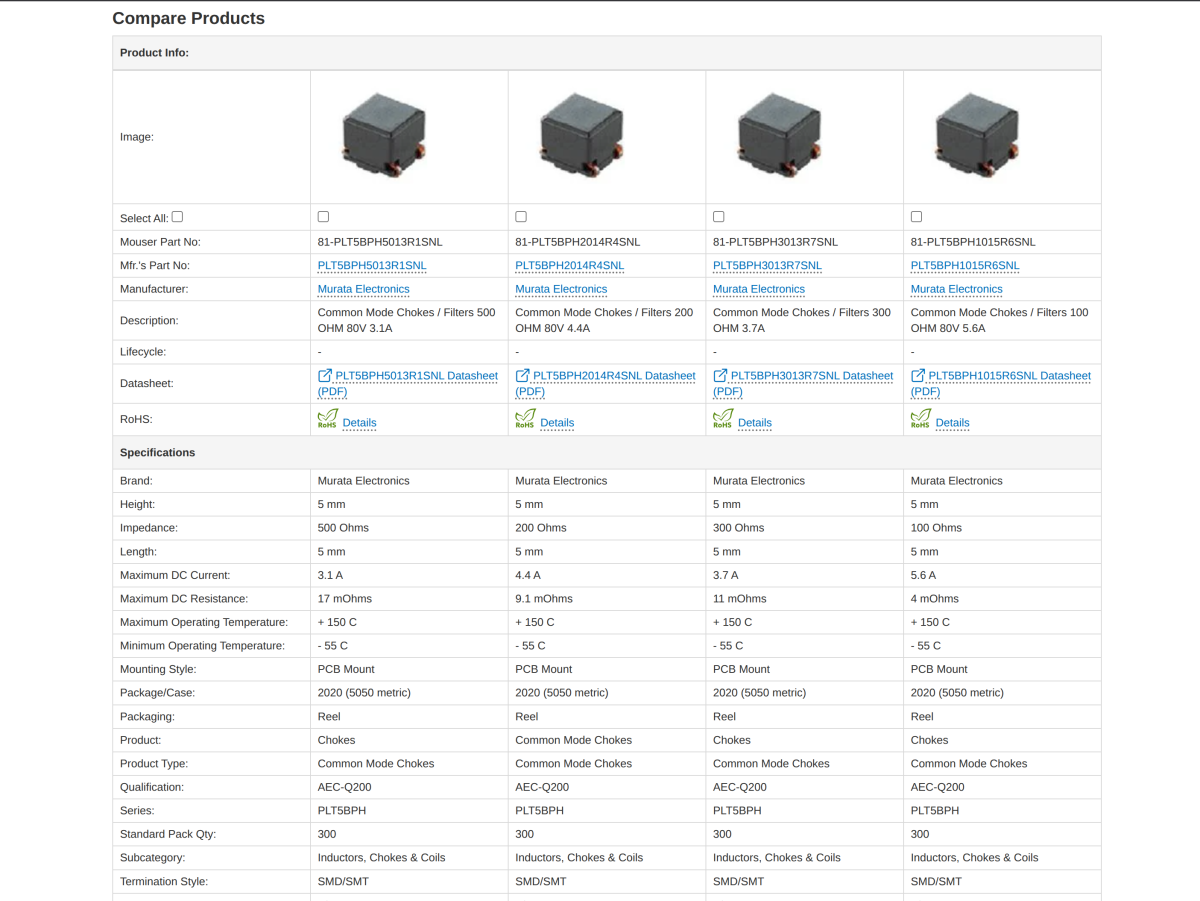

Any help identifying the component or determining its specifications would be greatly appreciated.
Thank you for your help!
I’ve just noticed that one of the three chokes/filters is damaged. The ferrite casing is completely gone; only the coil remains, still hanging by one of the wires.
I would like to replace it. I think it might be a Murata component.
Unfortunately, there are no markings, numbers, or other identification on the component, so I don’t know its exact specifications or electrical values.
All I know is that the package is approximately 4 mm high and 5 mm wide. It is an SMD 4-pin component.
Any help identifying the component or determining its specifications would be greatly appreciated.
Thank you for your help!
