Noir Monitor Swap

[jermz1]

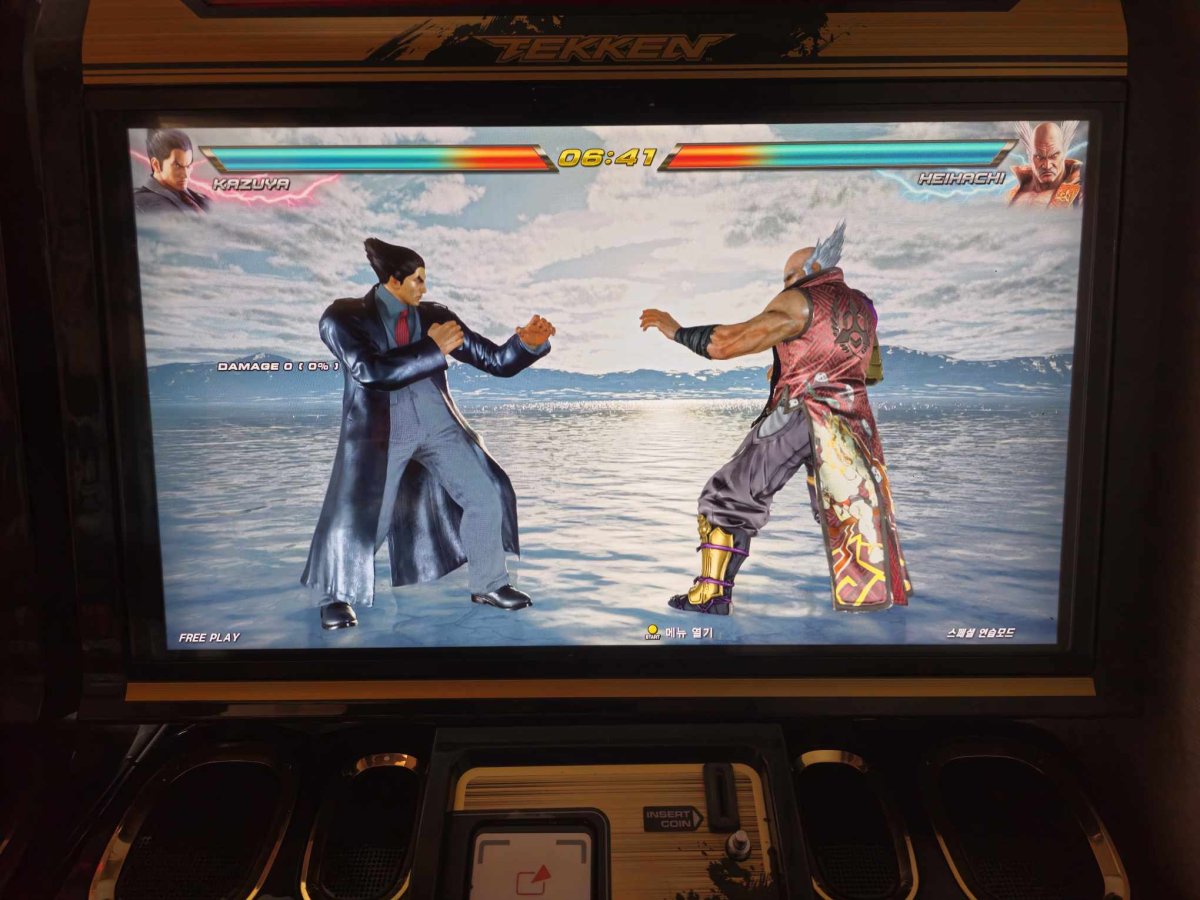

Just swapped my monitor with a LG 32GN650-B.

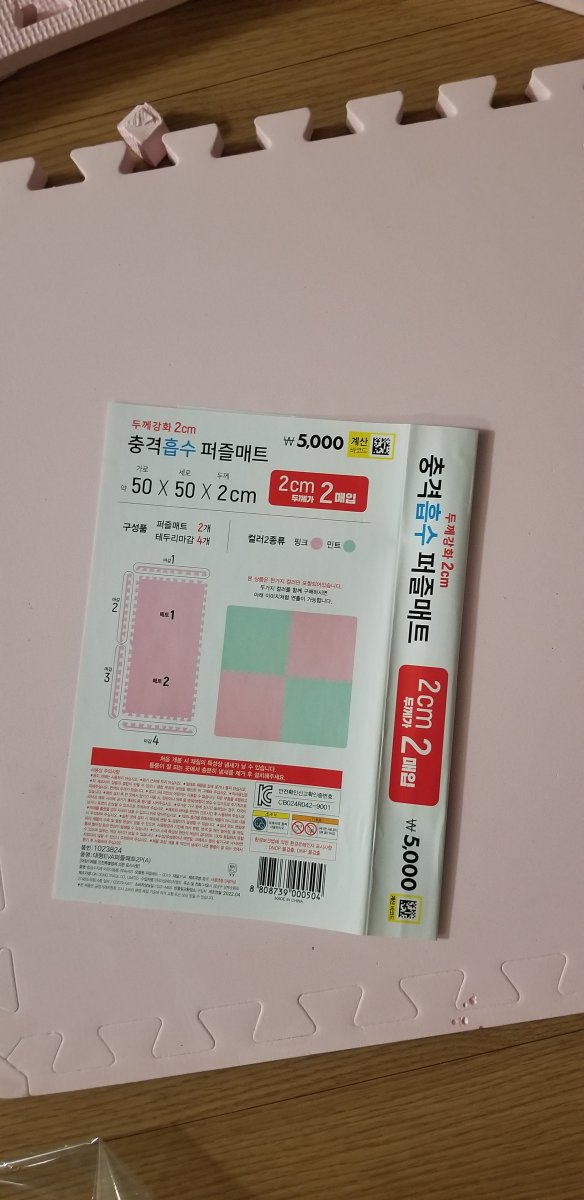

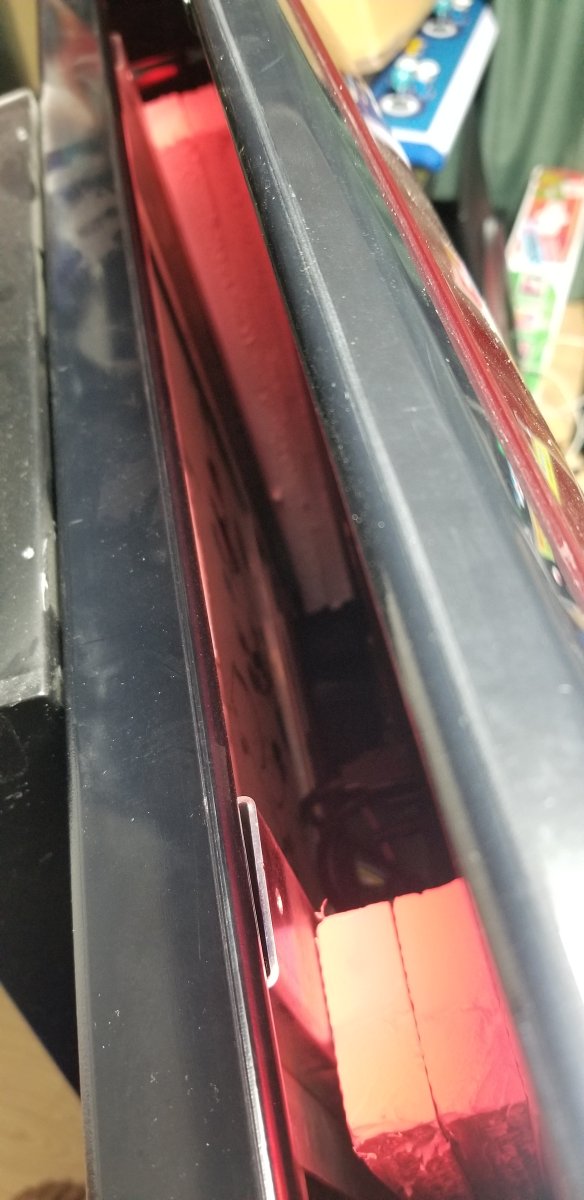

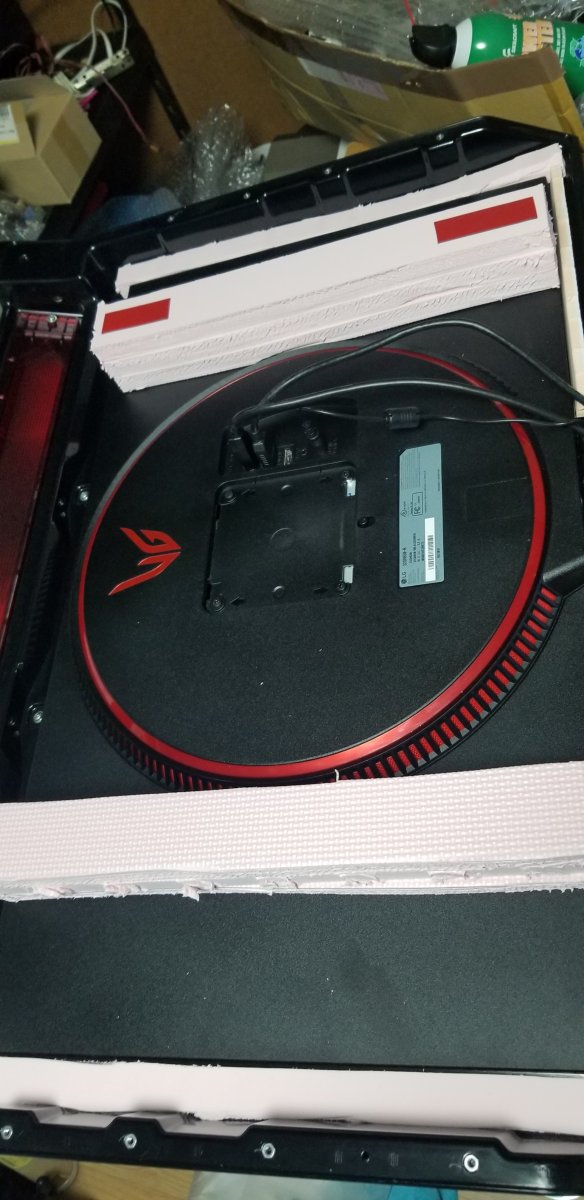

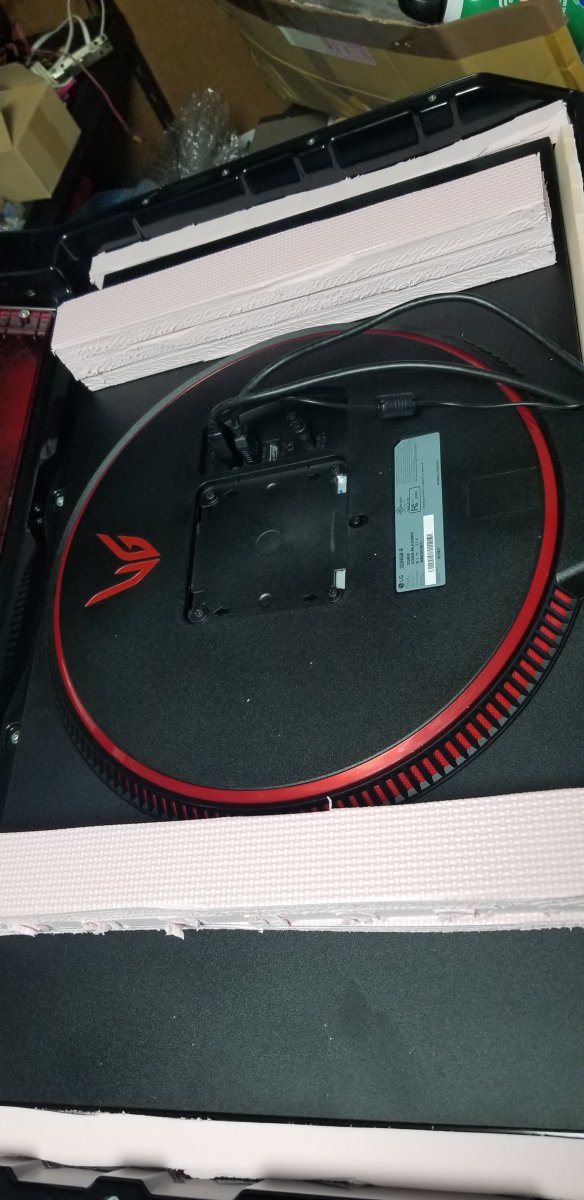

1in wide foam on the sides and 2in wide x3 stacked in the middle. I added some 3m heavy duty double stick tape to the foam to stick to the monitor.
Just need to screw in the main 4 bolts and slide the monitor a bit to the left.

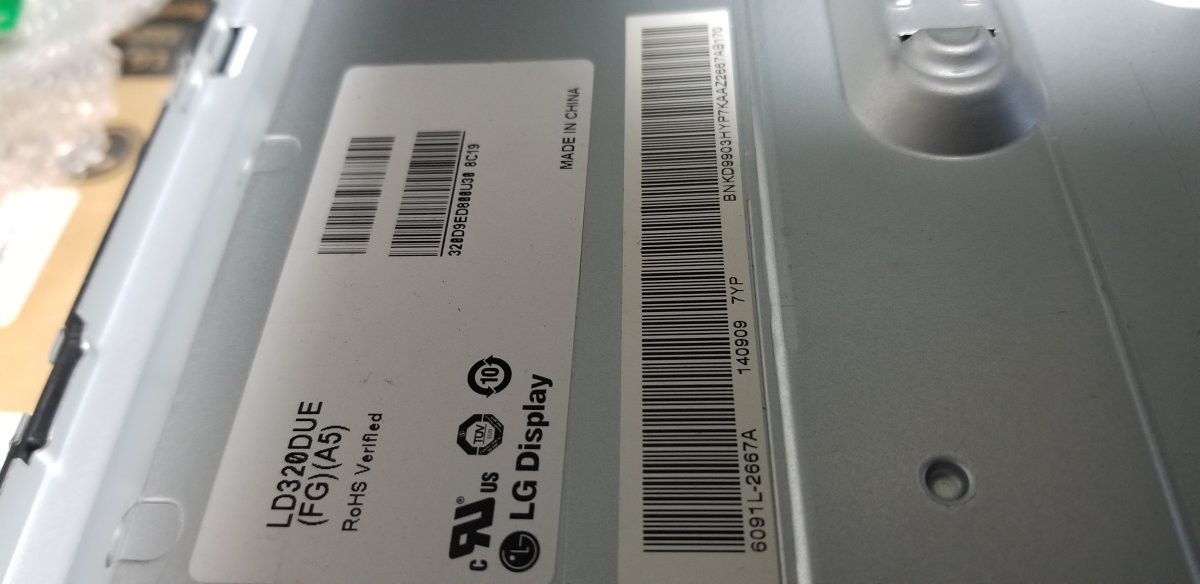

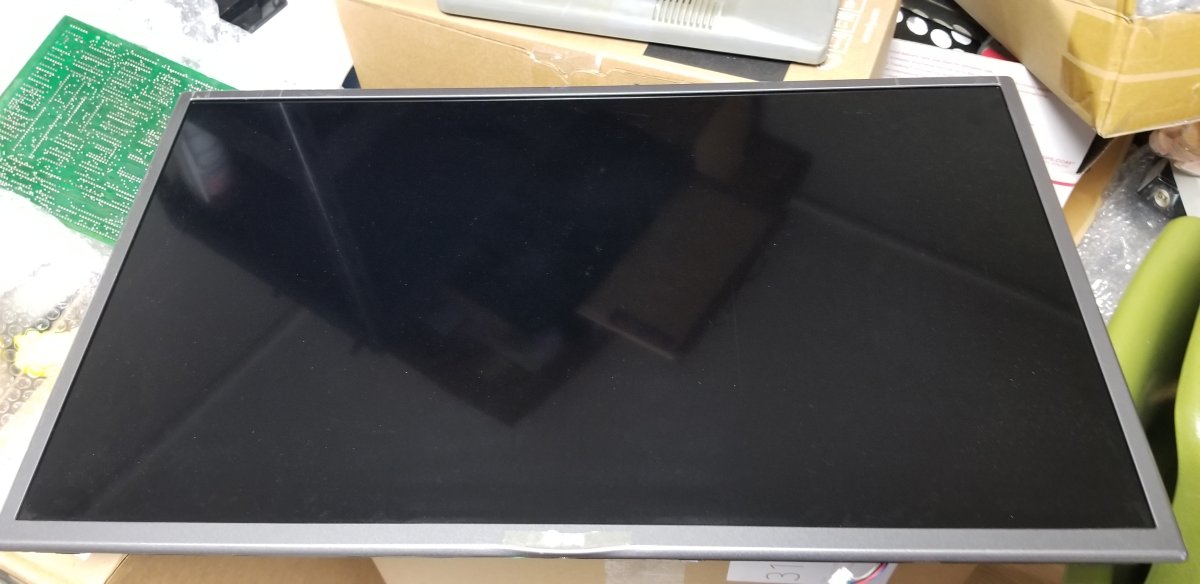

I have a korean noir. Not sure what comes stock.
It came with an LG monitor.



[thegreathopper]

Nice work.



[jermz1]

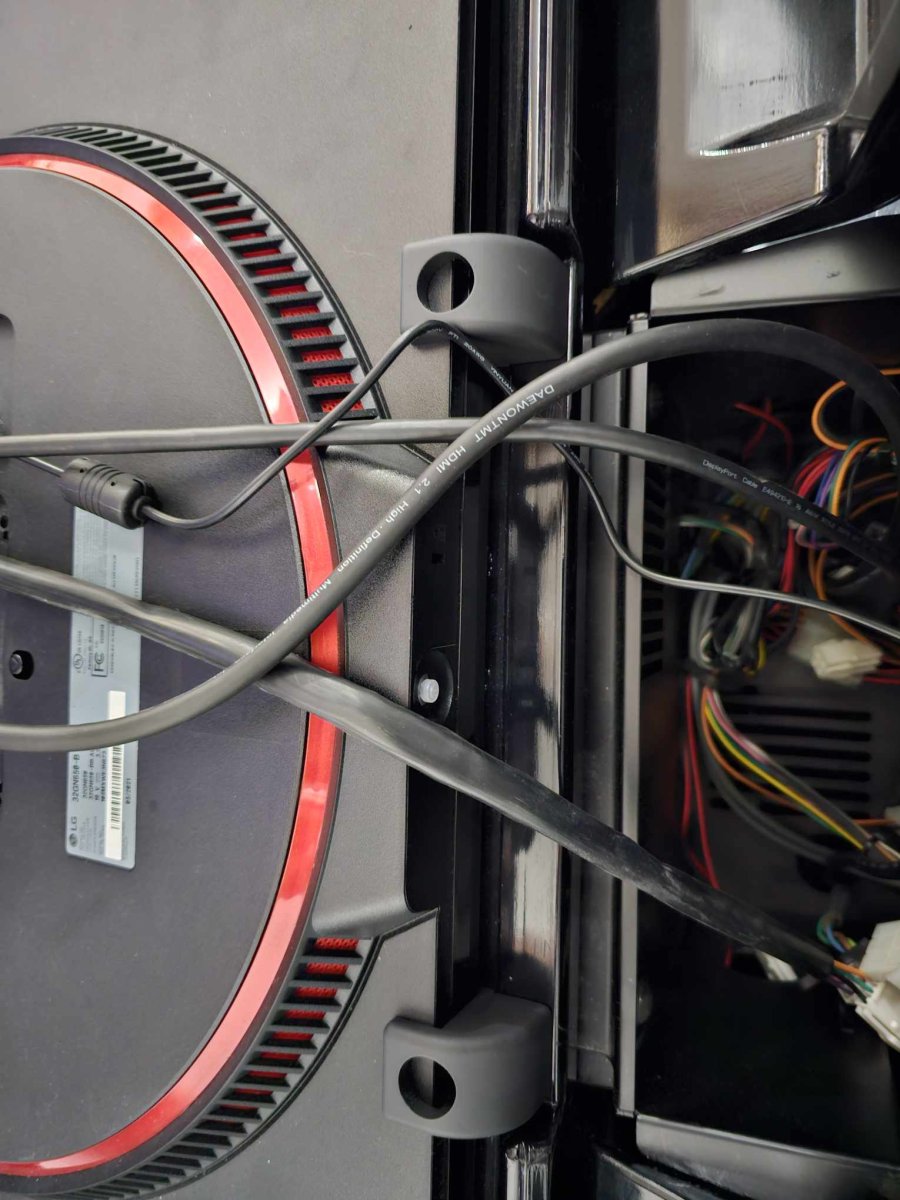

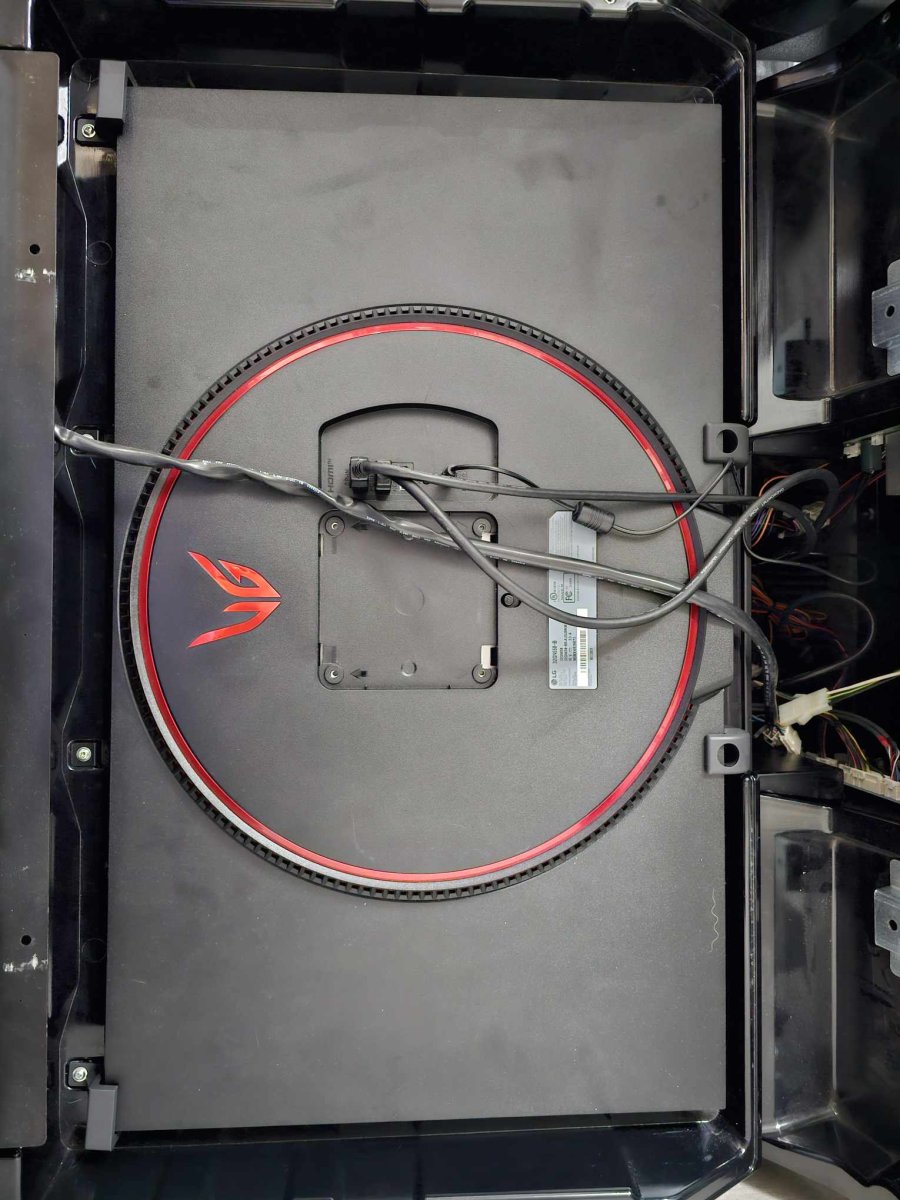

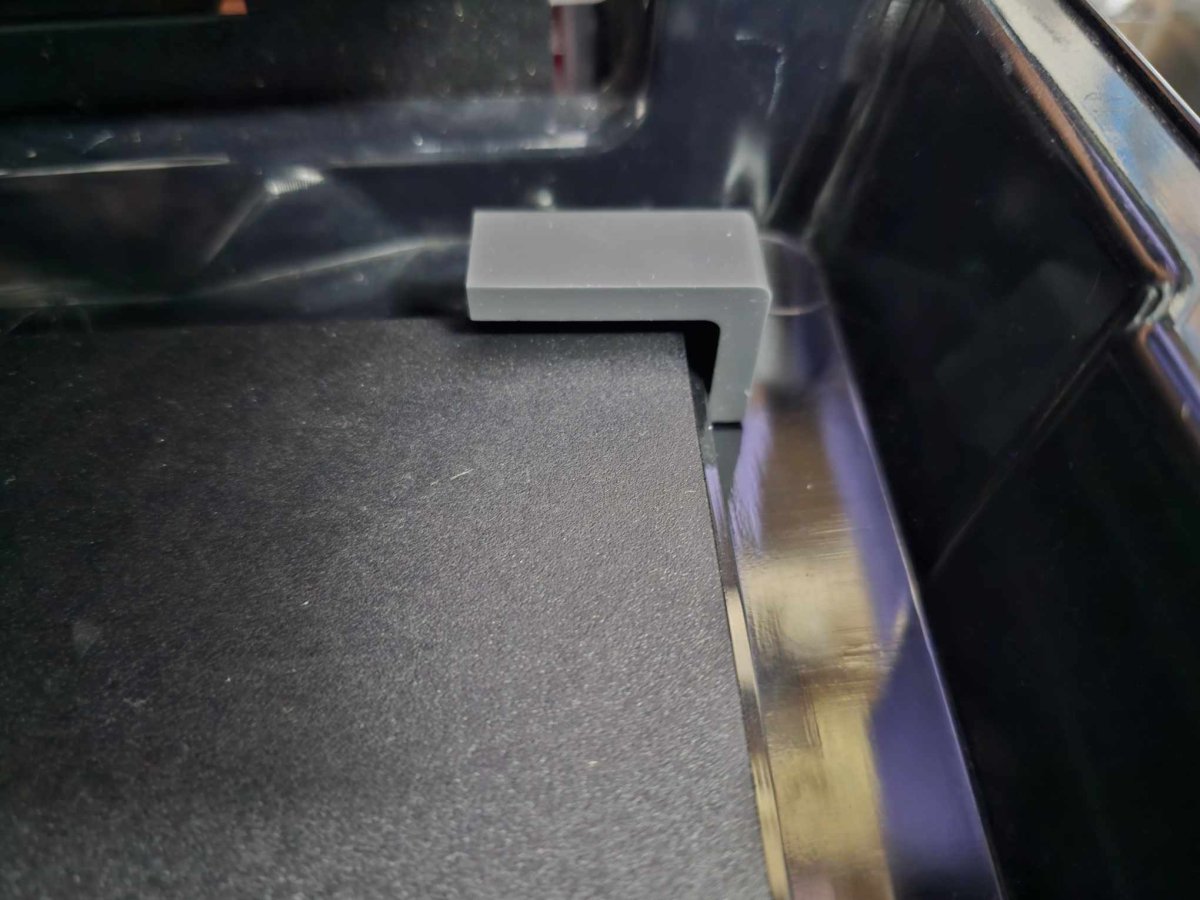

Just improved my previous mounts to 3d printed mounts.



[notsonic]

The day after you posted this my original monitor started flickering. Would you mind sharing the STLs?



[PASTBLASTER]

Agree, this looks fantastic! Are you able to share the .STL for these?



[PASTBLASTER]

My LG monitors just came in for my Swap post Free Play FL. Really hoping @jermz1 will post these up soon for us!



[ducktapevoodoo]

Can I also have a copy of the STL, my monitor is about on its last leg.



[Kidkaos]

The day after you posted this my original monitor started flickering. Would you mind sharing the STLs?

If he shares the STLs, would you mind me paying you to make me a set for 1 monitor???



[notsonic]

No problem if it's cool with @jermz1.



[notsonic]

I just swapped my two monitors today with these mounts and it went pretty well. I printed them in PETG. I used 2 LG 32GP750-Bs.



The more or less step by step:
Disconnect any video cables, power, the remote board, and the marquee light.
Remove the 4 big bolts and top 2 security screws and lift off the whole monitor assembly.



Take out the 8 little screws on the perimeter and remove the front glass/surround.
Unplug the light fixture at the top and remove the 2 screws holding it to the frame and remove it.
Remove the 4 big security screws in the corners to take the rear housing off the frame.
Remove the 6 large bolts to remove the stock monitor from the frame.
Put the rear housing back on the frame.
Put the light back on the frame.
Put it back on the cabinet.


Attach the new monitor to the glass using the mounts. I needed to use longer screws for the bottom mounts. They're M4.
Put the front housing/glass/monitor combo back onto the rear housing with the 8 little screws.



[Chihiro]

Great job once again !

Future project for me although there is something nostalgic about the old tech screen & for Megadrive/Snes it doesn't really matter.



[PASTBLASTER]

Swapped mine in today as well!

View: https://youtu.be/gU29ZNCz34A?si=FNf-3R-qvvmkf5Ej


Huge shout-out to @jermz1 for designing these for us!



[jermz1]

@PASTBLASTER the bottom screw/tab mounts are wider than the screw area because of the weight. I had made one that sat flush but would start bending



[PASTBLASTER]

@PASTBLASTER the bottom screw/tab mounts are wider than the screw area because of the weight. I had made one that sat flush but would start bending

Makes sense! These are fantastic



[Kidkaos]

Good work fellas. Gonna have to do mine soon!!



[jermz1]

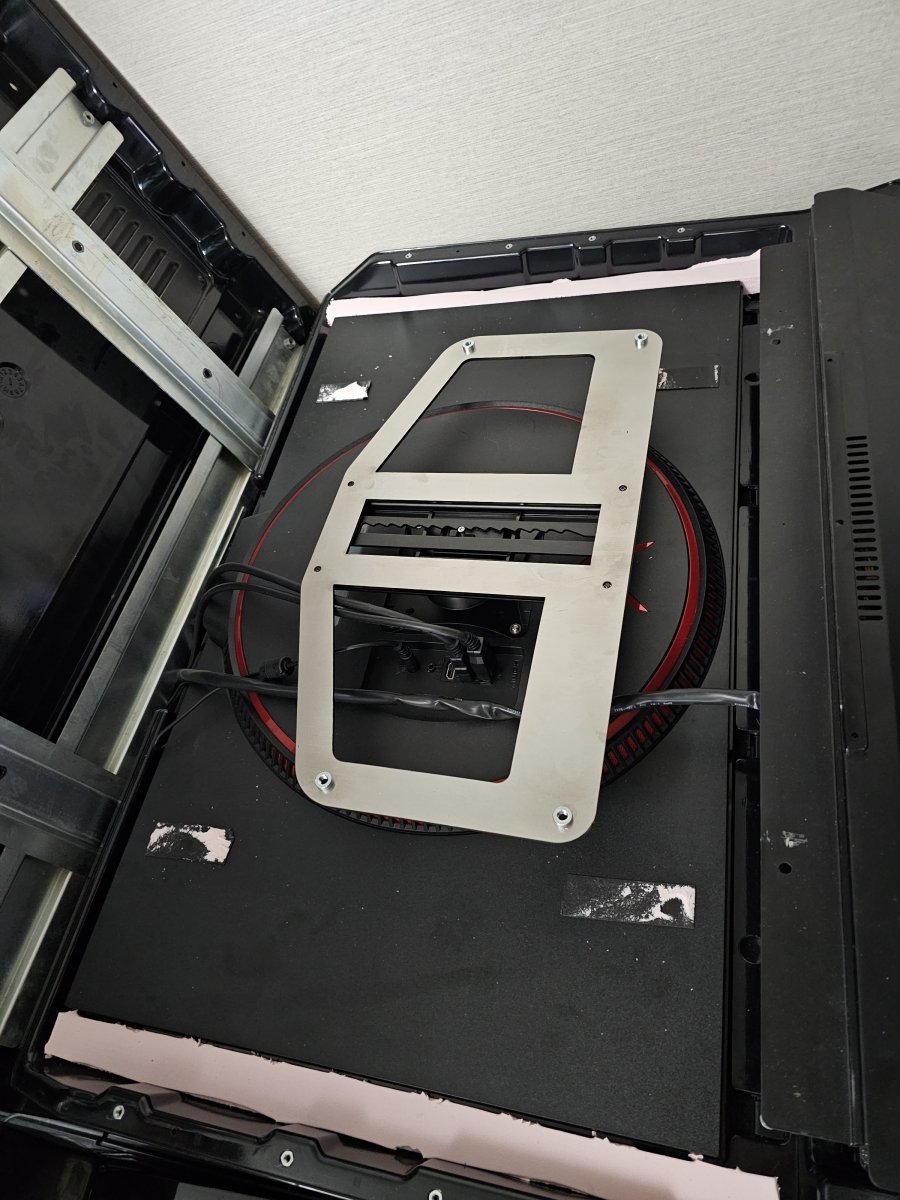

If anyone was curious of the process, these are all the versions I went through.
I wanted to make a universal monitor mount but $$ was quickly adding up. Alignment is great but depth was an issue, as the monitor stuck out a quarter inch too far.
Aluminum brackets were great but couldnt do tight bends needed. The monitor bezel would get in the way of the screw.
Red prints were basic, they fit but too weak.
The rest were just fine tuning.
Still has work remaining but good enough to pop the monitor in.



[Chihiro]

So much easier to see how it goes with a video thanks @PASTBLASTER



[Chihiro]

I'm looking at adding a LG monitor to my Noir in the near future so would love to get a source for some of these brackets.



[PASTBLASTER]

Hopefully @jermz1 will release them for everyone soon.



[Chihiro]

I would be quite happy to purchase the from him as I don't have a 3d printer.

I'm guessing these fit most LG monitors? I've not bought one yet though.
