Is the charging circuit the same throughout all pgm revision? I like to put the battery back in my motherboard. I followed the battery mod but, I can't seem to hold high score for more then a month. I have a spare li-on I like to use If I have to use a nicad I can pick one up


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,434
Reaction score
10,274
Location
NH, USA
AFAIK the charging circuit is one of the major changes throughout the revisions.

its one of the reason people prefer the later revisions.


XeD

Grand Master
Joined
Jul 6, 2016
Messages
829
Reaction score
528
Location
Vancouver BC Canada
I guess I'm buying a nicad


Neo-Alec

Student
Joined
Aug 4, 2019
Messages
112
Reaction score
54
Location
US
I replaced my battery around 2010. It's about time I do the coin cell mod.


GC8TECH

Professional
Joined
Feb 24, 2019
Messages
483
Reaction score
514
Location
QLD, Australia
REV 14 is the ONLY factory built Coin Cell version motherboard....

You can add a coin cell or larger non recharagable battery if you add a barrier diode with it.... Its how i do the battery mod on the PGM motherboards i sell.

But yes.. the battery backup circuit does change alot through the different revisions..... I have picture on my site of all the revisions if you want to check them out....

T.


XeD

Grand Master
Joined
Jul 6, 2016
Messages
829
Reaction score
528
Location
Vancouver BC Canada
@GC8TECH do you have a tutorial on the battery mod? All the one I have seen just remove a diode and resistor. Where do you add the diode?


GC8TECH

Professional
Joined
Feb 24, 2019
Messages
483
Reaction score
514
Location
QLD, Australia
Do you know which revision MotherBoard you have??

I do have a video showing how to find revision numbers.

Once i know that i'll do up a picture on the battery mod.... I don't have a video on it just yet......

T.


XeD

Grand Master
Joined
Jul 6, 2016
Messages
829
Reaction score
528
Location
Vancouver BC Canada
I have a 14 and a 12 at home. I think I have a 8 and or 6 at the arcade.


GC8TECH

Professional
Joined
Feb 24, 2019
Messages
483
Reaction score
514
Location
QLD, Australia
OK.. the 14 is factory coin cell.... so no mods needed...

12 should just add a diode. Same as rev 8.

Rev 6 i hope you have removed the battery.... There isn't many that haven't got bad battery damage....

I'll try to do a few drawings for the 12 and 8.

T.


XeD

Grand Master
Joined
Jul 6, 2016
Messages
829
Reaction score
528
Location
Vancouver BC Canada

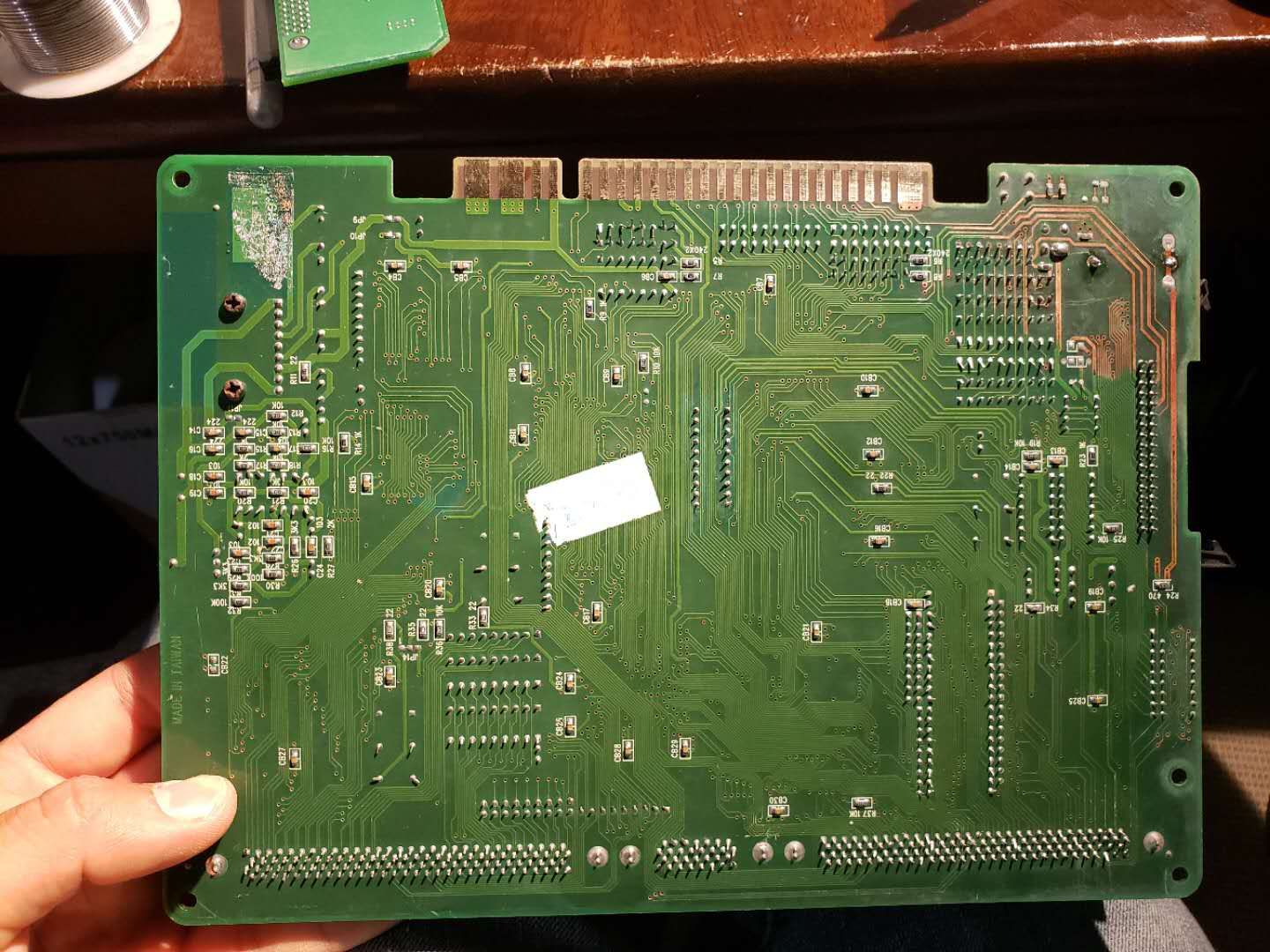

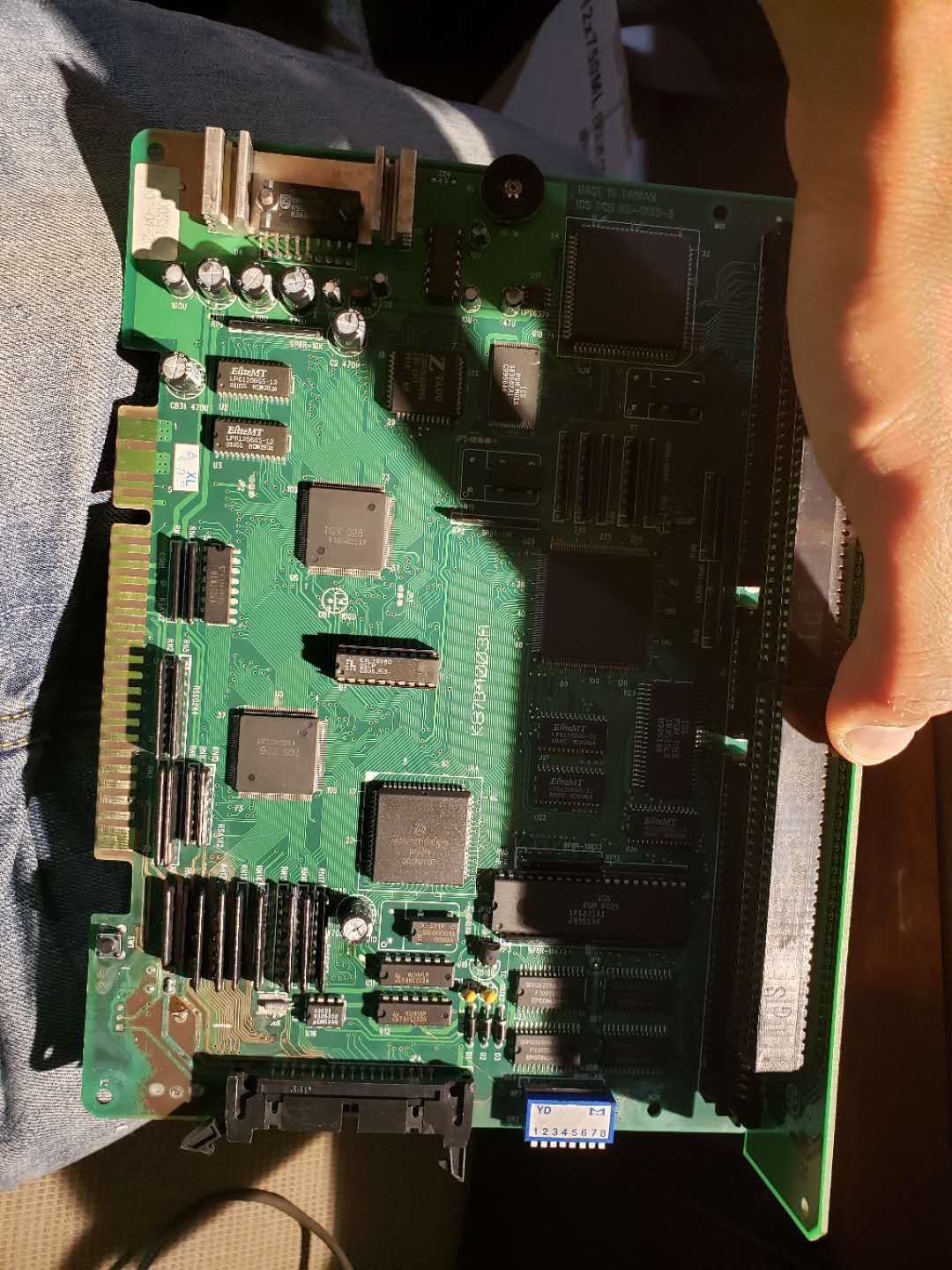

cool thanks. Yeah my 6? Has crazy battery damage. I put it in my ultrasonic cleaner and had to replace a few parts


Attachments

  • mmexport1577092170228.jpg
    224.8 KB · Views: 126

GC8TECH

Professional
Joined
Feb 24, 2019
Messages
483
Reaction score
514
Location
QLD, Australia
Anything PRE Ver 8 Motherboards are usually junk cos of the battery..... BUT i have fixed heaps of them... as long as the damage isn't tooo bad. Some saddy are bin jobs!! :(
It was another reason i started my you tube channel.. to help people re-paire them as well...

I'm hoping this year coming i will do heaps to my web site and make better youtube videos etc....

I want to have the best and most complete PGM related web site..... I have got many plans :)

T.


GC8TECH

Professional
Joined
Feb 24, 2019
Messages
483
Reaction score
514
Location
QLD, Australia

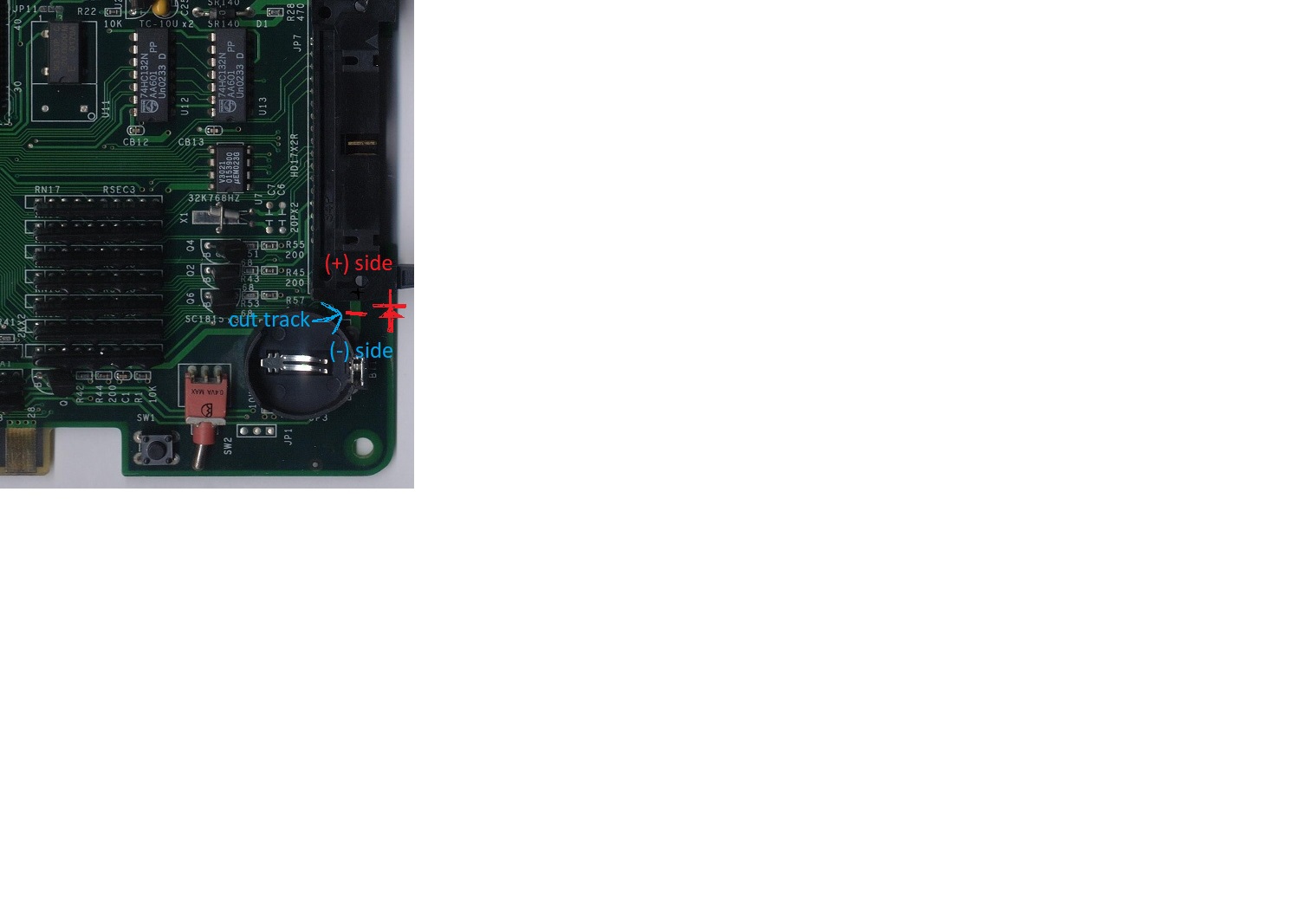

Just a quick picture. This will suite the rev 12 and rev 8 PGM Motherboards.

I find a Surface Mount Schotkey Diode works best.....

T.

battery mod.jpg


Fluffy

Grand Master
Joined
Dec 15, 2018
Messages
639
Reaction score
1,159
Location
UK
I was wondering, is there a good "generic" replacement for the battery+charging circuit? I think some pinball owners are replacing the battery backed SRAM with MRAM to keep the score, though you'll loose RTC functionality. Is there some circuit that takes modern memory cells and implements the trickle charging when the device is on, and battery backup when the device is off?


GC8TECH

Professional
Joined
Feb 24, 2019
Messages
483
Reaction score
514
Location
QLD, Australia
I was wondering, is there a good "generic" replacement for the battery+charging circuit? I think some pinball owners are replacing the battery backed SRAM with MRAM to keep the score, though you'll loose RTC functionality. Is there some circuit that takes modern memory cells and implements the trickle charging when the device is on, and battery backup when the device is off?
You could use FRAM ?? But i think the CS line has to be changed.. so its probibly not a direct swap. You could use a "Super Cap". I have seen some around the 10F range....

There are many options.....

T.


Flinnster

Enthusiast
Joined
Mar 15, 2018
Messages
251
Reaction score
175
Location
Surrey, UK
Quick question about the revision 14 coin cell and charging circuit. I now have a revision 14 pcb which had a CR2016 coin cell fitted.
Previously I've done the battery mod on older revision PGM boards, removed a diode to disable the charging circuit and fitted a CR2032 coin cell.

So on revision 14.. is this supposed to be a rechargeable coin cell in the holder, or a non-rechargeable CR2032? :huh:


Flinnster

Enthusiast
Joined
Mar 15, 2018
Messages
251
Reaction score
175
Location
Surrey, UK
Perfect! Thanks! Definitely better to check rather than see a coin cell poo itself live during gameplay :thumbsup:


GC8TECH

Professional
Joined
Feb 24, 2019
Messages
483
Reaction score
514
Location
QLD, Australia
You actually have to remove a resistor.. Not the diode to stop charging :) Otherwise the SRAM won't be powered all the time to save data.


Flinnster

Enthusiast
Joined
Mar 15, 2018
Messages
251
Reaction score
175
Location
Surrey, UK
Um.. maybe it was a resistor yeah, it's been a while since I modded the earlier PGM board types!
The main query was that I didn't need to do anything similar to get a CR2032 safely into a rev. 14 pcb ^^


GC8TECH

Professional
Joined
Feb 24, 2019
Messages
483
Reaction score
514
Location
QLD, Australia
YES.. i wasn't trying to be a pain, Just make sure its cool.

Yes REV 14 are normal coin cells. Its THE ONLY REV to have a factory coin cell. :)
