These files are to print a tray or finisher pieces that wall off the insides of the console when using a GD-EMU SD Card adapter on your Dreamcast. This makes it not just more professional looking and visually pleasing but also making it impossible to lose a card inside the console. This also makes it easier to insert and remove cards and there are optional spaces provided for additional card storage; making it more versatile as well.

This SD card Tray comes in two pieces. The base bolts to the console in place of the GD-ROM drive and supports the GD-EMU. The shield is press-fit into the lid to finish enclosing off the area making it impossible to drop your SD card inside through an open lid. There are three different STL files for the base, one includes a set of 4 slots on the left to allow you to store additional SD cards (the slots are staggered to allow easier gripping), another with 5 SD card slots on the right (these are not staggered).. and the third file with no card slots is simply for people who are not interested in this feature. Fitment has been tested on GDEMU Version 5.5. It should work on GD-EMUs version 5.x but will not fit on Version 4.x or older GDEMUs. I believe fitment should work on all Dreamcasts, however if you use this file I would appreciate a comment confirming fitment on other revisions.

You Must use supports on the Shield part, they are not at all needed on the base.
To install this you'll need the 3 original screws from your GD-ROM drive as well as the long screw that came with your GD-EMU.

BUY ONE FROM ME HERE: https://bit-district.com/gd-emu-sd-card-tray.html

GET THE FILES TO PRINT YOUR OWN HERE: http://www.thingiverse.com/thing:1585333

--------------------

For those who may not have seen it there is a similar Tray I designed for the Sega Saturn Phoebe and Rhea
New Rhea/Phoebe (Sega Saturn) 3D Printed Tray V2




Last edited:

Sp33dFr34k

Grand Master
Joined
Nov 8, 2015
Messages
1,304
Reaction score
950
Location
The Netherlands
Unfortunately I'm not a GD-Emu owner but this looks awesome again dude, well done!


PascalP

Legendary
Joined
Jan 17, 2016
Messages
5,512
Reaction score
3,561
Location
The Netherlands
Looks awesome, very good work!

I'm going to look for a local printer.
Really need the GDEMU version and hope to be a Phoebe owner after the next pre-order round ;)


jassin000

Legendary
Multi Boyz
Joined
Jul 21, 2015
Messages
7,785
Reaction score
6,316
Location
Afterlife
Anyone here willing to do a run of these for sale?


Nodoyuna

Enthusiast
Joined
Jul 21, 2015
Messages
258
Reaction score
58
Location
Spain
Hi
What material should be printed this?
Thanks in advance


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
9,991
Reaction score
9,317
Location
NH, USA
Hi
What material should be printed this?
Thanks in advance
PLA works well, this is a low stress part so it should be fine.

I did try printing one with ABS and had some warping on the base so I would say only use ABS if you've got a good handle on preventing warping with that material.


Derick2k

Immortal
Joined
Nov 14, 2015
Messages
8,113
Reaction score
6,514
Location
NYC, USA

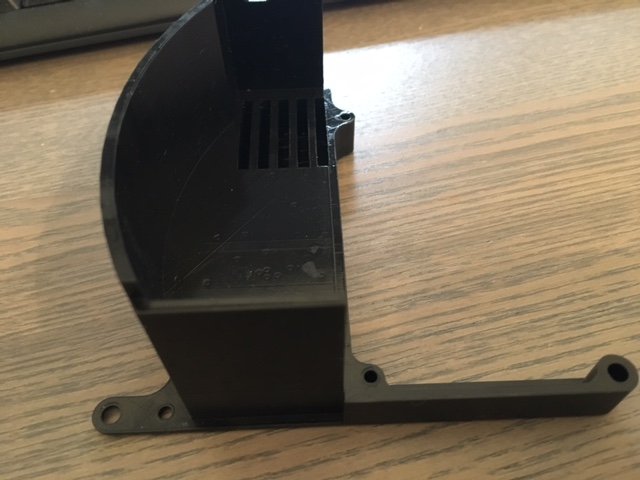

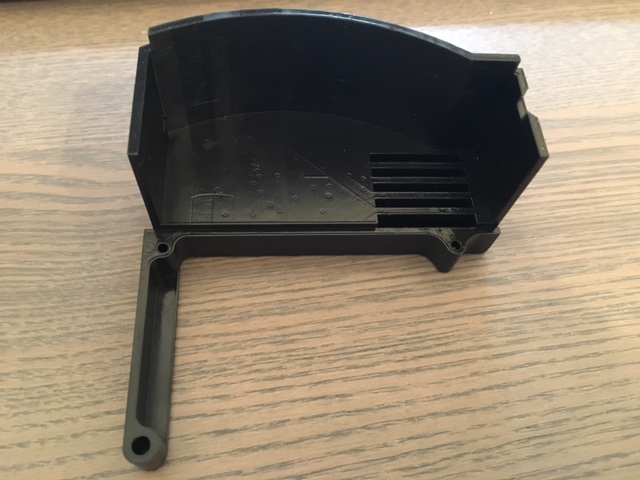

So I finally got to print this on my resin printer, came out pretty decent.

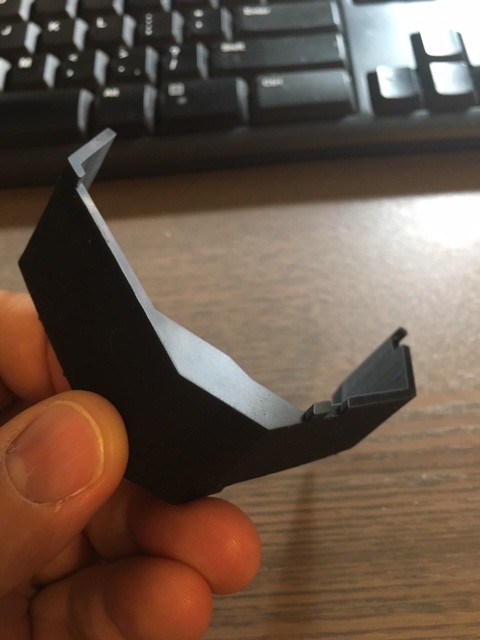

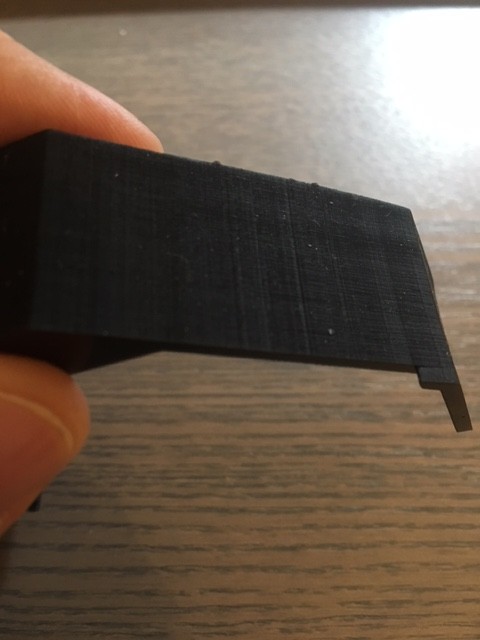

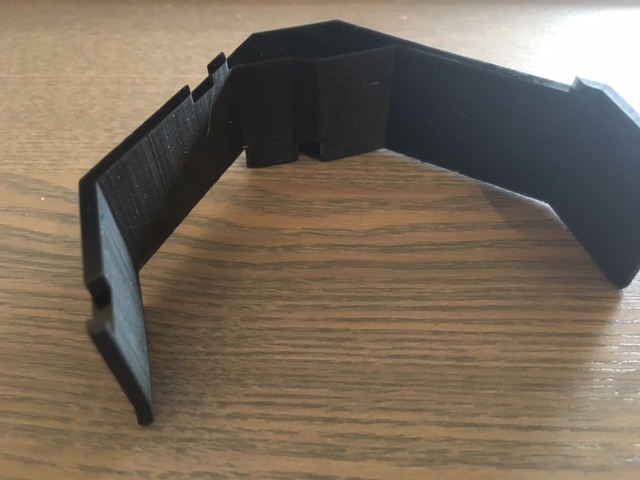

The shield side messed up, my nephew said he bumped the printer in the middle of night :cursing: and that piece broke off, obviously didnt print correctly. He tried to glue and fix it, alas, damage is done, gotta reprint it. I like the way resin printers work, just hate having to do the manual finishing of the pieces after they print.
