Taito Spinner repro idea (FreeCAD)

[mukiex]

I've always been in love with the design of the knob for the Taito spinner, but AFAIK, there's nothing available online that comes close. (yes, I own 2 of the Egret Mini trackball/spinner controllers).

On top of that, that actual knob uses a roll pin instead of a screw-in clamp, so even if I had a pair of those in pristine condition, I couldn't trivially use it on a modern rotary controller, let alone any other custom project.

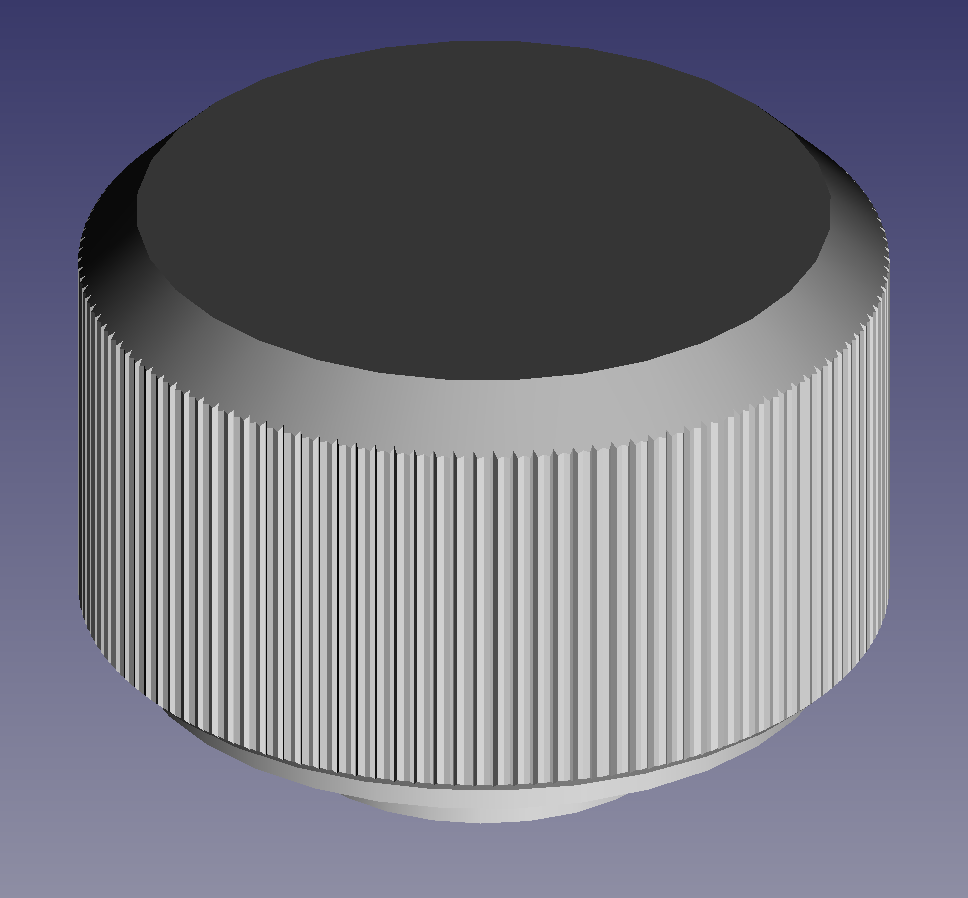

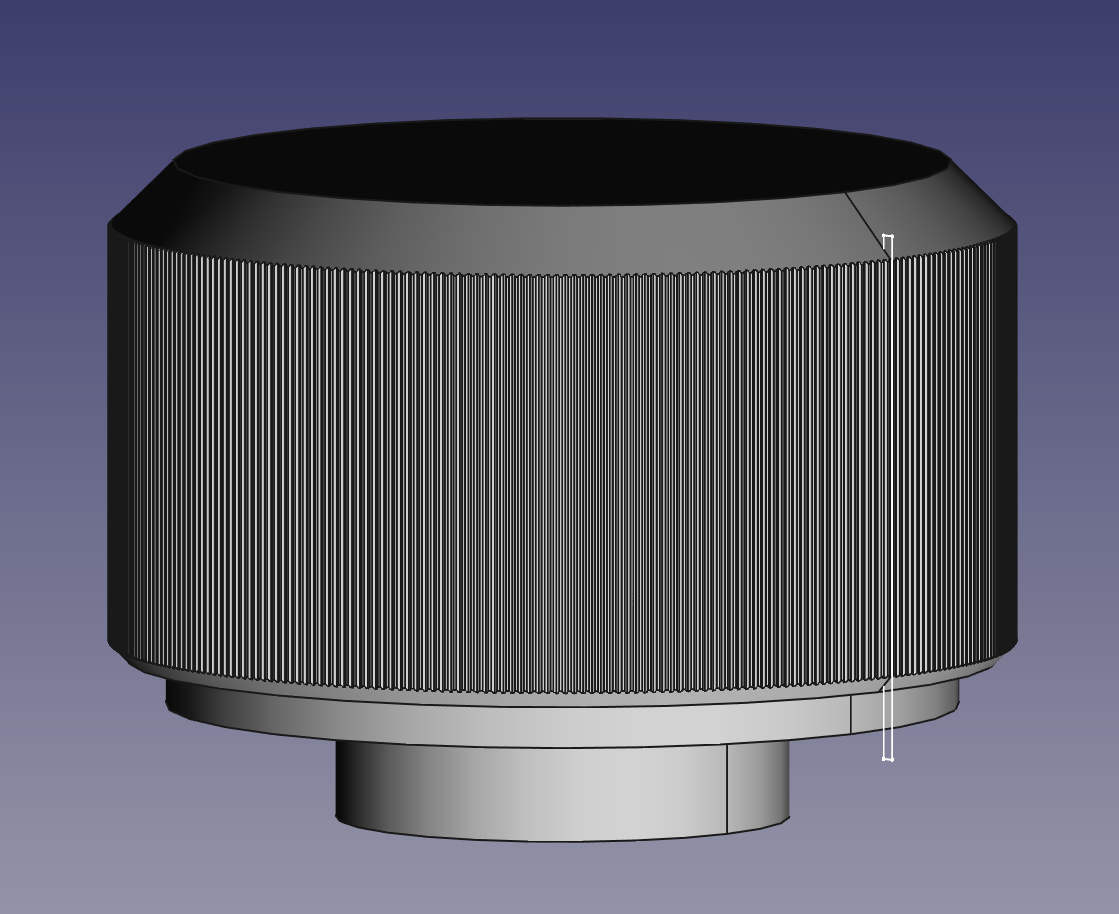

So I've been using calipers and FreeCAD with a spinner knob I picked up to try to replicate the dimensions/shape of the knob.

The only PITA is the grooves. Matching the shape is one thing but initially I didn't even know how many grooves there were.

I couldn't find any data online for this knob, so I took the one I had and... basically measured it by hand with my phone's macro camera, some painter's tape, and a ballpoint pen to drop a marker at each groove.

https://imgur.com/a/WHKfl51

Went around the whole thing and counted it by hand and I've got: 126 grooves.

Does that look right? Are there any obvious mistakes? I counted by basically using triangle shapes for binary counting (red was 1, dark blue 2, cyan 4, and yellow for 8 grooves) with some green rectangles to cordon on the groove I marked with ball point.

I couldn't find anything online with "taito spinner" and "126" on Google, so either I got the number wrong or nobody's ever counted. The image showing my work is 8K and at the bottom of the IMGur album I linked.

Eventually I'd like to have an STL that you can drop into a resin/PLA printer and then glue or solder-press in the metal inset, or even model in/print the inset and comission a lost material casting with aluminum.

In any event, the dimensions and groove count match so far. Now I need to figure out how to add insets to the top for the color disc XD

Edit:

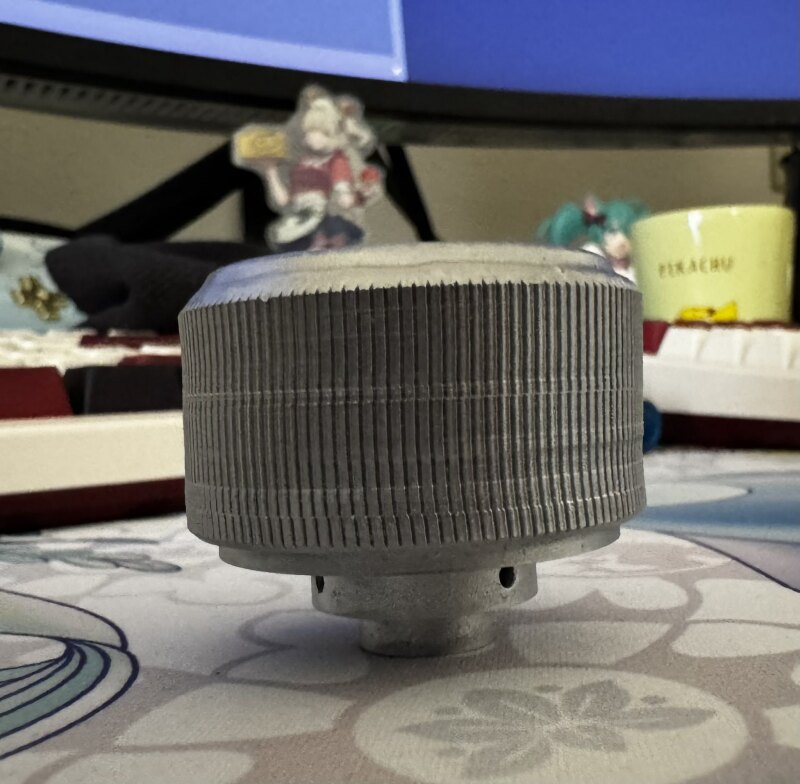

Took some close-up shots of the physical knob: https://imgur.com/a/ErcMfvG



[mukiex]

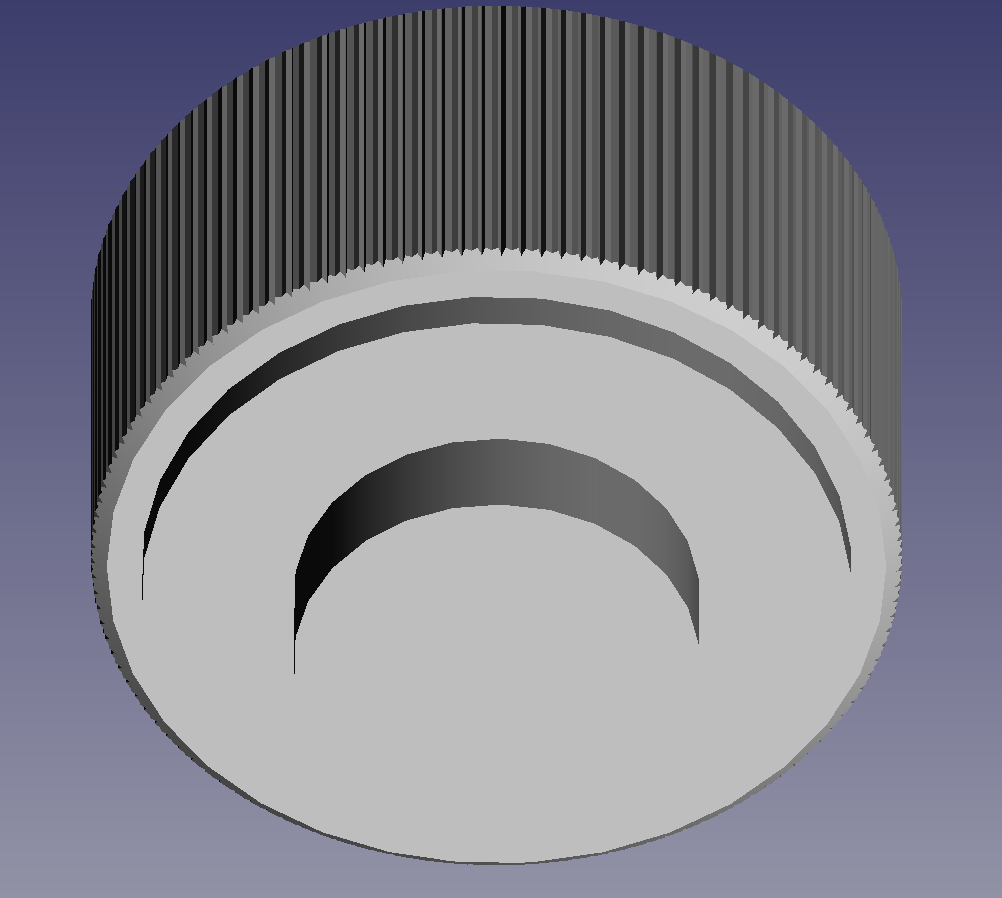

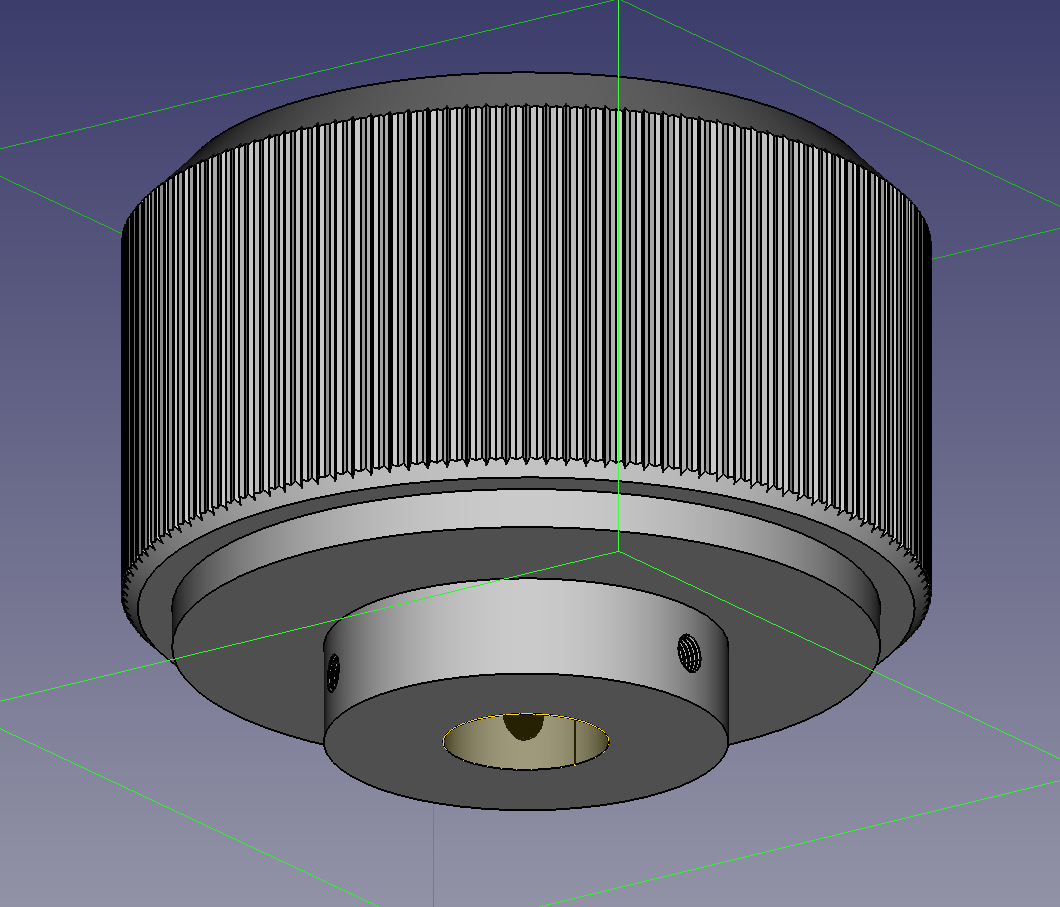

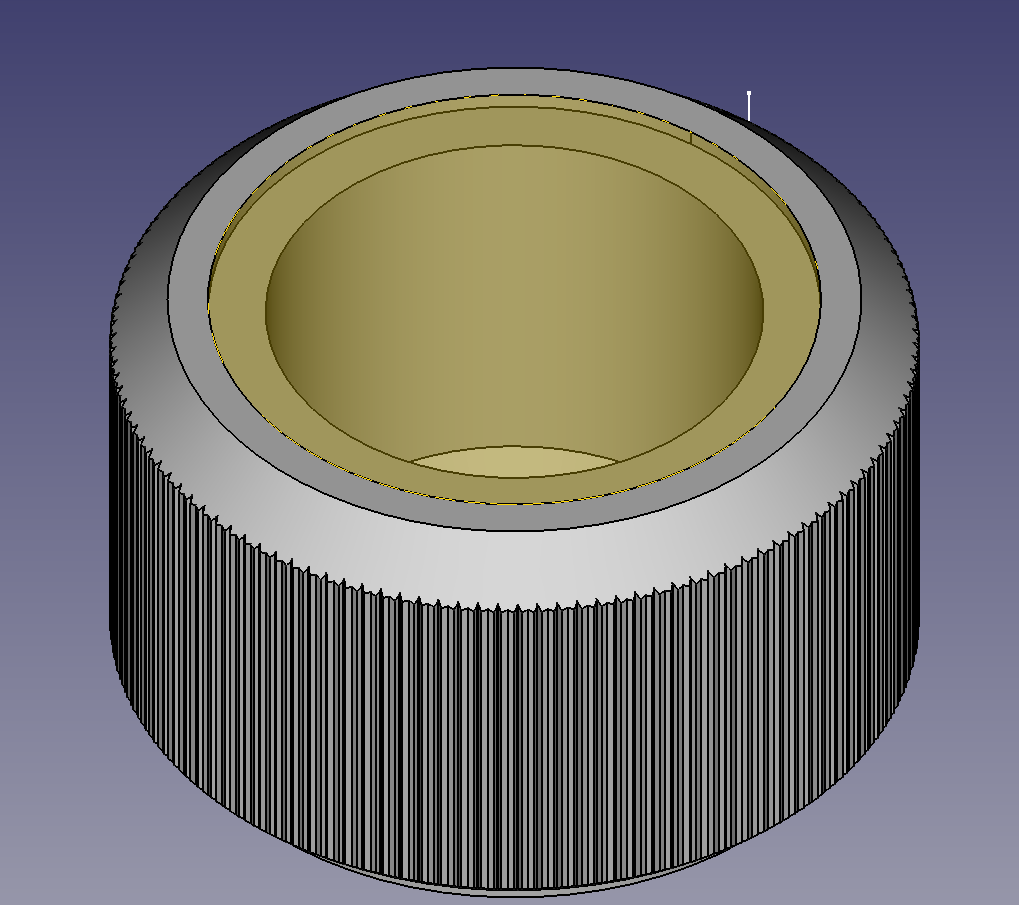

Quick update: figured out lofting, can get a more accurate ridge shape, just need to figure out how to get the dimensions on those.

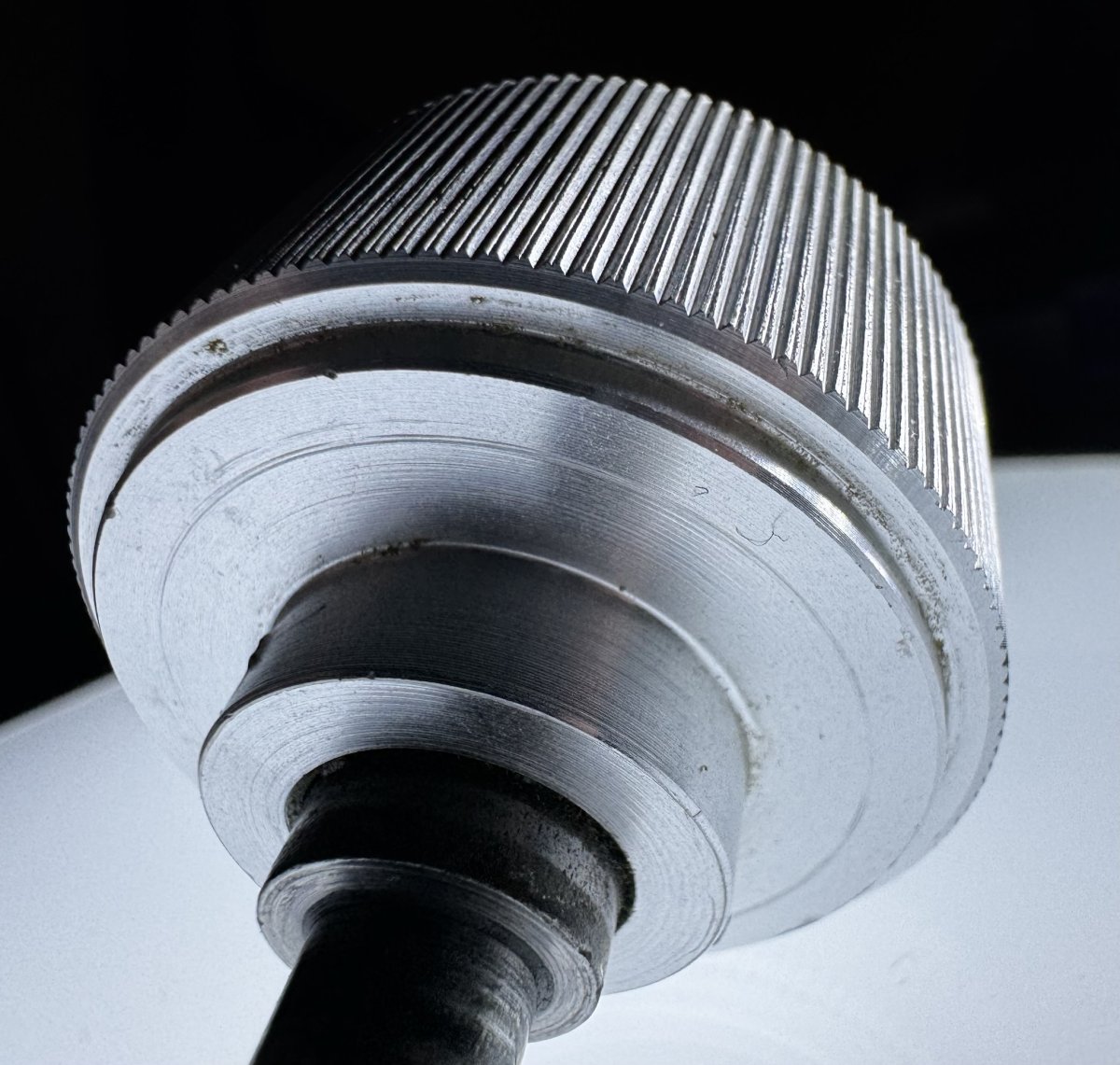

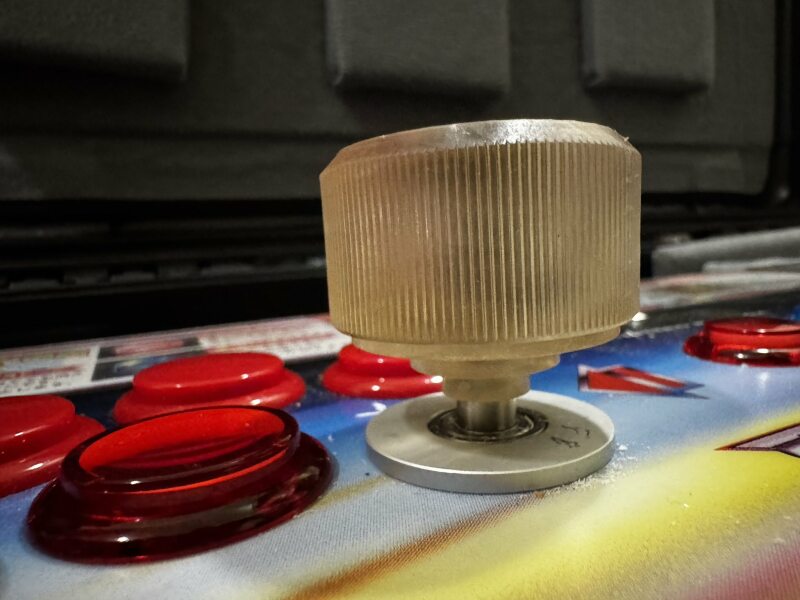

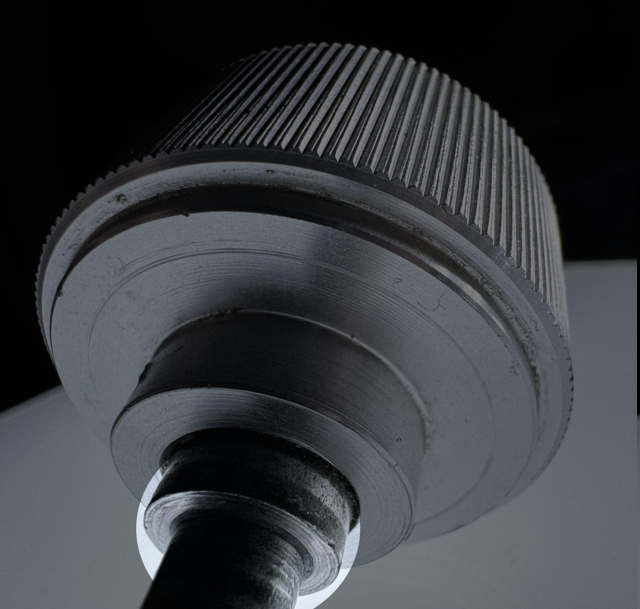

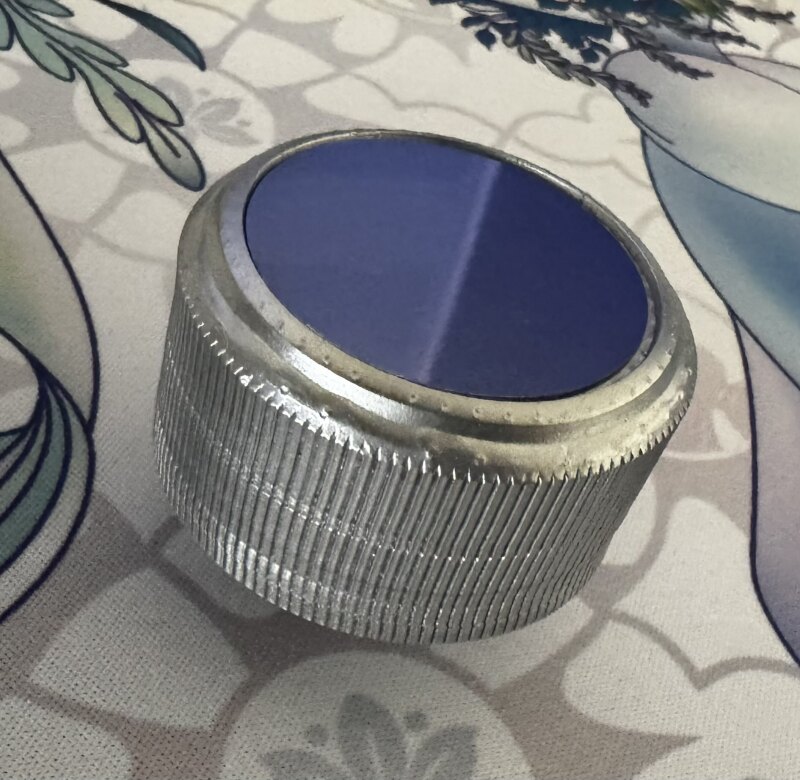

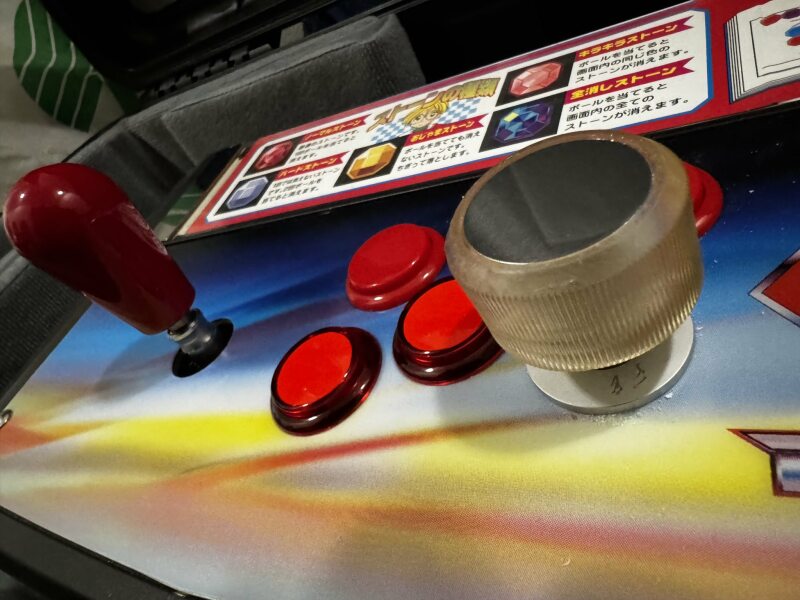

For context, the real thing:

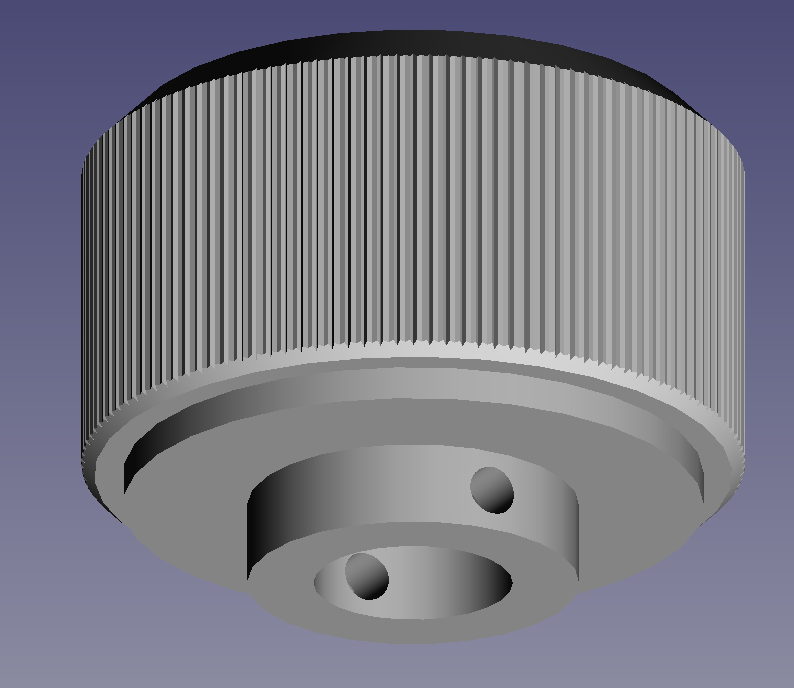

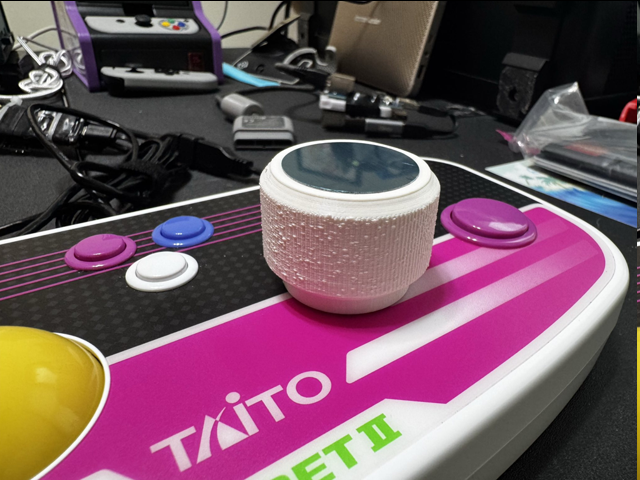

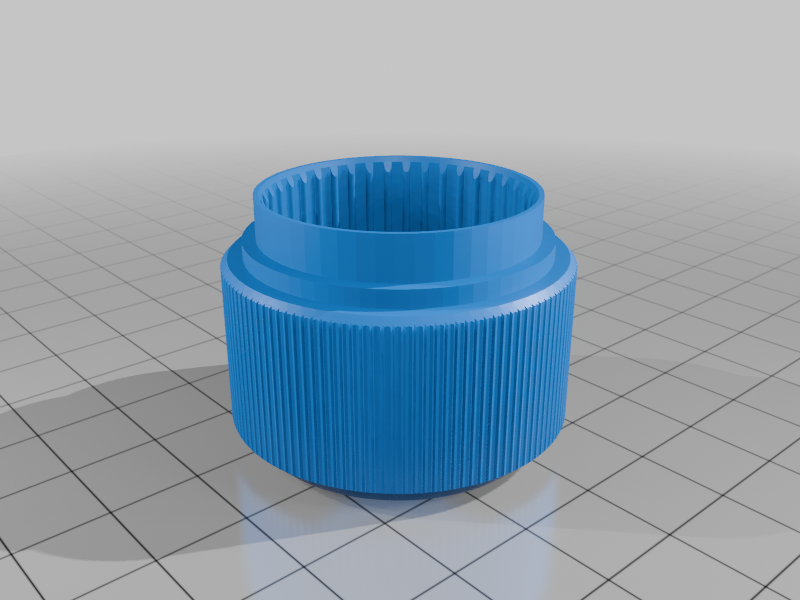

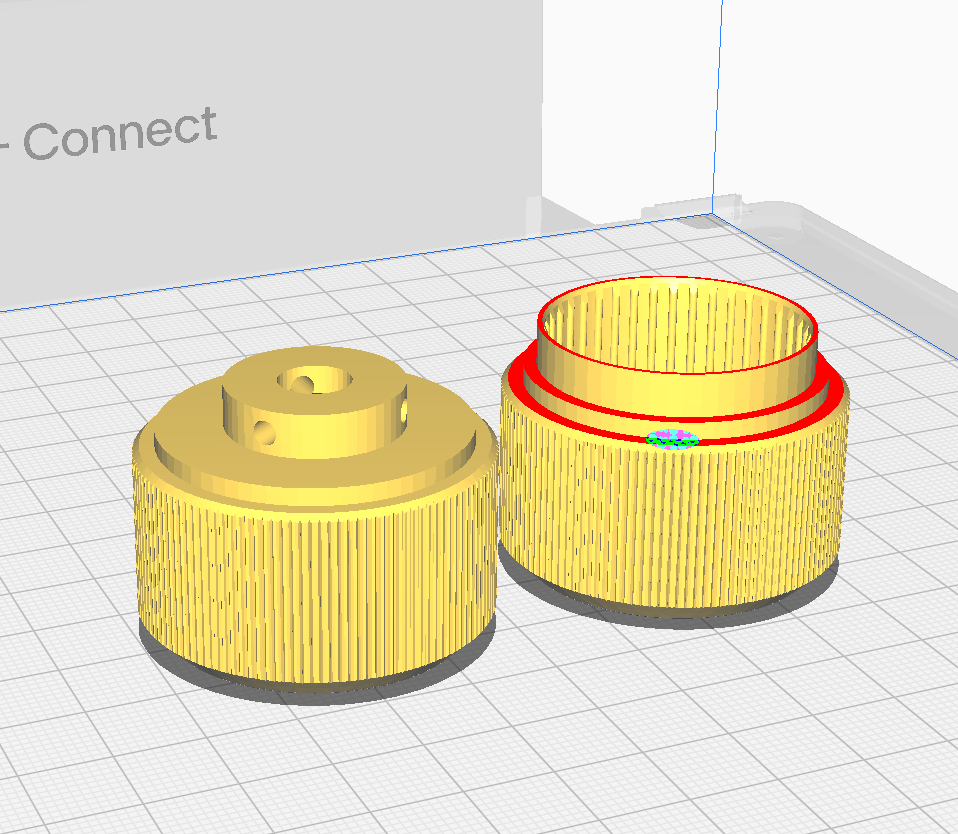

Current test shape. 3mm holes, I'm gonna try to 3D print a couple at the library and then install some M2/D3/L3 heated inserts this weekend.



[West]

If I may make a suggestion, the thing that feels so good about the Taito spinner knob is how freaking heavy they are. When you play with them your movements have a lot of precision because of that. They just feel premium.

Even if you print those with 100% infill they'll never feel as good. You might want to consider creating space in the center of the knob where you can add metal weights to it to make it feel heavier. I've done this before in 3d printed parts that needed to feel heavier and it made a world of difference. If I were doing what you're doing I'd definitely add metal weights inside.



[notsonic]

This repro spinner knob has a space inside for a big nut: https://www.arcade-projects.com/threads/arkanoid-paddle-spinner-controller-3d-printed.23245/



[mukiex]

If I may make a suggestion, the thing that feels so good about the Taito spinner knobs is how freaking heavy they are. When you play with them your movements have a lot of precision because of that. They just feel premium.

Even if you print those with 100% infill they'll never feel as good. You might want to consider creating space in the center of the knob where you can add metal weights to it to make it feel heavier. I've done this before in 3d printed parts that needed to feel heavier and it made a world of difference. If I were doing what you're doing I'd definitely add metal weights inside.

That is an awesome suggestion. That's definitely on the agenda after I try the test print today. I can probably put a nice nut inset on the top, and it would be well hidden by the color metal plate that usually goes into these. Any specific nut types that would be recommended?

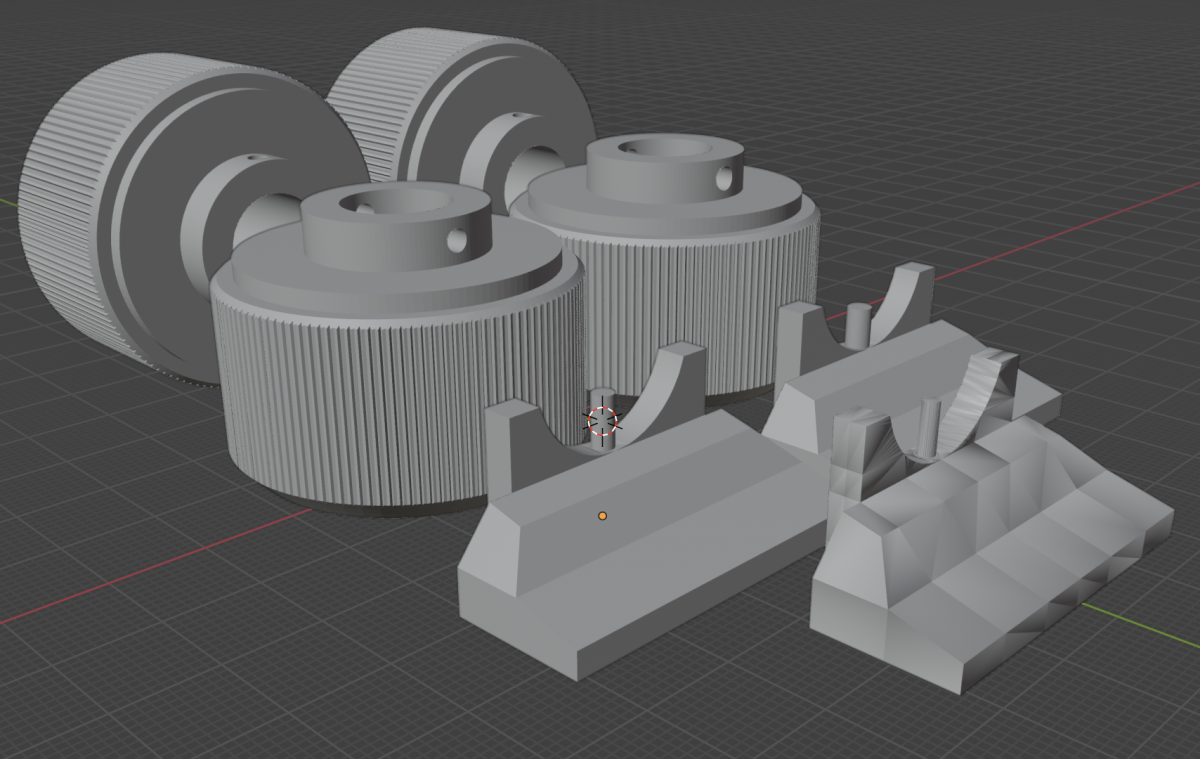

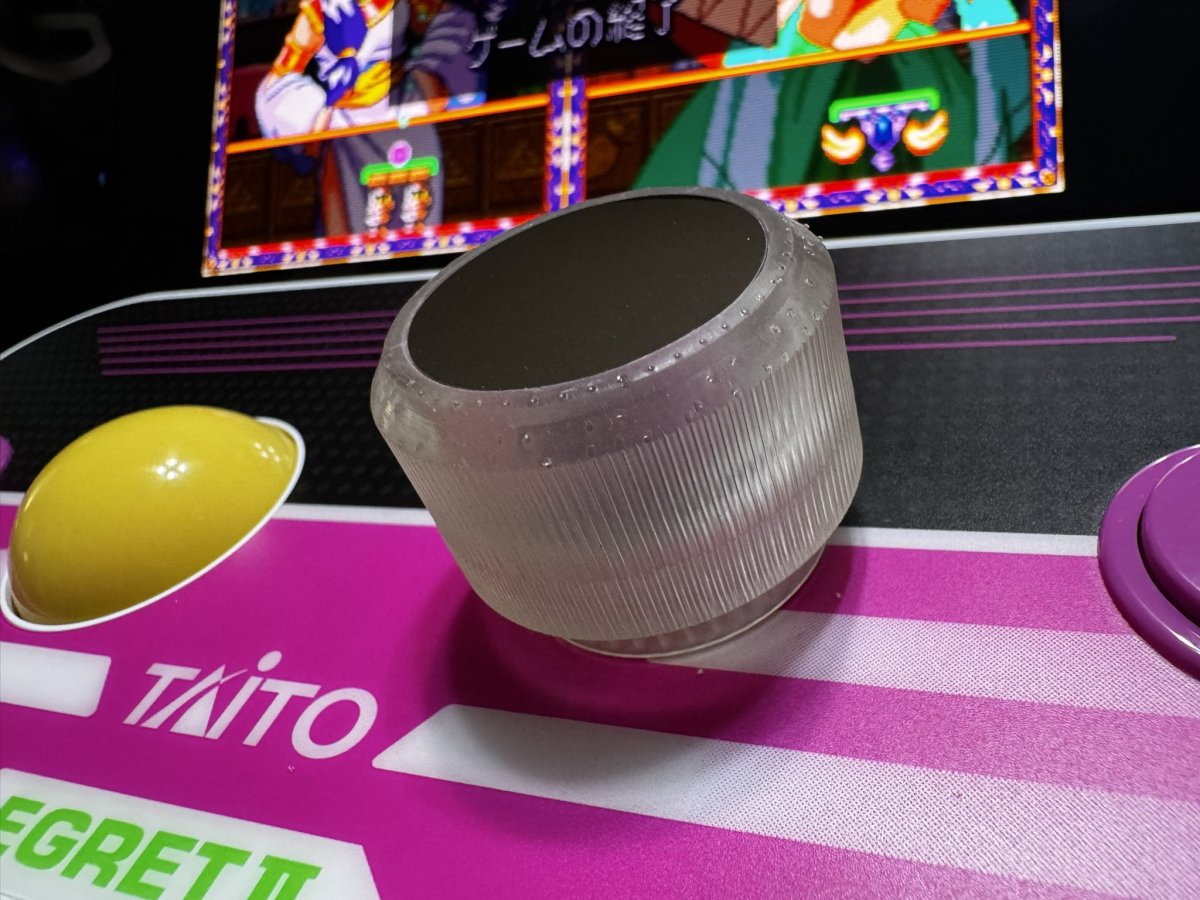

I made a quick tool in blender for installing the heated brass insert. Trying a pair of 2.5 and 3mm variants of the knob at my local library, with different orientations to see if one prints better than the other. If these work, weighting is definitely the next step. Would lower the amount of PLA needed in the body too.



[FrancoB]

Rather than a nut I would probably make a recess to hold a stack of low denomination coins. Nuts do not have that much mass but a stack of the largest diameter coins that would fit would probably give you the most mass/bang for your buck, pun somewhat intended



[Neodogg]

You could met down some fishing leads/sinkers. You’d have to make a mold based on your spinner cavity.



[mukiex]

On a related note, what solutions are people using for the top plate, e.g. the one with the color or decal?

edit: forgot about the arcade museum thread, will probably ask there too



[West]

Just to try and save you some time but I can say with almost 100% certainty that this is the orientation you want to print these in. If I understood your earlier comment correctly as well as the image you posted.



[mukiex]

Just to try and save you some time but I can say with almost 100% certainty that this is the orientation you want to print these in. If I understood your earlier comment correctly as well as the image you posted.

I legitimately appreciate that. The side ones were actually the fall-back, as I assumed these would be good, but also at the time I wasn't sure if I was gonna print them "hollow" (e.g. with the top already as part of the shape and with no top inset for a weight) so the side ones were added in case the support structure for that sub-1mm inset left me with a mess.

Again, appreciate it . Will hopefully have print result photos tonight or tomorrow.
edit: miscalculated the print time (4 knobs will take longer than I can reserve to print, made some optimizations), will try again on Saturday



[mukiex]

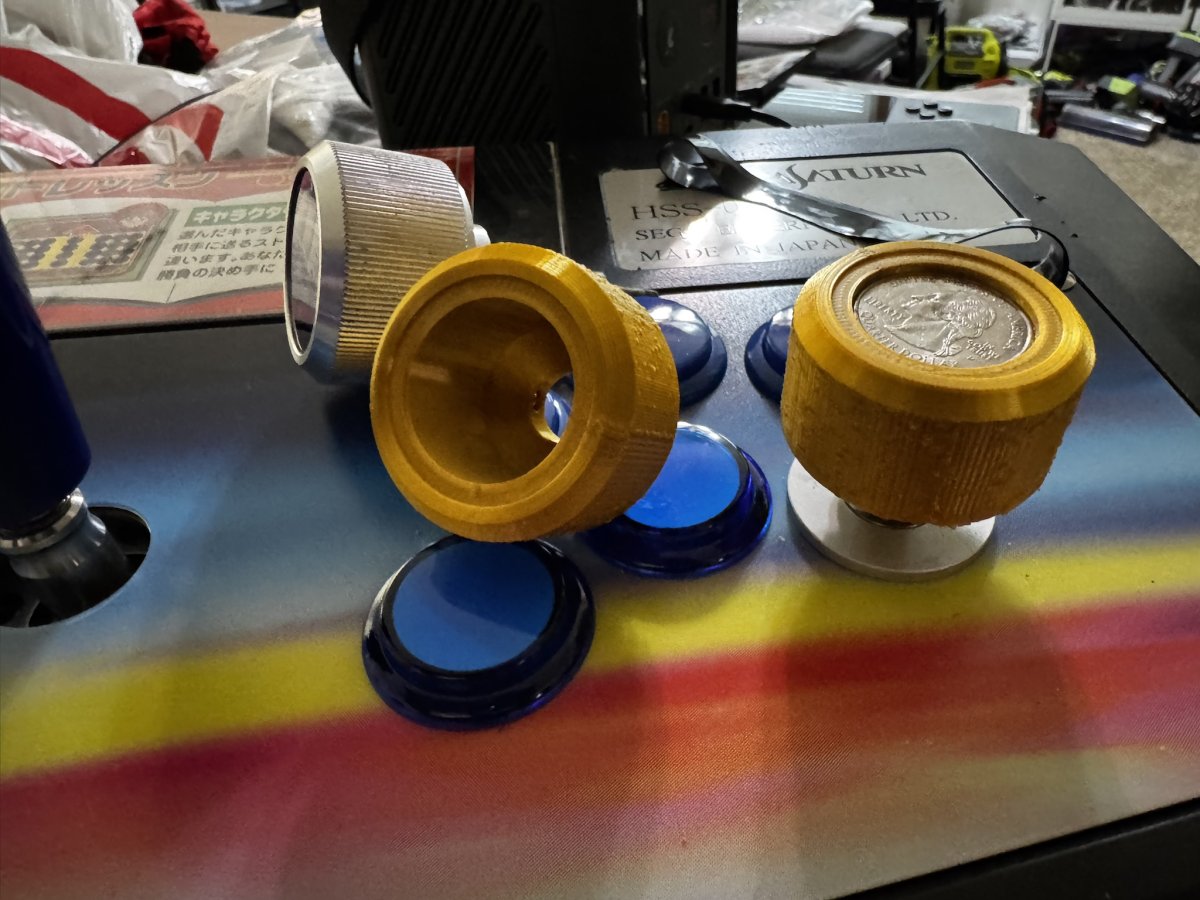

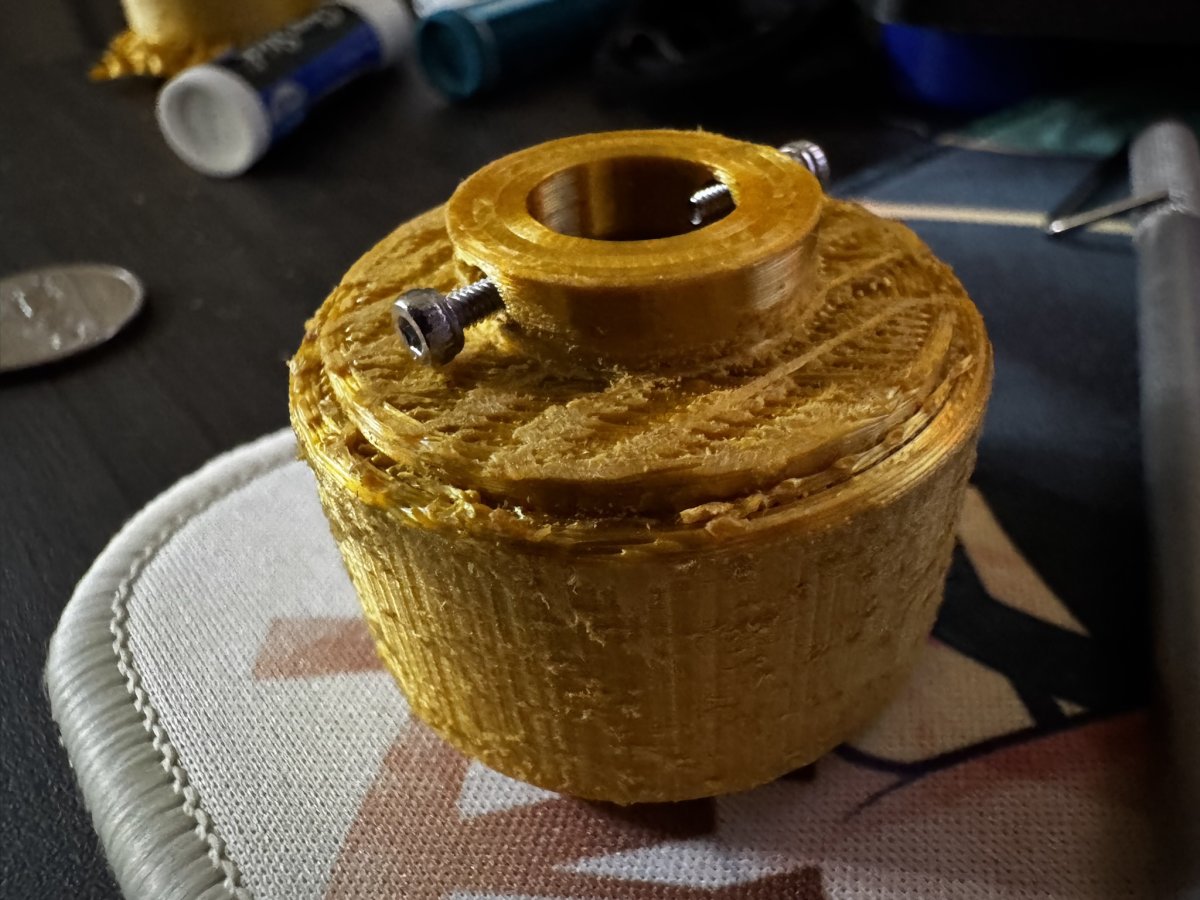

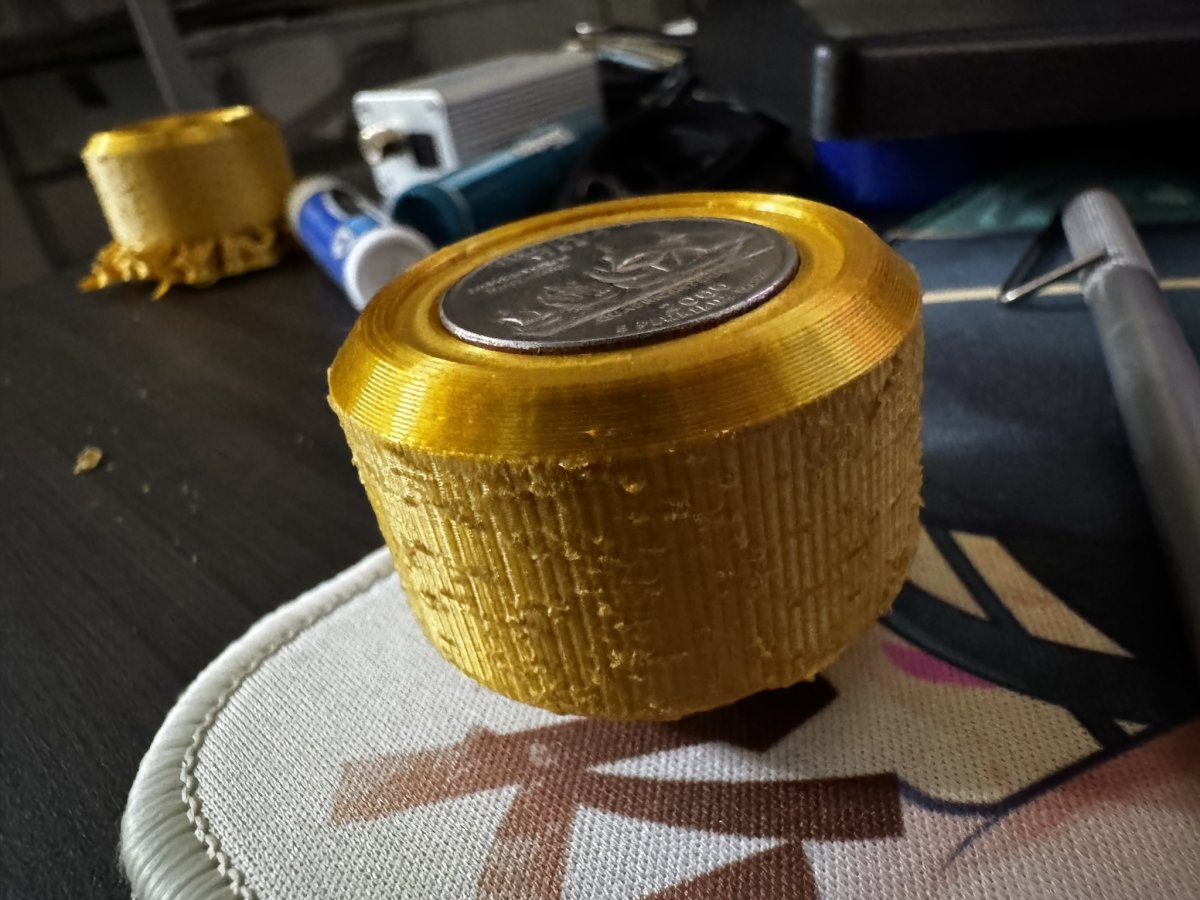

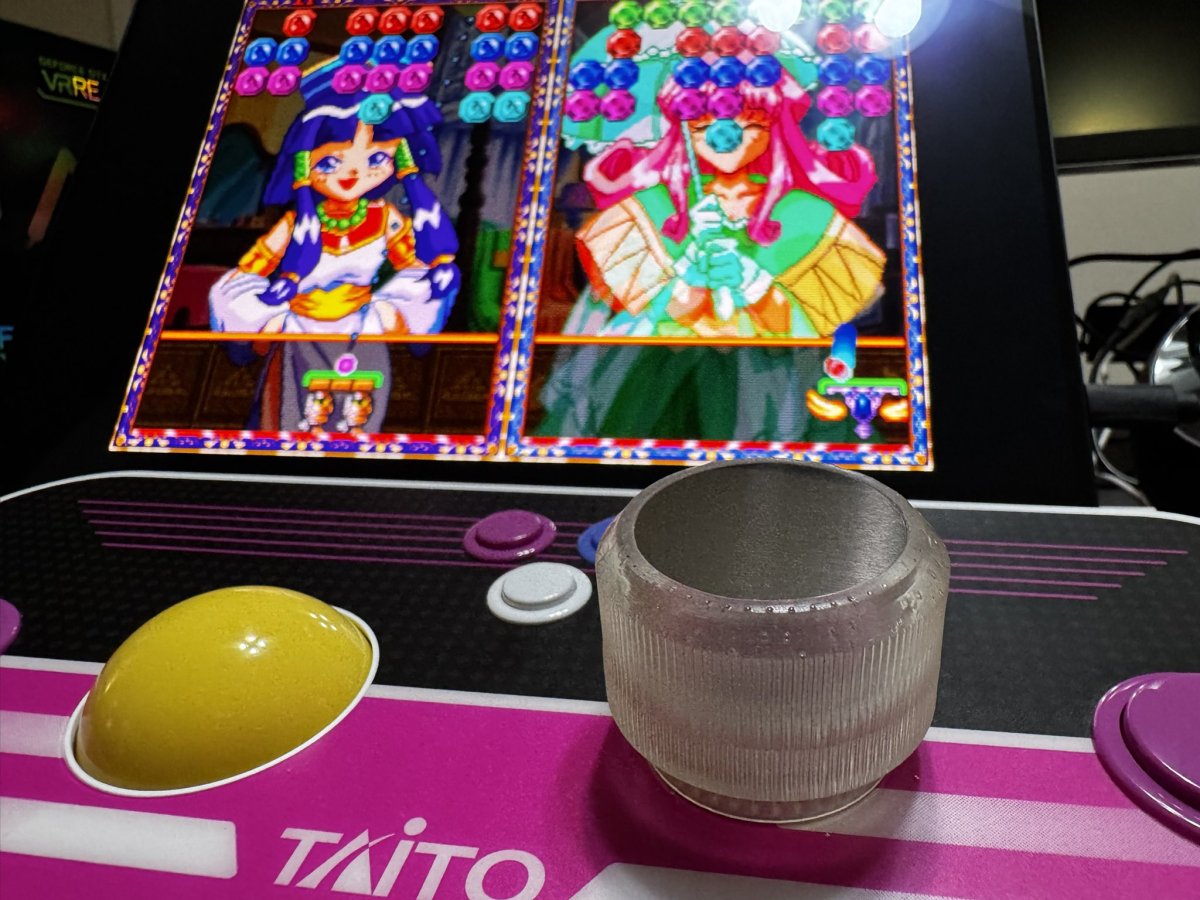

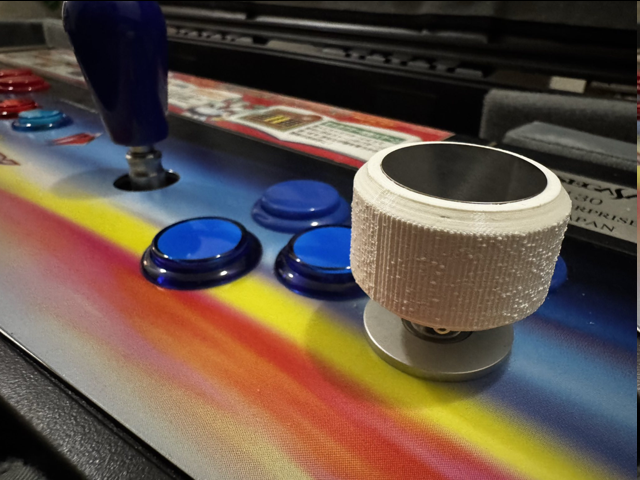

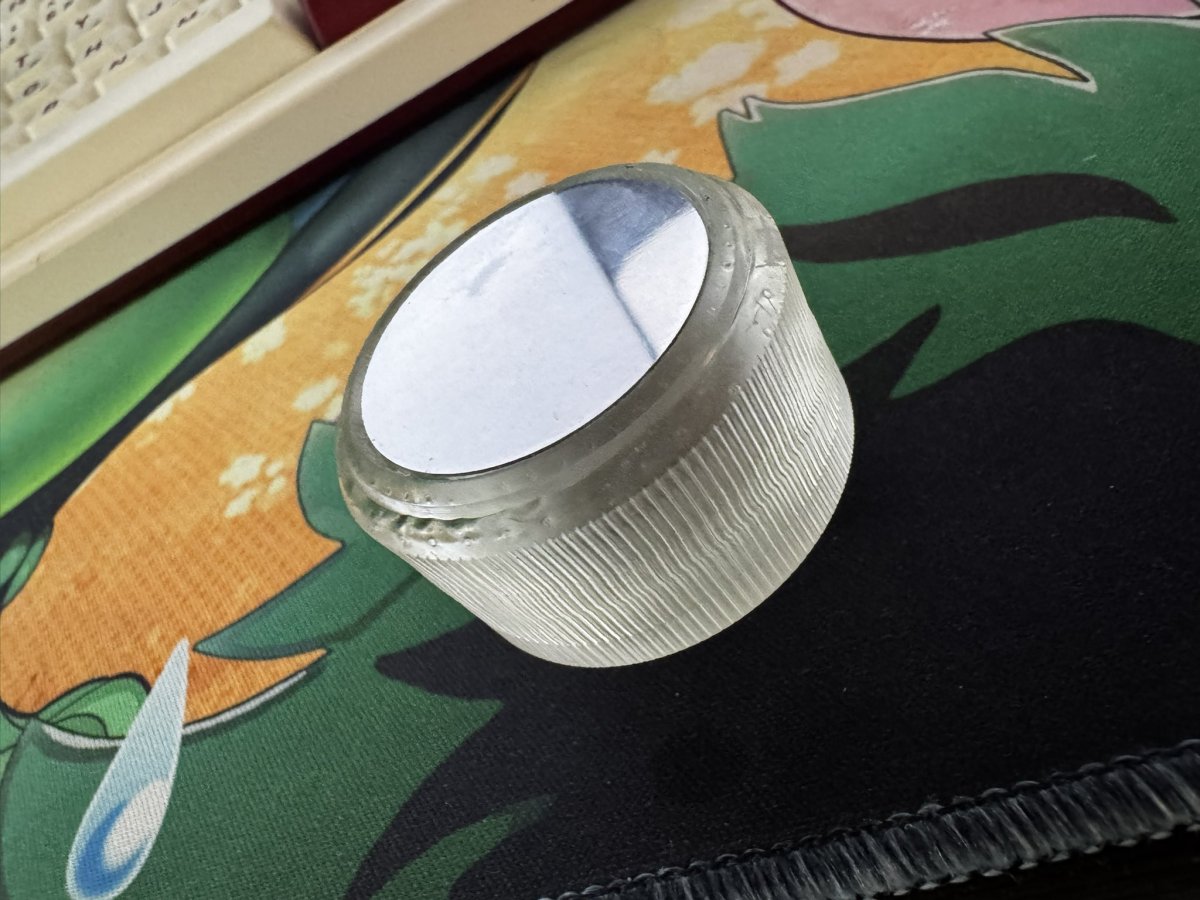

Initial testing.

West: Maaan, all that talk and I didn't listen XD. Decided at the last second while slicing that I didn't wanna deal with supports in the weight well and made a mess underneath instead. But fighting the support tree was less than pleasant in any scenario.

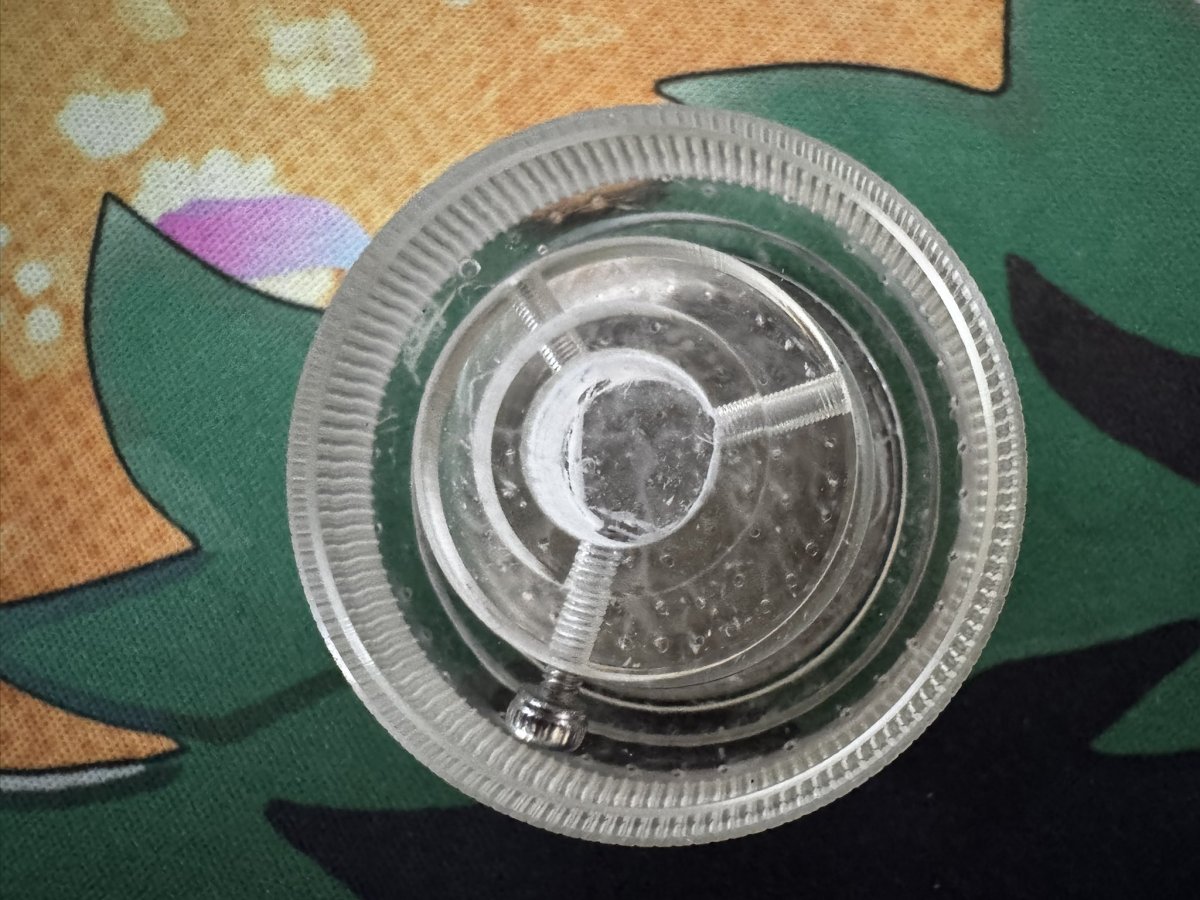

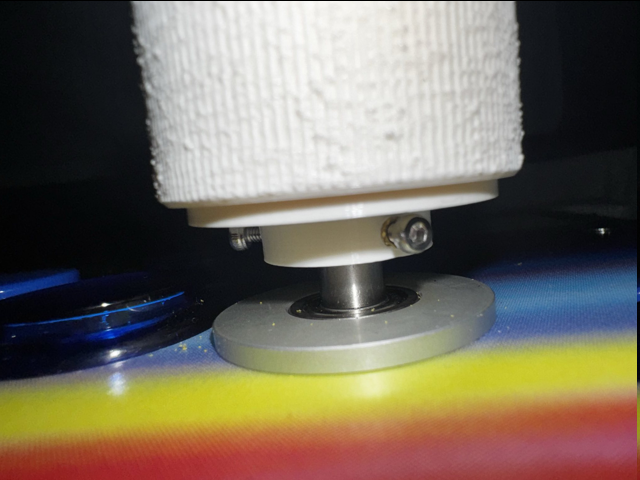

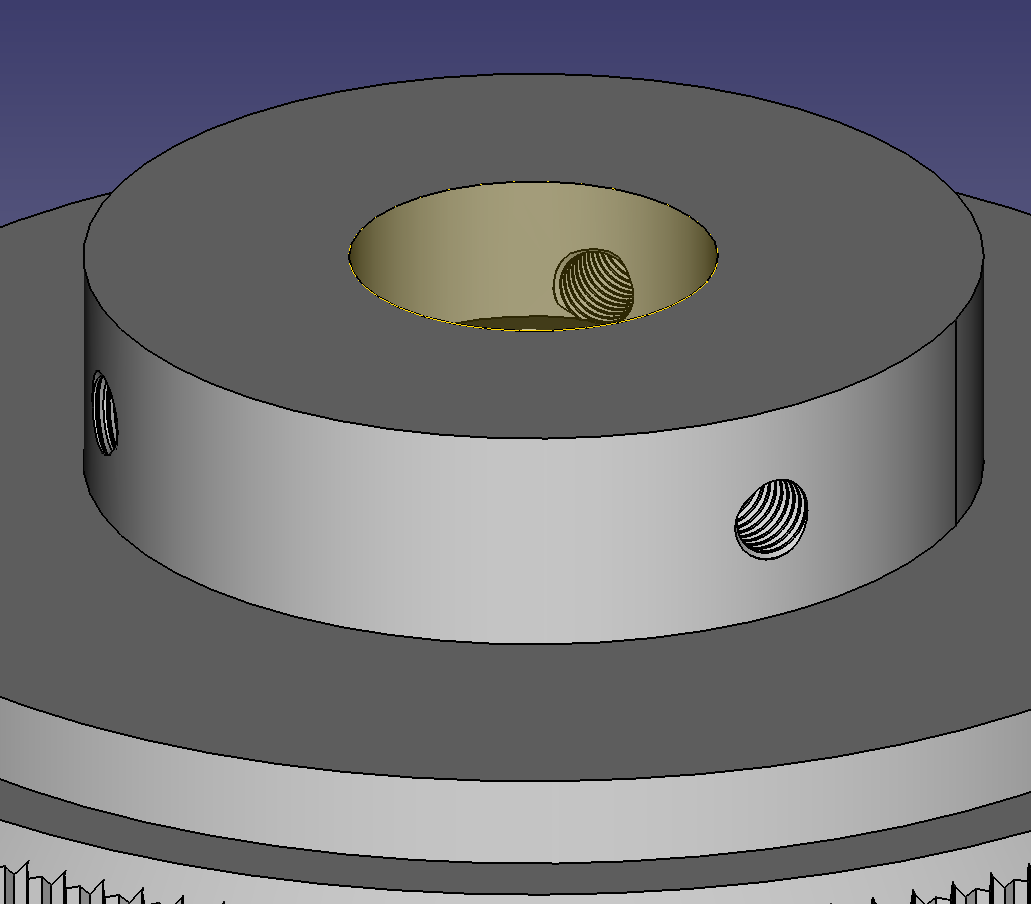

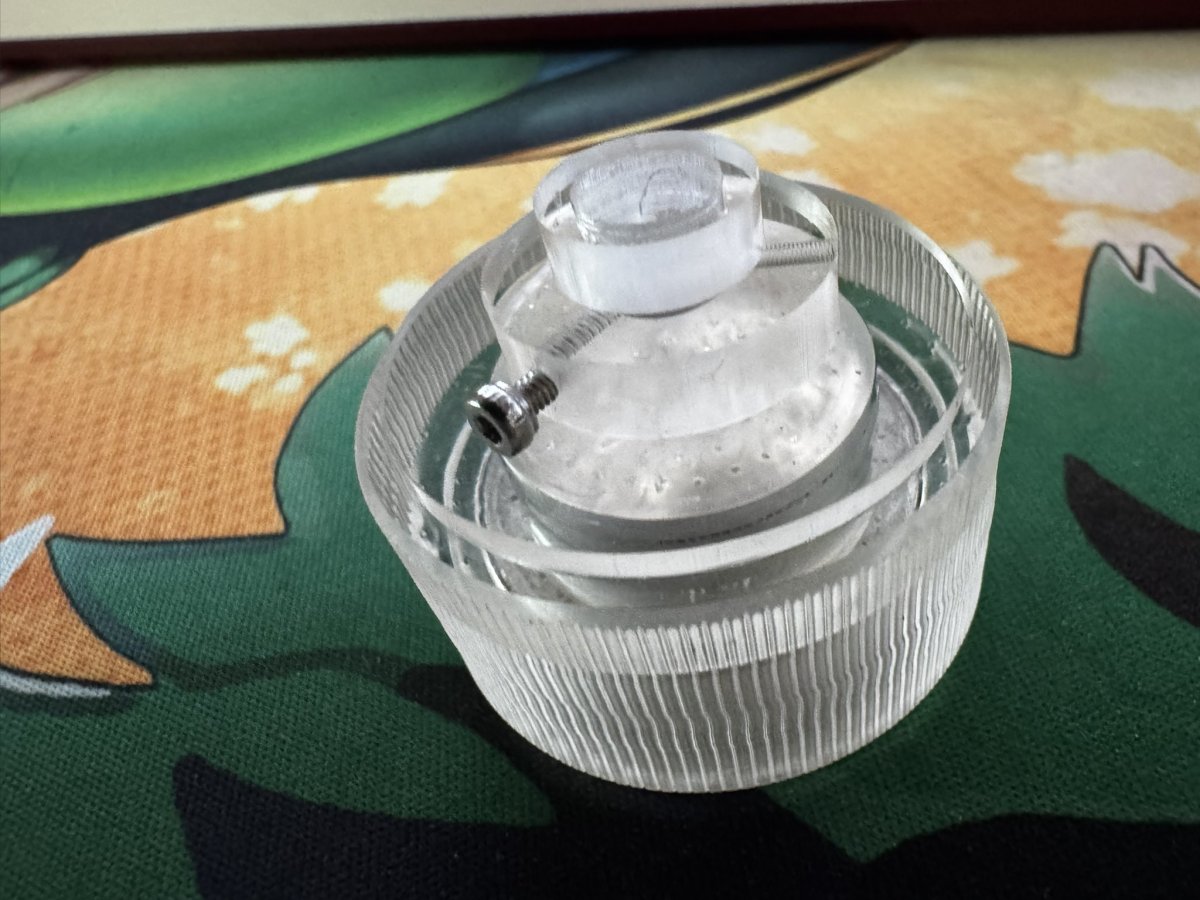

Right off the bat, the hole is 11.1 or so mm, as I forgot about the adapter ring on the real thing. I might try to print a couple adapter rings myself, one for a rotary encoder and one for the 8mm GRS spinner knob (shown above)

Anyhoo, with quarters this thing clocks in at about 75g, whereas the real thing is ~105g w/ the roll-pin-attached rod. And that's with 20% gyroid infill.

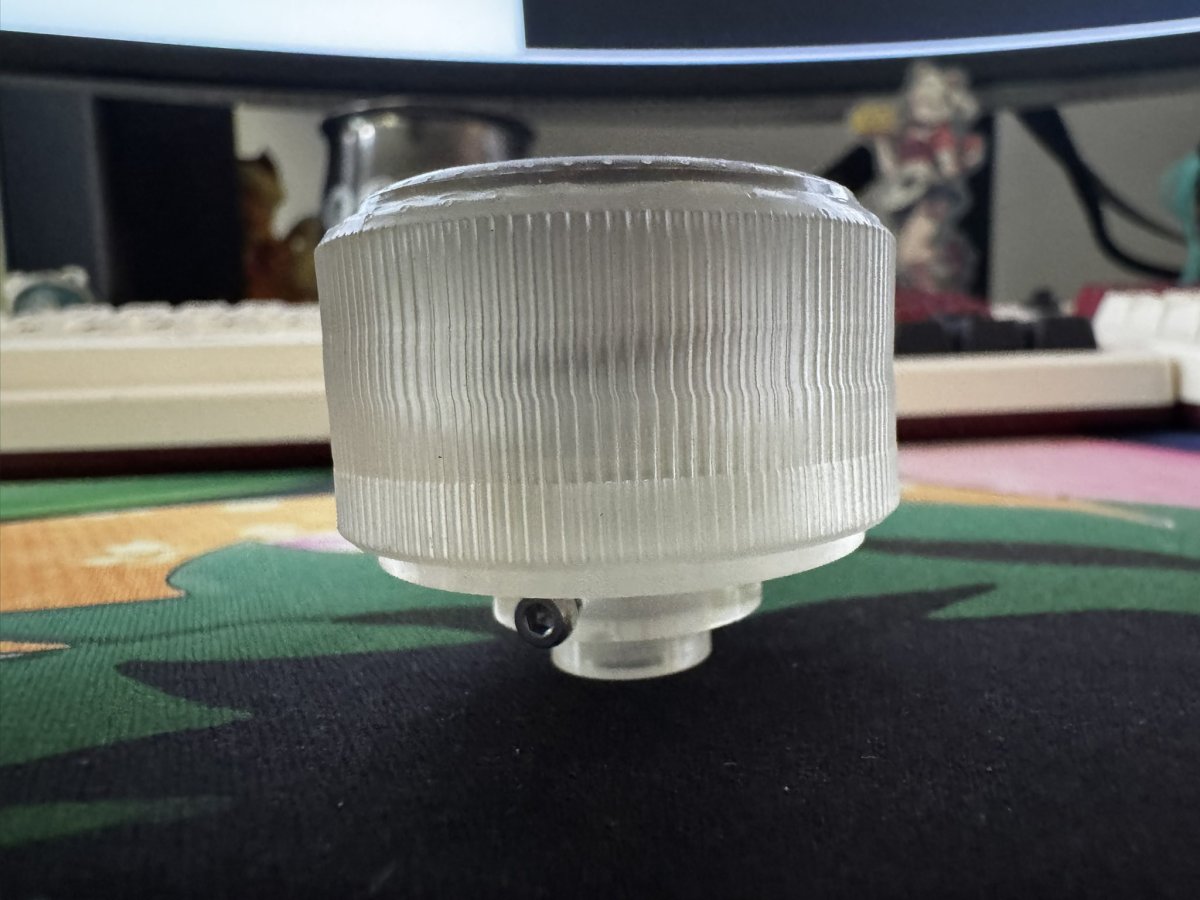

The 30mm discs come in tomorrow. Ideally I'd like to try for a resin version with the m2 holes modeled in, which thankfully freecad supports. Might also book a short session to get some adapter rings printed. I could do a couple with 3mm inset holes and a few with 2mm direct holes to see what works better. That would print much faster anyway on account of being much smaller.
