jugu
Professional
I was testing this with the I/O in a Vewlix cabinet. I'll try again using the Sega Type 3 I/O I have in my Transformers cabinet.
Virtua Fighter error with Multi
- Thread starter jugu
- Start date
Outside of Time
Enthusiast
Thanks! I believe I will need it pretty soon.
Outside of Time
Enthusiast
I hope you enjoy! It’s one of my favorite fighters. It’s good to see a fellow VF fan.
Yes, I will. I am a big fan of VF. i have PCBs of VF2-4 and now getting a Lindy for 5! Thanks
TechnicalMonkey
Student
- Joined
- Jul 28, 2015
- Messages
- 167
- Reaction score
- 56
I think Cruzlink had a problem with his, and I think his solution was to refit the dongle without the cap. I'll try to see if I can get him to chime in on this.
kinooshi823
Professional

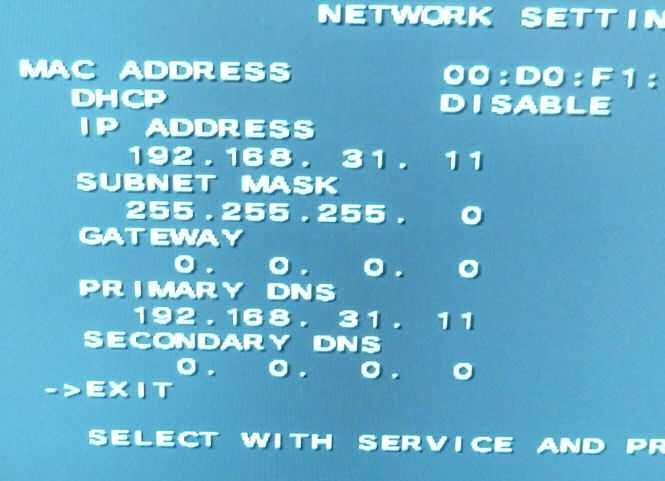

I am running into this same issue now. I am using a noami 2 jvs to jamma and how do I enter the network settings? I assume I need a type 3 sega jvs?
kinooshi823
Professional
Also Error 15 means I have a bad PIC? The PIC I have is brand new.
skate323k137
Enlightened
Type 1 IO also should satisfy it I believe
PICs are notoriously picky to program. I'd be most suspect there.
kinooshi823
Professional
I only have 2 PIC's to test here which I bought new. There are 2 .bin files I burned onto these chips and got the same result. I couldn't have had some bad luck and got 2 bad PIC's right?
kinooshi823
Professional
So the 2 PIC's I am using is giving me error 15 across the board here. Why so many obstacles, lol
skate323k137
Enlightened
It's most likely not the chips but programmer settings and file parsing. PICs can be reprogrammed so trial and error may be needed but at least you don't have to UV erase anything.
PICs are microcontrollers, so unlike EPROMs which just contain data, they are quite... PICky. (Sorry).
PICs are microcontrollers, so unlike EPROMs which just contain data, they are quite... PICky. (Sorry).
kinooshi823
Professional
So try to rewrite a few times?
skate323k137
Enlightened
Change settings, try new bin files, compile from source if you can find it... that kinda thing
kinooshi823
Professional
All I am doing is having the .bin on my desktop, loading it and burning it with default settings, I am not skilled in value reading or changing if that is what you mean?
skate323k137
Enlightened
The burning settings definitely need to be exactly right. As I mentioned above (edited in), PICs are microcontroller ICs. They perform specific programmatic functions in circuit, not just storing data the system uses for ROM.
It took me a lot of trial and error to program my 1st PIC, but the satisfaction is worth it.
It took me a lot of trial and error to program my 1st PIC, but the satisfaction is worth it.
kinooshi823
Professional
You're right because I might have figured it out. Now I am entering JVS menus after but I don't think I can control it with my Naomi 2 JVS
Some pics don't work properly unless protected also so maybe try that too.
kinooshi823
Professional
I may have solved the PIC issue but the issue now I have is when I choose a game, it goes straight to its service menu and I cannot do anything from there. So I assume that is because I don't have the proper JVS?
skate323k137
Enlightened
Make sure the IO is appropriately powered, but regardless of that, there are 2 buttons on the motherboard above the PIC slot. Using these you should be able to navigate test menus etc. You can probably fumble thru the menus to find JVS IO info/tests for your IO to see if it's even being seen.
