Namco 2X6-Pi Multi Selector

[mathewbeall]

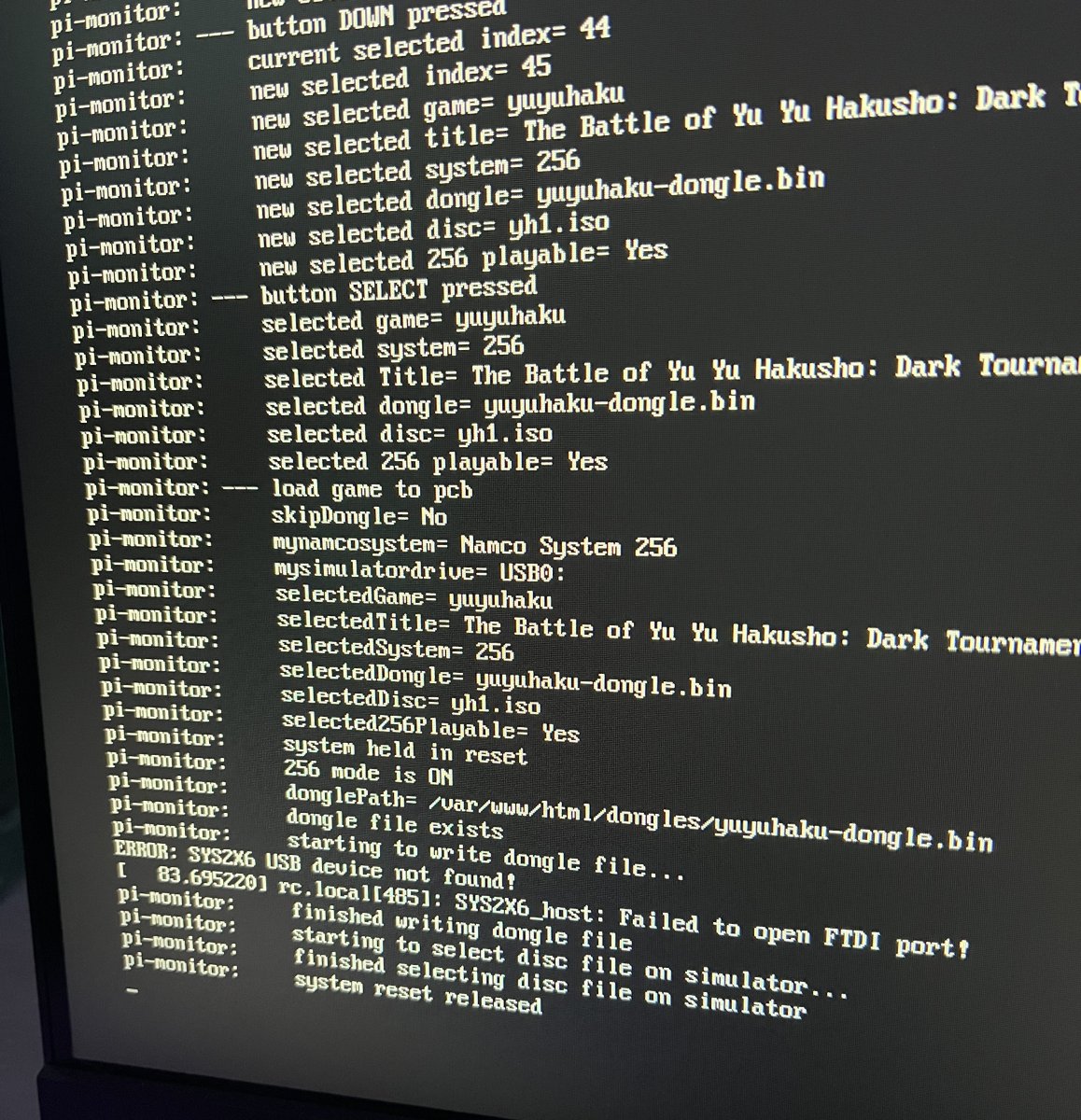

When you get this error - is the light on the SYS2X6 memcard on?



[FrAshi]

When you get this error - is the light on the SYS2X6 memcard on?

Yup blue light on

I just rechecked all my connections again, got a better solder on the reset wire etc. No change in behavior (didn’t expect it but one can hope!)



[FrAshi]

Is the ftdi_sio kernel module being loaded? That may conflict with sys2x6_host. There should be a blacklist entry for the module, or at least call "modprobe -r ftdi_sio" first, I think.

hmm I don’t understand any of the Linux stuff but you think there is a conflict in what’s running? It’s the same disc image as everyone else so wouldn’t the problem be universal then? I willing to try something out though!



[doccaz]

hmm I don’t understand any of the Linux stuff but you think there is a conflict in what’s running? It’s the same disc image as everyone else so wouldn’t the problem be universal then? I willing to try something out though!

Well, I noticed that when using the dongle writer in another RPi image (the kernel would just automatically load the ftdi_sio module and block the device) but I could be wrong, haven't used the same image you guys are using. Let me try it first and get back to you.



[FrAshi]

L

Well, I noticed that when using the dongle writer in another RPi image (the kernel would just automatically load the ftdi_sio module and block the device) but I could be wrong, haven't used the same image you guys are using. Let me try it first and get back to you.

Let me know if you need any deets from me!



[doccaz]

L

Let me know if you need any deets from me!

So, I downloaded the multi-selector image and booted from it. I noticed that the kernel is indeed loading ftdi_sio.ko automatically.. and is unloaded right afterward, so that's not it.
I did a couple of writes to my dongle manually, with no problems.

Maybe a process is getting stuck due to other causes (like communication errors, bad USB cable, undervoltage, or shorts)?
I'd suggest that when this error shows up, you connect to its SSH (user: pi, password: 2x6multi) and do the following:

sudo su -

dmesg > kernel.txt

Transfer that file (kernel.txt) to your computer and post it here so we can take a look.



[FrAshi]

So, I downloaded the multi-selector image and booted from it. I noticed that the kernel is indeed loading ftdi_sio.ko automatically.. and is unloaded right afterward, so that's not it.
I did a couple of writes to my dongle manually, with no problems.

Maybe a process is getting stuck due to other causes (like communication errors, bad USB cable, undervoltage, or shorts)?
I'd suggest that when this error shows up, you connect to its SSH (user: pi, password: sys2x6multi) and do the following:




Transfer that file (kernel.txt) to your computer and post it here so we can take a look.

Thanks, I’ll get that for you later. I can def rule out cables as I have quadruple checked them, rewritten the dongle with same cables on pc etc. And the issue is inconsistent on the pi - rewrites occasionally but rarely.

Undervoltage does pop up but amping up the voltage on the 256 doesn’t change that error and also don’t want to pump it up too much!

Also same issue replicated on 2 different pis.

Anyway I’ll get that log when I get a chance, thank you



[twistedsymphony]

Undervoltage does pop up but amping up the voltage on the 256 doesn’t change that error and also don’t want to pump it up too much!

while the error is "undervoltage" what it's really telling you is that the power wires are too small or the power supply isn't providing enough current, and either of those things are RESULTING in an undervoltage condition.



[FrAshi]

while the error is "undervoltage" what it's really telling you is that the power wires are too small or the power supply isn't providing enough current, and either of those things are RESULTING in an undervoltage condition.

Hmmm I’m using the recommended molex adapter to get power to the pi. I’ve also tried 2 different sun psus and measured voltage in each, should be good there. Sounded like @matthewbeal gets the same undervoltage message?

I could definitely try powering the pi from a wall wart just to see if that affects anything.



[mathewbeall]

yeah - the Rpi wants a bit over 5v - usually 5.2volts or so - mine complains all the time of undervoltage but it doesn't affect the performance of the device - the CPU is barely working on loading the game up.

Matt



[FrAshi]

while the error is "undervoltage" what it's really telling you is that the power wires are too small or the power supply isn't providing enough current, and either of those things are RESULTING in an undervoltage condition.

Small update, I tried with pi plugged into its own power supply, and, while I don’t get any undervoltage errors, I am getting the same error as before re: USB dongle



[mathewbeall]

@BladeZX - what can we check here for @FrAshi in linux - what port are you expecting the SYS2X6 card to be at?



[BladeZX]

There is no port for the dongle - I am just using brizos program to write the dongle
For the IDE simulator it expects this:

ideSimulatorDeviceName="/dev/ttyACM0"



[doccaz]

@BladeZX - what can we check here for @FrAshi in linux - what port are you expecting the SYS2X6 card to be at?

It doesn't use a kernel-provided port (like /dev/ttyUSB0), it accesses the dongle USB device directly with a library. I guess the only reason for it to throw an error is if it really doesn't see the device present in the USB bus. A dmesg should show if it was disconnected/vanished from the bus.



[FrAshi]

Ok - finally got the log, sorry for the delay:

Spoiler: kernel.txt
