A Freeware Taito TypeX2 Multigame.

[ArcSys101]

thanks Dakken, pin 4 and 8 is the kick for both players.

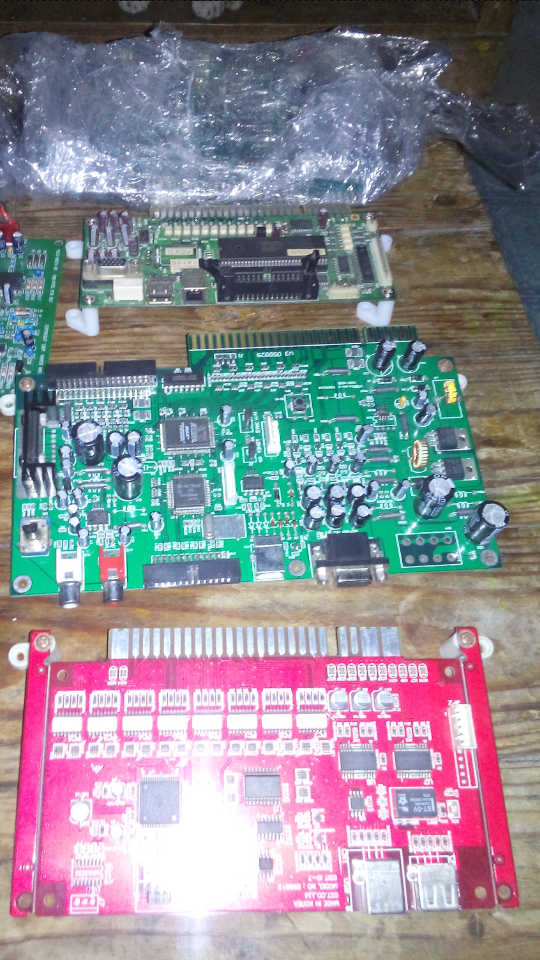

In the middle the latest i/o board, I cant find the 3 kick button for both 1 and 2 players

Note all of this i/o has came from the ssf4 ae cab

The red one it has 5 buttons working in both 1 and 2 players I cannot find the 6 button in the red board

Help please guys



[Dakken]

can you upload a higher quality images of the other 2 boards its hard to tell what they are.



[ArcSys101]

here it is I have 5 of this new i/o



[rtw]

That I/O looks like a copy of a CAPCOM I/O

Could you take some hi-res pictures and share them with us ?

Also what does it identify as in the NAOMI JVS info screen ?



[PascalP]

Looks like a Capcom without a case, volume pot, test button etc., everything in the correct position.
But no 'Capcom' written on the PCB anywhere?



[ArcSys101]

ok guys I will upload the pics in hd



[rtw]

Looks like a Capcom without a case, volume pot, test button etc., everything in the correct position.
But no 'Capcom' written on the PCB anywhere?

It's missing 2 switches as well and the orange inductors.

http://wiki.arcadeotaku.com/w/JVS

I think it's a clone, this is why I want to see the JVS ID string and better pictures.



[ArcSys101]

it is from china and it is compatible in namco 369 plug and play



[PascalP]

Looks like a Capcom without a case, volume pot, test button etc., everything in the correct position.
But no 'Capcom' written on the PCB anywhere?

It's missing 2 switches as well and the orange inductors.
http://wiki.arcadeotaku.com/w/JVS

I think it's a clone, this is why I want to see the JVS ID string and better pictures.

Now you mention it, it's missing the C/HV sync switch and the 2p6b/4p switch



[ArcSys101]

it has a jumper pin in 4b and h/v sync



[invzim]

here it is I have 5 of this new i/o

That looks like the Capcom IO clone, shipped with chinese vewlix cabs. It is indeed a clone as the board identifies itself with the same string the capcom does.



[ArcSys101]

here a zoom in mine



[rtw]

So it's a cheap clone then.

@ArcSys101, if you connect this to a NAOMI can you see all buttons ?

And can we get a hires picture of the red one as well, the entire PCB ?



[ArcSys101]

this clone I dont know where is the 6th button or 3kick button for ssf4 ae

Do you know where can I hook it

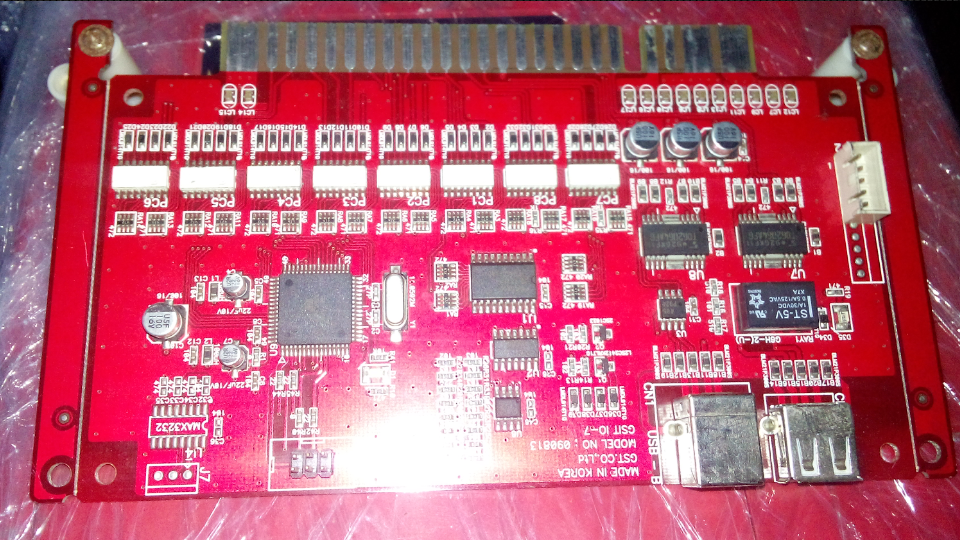

Ok heres the pic of the Korean I/o



[Hellfromabove]

Very interesting clone @ArcSys101



[rtw]

this clone I dont know where is the 6th button or 3kick button for ssf4 ae

Do you know where can I hook it

Is it the Korean you cannot find the button on or the China copy ?



[ArcSys101]

in the green sega i/o clone no I cannot find the 3 kick buttons

The red one korean i/o has 5 buttons in ssf4 ae, only the roundhouse kick in both 1 and 2 players are missing



[rtw]

The red one korean i/o has 5 buttons in ssf4 ae, only the roundhouse kick in both 1 and 2 players are missing

Do you have a NAOMI ? If so connect a test harness to each one and manually toggle inputs, you can do that with DuPont cables or with a logic probe with a pulse function.

The Korean one looks like it has 5 inputs on the JAMMA edge and I guess the rest are in the small molex connector on the side.



[Lemony Vengeance]

here it is I have 5 of this new i/o

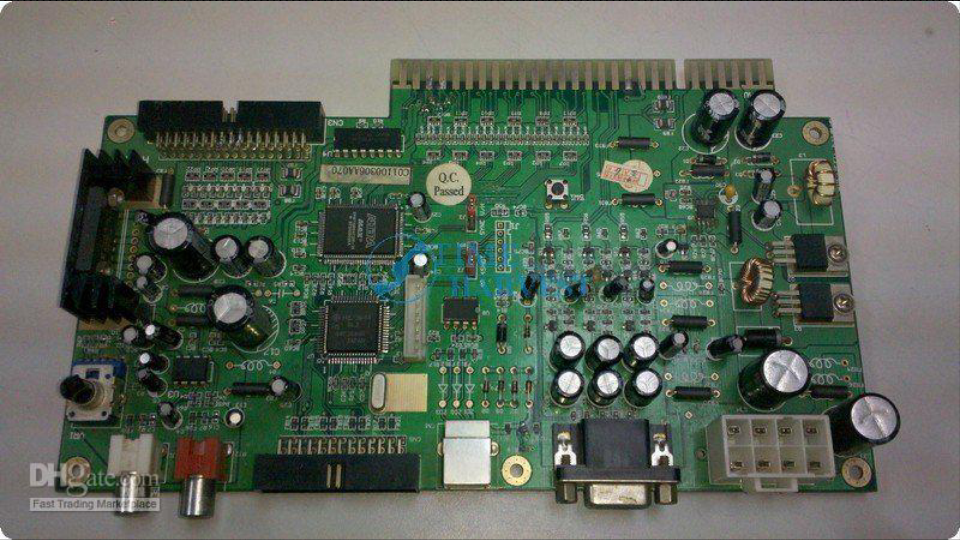

I thought it could be a River Service JAMMA to JVS IO, but the watermarks are from a place called Time Harvest..

**EDIT**


Found them :

http://timeharvest.net/2-pcs-naomi-...rtscoin-operator-amusement-cabinet-p-267.html



[ArcSys101]

heres my i/o I bought from japan and it from i/o in sega naomi tgey remove the cover this was a ton of i/o stocks from naomi, it has no molex outlet

, time harvest i/o has no voltage protection I just used the old pic from them
