A little history about myself. I am from USA and I moved to China when i got married to beautiful chinese woman. hehe
I was in the Arcade tournament scene from 1999-2008 and made friends with many top players.
I was the founder of GoForBroke, which archived tournament videos from around the world.
This eventually led to Combovideos.com

I love original hardware and I moved to China. I met a guy his tag is Axun @ axunwork.taobao.com/
This man makes high quality parts for the retro scene. Made to order.
I was so impressed i told him he needs to get his products out west. He showed little interests but said if I help him maybe something can happen so here we are.
This new JVS / JAMMA CBOX, he has given me the task of "getting it out there"
This first product i am showcasing is NEW. He just created it.

OFFICAL WEBSITE (International ORDERS)
http://www.axunworks.com/

It is a JVS / JAMMA SuperGun that has built in power! One box to rule them all. Very Hassle free. No more need for expensive, hard to find JVS I/O boards! :D

SPECS: (Translated from Chinese)

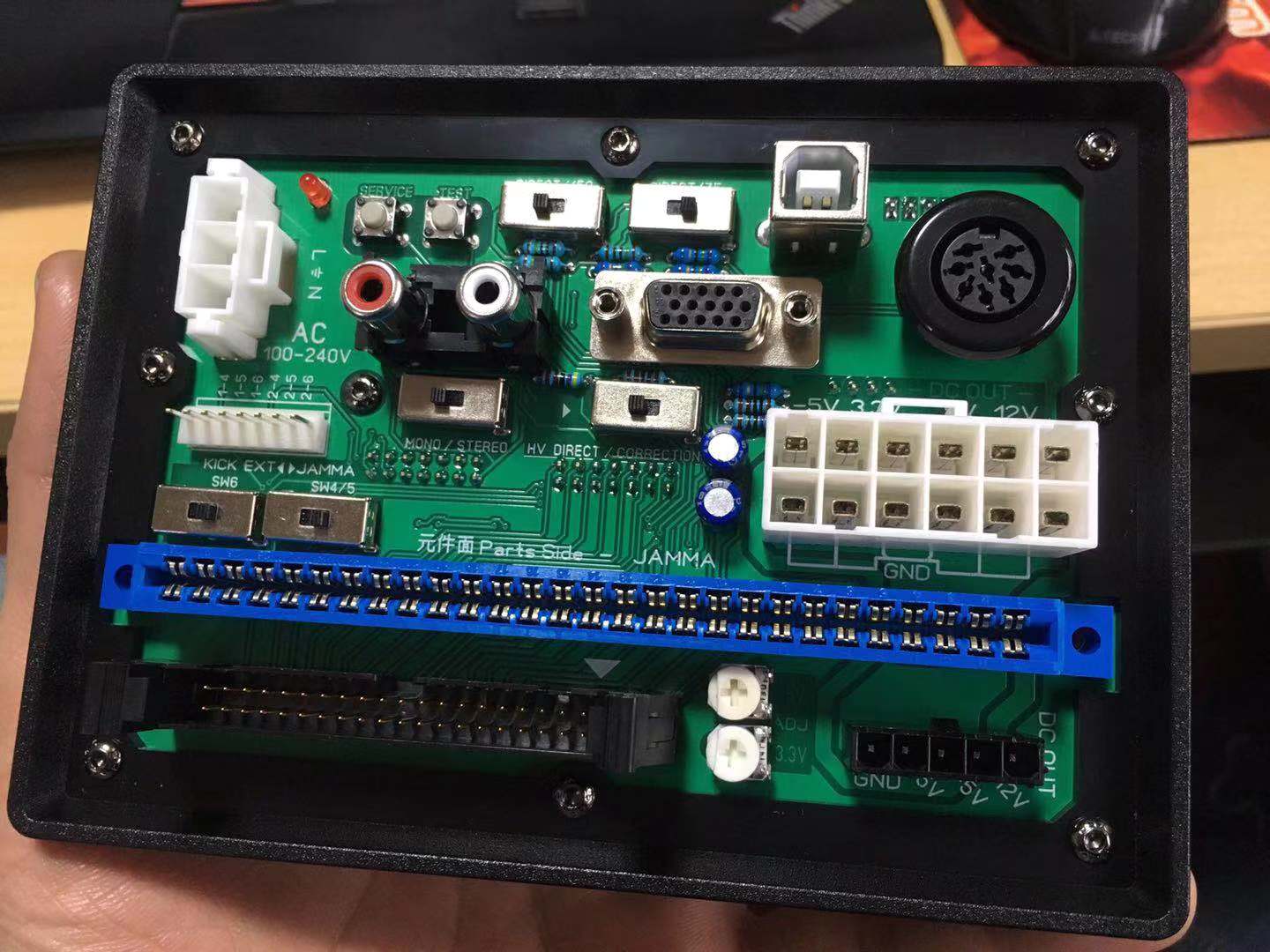

JVS / JAMMA CONTROL-BOX (referred to as JJ-CBOX) VERSION 2
It can be easily connected to the JAMMA and the JVS, and you can easily play the original arcade games at home.

It comes with:
JJ-CBOX v2 Unit + power cord

Controller Inputs:
x2 Sega Saturn
x2 Sigma
x2 DB15 Neo-Geo (support 6 buttons)

VIDEO/AUDIO OUTPUTS:
DB15 pin interface is 15kHz and a direct output of the RGBS signal of JAMMA.
The 8P interface is the same as the RGB interface of NEOGEO, but it supports stereo. 8pin to EU-SCART (RGB)
RGB impedance can be set in 4 modes: pass-through, 75 ohm, 150 ohm, 75 + 150 ohm (now it has been changed to 0-500 ohm linear adjustment)
Stereo RCA Output (Recommended to set it in mono, because most types of JAMMA PCB are mono)
(In mono mode, the red and white RCA output ports also have sound.)

CORRECTION POTS:
The Correction knob adjusts the phase delay of the synchronization signal.
It moves the image up and down or left and right to center the image.

POWER:
AC INPUT: 100-240v
ADJUSTABLE 5v and 3v for picky JAMMA boards

JVS CONTROL and POWER:
The JVS-USB interface is used to control the JVS host. It can control JVS hosts such as (TESTED) SEGA NAOMI 1, SEGA NAOMI 2, RINGEDGE 1, RINGEDGE 2, Namco 246/256, Taito Type X1 , Taito Type X2, etc.
12-hole JVS power output, including negative 5V, 3.3V, 5V, 12V (CBOX can power Naomi 1/2, Namco 246/256 with custom harness)

6 BUTTON CONTROL JVS/JAMMA:
JVS 6 button is built in.
The external 456 or KICK HARNESS is used to connect some 6-key games such as STV, CPS1, CPS2, CPS3 and so on. (KICK HARNESS wiring is required.)
Kick harness switch for quick Enable/Disable
Customization 6 button mapping (Refer to CUSTOM MAPPING SECTION)

CONTROLLER CONFIG:

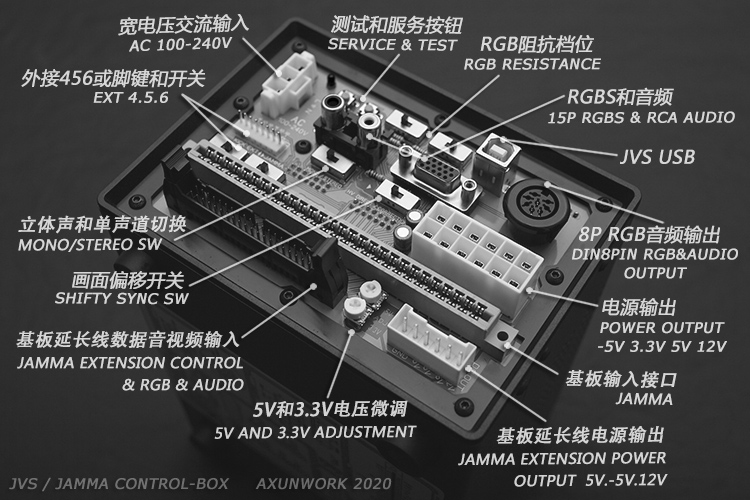

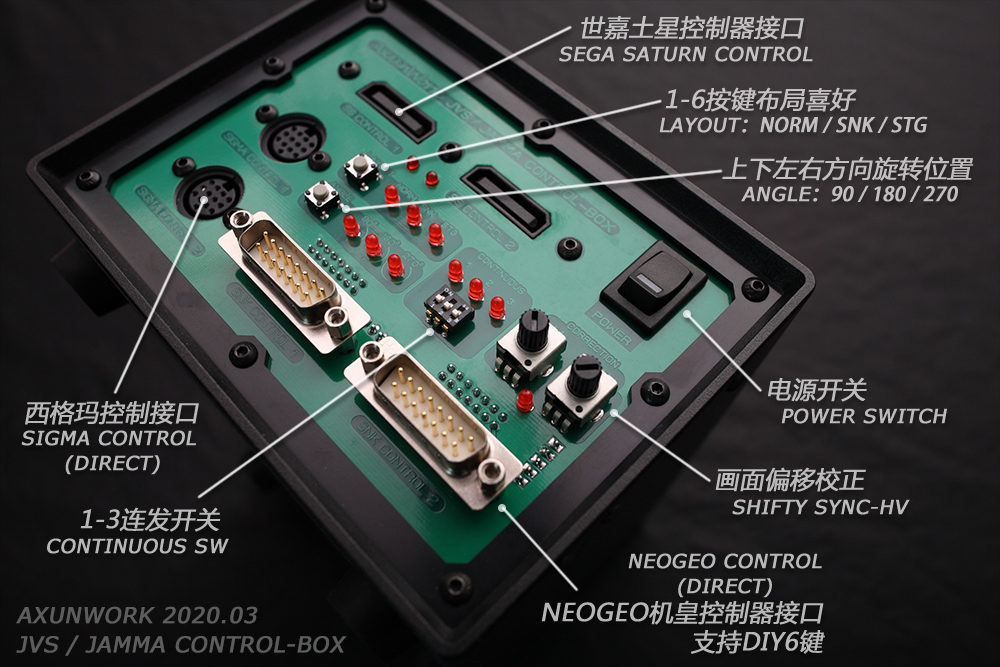

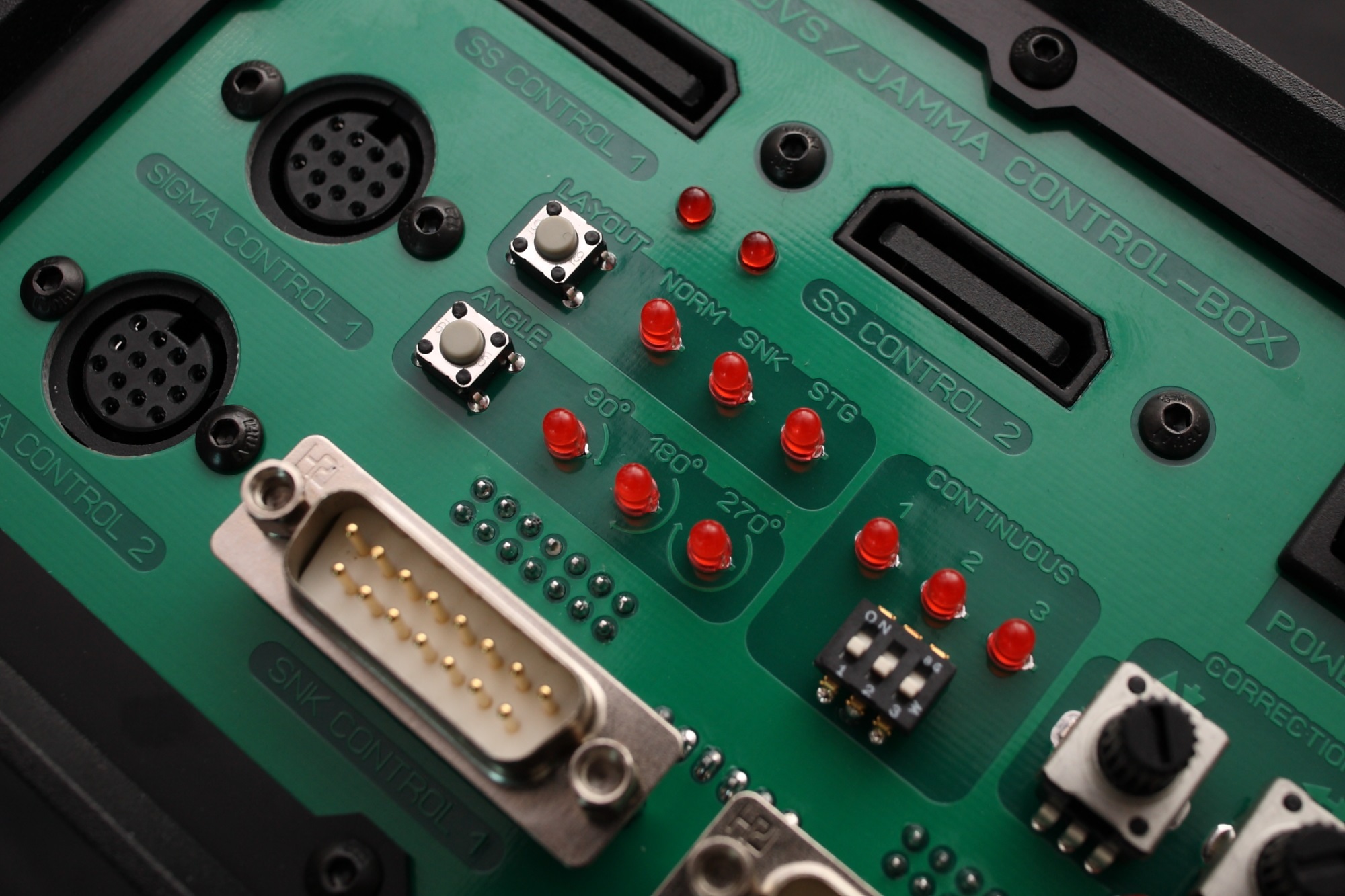

USING the LAYOUT BUTTON: (Refer to picture #1)
NORM = is standard CAPCOM 6 button
SNK = is standard SNK layout
STG = is standard SHUMPS(Shooting Game) Mode (The above three buttons can be set continuously. But the following three buttons cannot be continuous.
Because some shooting games need to hold down to store energy.)

USING the ANGLE BUTTON: (Refer to picture #1)
NORM = Standard (Clockwise) Up , Right, Down, Left
90°
180°
270°
(This is helpful for games that rotate screen but you cannot rotate your screen)

CUSTOM MAPPING:
HOLD the LAYOUT BUTTON for 3 seconds.
All six lights will be on, this is entering CUSTOM MODE
At this time you need to press the buttons 1-6 to your desired layout.
Press the LAYOUT BUTTON again to to exit CUSTOM MODE.
IF you want to set Player 2(2P), you also need to complete the button setting 1-6 during the CUSTOM MODE.

CONTINUOS SWITCHES aka (RAPID FIRE)
Flip switch 1 for RAPID FIRE on Button 1
Flip switch 2 for RAPID FIRE on Button 2
Flip switch 3 for RAPID FIRE on Button 3

JVS/JAMMA Supergun/CBOX with Neo Geo MVS JAMMA
View: https://www.youtube.com/watch?v=OH2RGEtjZ2E



JVS/JAMMA CBOX Supergun with Sega Naomi
View: https://www.youtube.com/watch?v=REeKDOAXHpg


This Unit is priced at 1700 RMB
Remember these units are hand made to order.

Thank you all.
Sharing is Caring
OVER 587 SOLD! :D <3

PCBS WITH KNOWN PROBLEMS ON THE CBOX:
Mortal Kombat 1 (worked fine but seemed far out of spec) @mathewbeall
Mortal Kombat 1 (had the same issue as before with extremely dim screen (almost black) and -6.6v on the -5v line) @djsheep
Killer Instinct 1 (Out of spec power on 12v) @mathewbeall
USAAF Mustang (reading of 12.7v on the 12v line) @djsheep
Thunder Zone (13.2v on 12v) @djsheep
Chequered Flag (NO SOUND) @kebrank

BOOTLEG PCBS WITH KNOWN PROBLEMS:
Mutant Night (No Sound)
Ninja-kun Ashura no Shou (No Sound)
Silkworm (No Sound)
Teddy Boy Blues (No Sound)

TESTED AND WORKING PCBS:
CPS1
CPS2 Darksoft Multi
CPS3 Darksoft Multi
NeoGeo MVS Multi
Sega STV Multi
Cave PCBs
----------------------------------------------------------
ORIGINAL PCBS:

1943 Kai
A-Jax
Air Duel
Air Raid
Akuu Gallet
Alien 3: The Gun
Aliens
Altered Beast
Arbalester
Ashura Blaster
Assault
Asuka & Asuka
B. Rap Boys Special
Backfire!
Batsugun
Battle Balls
Battle Rangers
Bermuda Triangle
Best Bout Boxing
Big Karnak
Black Dragon
Black Tiger
Block Out
Blood Storm
Bomber Man World
Bonanza Bros.
Boulder Dash
Boxy Boy
Burning Force
Butasan
Cabal
Choplifter
Circus Charlie
Commando
Contra
Cosmo Police Galivan
Crazy Climber 2
Crime Fighters
Daiku no Gen-san
Demon's World
Desert Assault
Double Dragon
Double Dribble
Dr. Toppel's Adventure
Dragon Buster
Dragon Saber
Empire City
Euro Football Champ
Exciting Hour
Extermination
Exzisus
F-1 Grand Prix
F-1 Grand Prix II
Final Fight
Finalizer - Super Transformation
Gigandes
Ginga NinkyouDen
Gokujo Parodius
Golden Axe: Revenge of Death Adder
Golden Tee 2000
Golfing Greats
Growl
Gun Smoke
Gyruss
Haunted Castle
Hellfire
Hot Chase
Hyper Olympic '84
Ikari III
Image Fight
Iron Horse
Jail Break
Ketsui
KLAX
Kyros no Yakata
Kyukyoku Tiger
Labyrinth Runner
Lee Trevino's Fighting Golf
Legend if Hero Tonma
Legion - Spinner-87
Lode Runner
Lode Runner: Majin No Fukkatsu
Lode Runner: The Dig Fight Ver. B
Magical Error wo Sagasel
Majikaru Doroppu
Makai Densetsu
Master of Weapon
Mat Mania
Maze of Flott
Mega Zone
Mercs
Mortal Kombat I
Motorace USA
Mr. Heli no Daibouken
Mushihimesama
Namco Classics Collection Vol. 2
Nastar Warrior
Night Slashers
Ninja Emaki
Ninja Gaiden
Nintendo VS. with Excitebike
Nitro Ball
OutRunners
P.O.W.
Pinball Action
Plasma Sword
Pocket Gal 2
Pop'n Run
Port Man
Pound for Pound
Psychic 5
Psycho-Nics Oscar
Puyo Puyo
Puzzle & Action: Ichidant-R
Puzzle & Action: Tant-R
R-Type
Rad Mobile
Rad Rally
Raiden II
Raimais
Rainbow Islands
Rampart
Rastan
Recordbreaker
Red Hawk
Regulus
Riddle of Pythagoras
Riot City
Robocop
Rockman: The Power Battle
Rollergames
Run & Gun
Scramble
Sei Senshi Amatelass
Shadow Force
Shanghai III
Shinobi
Side Pocket
Sky Smasher
Snow Bros.
Snow Bros, 2
Solitary Fighter
Spelunker II: 23 no Kagi
Street Fighter II: The World Warrior
Street Fighter II': Champion Edition
Street Fighter: The Movie
Sunset Riders
Super Pool III
Suzuka 8 Hours
Tatakae! Big Fighter
Tatsujin
Teenage Mutant Hero Turtles
Teki Paki
Terra Cresta
TH Strikes Back
The Combatribes
The Final Round
The Irem Skins Game
The Simpsons
Thunder Fox
Tiger Road
Time Killers
Title Fight
Top Ranking Stars
Tara e no Michi
Tutankham
Twin Cobra
Twin Eagle
U.N. Squadron
Undercover Cops
Up'n Down
Vigilante
Violent Storm
Volfied
Wonder Boy
Wonder Planet
World Wars
X-Multiply
Yie Ar Kung-Fu
Youjuden

WORKING BOOTLEG PCBS:
Atom
Final Fight 3
Megadrive 4 Slot with NBA JAM Built In
Xain'D Sleena
Wild West C.O.W.-Boys of the Moo Mesa

REVIEWS:
FRANCE: http://www.arcade-team.com/viewtopic.php?f=21&p=18254#p18254


Attachments

  • 2nd.jpg
    174.3 KB · Views: 2,094
  • 3rd.jpg
    147.1 KB · Views: 1,591
  • WeChat Image_20200118164257.jpg
    WeChat Image_20200118164257.jpg
    175.1 KB · Views: 4,656
  • WeChat Image_20200318213126.jpg
    WeChat Image_20200318213126.jpg
    948.9 KB · Views: 1,126
  • WeChat Image_20200318215701.jpg
    WeChat Image_20200318215701.jpg
    177.4 KB · Views: 1,217
  • WeChat Image_20200325115506.jpg
    WeChat Image_20200325115506.jpg
    312.3 KB · Views: 1,071
  • WeChat Image_20200325115540smaller.jpg
    WeChat Image_20200325115540smaller.jpg
    510.5 KB · Views: 1,029
  • Axunworkshop.JVS-JAMMA-INSTRUCTIONS.zip
    721.4 KB · Views: 460
Last edited:
That looks pretty impressive. I look forward to seeing some reviews of it!

CAPCOM Jamma JVS I/O board for SEGA NAOMI is still on ebay for $198

Come join the new revolution!

The videos are definitely cool. Is that effectively an entire controller in Test Buttons on the front of the unit?

Also, what cords (if any) are included with the box?

Last question I can think of right now: do you have any way to "turn off" the button 456 on the jamma edge? I know we've identified at least 1-2 games that don't work right if it's wired that way.

Looks realle neat! From the video it looks like it has a sega IO inside, if so it should take away any concerns about compatibility. If the wire harness is included, it's a great price!

Looks awesome!! Great work!

That looks great! Would it be possible to get a photo of the internals or an idea of what parts have been used?

PSU is the biggest thing I'd be interested to know more about :)

That looks great! Would it be possible to get a photo of the internals or an idea of what parts have been used?

PSU is the biggest thing I'd be interested to know more about :)

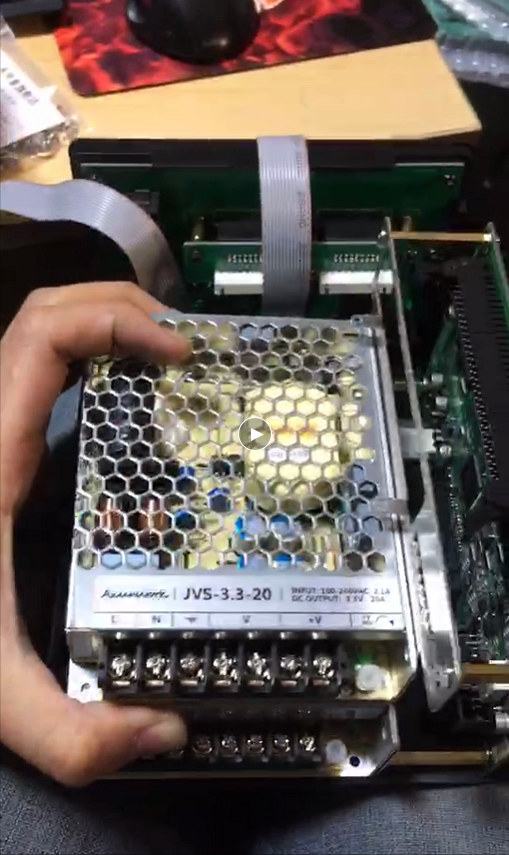

PSU is custom AxunWorkshop JVS 3.3-20 (120v-240v)


Attachments

  • PSU.png
    904.4 KB · Views: 952

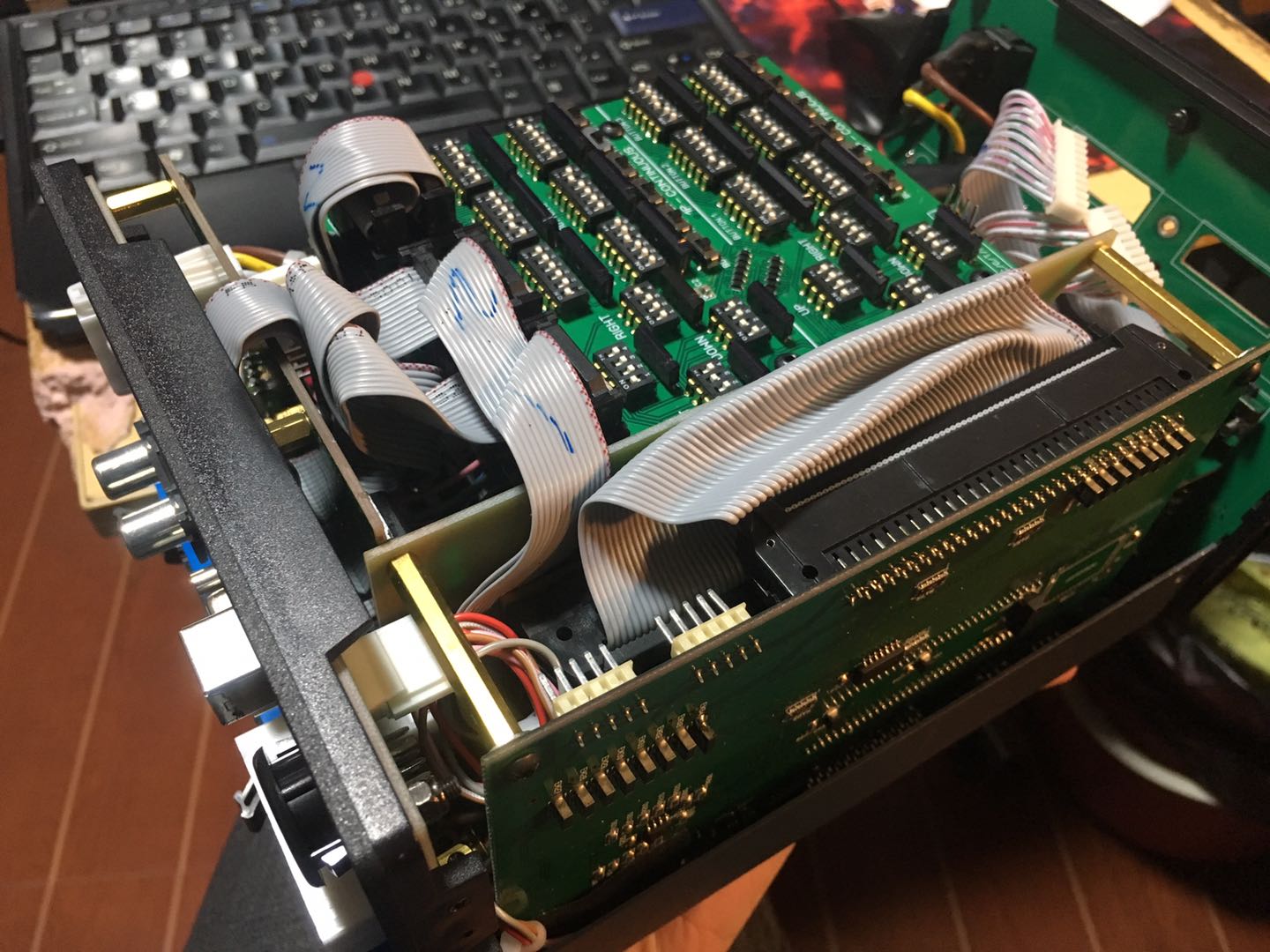

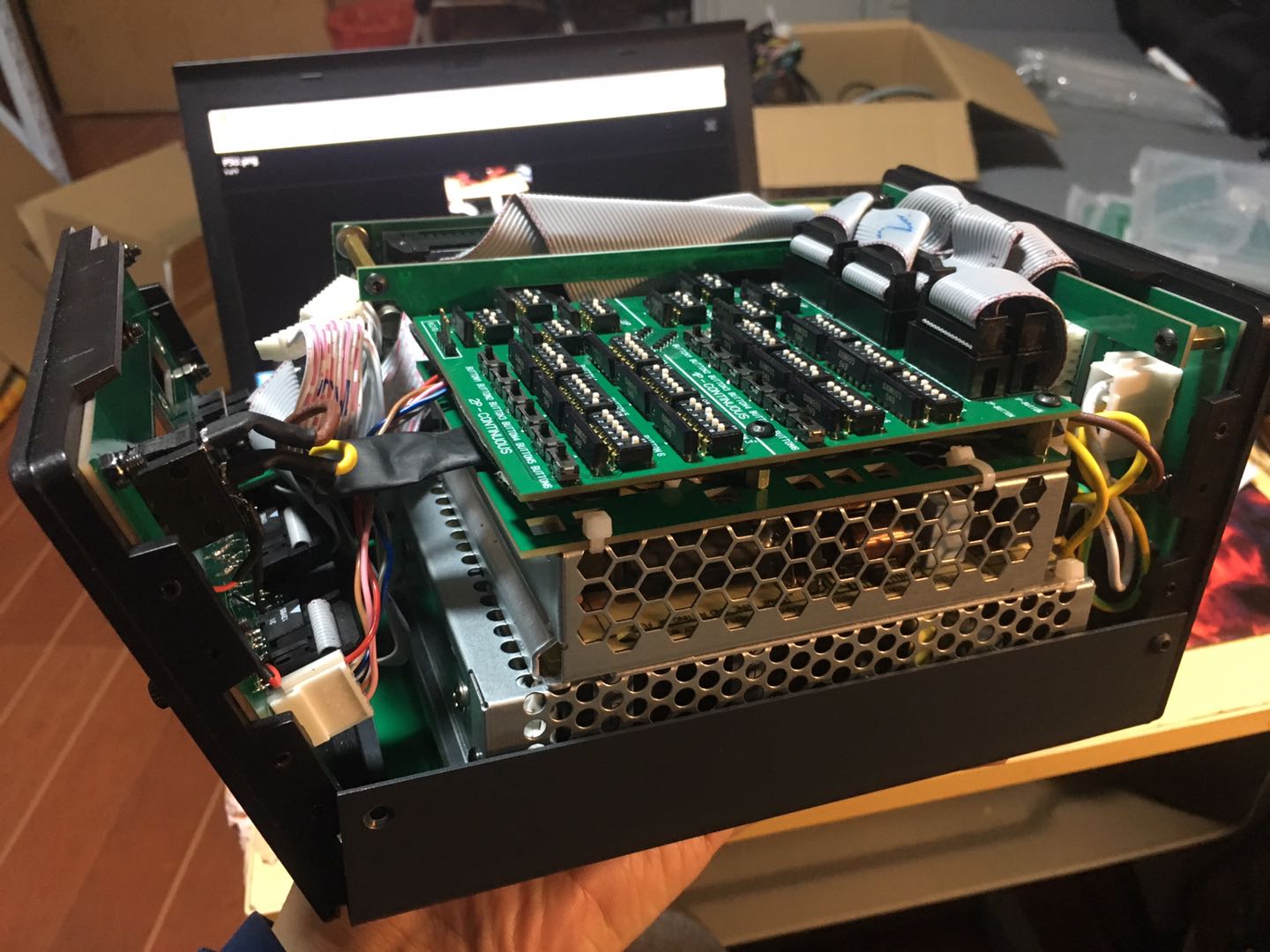

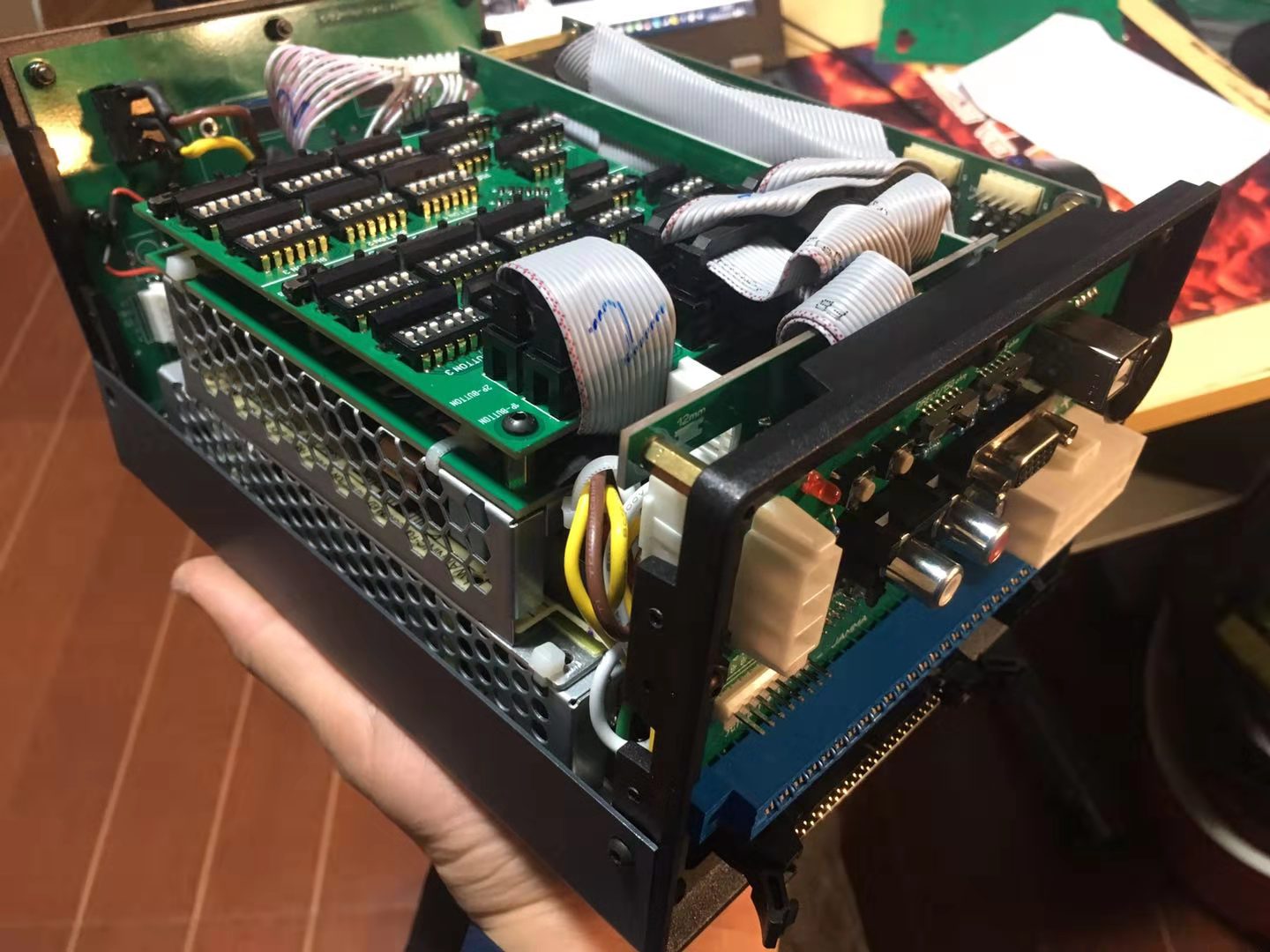

More pics of internals
