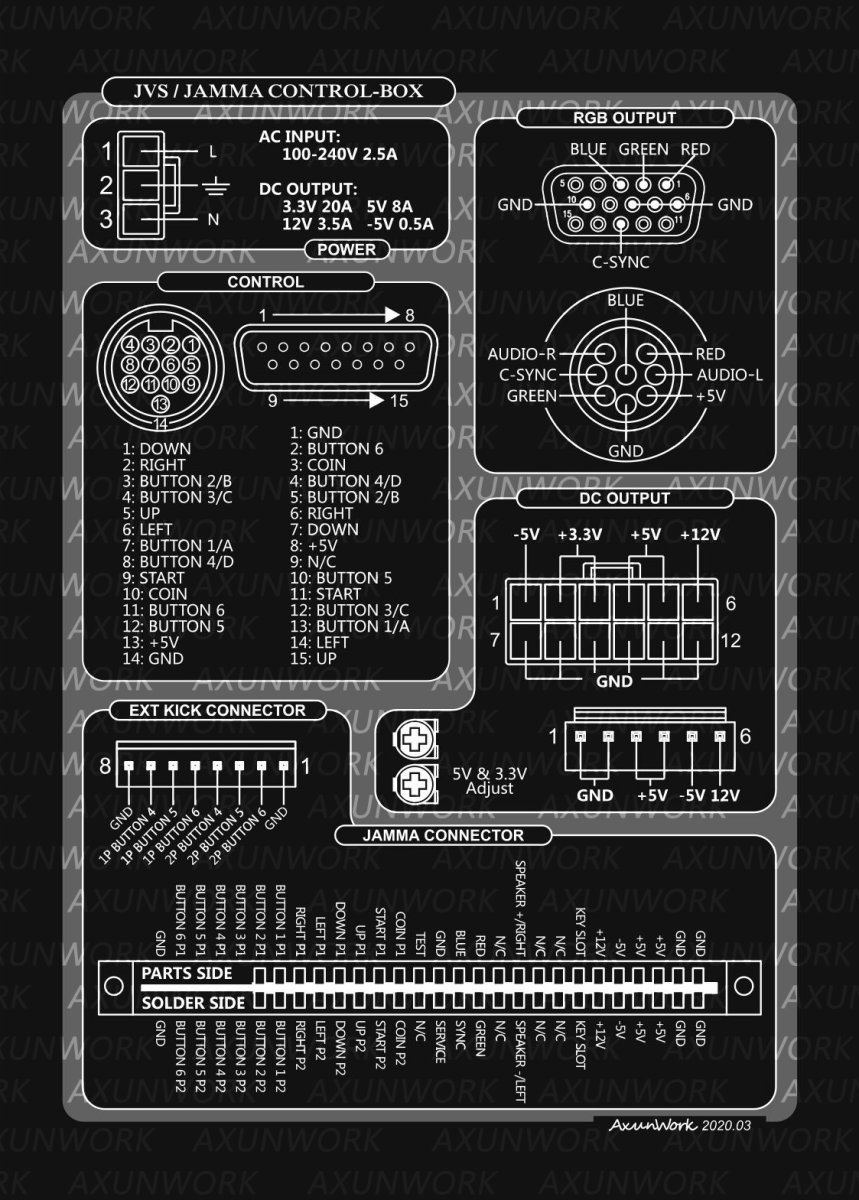

Same pinout as the CBOX. Diagram above with all that info.
Axun Workshop - Supergun-MINI
- Thread starter drfunk2k
- Start date
Same pinout as the CBOX. Diagram above with all that info.
Harineto
Student
Happy to report been a proud owner of the Supergun-mini + Axun Work PSU.
Just wondering what transcoder does the Supergun-mini use to convert RGB to Component?
Just wondering what transcoder does the Supergun-mini use to convert RGB to Component?
msamiullah
Professional
guys how to re-map buttons on Supergun-mini. Like on HAS (I do not remeber exactly but) you need hold some button and the supgun goes into button mapping mode and then each press of a button repesents the button e.g for button 6 you press the desired button for 6 times. Whats the process here ?
GeorgeSpinner
Grand Master
There is no process to remap buttons.
msamiullah
Professional
regarding the power supply that comes with the supergun i.e Ault SC200, looking at the specs it doesnt have -5VDC, is that converted/generated by the supergun ?
GeorgeSpinner
Grand Master
It's modified to provide -5v I believe.
msamiullah
Professional

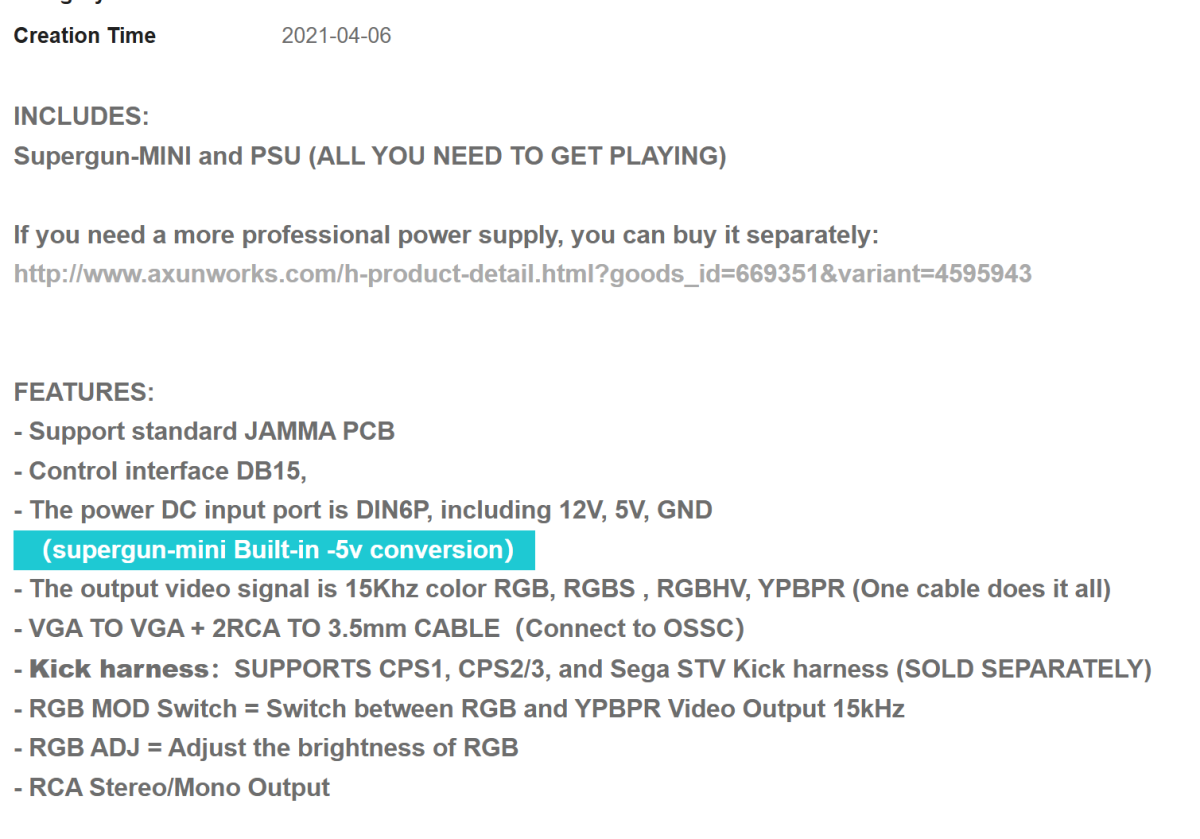

was able to find this on the official website, looks like supergun does the conversion
GeorgeSpinner
Grand Master
Perhaps it does now but my power supply definitely has -5v.was able to find this on the official website, looks like supergun does the conversion
This is an image of it.
I believe I got one of the early ones.
Last edited:
msamiullah
Professional
they put a sticker on top of the power supply, here is the original one: Unless they modified the insides of the power supply which I doubt considering the note on their website.
GeorgeSpinner
Grand Master
I know. I have an original as well. I use it for CPS2 with minigun supergun.they put a sticker on top of the power supply, here is the original one: Unless they modified the insides of the power supply which I doubt considering the note on their website.
Logically, there is no reason to put that sticker there and assign -5v in the diagram to that pin unless it has been modified.

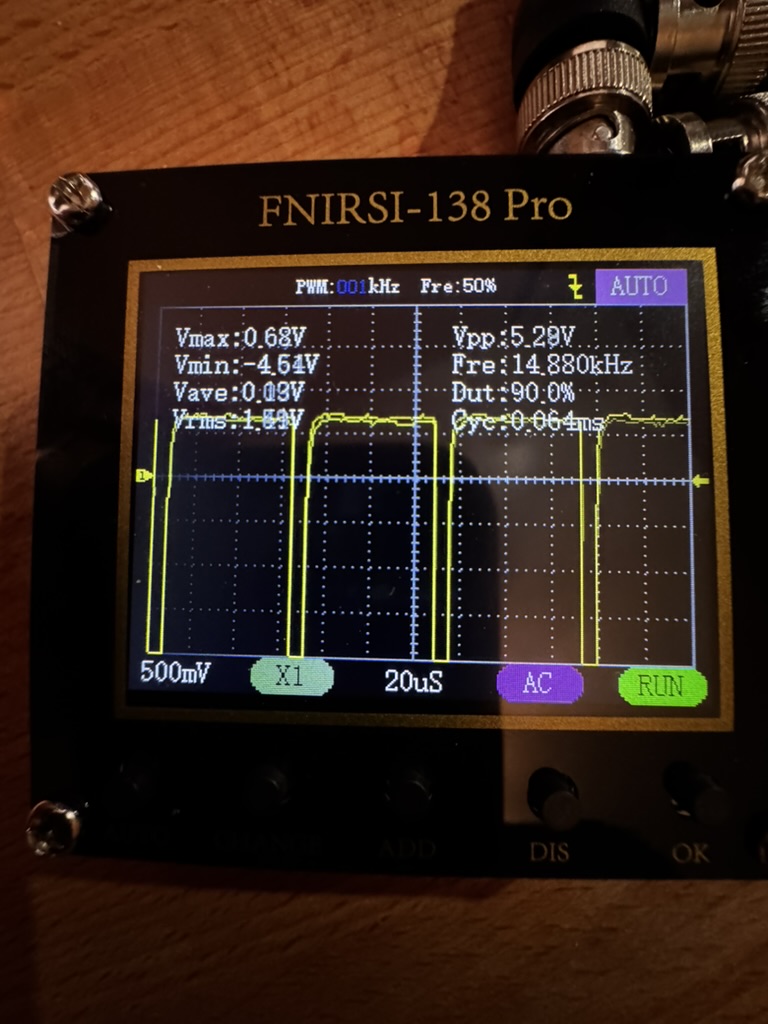

I tested that power supply when I repurposed it (because I did not find it adequate for my use case) and it outputs -5v.
msamiullah
Professional
good stuff, do you have the pinout for the cables by any chance, I have the same powersupply and I stripped the cables and will wire it for HAS.
Edit: Here it is :
Edit: Here it is :
| Cable Color | Voltage output |
| White | GND |
| Green | -5V |
| Blue | +5V |
| Red | +12V |
| Yellow | GND |
Last edited:
GeorgeSpinner
Grand Master
I did not write it down and they are all under heat shrink now.
It should be easy enough to test with a volt meter.
