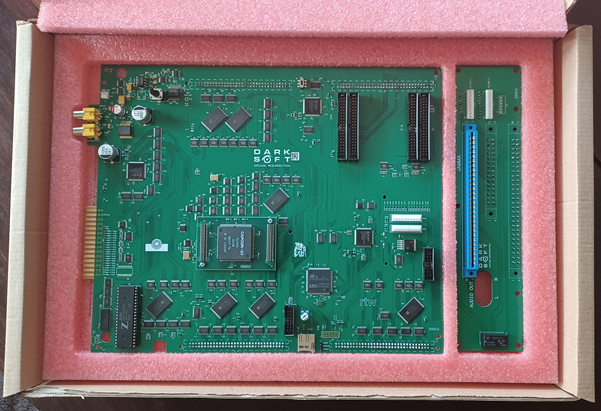

After a long development, I'm happy to annouce that the CPS1 Multi is in its final stage. The Multi PCB includes both the B PCB and the Qsound PCB. It's completely compatible with CPS1 and CPS1.5.

As you can see it has both the Option for inserting a C board and just soldering a B-21. For now, it only supports B-21 C Board, preferably those that have a battery and you can write the keys on the go. It has also the connectors for spins and kick connectors that you can find on some C Boards.

Q sound PCB is also supported as you can see and has the regular RCA connectors.

It works with the usual microSD slot and flashes. I should be taking preorders in 2-3 months. Price will be slightly higher than anticipated as it has now the Qsound part integrated.



Is your body ready?


Brentradio

Champion
Joined
Apr 6, 2016
Messages
2,191
Reaction score
1,819
Location
Las Vegas
In like Flynn!

Totally amazing job as usual!

Can't wait!

:thumbup:

My only question is, what do you mean by "price"? I don't understand the concept of "price" for this. Who needs to know the "price" anyway? The "price" doesn't really matter does it? I'm buying this regardless of this thing you refer to as "price"... You did say Q Sound right?

:D

Last edited:

sammargh

Professional
Joined
Jul 24, 2017
Messages
525
Reaction score
374
Location
South Dakota
Wow looking fancy! And with 1.5 support well worth the wait! I figured I'd get to skip this multi since I basically have all the cps 1 I want but you've got me interested


frsj8112

Enthusiast
Joined
Jul 21, 2015
Messages
170
Reaction score
94
Location
Sweden
Oh lordy, how sweet!!

What is the empty surface mount used for, in the middle of the PCB?


Darksoft

Staff member
Immortal
Joined
Jun 12, 2015
Messages
9,148
Reaction score
10,662
Location
Poland
That's the place for the DSP16A which is what runs the Qsound. Luckily those things can run external code. This is the PCB as I got it from assembly line, now looks much worse with a bunch of jump wires and mods.


Johnfan1986

Enthusiast
Joined
Feb 26, 2020
Messages
186
Reaction score
229
Location
Hong Kong, Lantau Island
After a long development, I'm happy to annouce that the CPS1 Multi is in its final stage. The Multi PCB includes both the B PCB and the Qsound PCB. It's completely compatible with CPS1 and CPS1.5.

As you can see it has both the Option for inserting a C board and just soldering a B-21. For now, it only supports B-21 C Board, preferably those that have a battery and you can write the keys on the go. It has also the connectors for spins and kick connectors that you can find on some C Boards.

Q sound PCB is also supported as you can see and has the regular RCA connectors.

It works with the usual microSD slot and flashes. I should be taking preorders in 2-3 months. Price will be slightly higher than anticipated as it has now the Qsound part integrated.



Is your body ready?
Can't wait.....


Lamonsoff

Beginner
Joined
May 9, 2020
Messages
6
Reaction score
4
Location
Uxbridge, Ont
Please forgive my ignorance....so this multi replaces the A board, now not needing to worry about problematic CPS-A-01 custom. And all that’s required is a C board, since most of us don’t have the skills to solder a B-21? No need for a B board? And then you download Roms onto it....? Which are the empty sockets?

Very cool BTW!


Astro X

Student
Joined
Jan 30, 2018
Messages
77
Reaction score
37
Location
Germany
good work,
is there a reason why you use flashes instead of sram?


roy

Professional
Joined
Jun 15, 2020
Messages
324
Reaction score
106
Location
Israel
3 months is actually much sooner than I thought!
I'll start saving today🤑


opt2not

Multi Boyz Pixeler
Enlightened
Multi Boyz
Joined
Nov 10, 2015
Messages
1,787
Reaction score
2,558
Location
California
MY BODY IS READY!
