Lemony Vengeance
Champion
You know… I… uh.. can dispute that for the NH 10 pin connectors. I’m still working on stock I’ve had for 4 years.@Lemony Vengeance bought all the JST connectors
The VL connectors on the other hand….
- Thread starter Darksoft
- Start date
The VL connectors on the other hand….
HardAzRockz
Enthusiast

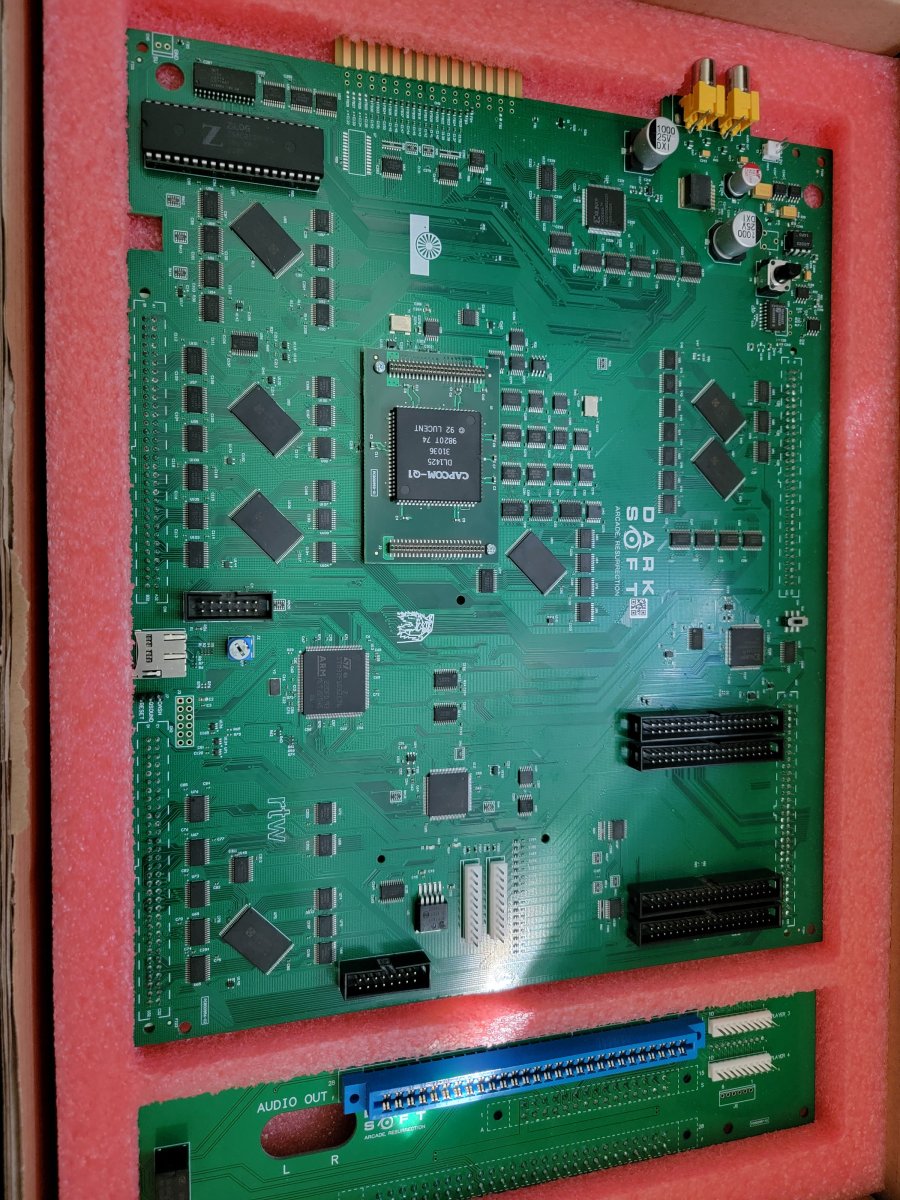

I just got my multi. Is there a rollup pack?
J
jassin000
@Lemony Vengeance I don't know what Mitz has planned aside from the remote DIPs, but I just need a simple CPS1 kicks-to-CPS1 kicks cable for this multi's filterboard.
No 3/4-player stuff required, just good ole kicks.
How much to crimp one up for me (all clean and sexy looking)?
No 3/4-player stuff required, just good ole kicks.
How much to crimp one up for me (all clean and sexy looking)?
Lemony Vengeance
Champion
I’m hesitant to make anything en-mass for this, especially since mitsu and DS both have stated they’ll be available.
I don’t want to step on their toes
That said, I have the parts and can make a bunch, provided I get their blessing
I’ll wait to see what they have to say about availability of these harnesses.
I don’t want to step on their toes
That said, I have the parts and can make a bunch, provided I get their blessing
I’ll wait to see what they have to say about availability of these harnesses.
We are making a bunch of the harnesses to connect kicks from the multi to the filterboard. If you only want kicks then you just need one cable. If you want everything you need two cables. Price will probably be $15 for one cable or $25 for a pair. Just waiting for a few more things to arrive to sell at one time.
The dual clock and line-out audio mods will come a bit later.
The dual clock and line-out audio mods will come a bit later.
By the way. I bought this to help:
For those of us building our own cables for the filterboard, do they cross over or pass through? For example using the NH connector numbering, does the wire go from position 1 on one end of the harness to position 1 on the other?
Good stuff
Lemony Vengeance
Champion
Wow.By the way. I bought this to help:
Could you show a little video of this machine while it's working?
I'm really curious to see what it does and which way.
J
jassin000
I was aware of the dual clock/crystal mod, but the audio out... Is this to support CPS1/JAMMA audio via multi RCAs?
Reading the manual is almost as much fun as playing the game
That looks badass. Son of a bitch, I want one.By the way. I bought this to help:
I need this!!!!!!!!!!!!!!!!!!!!!!!!!By the way. I bought this to help:
Yes, the multi will automatically select line level out for cps1 and 1.5 games via the rca connectors.
What's the calibration procedure like when changing out blades to an entirely different connector type for one of those machines (assuming AWG and strip length remains the same)? Something you can do on the fly or a ~process~?
bagheera369
Champion
Man...i can't wait for mine to make it.
I was way up there on the hold list, but late to order.
I just hope I get notice before it gets here, as USPS here can be sketchy at times.
I was way up there on the hold list, but late to order.
I just hope I get notice before it gets here, as USPS here can be sketchy at times.
