diy cps1 c boards b-xx

{
/* name CPSB gfx mapper in2 in3 out2 kludge */
{"forgottn", CPS_B_01, mapper_LW621 },
{"forgottnu", CPS_B_01, mapper_LW621 },
{"forgottnua", CPS_B_01, mapper_LWCHR },
{"lostwrld", CPS_B_01, mapper_LWCHR },
{"lostwrldo", CPS_B_01, mapper_LWCHR },
{"ghouls", CPS_B_01, mapper_DM620 },
{"ghoulsu", CPS_B_01, mapper_DM620 },
{"daimakai", CPS_B_01, mapper_DM22A }, // equivalent to DM620
{"daimakair", CPS_B_21_DEF, mapper_DAM63B }, // equivalent to DM620, also CPS_B_21_DEF is equivalent to CPS_B_01
{"strider", CPS_B_01, mapper_ST24M1 },
{"striderua", CPS_B_01, mapper_ST24M1 }, // wrong, this set uses ST24B2, still not dumped
{"striderj", CPS_B_01, mapper_ST22B }, // equivalent to ST24M1
{"striderjr", CPS_B_21_DEF, mapper_ST24M1 }, // wrong, this set uses STH63B, still not dumped
{"dynwar", CPS_B_02, mapper_TK22B }, // wrong, this set uses TK24B1, dumped but equations still not added
{"dynwara", CPS_B_02, mapper_TK22B },
{"dynwarj", CPS_B_02, mapper_TK22B },
{"dynwarjr", CPS_B_21_DEF, mapper_TK22B }, // wrong, this set uses TK163B, still not dumped
{"willow", CPS_B_03, mapper_WL24B },
{"willowo", CPS_B_03, mapper_WL24B },
{"willowj", CPS_B_03, mapper_WL24B }, // wrong, this set uses WL22B, still not dumped
{"ffight", CPS_B_04, mapper_S224B },
{"ffightu", CPS_B_04, mapper_S224B },
{"ffightu1", CPS_B_04, mapper_S224B },
{"ffightua", CPS_B_01, mapper_S224B },
{"ffightub", CPS_B_05, mapper_S224B },
{"ffightj", CPS_B_04, mapper_S224B }, // wrong, this set uses S222B, still not dumped
{"ffightj1", CPS_B_01, mapper_S224B }, // wrong, this set uses S222B, still not dumped
{"ffightj2", CPS_B_02, mapper_S224B }, // wrong, this set uses S222B, still not dumped
{"ffightjh", CPS_B_01, mapper_S224B }, // wrong, ffightjh hack doesn't even use the S222B PAL, since replaced with a GAL.
{"1941", CPS_B_05, mapper_YI24B },
{"1941u", CPS_B_05, mapper_YI24B },
{"1941j", CPS_B_05, mapper_YI24B }, // wrong, this set uses YI22B, still not dumped
{"unsquad", CPS_B_11, mapper_AR24B },
{"area88", CPS_B_11, mapper_AR22B }, // equivalent to AR24B
{"area88r", CPS_B_21_DEF, mapper_AR22B }, // wrong, this set uses ARA63B, still not dumped
{"mercs", CPS_B_12, mapper_O224B, 0x36, 0, 0x34 },
{"mercsu", CPS_B_12, mapper_O224B, 0x36, 0, 0x34 },
{"mercsur1", CPS_B_12, mapper_O224B, 0x36, 0, 0x34 },
{"mercsj", CPS_B_12, mapper_O224B, 0x36, 0, 0x34 }, // wrong, this set uses O222B, still not dumped
{"msword", CPS_B_13, mapper_MS24B },
{"mswordr1", CPS_B_13, mapper_MS24B },
{"mswordu", CPS_B_13, mapper_MS24B },
{"mswordj", CPS_B_13, mapper_MS24B }, // wrong, this set uses MS22B, still not dumped
{"mtwins", CPS_B_14, mapper_CK24B },
{"chikij", CPS_B_14, mapper_CK24B }, // wrong, this set uses CK22B, still not dumped
{"nemo", CPS_B_15, mapper_NM24B },
{"nemoj", CPS_B_15, mapper_NM24B }, // wrong, this set uses NM22B, still not dumped
{"cawing", CPS_B_16, mapper_CA24B },
{"cawingr1", CPS_B_16, mapper_CA24B },
{"cawingu", CPS_B_16, mapper_CA24B },
{"cawingj", CPS_B_16, mapper_CA22B }, // equivalent to CA24B
{"cawingbl", CPS_B_16, mapper_CA22B }, // equivalent to CA24B
{"cawingb", CPS_B_16, mapper_CA24B, 0, 0, 0, 3 },
{"sf2", CPS_B_11, mapper_STF29, 0x36 },
{"sf2eb", CPS_B_17, mapper_STF29, 0x36 },
{"sf2ee", CPS_B_18, mapper_STF29, 0x3c },
{"sf2ebbl", CPS_B_17, mapper_STF29, 0x36, 0, 0, 1 },
{"sf2ua", CPS_B_17, mapper_STF29, 0x36 },
{"sf2ub", CPS_B_17, mapper_STF29, 0x36 },
{"sf2uc", CPS_B_12, mapper_STF29, 0x36 },
{"sf2ud", CPS_B_05, mapper_STF29, 0x36 },
{"sf2ue", CPS_B_18, mapper_STF29, 0x3c },
{"sf2uf", CPS_B_15, mapper_STF29, 0x36 },
{"sf2ui", CPS_B_14, mapper_STF29, 0x36 },
{"sf2uk", CPS_B_17, mapper_STF29, 0x36 },
{"sf2j", CPS_B_13, mapper_STF29, 0x36 },
{"sf2ja", CPS_B_17, mapper_STF29, 0x36 },
{"sf2jc", CPS_B_12, mapper_STF29, 0x36 },
{"sf2qp1", CPS_B_17, mapper_STF29, 0x36 },
{"sf2thndr", CPS_B_17, mapper_STF29, 0x36 },

/* from here onwards the CPS-B board has suicide battery and multiply protection */

{"3wonders", CPS_B_21_BT1, mapper_RT24B },
{"3wondersu", CPS_B_21_BT1, mapper_RT24B },
{"wonder3", CPS_B_21_BT1, mapper_RT22B }, // equivalent to RT24B
{"3wondersh", CPS_B_02 , mapper_RT24B }, /* Not 100% sure of the CPS B-ID */
{"kod", CPS_B_21_BT2, mapper_KD29B, 0x36, 0, 0x34 },
{"kodr1", CPS_B_21_BT2, mapper_KD29B, 0x36, 0, 0x34 },
{"kodu", CPS_B_21_BT2, mapper_KD29B, 0x36, 0, 0x34 },
{"kodj", CPS_B_21_BT2, mapper_KD29B, 0x36, 0, 0x34 },
{"kodja", CPS_B_21_BT2, mapper_KD29B, 0x36, 0, 0x34 }, // wrong, this set uses KD22B, still not dumped
{"kodb", CPS_B_21_BT2, mapper_KD29B, 0x36, 0, 0x34 }, /* bootleg, doesn't use multiply protection */
{"kodh", CPS_B_21_DEF, mapper_KD29B, 0x36, 0, 0x34 },
{"captcomm", CPS_B_21_BT3, mapper_CC63B, 0x36, 0x38, 0x34 },
{"captcommr1", CPS_B_21_BT3, mapper_CC63B, 0x36, 0x38, 0x34 },
{"captcommu", CPS_B_21_BT3, mapper_CC63B, 0x36, 0x38, 0x34 },
{"captcommj", CPS_B_21_BT3, mapper_CC63B, 0x36, 0x38, 0x34 },
{"captcommjr1", CPS_B_21_BT3, mapper_CC63B, 0x36, 0x38, 0x34 },
{"captcommb", CPS_B_21_BT3, mapper_CC63B, 0x36, 0x38, 0x34, 2 },
#ifdef KAILLERA
{"captcomm3p", CPS_B_21_BT3, mapper_CC63B, 0x36, 0x38, 0x34 },
{"captcomu3p", CPS_B_21_BT3, mapper_CC63B, 0x36, 0x38, 0x34 },
{"captcomj3p", CPS_B_21_BT3, mapper_CC63B, 0x36, 0x38, 0x34 },
{"captcomm4p", CPS_B_21_BT3, mapper_CC63B, 0x36, 0x38, 0x34 },
{"captcomu4p", CPS_B_21_BT3, mapper_CC63B, 0x36, 0x38, 0x34 },
{"captcomj4p", CPS_B_21_BT3, mapper_CC63B, 0x36, 0x38, 0x34 },
#endif /* KAILLERA */
{"knights", CPS_B_21_BT4, mapper_KR63B, 0x36, 0, 0x34 },
{"knightsu", CPS_B_21_BT4, mapper_KR63B, 0x36, 0, 0x34 },
{"knightsj", CPS_B_21_BT4, mapper_KR63B, 0x36, 0, 0x34 },
{"knightsja", CPS_B_21_BT4, mapper_KR63B, 0x36, 0, 0x34 }, // wrong, this set uses KR22B, still not dumped
{"knightsb", CPS_B_21_BT4, mapper_KR63B, 0x36, 0, 0x34 }, // wrong, knightsb bootleg doesn't use the KR63B PAL
{"knightsb2", CPS_B_21_BT4, mapper_KR63B, 0x36, 0, 0x34, 4 },
{"knightsh", CPS_B_21_DEF, mapper_KR63B, 0x36, 0, 0x34 },
{"sf2ce", CPS_B_21_DEF, mapper_S9263B, 0x36 },
{"sf2ceea", CPS_B_21_DEF, mapper_S9263B, 0x36 },
{"sf2ceua", CPS_B_21_DEF, mapper_S9263B, 0x36 },
{"sf2ceub", CPS_B_21_DEF, mapper_S9263B, 0x36 },
{"sf2ceuc", CPS_B_21_DEF, mapper_S9263B, 0x36 },
{"sf2cej", CPS_B_21_DEF, mapper_S9263B, 0x36 },
{"sf2rb", CPS_B_21_DEF, mapper_S9263B, 0x36 },
{"sf2rb2", CPS_B_21_DEF, mapper_S9263B, 0x36 },
{"sf2rb3", CPS_B_21_DEF, mapper_S9263B, 0x36 },
{"sf2red", CPS_B_21_DEF, mapper_S9263B, 0x36 },
{"sf2v004", CPS_B_21_DEF, mapper_S9263B, 0x36 },
{"sf2acc", CPS_B_21_DEF, mapper_S9263B, 0x36 },
{"sf2accp2", CPS_B_21_DEF, mapper_S9263B, 0x36 },
{"sf2dkot2", CPS_B_21_DEF, mapper_S9263B, 0x36 },
{"sf2m1", CPS_B_21_DEF, mapper_S9263B, 0x36, 0, 0, 5 },
{"sf2m2", CPS_B_21_DEF, mapper_S9263B, 0x36, 0, 0, 1 },
{"sf2m3", HACK_B_3, mapper_S9263B, 0x36, 0, 0, 6 },
{"sf2m4", HACK_B_1, mapper_S9263B, 0x36, 0, 0, 1 },
{"sf2m5", CPS_B_21_DEF, mapper_S9263B, 0x36, 0, 0, 1 },
{"sf2m6", CPS_B_21_DEF, mapper_S9263B, 0x36, 0, 0, 1 },
{"sf2m7", CPS_B_21_DEF, mapper_S9263B, 0x36, 0, 0, 1 },
{"sf2m8", HACK_B_3, mapper_S9263B, 0x36, 0, 0, 6 },
{"sf2m9", CPS_B_21_DEF, mapper_S9263B, 0x36, 0, 0, 1 },
{"sf2m10", CPS_B_21_DEF, mapper_S9263B, 0x36, 0, 0, 1 },
{"sf2m11", HACK_B_1, mapper_S9263B, 0x36, 0, 0, 1 },
{"sf2m12", HACK_B_1, mapper_S9263B, 0x36, 0, 0, 1 },
{"sf2m13", HACK_B_4, mapper_S9263B, 0x36, 0, 0, 1 },
{"sf2yyc", CPS_B_21_DEF, mapper_S9263B, 0x36, 0, 0, 1 },
{"sf2koryu", CPS_B_21_DEF, mapper_S9263B, 0x36, 0, 0, 1 },
{"sf2mdt", CPS_B_21_DEF, mapper_S9263B, 0x36, 0, 0, 1 },
{"sf2tlona", CPS_B_21_DEF, mapper_S9263B, 0x36, 0, 0, 1 },
{"sf2tlonb", CPS_B_21_DEF, mapper_S9263B, 0x36, 0, 0, 1 },
{"varth", CPS_B_04, mapper_VA63B }, /* CPSB test has been patched out (60=0008) register is also written to, possibly leftover from development */ // wrong, this set uses VA24B, dumped but equations still not added
{"varthr1", CPS_B_04, mapper_VA63B }, /* CPSB test has been patched out (60=0008) register is also written to, possibly leftover from development */ // wrong, this set uses VA24B, dumped but equations still not added
{"varthu", CPS_B_04, mapper_VA63B }, /* CPSB test has been patched out (60=0008) register is also written to, possibly leftover from development */
{"varthj", CPS_B_21_BT5, mapper_VA22B }, /* CPSB test has been patched out (72=0001) register is also written to, possibly leftover from development */
{"cworld2j", CPS_B_21_BT6, mapper_Q522B, 0x36, 0, 0x34 }, /* (ports 36, 34 probably leftover input code from another game) */
{"wof", CPS_B_21_QS1, mapper_TK263B },
{"wofr1", CPS_B_21_DEF, mapper_TK263B },
{"wofa", CPS_B_21_DEF, mapper_TK263B },
{"wofu", CPS_B_21_QS1, mapper_TK263B },
{"wofj", CPS_B_21_QS1, mapper_TK263B },
{"wofhfh", CPS_B_21_DEF, mapper_TK263B, 0x36 }, /* Chinese bootleg */
{"wofh", HACK_B_2, mapper_TK263B, 0, 0, 0, 5 },
{"wofha", HACK_B_2, mapper_TK263B, 0, 0, 0, 5 },
{"wof3js", CPS_B_21_DEF, mapper_TK263B },
{"wofsj", HACK_B_2, mapper_TK263B, 0, 0, 0, 5 },
{"wofsja", HACK_B_2, mapper_TK263B, 0, 0, 0, 5 },
{"wofsjb", CPS_B_21_DEF, mapper_TK263B },
{"wof3sj", HACK_B_2, mapper_TK263B, 0, 0, 0, 5 },
{"wof3sja", HACK_B_2, mapper_TK263B, 0, 0, 0, 5 },
{"wofb", CPS_B_21_DEF, mapper_TK263B },
{"dino", CPS_B_21_QS2, mapper_CD63B }, /* layer enable never used */
{"dinou", CPS_B_21_QS2, mapper_CD63B }, /* layer enable never used */
{"dinoj", CPS_B_21_QS2, mapper_CD63B }, /* layer enable never used */
{"dinopic", CPS_B_21_QS2, mapper_CD63B }, /* layer enable never used */
{"dinopic2", CPS_B_21_QS2, mapper_CD63B }, /* layer enable never used */
{"dinoh", CPS_B_21_DEF, mapper_CD63B }, /* layer enable never used */
{"dinoha", CPS_B_21_DEF, mapper_CD63B }, /* layer enable never used */
{"dinohb", CPS_B_21_QS2, mapper_CD63B, 0, 0, 0, 5 }, /* layer enable never used */
{"dinohunt", CPS_B_21_DEF, mapper_CD63B }, /* Chinese bootleg */
{"punisher", CPS_B_21_QS3, mapper_PS63B },
{"punisheru", CPS_B_21_QS3, mapper_PS63B },
{"punisherj", CPS_B_21_QS3, mapper_PS63B },
{"punipic", CPS_B_21_QS3, mapper_PS63B },
{"punipic2", CPS_B_21_QS3, mapper_PS63B },
{"punipic3", CPS_B_21_QS3, mapper_PS63B },
{"punisherbz", CPS_B_21_DEF, mapper_PS63B }, /* Chinese bootleg */
{"slammast", CPS_B_21_QS4, mapper_MB63B },
{"slammastu", CPS_B_21_QS4, mapper_MB63B },
{"mbomberj", CPS_B_21_QS4, mapper_MB63B },
{"mbombrd", CPS_B_21_QS5, mapper_MB63B },
{"mbombrdj", CPS_B_21_QS5, mapper_MB63B },
{"sf2hf", CPS_B_21_DEF, mapper_S9263B, 0x36 },
{"sf2hfu", CPS_B_21_DEF, mapper_S9263B, 0x36 },
{"sf2hfj", CPS_B_21_DEF, mapper_S9263B, 0x36 },
{"qad", CPS_B_21_BT7, mapper_QD22B, 0x36 }, /* TODO: layer enable (port 36 probably leftover input code from another game) */
{"qadj", CPS_B_21_DEF, mapper_QD63B, 0x36, 0x38, 0x34 }, /* (ports 36, 38, 34 probably leftover input code from another game) */
{"qtono2j", CPS_B_21_DEF, mapper_qtono2j,0x36, 0x38, 0x34 }, /* (ports 36, 38, 34 probably leftover input code from another game) */
{"megaman", CPS_B_21_DEF, mapper_RCM63B },
{"megamana", CPS_B_21_DEF, mapper_RCM63B },
{"rockmanj", CPS_B_21_DEF, mapper_RCM63B },
{"pnickj", CPS_B_21_DEF, mapper_PKB10B },
{"pang3", CPS_B_21_DEF, mapper_pang3 }, /* EEPROM port is among the CPS registers (handled by DRIVER_INIT) */ // should use one of these three CP1B1F,CP1B8K,CP1B9KA still not dumped
{"pang3r1", CPS_B_21_DEF, mapper_pang3 }, /* EEPROM port is among the CPS registers (handled by DRIVER_INIT) */ // should use one of these three CP1B1F,CP1B8K,CP1B9K
{"pang3j", CPS_B_21_DEF, mapper_pang3 }, /* EEPROM port is among the CPS registers (handled by DRIVER_INIT) */ // should use one of these three CP1B1F,CP1B8K,CP1B9K
{"pang3b", CPS_B_21_DEF, mapper_pang3 }, /* EEPROM port is among the CPS registers (handled by DRIVER_INIT) */ // should use one of these three CP1B1F,CP1B8K,CP1B9K

/* CPS Changer */

{"sfach", CPS_B_21_DEF, mapper_sfzch }, // wrong, this set uses an unknown PAL, still not dumped
{"sfzbch", CPS_B_21_DEF, mapper_sfzch }, // wrong, this set uses an unknown PAL, still not dumped
{"sfzch", CPS_B_21_DEF, mapper_sfzch }, // wrong, this set uses an unknown PAL, still not dumped
{"wofch", CPS_B_21_DEF, mapper_TK263B },

Yeah man. Documentation is pretty poor for your product. I can't honestly recommend anyone else buying this.

Even with that long string of code you just pasted, you still haven't told me what the jumper setting is for a single game.

How is this--what is the jumper setting for:
  1. sf2ce ???
  2. sf2hf ???
  3. sf2 ???

B-21 - all OFF
B-21 - all OFF
B-17 - ON OFF ON OFF OFF

Which B-21 doesn't matter they're all the same

Why the heck then are there 7 different jumper settings for B-21 in his photo/spreadsheet?

What's the cost of this piece of work, and is the only way to acquire it to learn the language and purchase on some funky site? Is the goal of this unit, once figuring out how to use it, being a universal "C" board for any CPS1 pcb?

-Ace- said:
Is the goal of this unit, once figuring out how to use it, being a universal "C" board for any CPS1 pcb?
Click to expand...
"Hope". That is the "hope", not the goal.
-Ace- said:
What's the cost of this piece of work,
Click to expand...
~$11-$40 USD. But there is no documentation as to why there is a price range.
-Ace- said:
and is the only way to acquire it to learn the language and purchase on some funky site?
Click to expand...
Yes. But as you can see, the site isn't the only thing that is funky.

The multiple b21 just means that by default everything is b21 rather than nothing. They are the same thing.

He had to have more since with 4 dip switches he would had 16 different combinations whereas number of types of cps b is more. So he used 5 dip switches which bumps up the combination to 32. That means a lot of unused combination which he allocated b21.

Alrighty. Soon as my order gets here, will let you guys know how it goes now that the jumper settings thing is figured out.

Speaking of which,@lydz, can you post the spreadsheet, not a picture of the spreadsheet? I am composing the jumper settings mapping for each game in Excel. Saves me the trouble of typing them all in and making a mistake if I can do a lookup from your spreadsheet.

acblunden2 said:
Alrighty. Soon as my order gets here, will let you guys know how it goes now that the jumper settings thing is figured out.

Speaking of which,@lydz, can you post the spreadsheet, not a picture of the spreadsheet? I am composing the jumper settings mapping for each game in Excel. Saves me the trouble of typing them all in and making a mistake if I can do a lookup from your spreadsheet.
Click to expand...


Attachments

  • CPS-C-DIP.rar
    6.7 KB · Views: 157
Mitsurugi-w said:
They never had that many. The stock number on utsource is almost never correct. 50 percent of the time when I order from.there they dont have the number I ordered.
Click to expand...

There are a lot of goods now

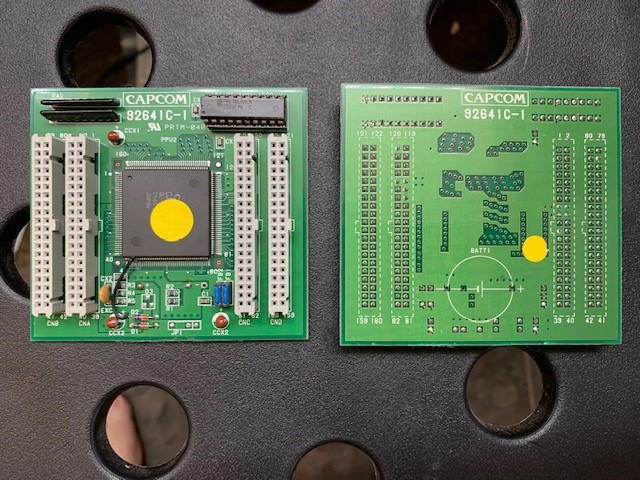

So I got the boards. And right away, I know it won't work for my needs. There is no dip switch bank. There is no kick harness header. Plugged it into my SF2WW board and got a blank screen.


Basically, if you order this, you don't know which version of the board you are going to get. I know that @lydz created a C-board that can be used with different games, but I sure didn't get it. Why someone would make a C-board that can be dip-swithced to work with any CPS1 game, post it for sale, then send out a C-board that isn't as advertised is beyond me.

@lydz, I am asking you to correct this problem.

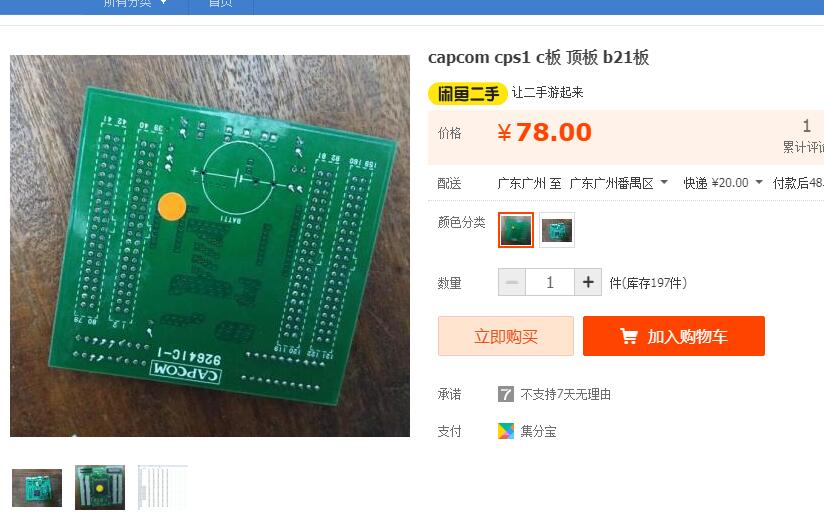

I am tempted to try this thing out. I am assuming the site has no restrictions for selling internationally? Aside from any air restrictions that is. I have a friend that can order it for me :thumbup:

EDIT: After seeing @acblunden2s post above, maybe not! Must have posted at the same time. Sure would not mind a couple of those untouched C boards though.

Wow, they're CPS1.5 C boards. And he has stacks of them. Crazy.

That is a "Universal" C board. It's a desuicided CPS-B-21 so it can be used for any game provided you have the right main program ROMs. But certainly not what is being advertised here.

Also since it's CPS1.5, no kick harness connector.

acblunden2 said:
所以我得到了董事会。马上，我知道这将无法满足我的需求。没有拨码开关组。没有脚踢线束头。将其插入我的SF2WW板上，然后出现空白屏幕。

[attach = 32574] [/ attach]

基本上，如果您订购此产品，则不知道将要获得哪个版本的电路板。我知道@lydz创建了一个可以用于不同游戏的C板，但我确实没有得到它。为什么有人会制作可以浸入任何CPS1游戏的C板，将其发布以出售，然后发送不像广告中所宣传的C板，这超出了我的范围。

@lydz我要你纠正这个问题。
Click to expand...
你买错了。


Attachments

  • 1.jpg
    55.7 KB · Views: 136
  • 2.jpg
    47.6 KB · Views: 120

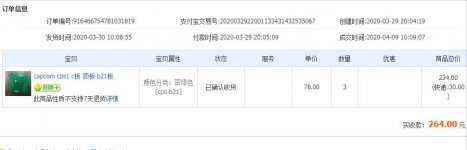

  • QQ截图20200414185546.jpg
    27.3 KB · Views: 114
Last edited:
You must log in or register to reply here.
Back
Top
