hey

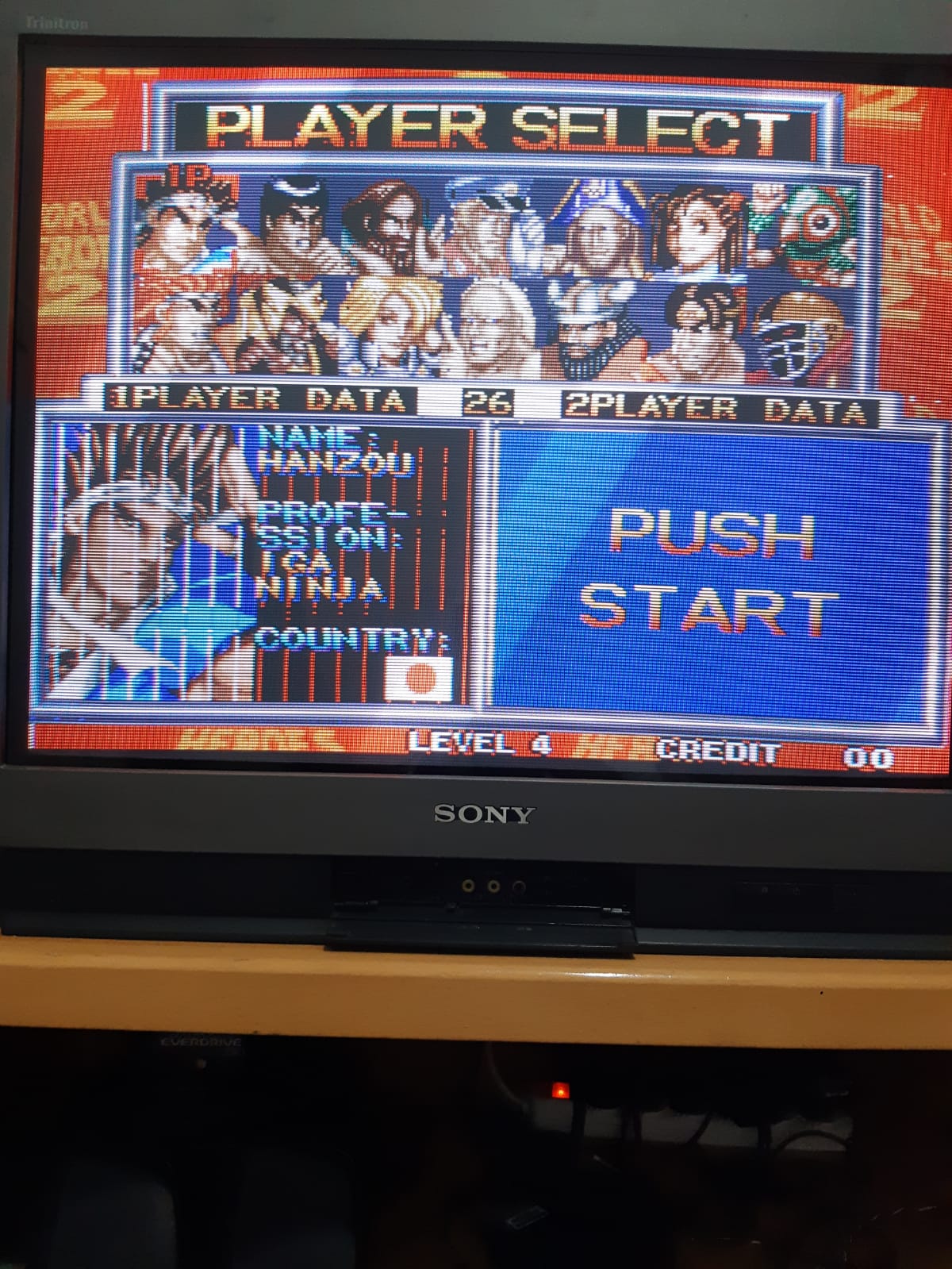

bothe slots has vertical lines, 2 slot has no audio (jamma or 3.5mm stereo)
the pcb looks good no acid or noticable damage
tried recapping,slots were brushed and also inserted credit card with alcohol towel
tried 6 different games with stock and unibios 4.0
no chnge...
thanks


Attachments

  • 3.jpeg
    27.4 KB · Views: 156
  • 2.jpeg
    319.4 KB · Views: 119
  • 1.jpeg
    33.3 KB · Views: 132

Rom1

Enthusiast
Joined
Nov 7, 2019
Messages
133
Reaction score
119
Location
France
Have a look at ZMC2 and multiplexer next to it.
The same goes for the sound: might just be a dead G0.
