KingSopz said:
@RGB question was it supposed to come with the D15 covers like the previous mode did?

Not a big deal i was just wondering
Click to expand...
Not this time, only the stuff listed in the description. The DB15 caps were always kind of a bonus.

Does anybody know if I can use PCB feet/standoffs (?) to raise my Neo Geo MV1C so it's flush with the HAS v4?

Right now if I lay them both on my desk, the JAMMA connector doesn't line up. I should have taken a picture before I left for work but hopefully somebody knows what I'm talking about?

EDIT: Also, is there a process I can use to set the brightness knob to the exact correct setting when using a Neo Geo? (I think Frank_fjs says to use a multi-meter and check the potentiometer when using the Neo Geo color bar screen and set to 0.4v or similar...)

Last edited:
Hi, I received my HAS today and I'm very excited to set it all up tonight and test it!

I had a question about the AV Multi out module - is the intention that, to get audio output from the RCA Red/white cables, I connect the 1/8" audio output port of the HAS to the 1/8" audio input port of the AV Multi out module? Or am I misunderstanding the purpose of the audio input jack on the AV Multi out module?

The audio jack on the AV Multi module is the stereo audio input. Connect the stereo audio from your CPS2 to it, and you'll have it output through the AV Multi connector. It overrides the default mono audio from the JAMMA connector.

Is there a mailing list or something where one could sign up to be notified when pre-orders are open again? Or should I just keep checking this thread?

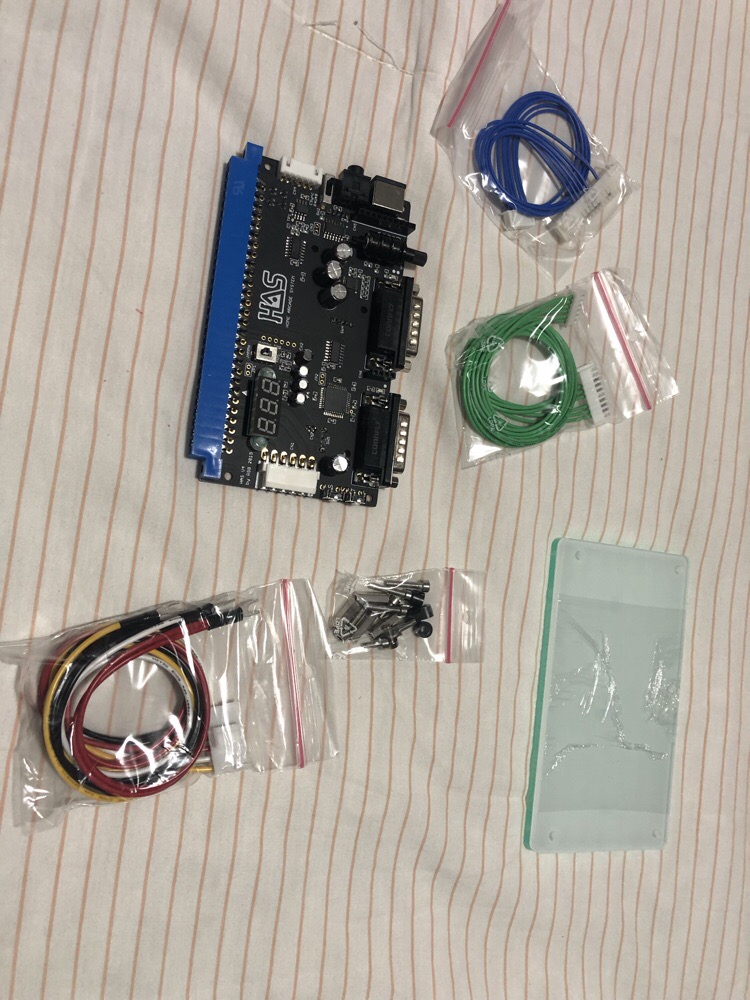

@RGB Well worth the wait. Thanks again RGB!!! Can't wait to get it up and running!.

" style="float: left" >

I have a Extron Crosspoint, is this the correct cable for me?

Thanks again in advance

I am looking for more information about the 3P4P adapter. I understand that it uses the IGS PGM pinout. I tried using a regular IDE cable to hook it to a PGM and the inputs weren't mapped correctly. What should I be using to correctly connect it? Where can I find a bare 34 pin connector that I can wire as I wish?

arcadeqc said:
I am looking for more information about the 3P4P adapter. I understand that it uses the IGS PGM pinout. I tried using a regular IDE cable to hook it to a PGM and the inputs weren't mapped correctly. What should I be using to correctly connect it? Where can I find a bare 34 pin connector that I can wire as I wish?
Click to expand...
Did you use a straight through IDC cable or one with the pins reversed?

There are two types of IDC cable:

PIN 1 to PIN 1

PIN 1 TO PIN 34

The cable will have a red line on the end wire indicating pin 1. The connectors will have a triangle printed on them indicating pin 1. Use this to determine which type of cable you have.

I'm betting you have the opposite cable that the HAS requires. I'm not sure which cable the HAS requires but would assume a straight through cable.

I already have a HAS, and I'm super happy.
If I'd like to buy some extra Sega Saturn to JAMMA joypad converter, should I refer to the pre-order page?
