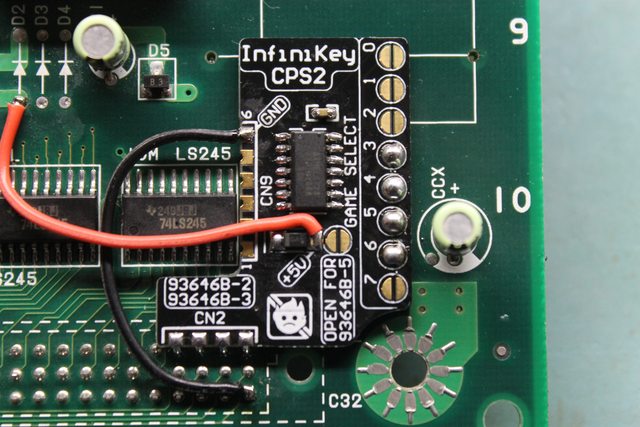

Mini project: InfiniKey-CPS2. Use original game code without risk of battery failure or damage. Injects appropriate decryption key when the game is powered up. Works on all board revisions. Installation requires only a few simple solder points.

93646B-6/7 install:



93646B-3/4 install (ignore the typo on the silkscreen, lol):



93646B-5 install:



And of course, massive thanks to Eduardo Cruz ("Arcade Hacker") for his rigorous CPS2 encryption research and releasing publicly the decryption keys, finally allowing arcade collectors to revive their hardware the same way that Capcom's own coin-op division once did!

Installation video:


"Game Select" Jumper Table: https://drive.google.com/file/d/1uiESuCS-XKL-bjP3G2A3VgUJzHHg4DV-/view

- EDIT -

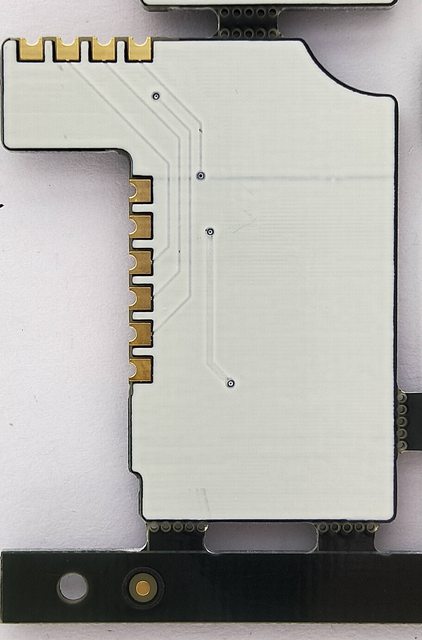

Production shots:




ORDERING:

You can buy InfiniKey CPS2 from the following shops: *EXPECTED STOCK UPDATE 03/2019*

(US) Paradise Arcade Shop: https://paradisearcadeshop.com/en/home/electrical/2486_undamned-infinikey-cps2-by-ud-game-tech
(IE) VideoGamePerfection: https://www.videogameperfection.com/products/cps-infinikey-board
(AU) Sneek: https://sneeknet.io/index.php/product/ud-infinikey-cps2
(JP) KVClab: http://kvclab.com/shopdetail/000000000302

I will continue to sell quantities of 10+ directly (just send me a PM or e-mail), but now you have some shops that can sell small quantities or might be a little closer to you :)
-ud

Last edited:

strygo

Student
Joined
Dec 30, 2016
Messages
80
Reaction score
68
Location
Woodinville, WA
I was just commenting on the other thread about how cool the form factor is in that Twitter video floating around.

I think I might need a bulk order. :D


Frank_fjs

Multi Boyz 4 Lyfe
Legendary
Multi Boyz
Joined
Mar 3, 2018
Messages
3,431
Reaction score
5,796
Location
Australia - Adelaide
Wow perfect, I was only recently asking about something like this!

So the game select jumper pads are opened / bridged according to board revision?

One key loaded per time, programmed via PIC programmer etc?


undamned

Multi Baez
Champion
Multi Boyz
Joined
Jul 22, 2015
Messages
1,091
Reaction score
2,011
Location
AZ, USA
Wow perfect, I was only recently asking about something like this!

So the game select jumper pads are opened / bridged according to board revision?

One key loaded per time, programmed via PIC programmer etc?
This is a ready to install solution. No programming required. Every key is already inside. I made a manual/spreadsheet with what jumper settings correspond with which game.
-ud


Frank_fjs

Multi Boyz 4 Lyfe
Legendary
Multi Boyz
Joined
Mar 3, 2018
Messages
3,431
Reaction score
5,796
Location
Australia - Adelaide
Just dawned on me that would be how it worked. That's brilliant.

Price / availability?


strygo

Student
Joined
Dec 30, 2016
Messages
80
Reaction score
68
Location
Woodinville, WA
I take it that soldering is required for certain board types? Are all supported?


brizzo

Staff member
Champion
Joined
Jun 21, 2017
Messages
831
Reaction score
2,378
Location
Canada
Bravo! That is a super clean, simple, great design and solution to implementing no-battery on CPS2 :D

Much kudos!


Mitsurugi-w

Arcade Admini-Moderator
Staff member
Legendary
Joined
Jun 12, 2015
Messages
6,592
Reaction score
6,125
Location
New Bern, NC USA
Dude. You have a price-point yet? I would use these for every single one of my original pcbs!


The Spaniard

Professional
Joined
Sep 17, 2017
Messages
758
Reaction score
295
Location
Melbourne, Australia
Cool, is the install via headers not available with this one like the other version from konosuke?


undamned

Multi Baez
Champion
Multi Boyz
Joined
Jul 22, 2015
Messages
1,091
Reaction score
2,011
Location
AZ, USA
Dude. You have a price-point yet? I would use these for every single one of my original pcbs!
I was thinking $10 would be fair. Yeah, you can buy an Arduino Nano for $3, but you have to program every individual key, wire every signal, etc. Lol, yeah, that was sort of my main motivation: never having to change batteries on my collection again :D
Cool, is the install via headers not available with this one like the other version from konosuke?
Sure you can use the same type of header he did. You just need to observe the proper pin order (mine designed for bottom mounting, so you ether need to mount it upside down or flip it over frontwards to maintain that Pin 1 goes to Pin 1, etc.
-ud


undamned

Multi Baez
Champion
Multi Boyz
Joined
Jul 22, 2015
Messages
1,091
Reaction score
2,011
Location
AZ, USA
Would that be an option that you could pre made?
The design is to be universal. Not all boards have CN9, so I do not intend on selling them with that. Even if the connector were installed, you still have to set the solder jumpers to whatever game key you need, so no way to avoid soldering in some form.
-ud


Frank_fjs

Multi Boyz 4 Lyfe
Legendary
Multi Boyz
Joined
Mar 3, 2018
Messages
3,431
Reaction score
5,796
Location
Australia - Adelaide
Any plans on making this 'open source'?

Would be nice to have distribution possibilies across the globe. I'd gladly produce them here in Australia to cover Australia / New Zealand etc.

I can source the parts, program, assemble etc, just need the Gerber files and code.

Not to profit from, just to share with as many people as possible as cost effectively as possible.

I feel rude asking and won't be at all bothered if you decline, just a thought.


undamned

Multi Baez
Champion
Multi Boyz
Joined
Jul 22, 2015
Messages
1,091
Reaction score
2,011
Location
AZ, USA
Any plans on making this 'open source'?

Would be nice to have distribution possibilies across the globe. I'd gladly produce them here in Australia to cover Australia / New Zealand etc.

I can source the parts, program, assemble etc, just need the Gerber files and code.

Not to profit from, just to share with as many people as possible as cost effectively as possible.

I feel rude asking and won't be at all bothered if you decline, just a thought.
Not at the moment. cr4zymanz0r's Arduino Uno fork is certainly the rapid way to disseminate globally. Cheap and already open.

I'll do my best to make enough of these to not run out anytime soon :)
-ud


The Spaniard

Professional
Joined
Sep 17, 2017
Messages
758
Reaction score
295
Location
Melbourne, Australia
Would that be an option that you could pre made?
The design is to be universal. Not all boards have CN9, so I do not intend on selling them with that. Even if the connector were installed, you still have to set the solder jumpers to whatever game key you need, so no way to avoid soldering in some form.-ud
Ah ok yeah I wasn't sure if the header is on every board or not. What revisions have the header?


Mitsurugi-w

Arcade Admini-Moderator
Staff member
Legendary
Joined
Jun 12, 2015
Messages
6,592
Reaction score
6,125
Location
New Bern, NC USA
You COULD solder a board mount connector to that and plug it into the CN9 connector. Even though it's not intended it would work.


mastercello

Student
Joined
Jul 21, 2015
Messages
153
Reaction score
97
Location
Switzerland
Wow, looks like a very neat solution...definitly would buy some of them! Good work man! :thumbup:


nem

Enlightened
Joined
May 29, 2016
Messages
3,692
Reaction score
2,736
Location
Finland
Excellent price point. I'm definitely interested!
