Naomi 2 HDMI

[Bxbennyg1]

I wrote on twitter twice to ask if he can show the installation instructions so we can prep our boards but no answer



[striderzero96]

Yeah. Definitely want to capture my Capcom vs. SNK 2/Project Justice/Marvel vs. Capcom 2 sessions directly via HDMI.



[hyp36rmax]

Yeah. Definitely want to capture my Capcom vs. SNK 2/Project Justice/Marvel vs. Capcom 2 sessions directly via HDMI.

That's exactly what I had in mind too! haha. Makes it sooo much easier



[striderzero96]

That's exactly what I had in mind too! haha. Makes it sooo much easier

I’ve been streaming all of my Naomi stuff using the VGA port of the VPM Buffer PCB (Blast City Vs. Kit), but what if I want to play Naomi stuff in an Egret II (interlaced lol) and stream it while running something else in the Blasts? This is why it’s necessary to have this hardware.



[KinG_SoPa]

Hello,

You have to purchase the dreamcast kit and then wait for January for the flex cable?

I ask because where you go to the site the selection for naomi 2 is grayed out.



[hyp36rmax]

Hello,

You have to purchase the dreamcast kit and then wait for January for the flex cable?

I ask because where you go to the site the selection for naomi 2 is grayed out.

We just purchased the DC kit and hoping to secure the Naomi flex and mount next month.



[Stupid Dufus]

Correct. Naomi flex isn't ready yet. Will need to order it separate later, or you could hold off until then and buy them both together.



[KinG_SoPa]

Thank you for the replies 😊



[Stupid Dufus]

Flex cable kit for Naomi now available. Or full kits as well

Flex kit (if you already have DC digital hw2) is $25
https://www.pixelfx.co/product-page/dcd-flex-replacements

Full kit is $220 https://www.pixelfx.co/product-page/dcdigital-kit



[Bxbennyg1]

yeah kinda sucks we got hit wiith all this extra and shipping. 30 bux extra. everyone went ccuz of fomo.



[andynumbers]

Looks like it's for Naomi 2 only? Any plans for a Naomi 1 flex?



[Epyc]

Looks like it's for Naomi 2 only? Any plans for a Naomi 1 flex?

It's both. https://docs.pixelfx.co/DCDigital-Naomi-Installation.html



[Mrhide]

"Disclaimer:
This kit is for advanced installers only."

^ THAT



[Bxbennyg1]

Yeah pay attention . 2 section out IC’s one is for Naomi 2 and other for Naomi 1



[tacobell]



[Bxbennyg1]

yeah just dropped off to @cruzlink2 . cant wait



[tacobell]

yeah just dropped off to @cruzlink2 . cant wait

Easiest install imo



[Bxbennyg1]

Easiest install imo

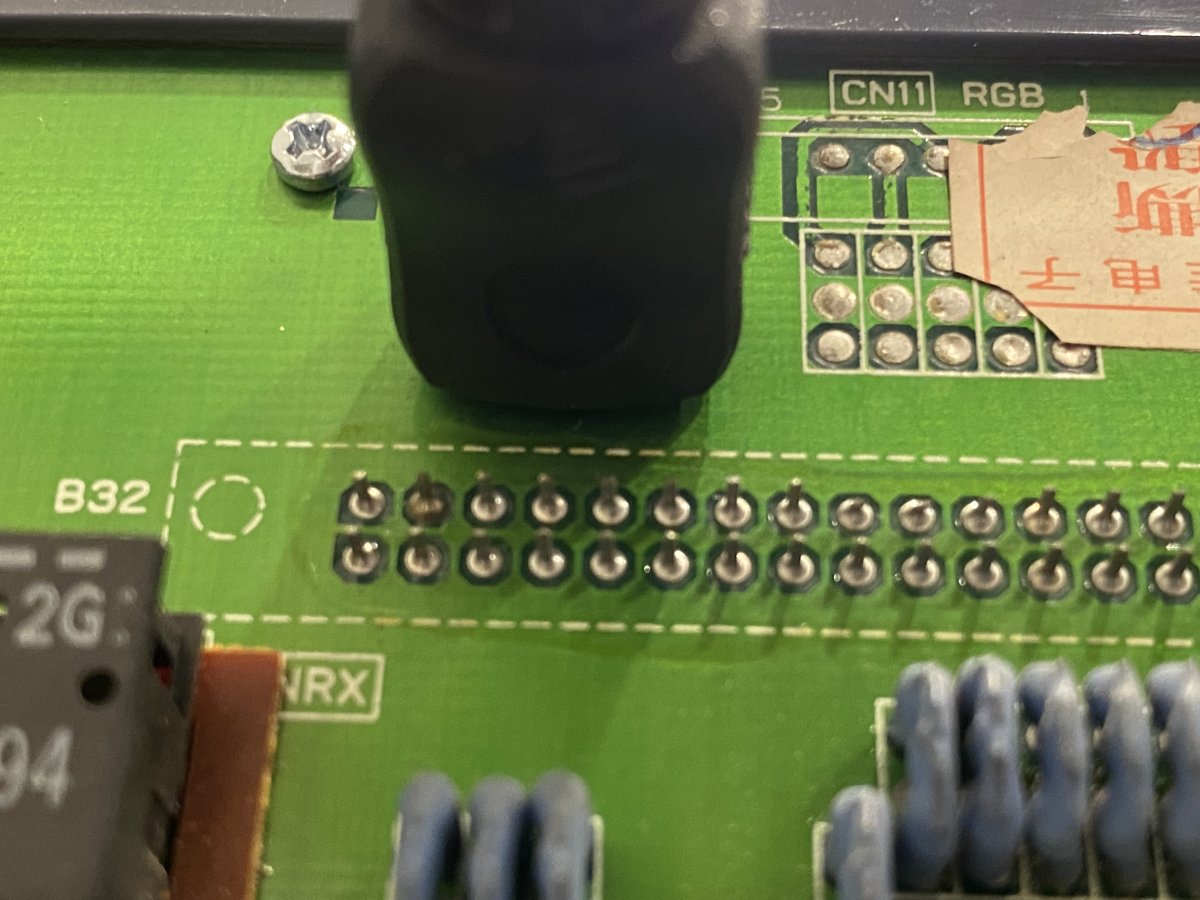

can u post some pics of the filter board hole and how to hooks up



[tacobell]

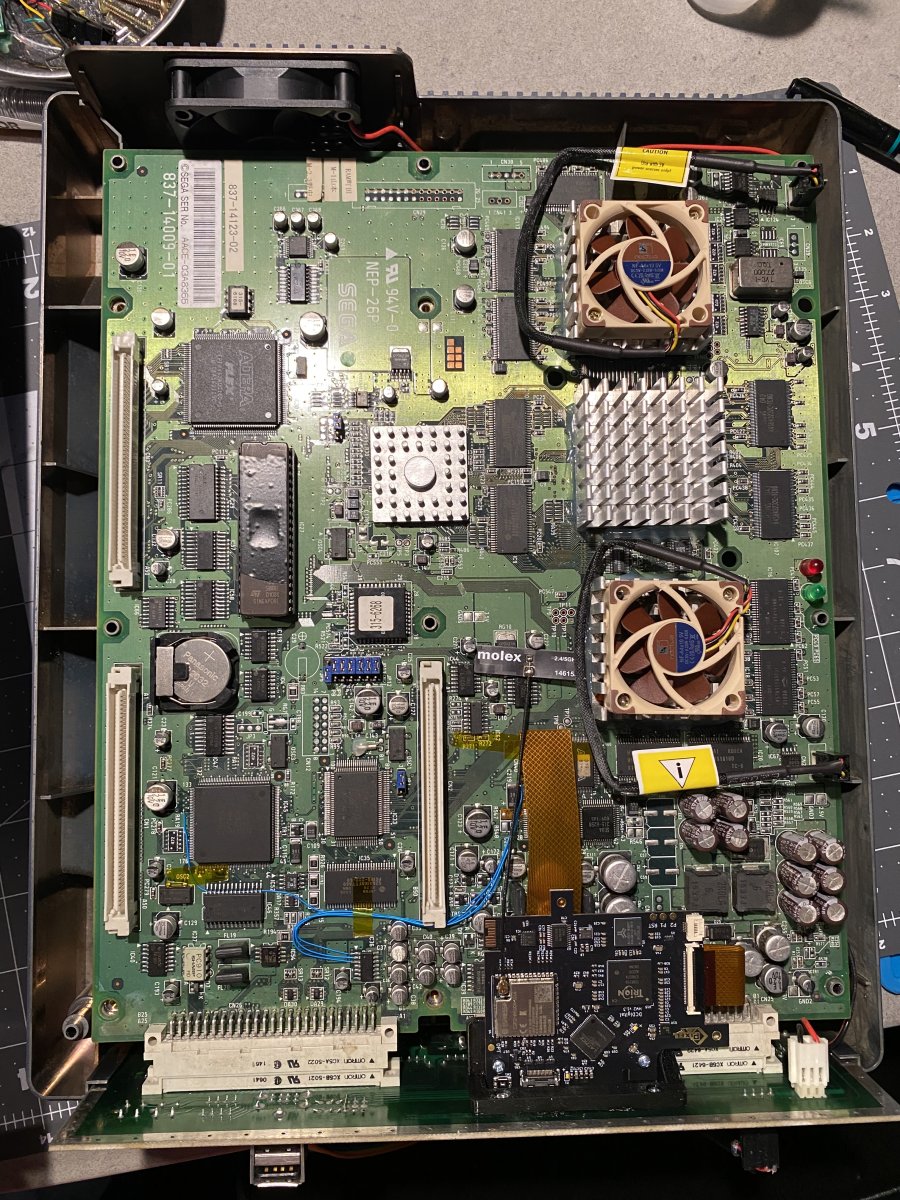

View: https://youtu.be/9YYM54tiG2c

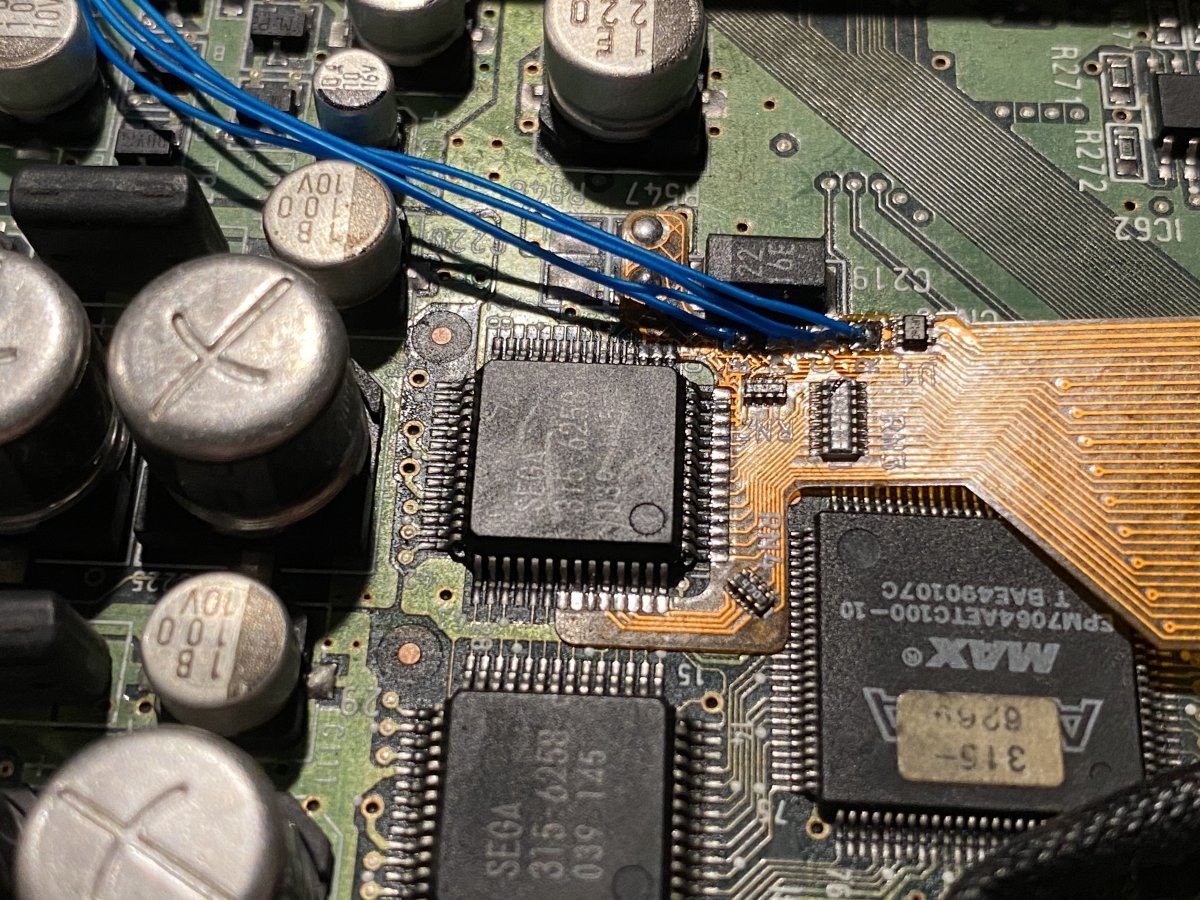

Hopefully, most of you can try installing it yourself as it’s a great way to practice your soldering and modification skills.
It’s a fairly straightforward and simple install. Not hard but very tedious.
If you have any questions, let me know here.

EDIT: don’t use the mini hdmi adapter as it will damage the plug applying more pressure than it should. Use a dedicated mini hdmi to hdmi cable instead.



[rtw]

Nice work!

@tacobell what type of fans are you using on the heatsinks ?

Also which direction is it blowing ?
