I do understand the point of the thread as I made that point - that the thread was asking about monitors that could simply display CGA and EGA, not look good.

What I said after was in response to the "my LMD looked washed out compared to my PVM point".


JoeAwesome

Professional
Joined
Feb 28, 2019
Messages
489
Reaction score
262
Location
BCS/Houston, Texas
My complaint of LMD to PVM is more about my supergun’s RGB output, not necessarily on lag or the LMDs overall contrast.


RealMFnG

Legendary
Joined
Mar 27, 2016
Messages
4,411
Reaction score
3,359
Location
Northern California
We are all arcade snobs here. So unless you are @jassin000, CRT is the only way to go. None of us would even consider playing our PCB's on an LCD without an external device.

Test Bench Application, Test Bench Application, And Test Bench Application is the point of this discussion. If that wasn't specifically stated, it is definitely implied given the nature of this forum. Small footprint on the test bench. Safe. Eliminates points of fault inherent when using a CRT in test bench purposes. Also, allows for testing JVS-based boards. The two principle applications are:
  • MAME setup for 15khz emulation
  • PCB repair
But back on topic. I swooped up an Acer G-Series for $5. Now need to find my Molex connectors to connect to my Craftymech TPG's harness. Will let you guys know if it digs Craftymech TPG 15khz & 25khz. Also, will check how it works with one of my PC Emu box.

Last edited:

RealMFnG

Legendary
Joined
Mar 27, 2016
Messages
4,411
Reaction score
3,359
Location
Northern California

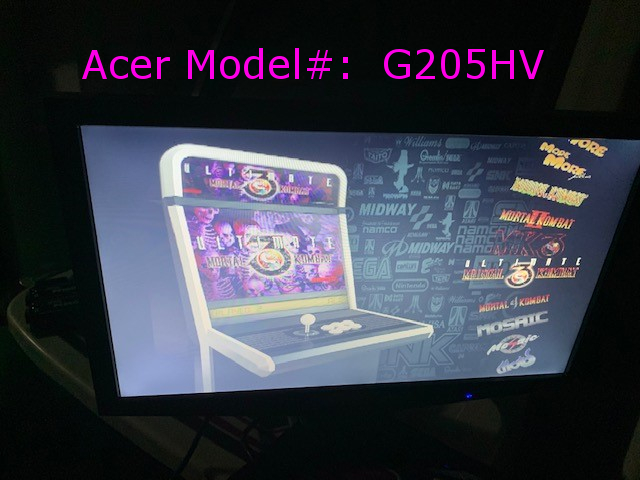

Outstanding success with MAME!

Been doing MAME builds for quite a looooooong time. This is by far, the most stable image produced on an LCD piped in straight from 15khz enabled MAME PC I've ever seen. No jitters, ringing, screen blinking to speak of. Launched a few games to test sync:

Hyper Street Fighter Anniversary: Yes
SFII Champion Edition: Yes
Midway Titles: none worked/no signal detected (as expected)
Donkey Kong: Nope
Puzzle Bobble 2: Nope
R-Type II: Nope
PGM Games: Yes
Defender: Yes

Matters little that those games don't sync up on an LCD for MAME application. What matters is I get a stable image in Windows to setup MAME. I am actually anxious for the next MAME build now. Won't miss seeing my monitor struggling to sync as I hit APPLY after enabling EDID. Woot!



jassin000

Legendary
Multi Boyz
Joined
Jul 21, 2015
Messages
7,748
Reaction score
6,290
Location
Afterlife
The best way to deal with the Midway family is OSSC directly into a freesync supporting LCD/IPS.
At one time I would recommend iScan DVDO's for sync adjustment, but this adds "Framemister" levels of lag (16ms+).

I've been told the Sony Wega CRT family also has problems with Midway.
So even in the magical zero-lag CRT world, Midway's 400x254@54.88Hz is just freak'n strange man.

Last edited:

xodaraP

Enlightened
Joined
Sep 21, 2016
Messages
4,418
Reaction score
3,088
Location
Gold Coast, Australia
Yeah Midway boards are the only thing that ever require adjustment of the VHold on my cab monitor.


Zebra

Professional
Joined
Nov 5, 2018
Messages
526
Reaction score
139
Location
New York
If it's literally just for testing to see if a PCB works then lag and image quality is irrelevant. Any of those cheap lcd arcade monitors are fine. They come with cheap CGA, EGA, VGA to HD upscalers.

There's little advantage to LCDs that can display CGA and EGA without an external scaler. It still has to scale the image internally. There is no such thing as native 240p on a 768p or 1080p flat screen.

Personally, I don't see the point in owning a monitor just for testing unless you fix PCBs for a living. If you enjoying playing then you should buy a proper crt arcade monitor and test on that when needed.

If you live in a shoe box - those 8" PVMs with RGB are always going cheap on ebay. If your desk ain't big enough for an 8" PVM, it ain't big enough to fix PCBs.


gingerbeardman

New User
Joined
Feb 26, 2020
Messages
1
Reaction score
0
Location
UK
BTW THANKS MAN..
sigh.

just spent the last few hours digging for the g-probe and g-wizard software that's used to program the Genesis based monitors.
I think i've got a pretty good idea of what we need to at least poke around with, but I need to actually get the software up and running... assuming I have all the bits...

It's really fun trying to track down software well after a company is dead and buried...
seems that the tools I got weren't what i was looking for.. damn.

So, from the datasheet: http://igorx.irk.ru/datasheet/4rtlyRzj2F9U0q0ljTN9.pdf

To program the gm5221 the content of the external ROM is generated using Genesis softwaredevelopment tools G-Wizard and OSD-Workbench. G-Wizard is a GUI-based tool for capturing systeminformation such as panel timing, support modes, system configuration, etc. OSD-Workbench is a GUIbased tool for defining OSD menus and functionality.

(snip)
So, some rather interesting bits here...
I find it hilarious that you can apparently reprogram the controller from an attached pc- that sounds SUPER SECURE GOOD JOB GUYS...
I use a Philips 20PF4121 LCD TV (LC4 chassis) for retro gaming, it has the Genesis brand GM5221 scaler in it.

I'm interested in getting it to do test modes using a PC connected over DVI. Did you ever figure that out? Can you share the Gprobe and Gwizard software you found? Thanks!

(I also have later 20PFL4122 LCD TV (LC7 chassis) that has a Trident brand SVP-CX32 scaler in that can receive HDMI but cannot do 240p, for example. Not as good.)


jassin000

Legendary
Multi Boyz
Joined
Jul 21, 2015
Messages
7,748
Reaction score
6,290
Location
Afterlife
Personally, I don't see the point in owning a monitor just for testing unless you fix PCBs for a living. If you enjoying playing then you should buy a proper crt arcade monitor and test on that when needed.
I also, personally, don't have a need for a test bench setup... Or IMO a CRT monitor, but thankfully the world is made out of more people than you or I.
Talented folks like @Hammy I'm sure will tell you if you lack a CGA monitor you have no biz not only in board repair/service but serious gaming.
It takes all kinds to make the world go round. <3

P.S. I'll upvote you, just to clear that negative to neutral. I know you are only expressing a POV, and you shouldn't be down-voted for that.

Last edited:

jassin000

Legendary
Multi Boyz
Joined
Jul 21, 2015
Messages
7,748
Reaction score
6,290
Location
Afterlife
Snarkiness and POV are two different things.
It is, but he is still pretty new (under 500 posts) and I sometimes suffer from this myself (whats my excuse). :whistling:
Everyday is a new start, to be the person you want to be and consider a perspective you might otherwise have not. :saint:

Last edited:

Irata

Beginner
Joined
Mar 17, 2021
Messages
6
Reaction score
6
Location
Va
Last edited:

Irata

Beginner
Joined
Mar 17, 2021
Messages
6
Reaction score
6
Location
Va
I want to add another...

TR-LM7WR3PS 7" Panasonic replacement LCD RGB (NTSC) 480x234 and syncs to 15Khz

I pulled my link to this LCD as I was sent only the screen with no PCB or case.

Last edited:

twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,225
Reaction score
9,745
Location
NH, USA
Oh in chasing this one down above I found it's bigger brother 7.8" all over eBay but maybe someone can confirm if it will work or not?
the document doesn't really have the info necessary to determine if it will work, or at least without some deeper knowledge of how sync signals work.

really most of these the documentation can't be fully trusted you just have to test and see.


Irata

Beginner
Joined
Mar 17, 2021
Messages
6
Reaction score
6
Location
Va
I see in the manual these 7.8" LCD's also have touchscreen features.

PIN NUMBER & SIGNAL
---
P1 X2
P2 Y1
P3 X1
P4 Y2


FUNCTIONAL DESCRIPTION - This module is a 7.8 inch STN colored passive matrix type liquid
crystal display (LCD) with a transparent touch panel (TTP). The display consists of 640 x 3(RGB) x
480 dots. The display is the transmissive type with a cold cathode fluorescent tube (CCFT)
backlight.


300wins

Enthusiast
Joined
Jul 23, 2015
Messages
147
Reaction score
170
Location
San Jose, California
I want to add another...

TR-LM7WR3PS 7" Panasonic replacement LCD RGB (NTSC) 480x234 and syncs to 15Khz

However mine hasn't arrived yet. They did go up on the darn price though by $14.00. My price was $63.93 total shipped see the math below

$54.00 USD
$ 8.07 USD Shipping
---
$62.07 USD Total
+
–$1.86 INTERNATIONAL FEE - PAYPAL *EMP ( I was hit with this fee by surprise )

$63.93 Real Total

https://www.enlcd.com/p/tr-lm7wr3ps-lcd-panel/?currency=USD

Please see https://forums.arcade-museum.com/threads/fs-7-inch-lcd-monitors.100481/

Edit x2 or 3?:
---
Oh in chasing this one down above I found it's bigger brother 7.8" all over eBay but maybe someone can confirm if it will work or not?

https://www.beyondinfinite.com/product/lcd/panasonic_lcd_display.html
https://www.beyondinfinite.com/lcd/Library/Panasonic/EDMGRB8KJF.pdf

They are used in this fine piece of equipment below.

https://www.mindray.com/en/product/BC-2800.html

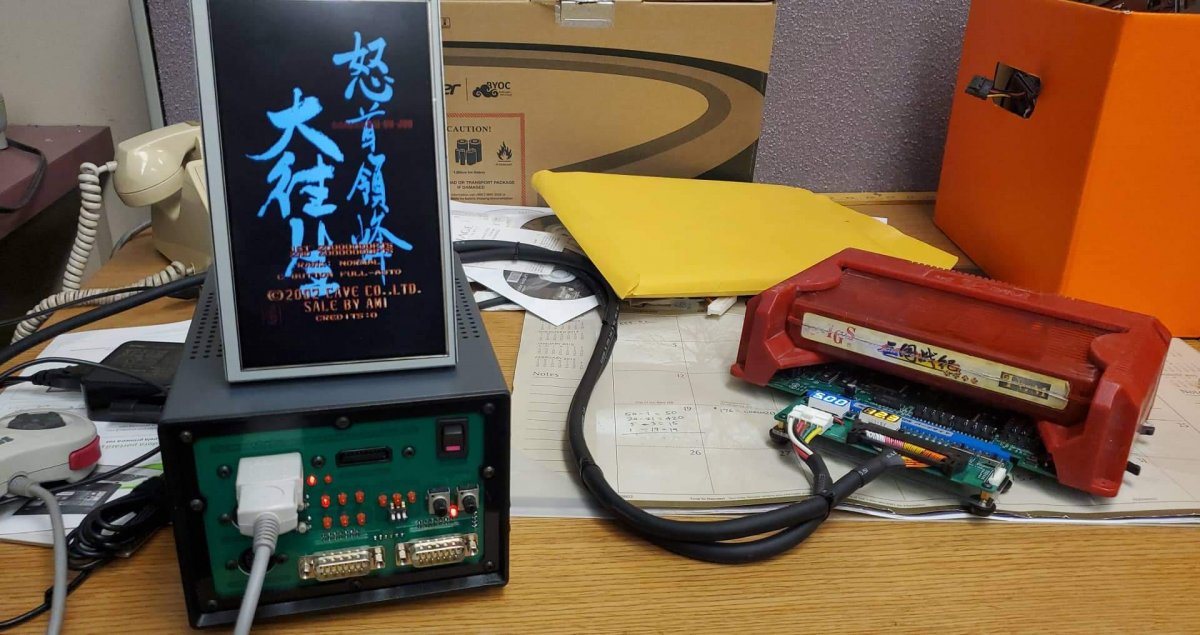

I have one of these 7 inch LCD screen that I use with my supergun, so I know for sure they work in 15khz. You can even toggle between 4:3 and 16:9 if you add a switch like I did for it.


Attachments

  • received_379496733336450.jpeg
    144 KB · Views: 43

ConversusWV

Beginner
Joined
Feb 18, 2021
Messages
25
Reaction score
11
Location
Spartanburg, SC
Little bump but I love my Asus VG245 computer monitor for arcade stuff. I purchased mine from Best Buy in December 2019 when I was building a rig with my dad. It works with medium-resolution arcade games natively without issues, including Model 3. Even does 4:3 original aspect ratio. I should fashion a 5-pin JST NH connector to female VGA if it's possible, so I can play Model 2 games without the need of a converter board. Why it even syncs at all must be due to the support of AMD FreeSync technology. Wonder if monitors that support G-SYNC will fare the same...
I've also been told the Acer G185H monitor works with medium-resolution games, but unsure if it has 4:3 option. I'm not crazy about playing my driving games stretched either.


Franco23444

Professional
Joined
Apr 24, 2020
Messages
440
Reaction score
174
Location
Durham,NC
I got a similar 32” AOC monitor with AMD FreeSync tech. It does work wonders with 15khz- high resolution through HDMI though. VGA is still 480p and up. Pretty neat gaming monitor, not to mention, it has a great, sharp picture with great viewing angles. The only thing I don’t like about it is the “backlight bleed” when the screen is all black.


ConversusWV

Beginner
Joined
Feb 18, 2021
Messages
25
Reaction score
11
Location
Spartanburg, SC
I got a similar 32” AOC monitor with AMD FreeSync tech. It does work wonders with 15khz- high resolution through HDMI though. VGA is still 480p and up. Pretty neat gaming monitor, not to mention, it has a great, sharp picture with great viewing angles. The only thing I don’t like about it is the “backlight bleed” when the screen is all black.
My brother's got a BenQ GC2870 and a curved Samsung display as part of his gaming setup; I should give them a whirl when he's working.
As a side story, the Gonbes's (unmodded) really have yucky input lag, that I've especially noticed in Sega Rally and Indy 500. The Asus only has 1ms of lag and it is almost like playing on an original CRT.


Franco23444

Professional
Joined
Apr 24, 2020
Messages
440
Reaction score
174
Location
Durham,NC
As a side story, the Gonbes's (unmodded) really have yucky input lag, that I've especially noticed in Sega Rally and Indy 500. The Asus only has 1ms of lag and it is almost like playing on an original CRT.
Yeah, they are terrible, I actually use the OSSC for my games and the results are astonishing. The only issue with using the ossc is the risk of burn in while playing interlaced games on some IPS monitors. The OSSC doesn’t have a frame buffer. I have tested some IPS monitors and they seem to suffer the most with interlaced images. The AOC monitor I have doesn’t suffer from this issue because it supposedly uses an VA panel.
