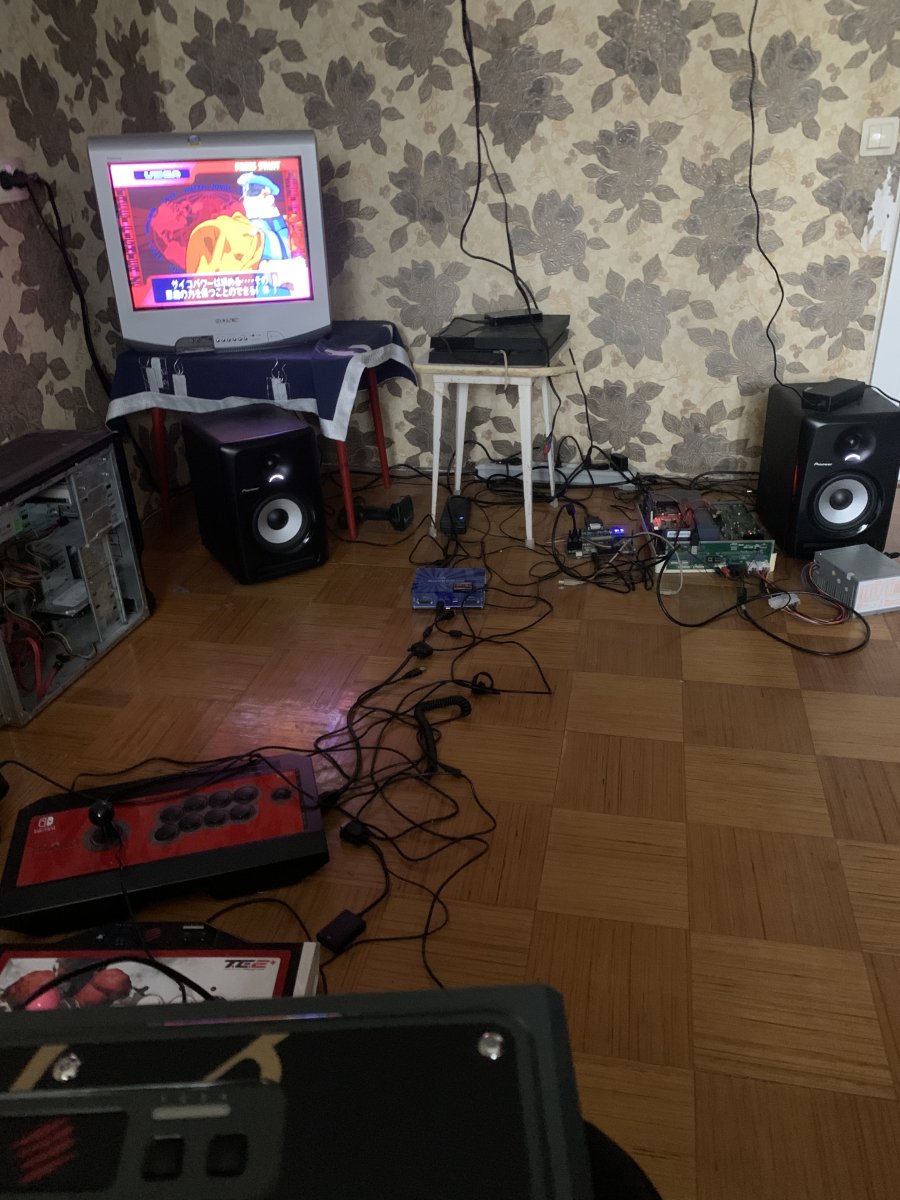

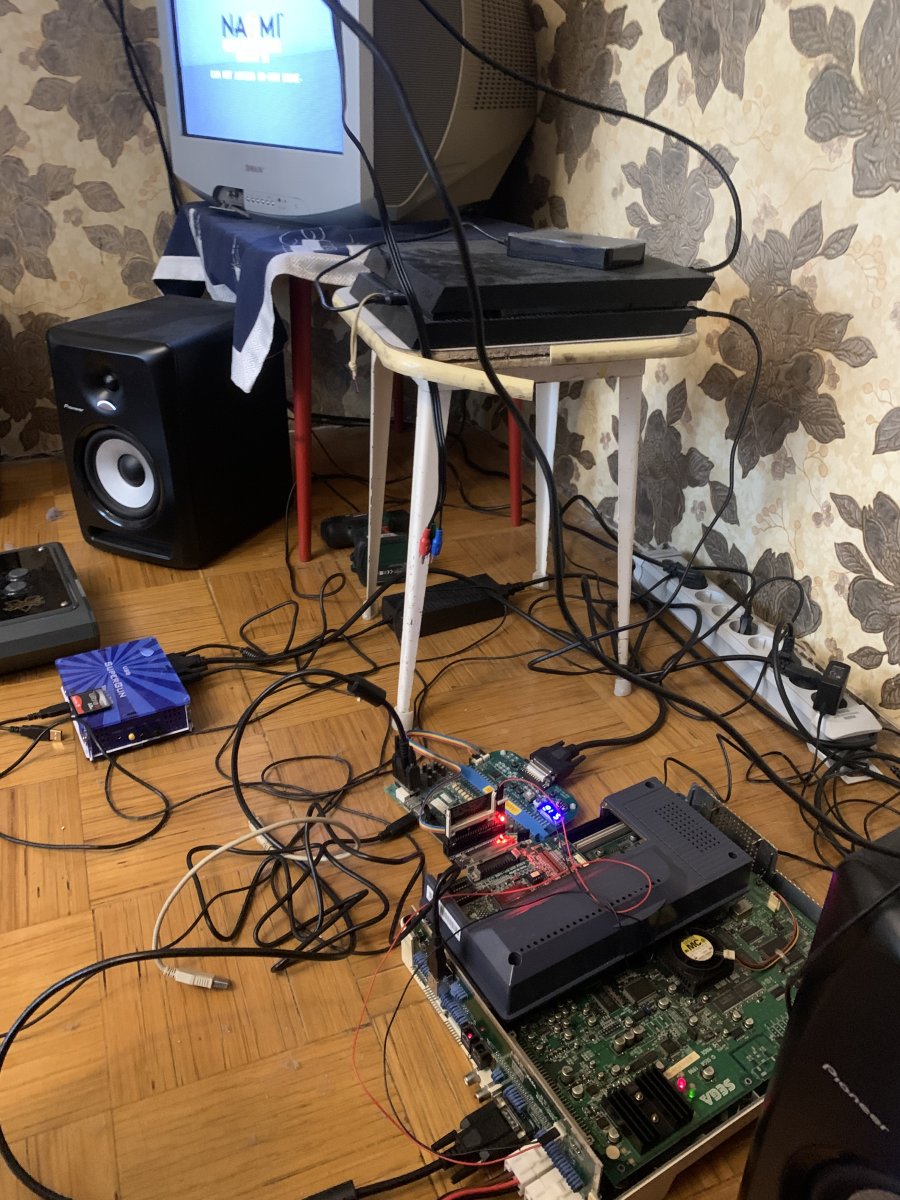

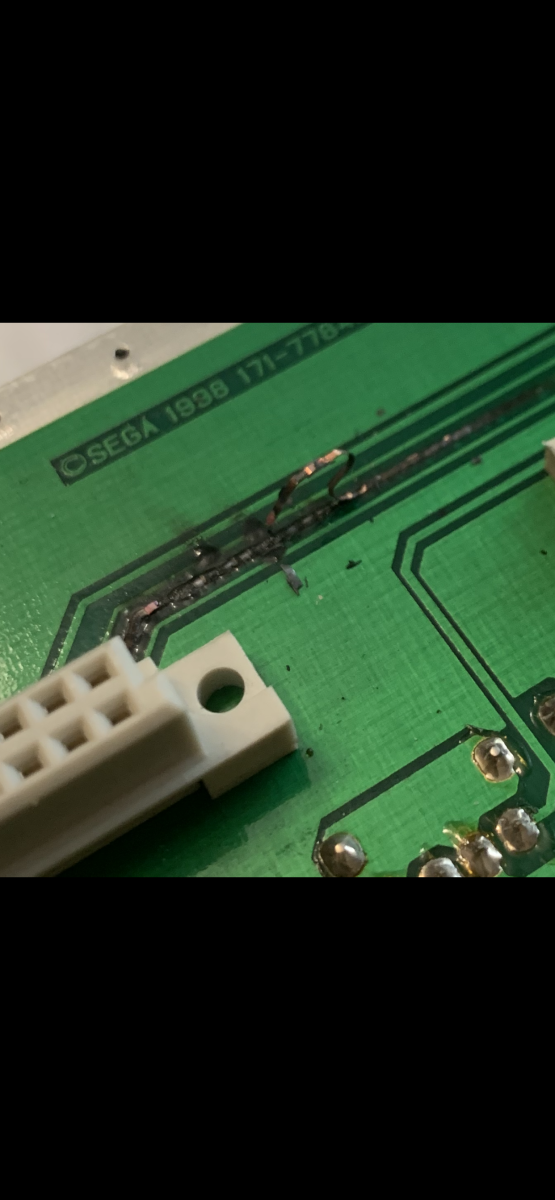

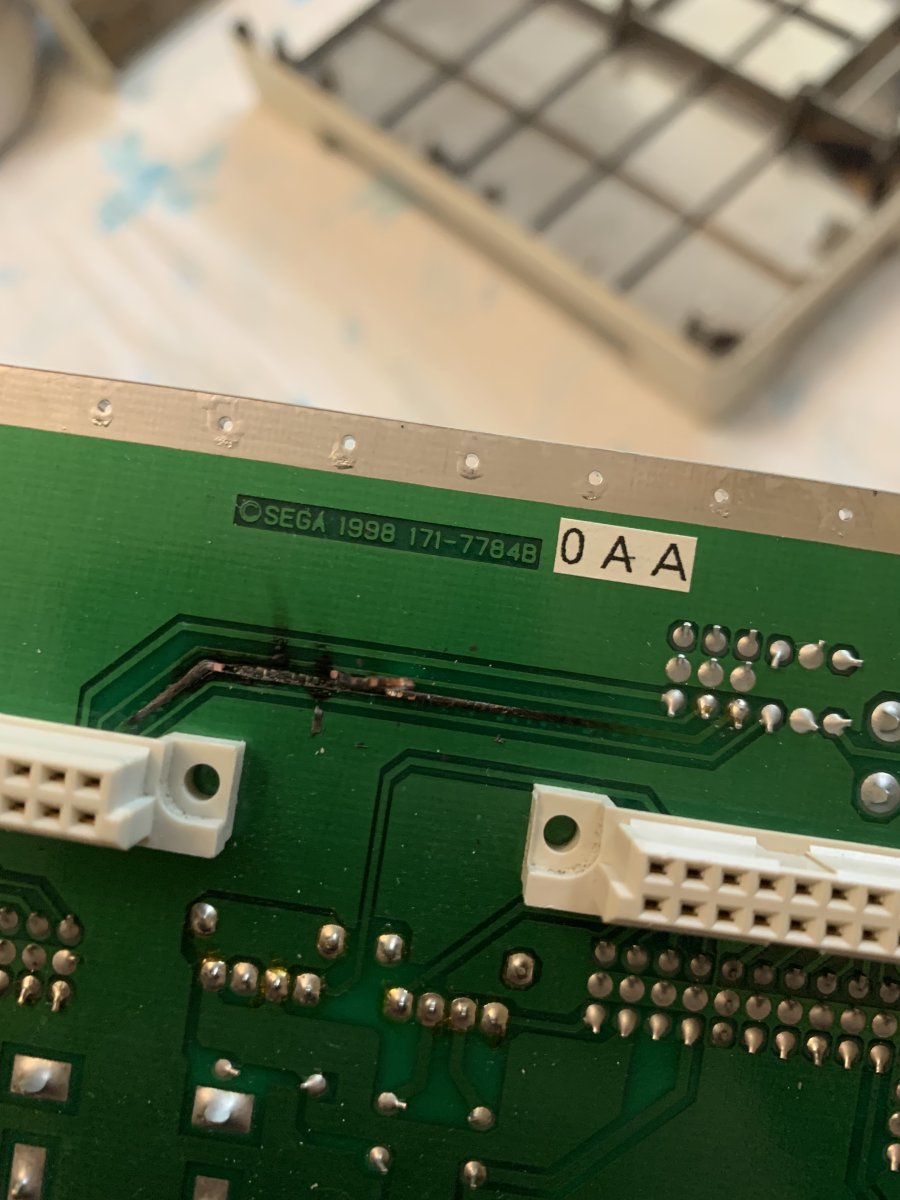

Hi. I photographed the damage on the board. Do you know what this contact affects/means, what is it for? Naomi still working. Most likely it appeared when I wanted to connect Naomi to the TV through a chinese adapter (vga to hdmi). There was a burning smell. I immediately turned off Naomi. Then I connected it back to the old TV and everything seems to work. but at that moment my sf card 1gb Sandisk stopped loading almost all naomi/aw games. it only runs dolphin blue and some naomi games. I don't know if this is a coincidence or not.


Attachments

  • 65816E27-0013-404A-8753-A7F0C2A82BDB.jpeg
    130.1 KB · Views: 42
  • 92A9BE08-80C3-46B0-964B-99EC73D1906B.png
    452.6 KB · Views: 42
  • 0FB64A82-C074-4223-9A51-DFB1419653A3.jpeg
    182.3 KB · Views: 42
  • 4FE8C69B-13B8-4973-AB7C-D94C5B5F517F.jpeg
    239.6 KB · Views: 44

Vanark

Beginner
Joined
Aug 6, 2022
Messages
24
Reaction score
3
Location
Latvia

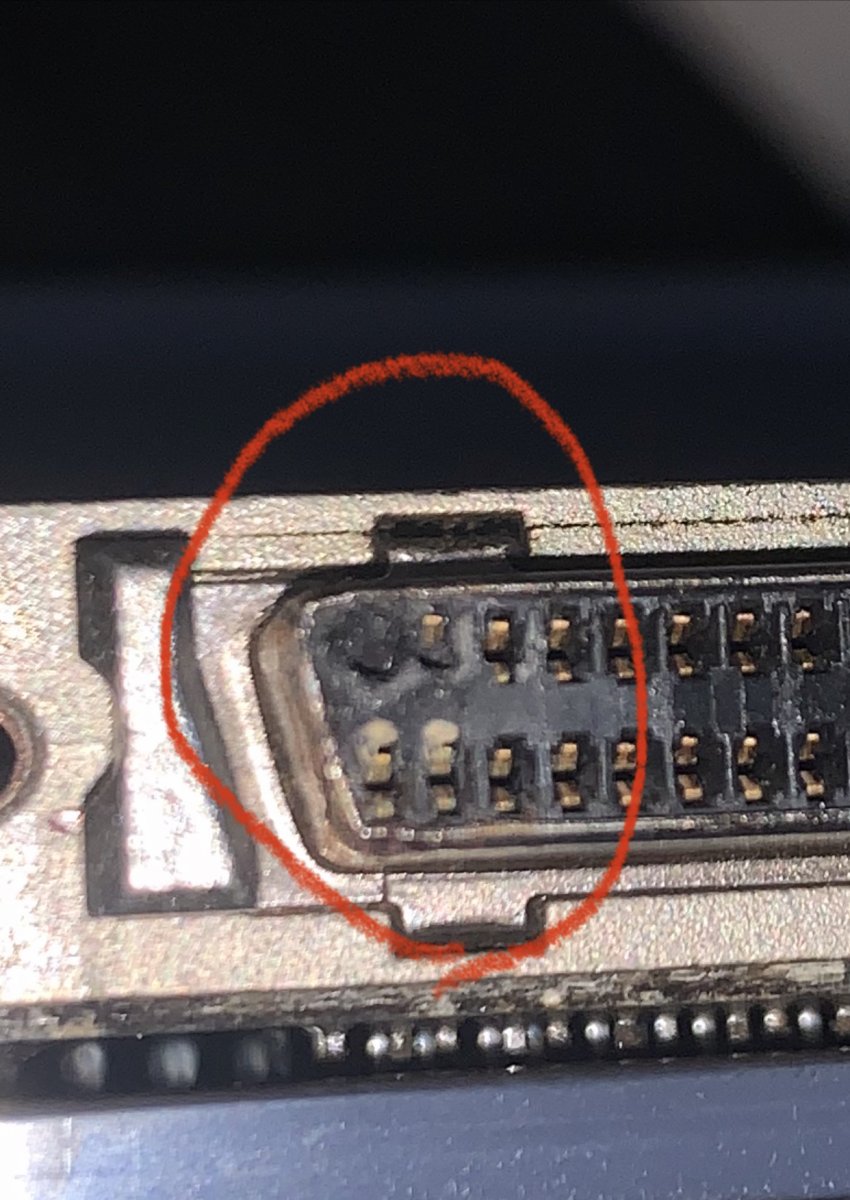

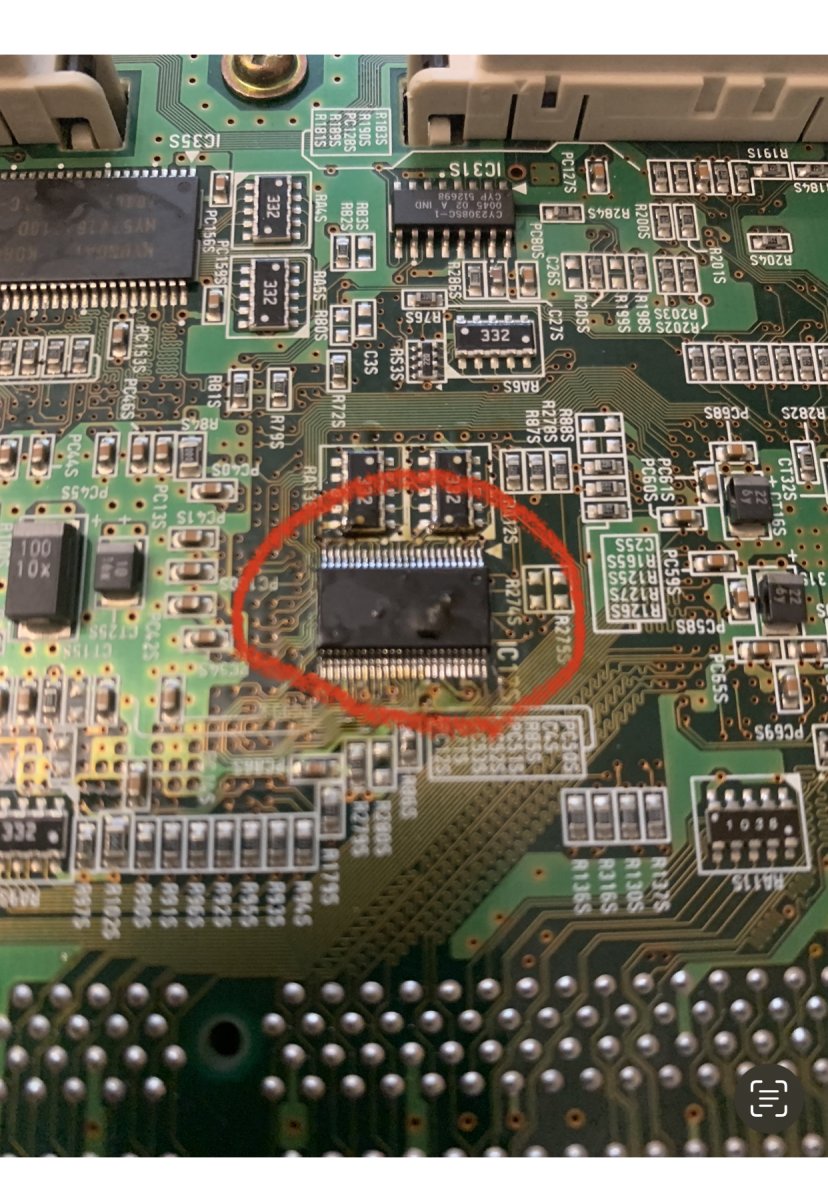

I also wanted to ask about Dimm, I found damage. can they somehow influence?


Attachments

  • 0347801F-FC4E-44A9-98DC-8793E83B72B2.jpeg
    162.5 KB · Views: 40
  • 5521A255-D92C-48A9-B05C-98362D6ADBB1.jpeg
    228.9 KB · Views: 42

rtw

Champion
Joined
Sep 28, 2015
Messages
1,700
Reaction score
2,062
Location
Norway
I think you need to get a new DIMM and maybe a new NAOMI. Looks like a lot of current has gone places where it should not.

Last edited:

djsheep

Multi Boyz Overlord
Immortal
Multi Boyz
Joined
May 20, 2016
Messages
7,776
Reaction score
14,098
Location
Brisbane, Australia
Get rid of that VGA to HDMI adapter also.


channelmaniac

Professional
Joined
Mar 19, 2021
Messages
216
Reaction score
379
Location
Dallas, TX, Metromess
That's what happens when you hook up to something that has a live chassis. This is the kind of damage seen when an arcade game board is hooked to a monitor in a cabinet that requires an isolation transormer, but doesn't have one installed. It feeds voltage back through the video cabe linto the PCB and does damage.


Vanark

Beginner
Joined
Aug 6, 2022
Messages
24
Reaction score
3
Location
Latvia

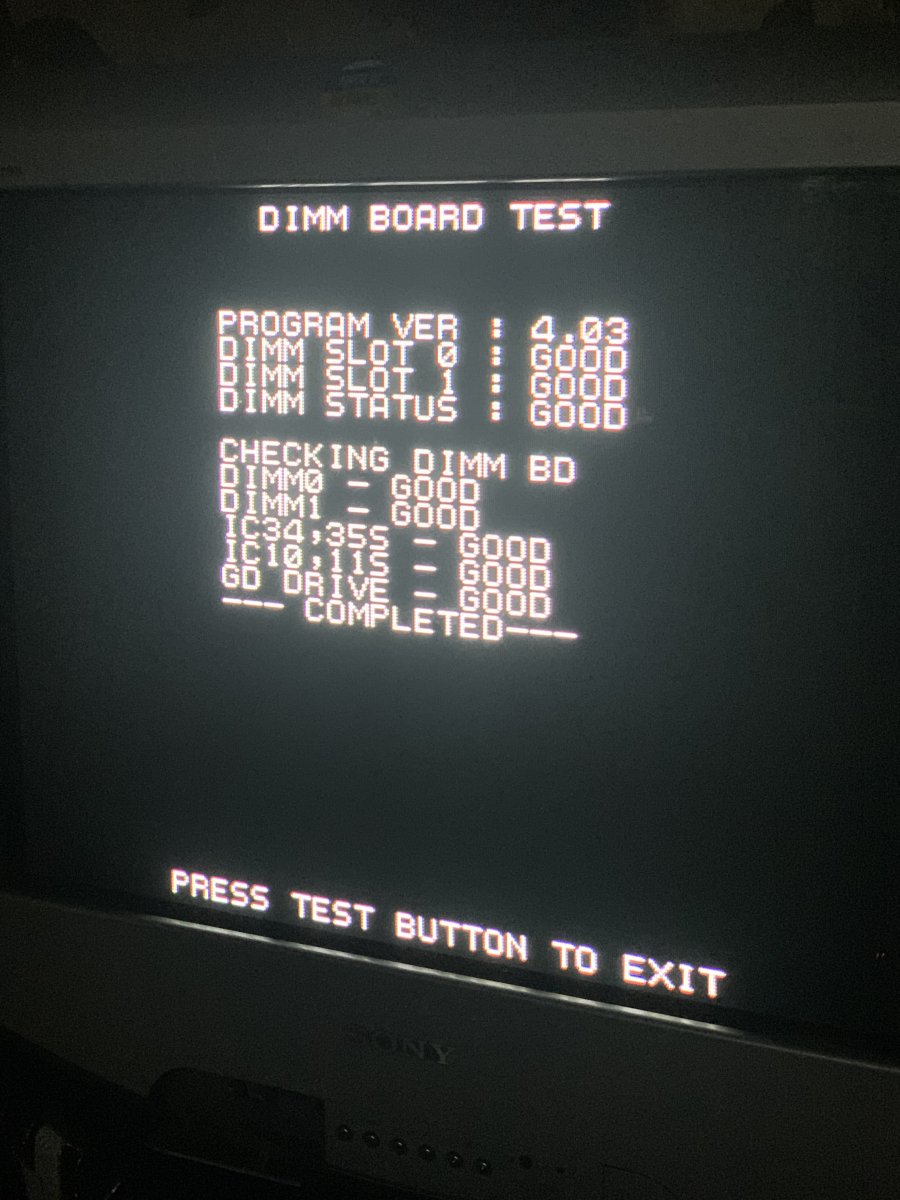

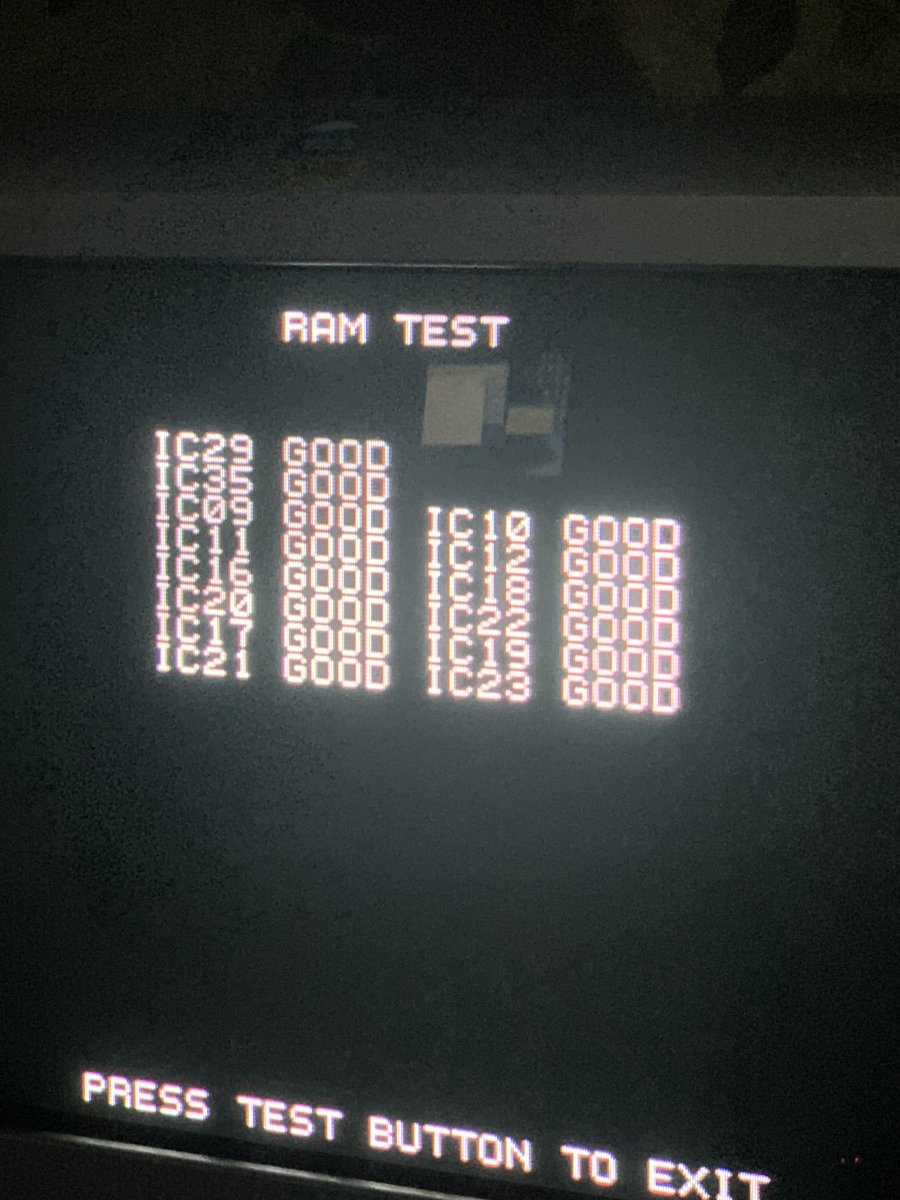

I think you need to get a new DIMM and maybe a new NAOMI. Looks like a lot of current has gone places where it should not.
((((.

Ps


Attachments

  • 0782F2BF-4C56-4460-9104-FDC75510C024.jpeg
    155.9 KB · Views: 27
  • 8ABE119D-1371-4C30-AD85-750F80F2D2AA.jpeg
    169.9 KB · Views: 28

StormyNormy

Student
Joined
May 16, 2022
Messages
24
Reaction score
22
Location
Germany
Where is the supercap located?

The mobo has a sticker stating "danger of explosion if the battery is replaced incorrectly". What can explode?

TiA
