Hi, I just started replacing every ram pair and when I replaced 116/118 that fixed it. This was for a Naomi 2.

They are very easy to replace.

Note that I was using the old multi bios. Possibly that bios has a buggy ram test (it's based off an old bios revision). If you are using the multi bios, try the ram test using normal bios latest revision.

  • Like
Reactions: XeD

Mrhide

Enlightened
Joined
Aug 17, 2016
Messages
1,771
Reaction score
3,043
Location
Montréal, Canada

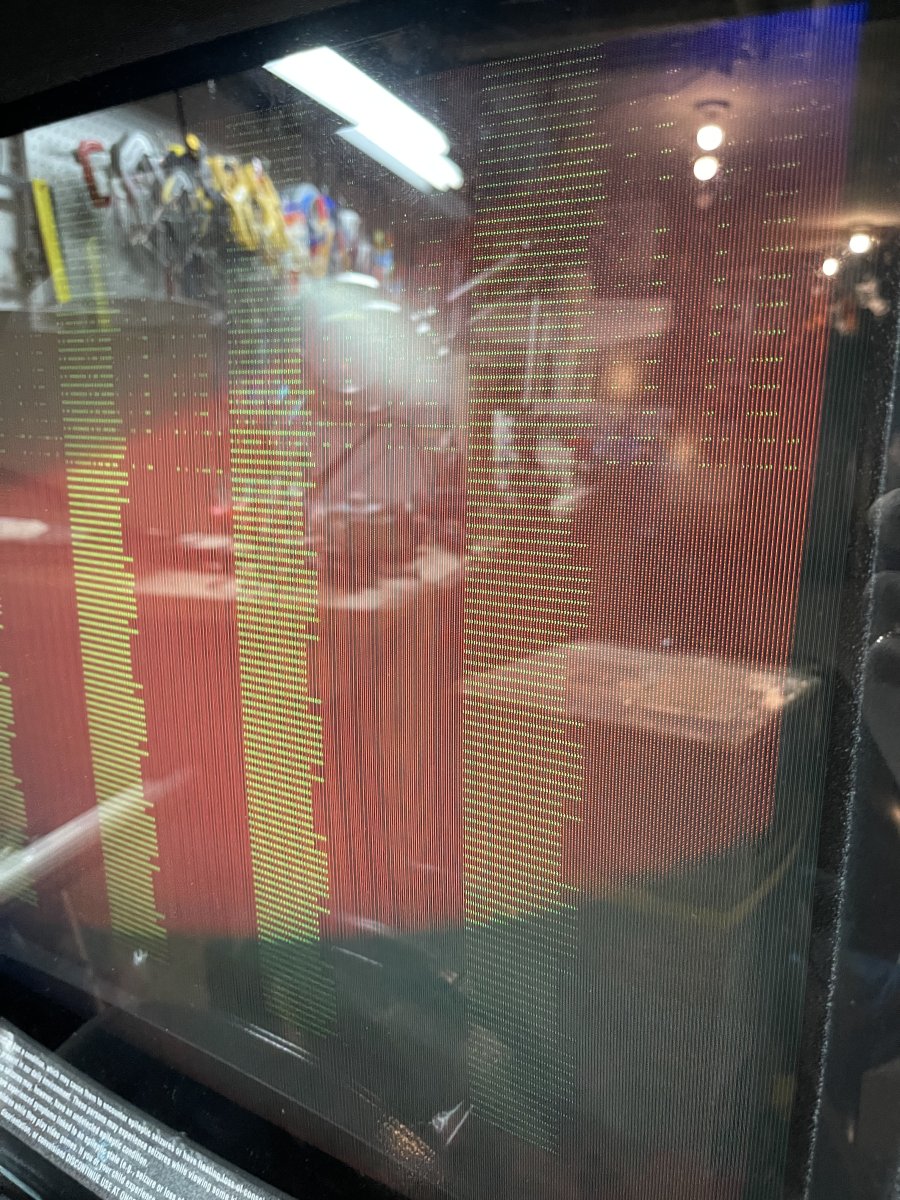

What about this?


Casselfornia

Student
Joined
Mar 6, 2020
Messages
89
Reaction score
23
Location
Germany
Hi, I just started replacing every ram pair and when I replaced 116/118 that fixed it. This was for a Naomi 2.

They are very easy to replace.

Note that I was using the old multi bios. Possibly that bios has a buggy ram test (it's based off an old bios revision). If you are using the multi bios, try the ram test using normal bios latest revision.
Exactly those to were gone on the last 2 Naomi's I repaired. So I can confirm that this maybe a common issue: It boots very slow and has graphical glitches.


XeD

Grand Master
Joined
Jul 6, 2016
Messages
1,036
Reaction score
867
Location
Vancouver BC Canada
I'm attempting to fix a N1 that boot slow. Freeze before finishing ic09. I have replace both ic09 and ic11 to no luck. Will a video ram cause the same issue on a N1? I don't have any on had and don't want to swap from my parts board as I don't know if they work.


Casselfornia

Student
Joined
Mar 6, 2020
Messages
89
Reaction score
23
Location
Germany
Try IC16+18. Last one IC 16 failed but showed okay during ram test and did the slow boot shit you mentioned. N1. IC was already placed so I wondered why I got the slow boot. I guessed it's 16 and I was right.

Buy a few of the ics. Handy to have em stocked. I wouldn't gamble with the ones from the parts board.


XeD

Grand Master
Joined
Jul 6, 2016
Messages
1,036
Reaction score
867
Location
Vancouver BC Canada
Thank, I'll see if I can find any compatible ram to steal from or gamble on Aliexpress.. In the mean time I'll swap from parts boards and see what happen.


XeD

Grand Master
Joined
Jul 6, 2016
Messages
1,036
Reaction score
867
Location
Vancouver BC Canada
They are just old pc100 sdram. I got mine from an old ram dimm.
I have a bunch just non of them match the configuration. Mostly 4mx4 and 2mx8. I want to confirm ram grouping is left to right and not up and down going off the ram test screen


Casselfornia

Student
Joined
Mar 6, 2020
Messages
89
Reaction score
23
Location
Germany
hy57v161610dtc-8 those worked for me. Widely available. If we still talking VRAM.


StormyNormy

Student
Joined
May 16, 2022
Messages
24
Reaction score
22
Location
Germany
Hi, my Naomi 2 with GD-Rom setup is giving me headaches. Used to work but it now freezes on boot, or boots into "System initializing" (not memory check) and freezes or gives me straight up a error 22 message ("Communication error occurred between main board and option board"). I think I can hear the GD-Drive spinning up, but from the Naomi 2 to the PSU, everything is quite loud.
Any suggestions as to what could be the cause or what else I could test?
Thanks
Naomi 2 is in a Naomi Universal cab, original PSU. Original BIOS 23608, swapped with 23608-A. GD games Virtua athletics, works with 23608, GGXX Slash, worked with 23608-A. Cartridge Virtua Striker 3, works with 23608. I have 2 GD-Drives, I get the same result with both.

I have tried the following to narrow down the possible fault, all results as expected:
Run cartridge with jap BIOS (Error 21).
No Dimm board (Error 01).
With Dimm but not connected to GD-Drive (Error 25)
With Dimm, connected to GD-Drive, but GD-Drive not connected to power (Error 25)
With Dimm but cover GD-Drive cover open (Error 23)
With Dimm, GD-Drive cover closed, no game (Error 24)

The did the following tests in the test menu:
Tested RAM without cartride, all good.
Tested ROM board, all good.
Tested Dimm board without game (prog. ver. 1.02, all good except Dimm status = bad and GD Drive bad).
Tested Dimm board with game, I get a Dimm board time out message and "Unknown game" is displayed in test menu






StormyNormy

Student
Joined
May 16, 2022
Messages
24
Reaction score
22
Location
Germany
After a good week of research of what could be the problem and what to try out, I measured the voltage of the setup under load. To do that, I had to remove the cover from the mobo and dimm board. To my surprise everything operated without any problems (yes, really).
I put the Naomi 2 back in its case but not the dimm board and now the setup works again. I'll leave it that way.

P.S.: The BIOS I tried with GGXX was a 23605B (japan) and not a 23608A (export) as stated in my previous post.


Papalati

Student
Joined
Jun 14, 2021
Messages
88
Reaction score
24
Location
United States
I’ve got a similar issue with an N1 with no video or audio. And without schematics it’s pretty tough to work these issues out. Hell I can’t even find a pinout for the bios chip. I’ve reflowed all the chips except what is under the hsf and heatsink and recapped the whole board. Not sure what else to do without schems.


channelmaniac

Professional
Joined
Mar 19, 2021
Messages
216
Reaction score
379
Location
Dallas, TX, Metromess
BIOS is a 16Mb chip... Similar pinout to the M27C160 EPROM from ST Microelectronics.


Papalati

Student
Joined
Jun 14, 2021
Messages
88
Reaction score
24
Location
United States
Sounds like bga issue. Bios traces look good?
Yeah, I don't see any physical issues with the board. All the chips are receiving 5 and 3.3v but they just aren't getting hot. And the 2 heatsinks aren't getting warm either. The board acts like it should be on, but nothings happening. Full recap and full reflow and still nothing. After replacing the super cap I got hum in the speakers again as if they were gonna turn on, but that's all. So yeah, all I could think of was either the gpu or the cpu at this point. Depending on the amount of the bga needing reballing I do have the tools to do it. Also helps if there is a stencil for it.


channelmaniac

Professional
Joined
Mar 19, 2021
Messages
216
Reaction score
379
Location
Dallas, TX, Metromess
Make sure the fan on the motherboard is good and spinning. The Naomi won't boot if the fan isn't spinning properly. Also look closely at the supercap next to the battery. If it looks oily on the PCB around it or if its solder joints look dull or crusty then it is leaking. That electrolyte will damage the traces under the 8 pin EEPROM socket first then spread out to the 32k x 8 battery backed RAM (IC29, IIRC) and / or under the BIOS socket, depending on how the board is mounted in the cab.


chacal231077

Grand Master
Joined
Dec 21, 2017
Messages
604
Reaction score
202
Location
France
Hi! :)

I can't find the RAM (IC106 and IC107) on my Naomi 1 motherboard ?(

Is this Ram location only on Naomi 2 :?:

Thanks You


nnap

Professional
Joined
Aug 28, 2018
Messages
304
Reaction score
378
Location
Switzerland
I don‘t remeber if those are on Naomi 1 but make sure to check both sides of the board for the silkscreened numbers. Do they show up as bad in the memory test?


StormyNormy

Student
Joined
May 16, 2022
Messages
24
Reaction score
22
Location
Germany
Hi all,

Can I use any SCSI cable to connect the DIMM board with the GD-Rom drive or is the wiring for the Naomi special?
Are there any known compatibility issues between Naomi BIOS and DIMM firmware version (e.g. BIOS ver. X does not work with DIMM fw. ver. Y)?

Thanks.
