Wow THANK YOU for sharing these @Tailsnic Retroworks !! I really appreciate it. These will surely help many! (myself included!)
Last edited:
Resurrecting the 32/64MBIT flash project and 8/16 bit addressing.
- Thread starter hatmoose
- Start date
Tailsnic Retroworks
Champion
Sorry, guys. I have detected an error on my GERBER. A21 byte signal is not passing through any LVC244A, so it is reaching with +5V pulse logic for the 64mbit roms.

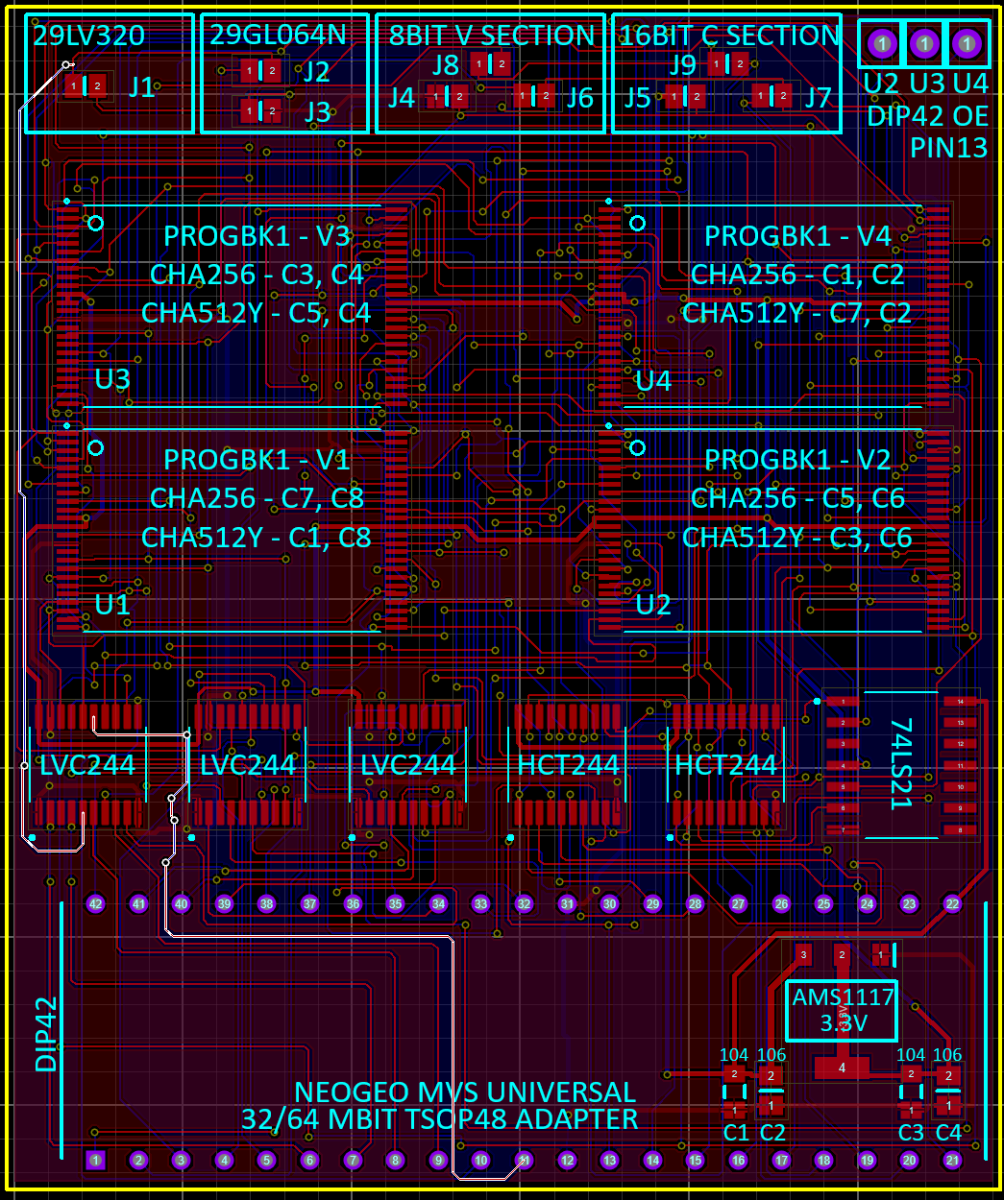

This is the new version with a fix that passes A21 byte signal from romboard to one of the LVC244A, and the output is following the original destination pinout with the jumpers selection. Sorry
This is the new version with a fix that passes A21 byte signal from romboard to one of the LVC244A, and the output is following the original destination pinout with the jumpers selection. Sorry
Thanks for the updateSorry, guys. I have detected an error on my GERBER. A21 byte signal is not passing through any LVC244A, so it is reaching with +5V pulse logic for the 64mbit roms.
This is the new version with a fix that passes A21 byte signal from romboard to one of the LVC244A, and the output is following the original destination pinout with the jumpers selection. Sorry
! @Tailsnic Retroworks
PinballArcadeDruid
Student
@pierpa86 where did you order the pcb?Got adapterswaiting for ic .. maybe next week i will start some test ..
i use only JlCPCB
