> IIRC RingSystems were custom

The motherboards for the Ring* were made from 3 different manufacturers. The common one is the MSI MS-9667, which you can find bits online about unrelated to SEGA but I'm unsure if it was ever used in anything other than the Ring* - so far more custom than the Gigabyte one in the Alls!

Interesting that they've gone for such high specs with this machine - Lindy + Ring* seemed fairly low-spec for their time compared to this.

  • Like
Reactions: AMS

twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
9,654
Reaction score
8,819
Location
NH, USA
The motherboards for the Ring* were made from 3 different manufacturers. The common one is the MSI MS-9667, which you can find bits online about unrelated to SEGA but I'm unsure if it was ever used in anything other than the Ring*
Well, the Ring mobos had the extra connector on them for the sub-board along the top, I've seen a few PNs thrown around but I've yet to see one that actually has a layout that matches a ring mobo exactly.

I'm sure Sega Subbed it out to a PC mobo company, and I'm sure they modified the PCB of an existing model for Sega, but I'd be astonished if any of those actually found their way into the consumer market.

This ALLS board looks like it "IS" a consumer model, not "Based On" a consumer model. That's a very important distinction.


Zebra

Professional
Joined
Nov 5, 2018
Messages
499
Reaction score
131
Location
New York
Has anyone done any more testing of the I/O controller?

I'm interested to know if it really has a built in JVS (RS485) to USB converter?

If it does, what does Windows recognize it as? I.e. does it show up in the control panel like a regular joystick?

Can it be used on other Sega PC based arcades via the USB connection or do you have to use the regular JVS ports when using a Lindberg or Ringedge?


revengemanx

New User
Joined
Aug 6, 2017
Messages
6
Reaction score
1
Location
France
Has anyone done any more testing of the I/O controller?

I'm interested to know if it really has a built in JVS (RS485) to USB converter?

If it does, what does Windows recognize it as? I.e. does it show up in the control panel like a regular joystick?

Can it be used on other Sega PC based arcades via the USB connection or do you have to use the regular JVS ports when using a Lindberg or Ringedge?
I made some test with io. Jvs mode works great in ringedge system it's plug and play. I plugged io to pc you can see the io board name in joystick but impossible to use it analog inputs Seems not to work or detected. If I run teknoparrot in dinput mode for a Game buttons works but not analog such as steer and pedals. Maybe need a driver for analog don't know.


Zebra

Professional
Joined
Nov 5, 2018
Messages
499
Reaction score
131
Location
New York
I made some test with io. Jvs mode works great in ringedge system it's plug and play. I plugged io to pc you can see the io board name in joystick but impossible to use it analog inputs Seems not to work or detected. If I run teknoparrot in dinput mode for a Game buttons works but not analog such as steer and pedals. Maybe need a driver for analog don't know.
Thanks.

That is interesting that it works as a regular digital joystick.

It doesn't surprise me that Teknoparrot wouldn't work with it for analog controls. TP only seems to work with direct input and Xinout analog controllers. I've always had trouble using analog devices that output like HID controllers in Windows like my Apac and UHID.

Have you tried it with Mame to see if analog control inputs are recognized ?


revengemanx

New User
Joined
Aug 6, 2017
Messages
6
Reaction score
1
Location
France
i didnt try mame but i tried to calibrate in windows ( you have the io name that is showed ) but its impossible , nothing works and you have the cross that move in all sides . if i try steer or pedals nothing happening . need a driver to work i think it will be very usefull if someone find a solution .


Zebra

Professional
Joined
Nov 5, 2018
Messages
499
Reaction score
131
Location
New York
i didnt try mame but i tried to calibrate in windows ( you have the io name that is showed ) but its impossible , nothing works and you have the cross that move in all sides . if i try steer or pedals nothing happening . need a driver to work i think it will be very usefull if someone find a solution .
Is it possible that the analog inputs on the I/O board are on different pins when using it via USB?

I wonder if it would work on some of the PC based JVS games that work outside of Teknoparrot like Operation Ghost and Time Crisis 5 - games where JVS input can be switched on or off in the config file.

If it doesn't work with these games then maybe Sega simply abandoned the JVS protocols for the USB output.

If it requires drivers then they'd be found on House of the Dead Scarlet Dawn or one of the few others sold with a USB compatible I/O.


nem

Enlightened
Joined
May 29, 2016
Messages
3,692
Reaction score
2,736
Location
Finland

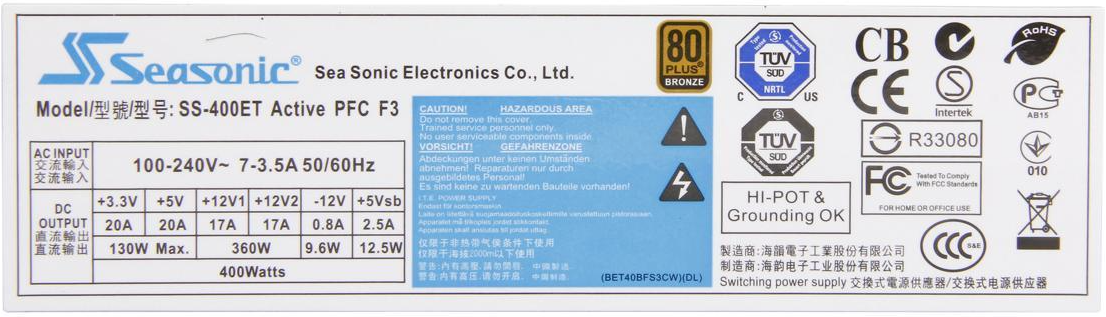

The ALLS in my ALL.Net P-ras Multi cab is more or less the same as the one @AMS has:

Gigabyte MDH11BM rev. 1.0
2x8GB of DDR4
ELSA GeForce GTX1070 8GB ST for SEGA

It has two drives. One smaller SSD and a larger HDD.

Sorry, no idea what CPU. I didn't have any thermal paste on hand, so I left the CPU alone.

Probably comes as no surprise to anyone, but the AMI BIOS is password protected.
