APOCALYPSE Sega C2 Multi Sales and Support

What is the GAL files for? It's mentioned in the OP but never discussed after and the link doesn't work anyways. Is the full install strictly the EPROMs and jumper settings with a single cable install?

Your multi should already have a gal on it programmed. The gal file in the rollup is not needed.

Thank you for confirming. Programming the 322s has been an adventure. My T56 supports it but doesn't actually program them...must be a bug or something. Had to get the GQ 4x4 with the adapter. Programs them nicely (after doing some necessary tweaks).

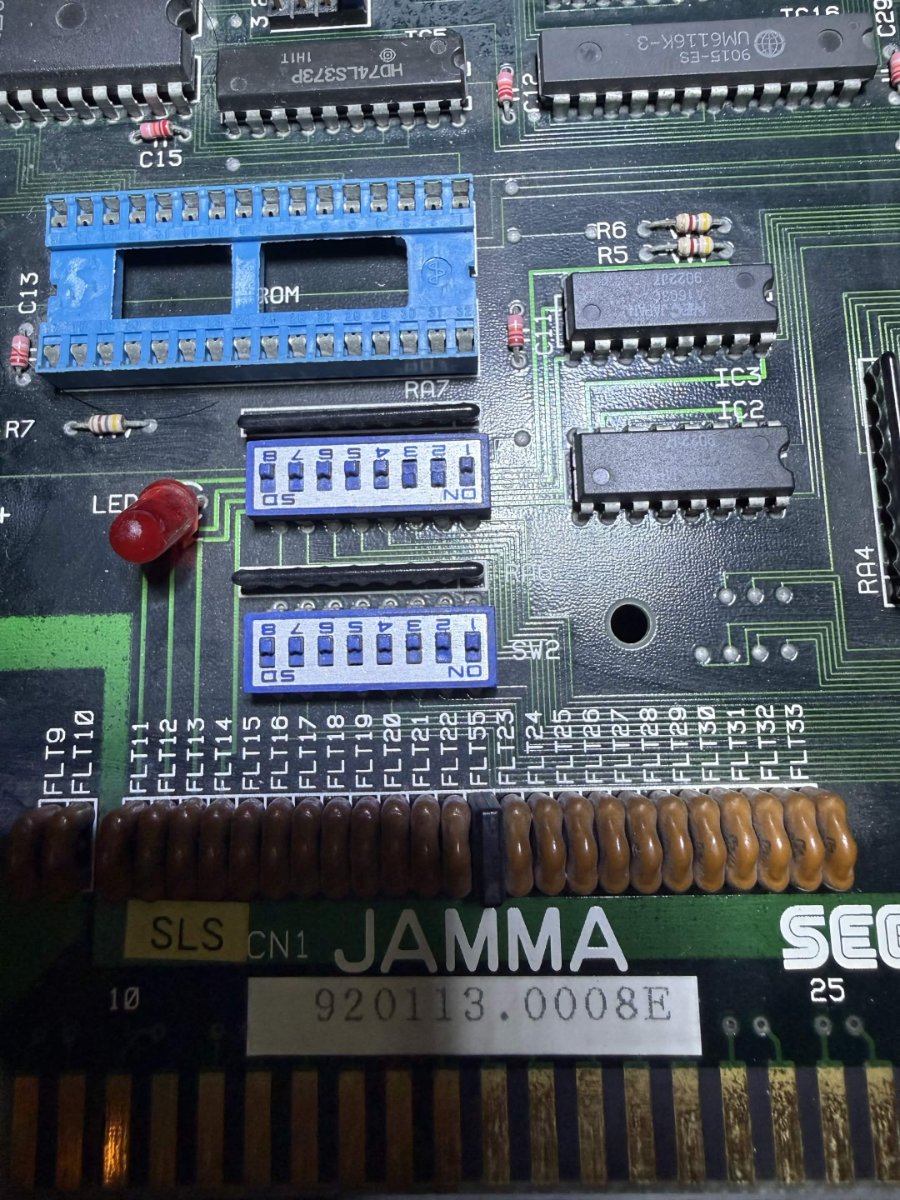

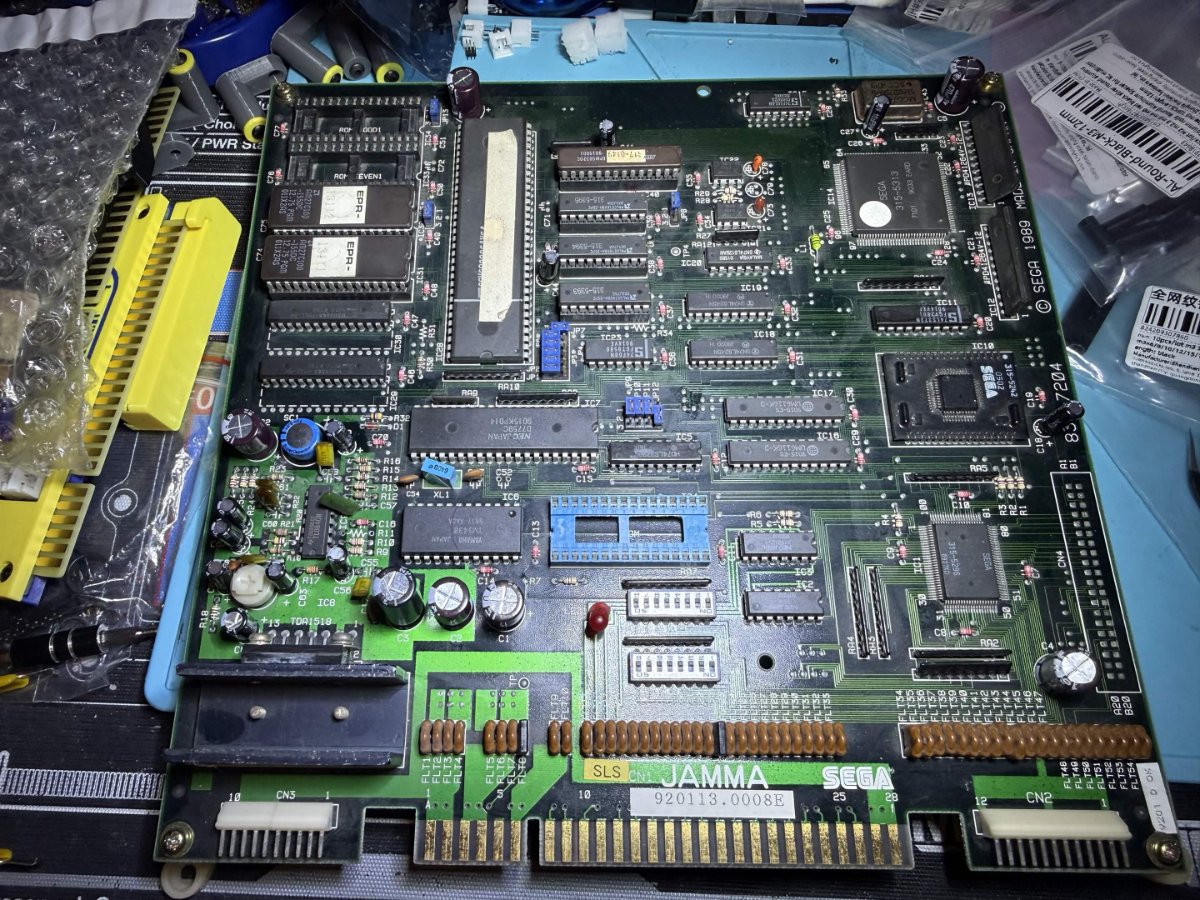

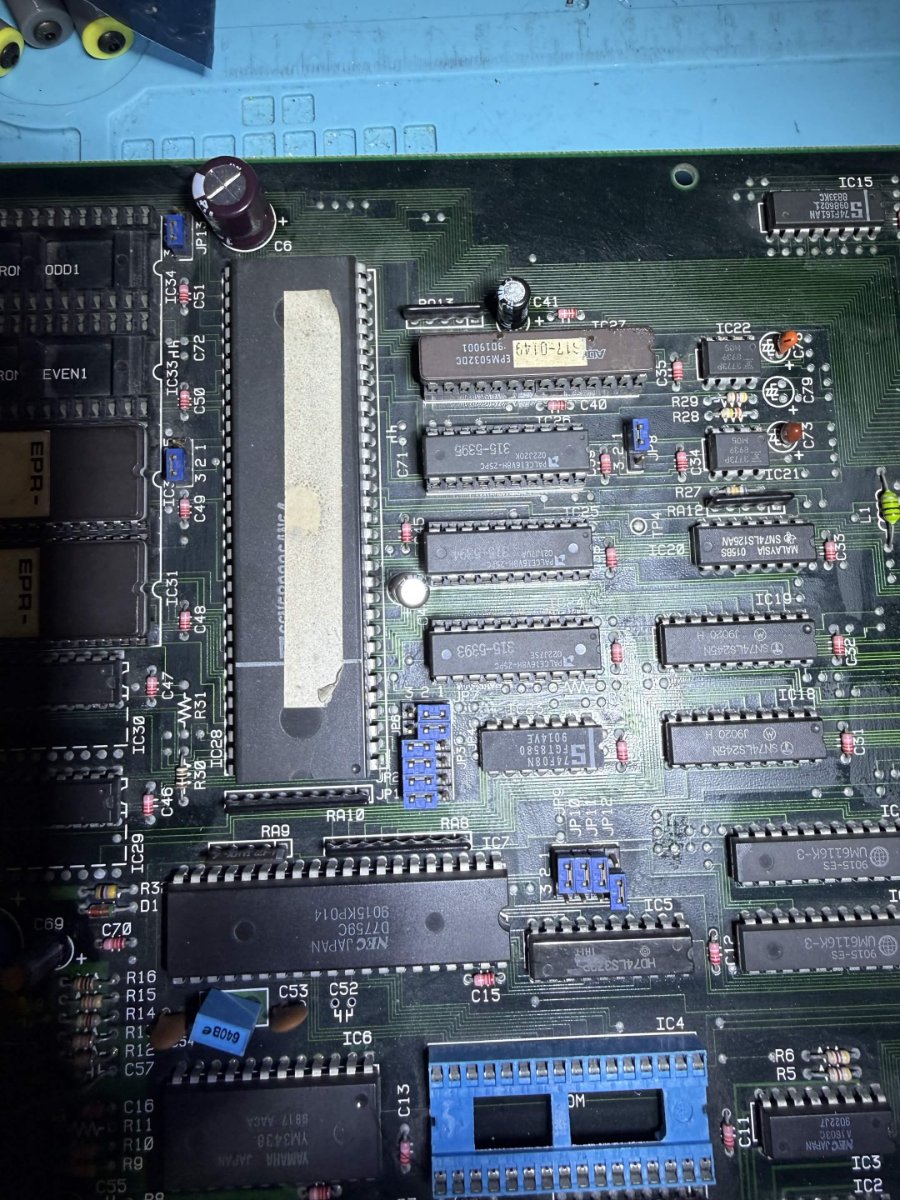

Well...something simple just turned complicated. Here's my board I got from YAJ. Could you tell me what the jumper settings should be on this board if I try the multi or is it missing something cause it's definitely far more populated than any other regular C board and has all the chips discussed as what would be missing from a regular C board, I believe. Even has a bodge wire on the back.


Attachments

  • 20220615_175414 (1).jpg
    20220615_175414 (1).jpg
    281.9 KB · Views: 9
  • IMG_8900.jpg
    278 KB · Views: 9
  • IMG_8901.jpg
    329.1 KB · Views: 9
Is there any specific settings needed for the 322's to program each one? The buffer in the GQ 4x4 software shows something different than Xgecu. It looks byte-swapped, but I'm not knowledgeable enough to know how that will affect burning the EPROMs.
Other settings I don't know...like are they 16bit or 8bit files?
If they are byte swapped in GQ's software, then just selecting byte-swap and if 16bit is needed, switch to 16bit to burn?
