I gotta say I'm excited to get my hands on this new selector. I'd like to design a case for it once it's done.

for years I've wanted an excuse to retire the cases for the current Arduino based selector.
I have the pcb ordered and should have it soon to start testing
My STV multi cart is on its way too


BladeZX

Professional
Joined
Jul 11, 2019
Messages
428
Reaction score
333
Location
Canada

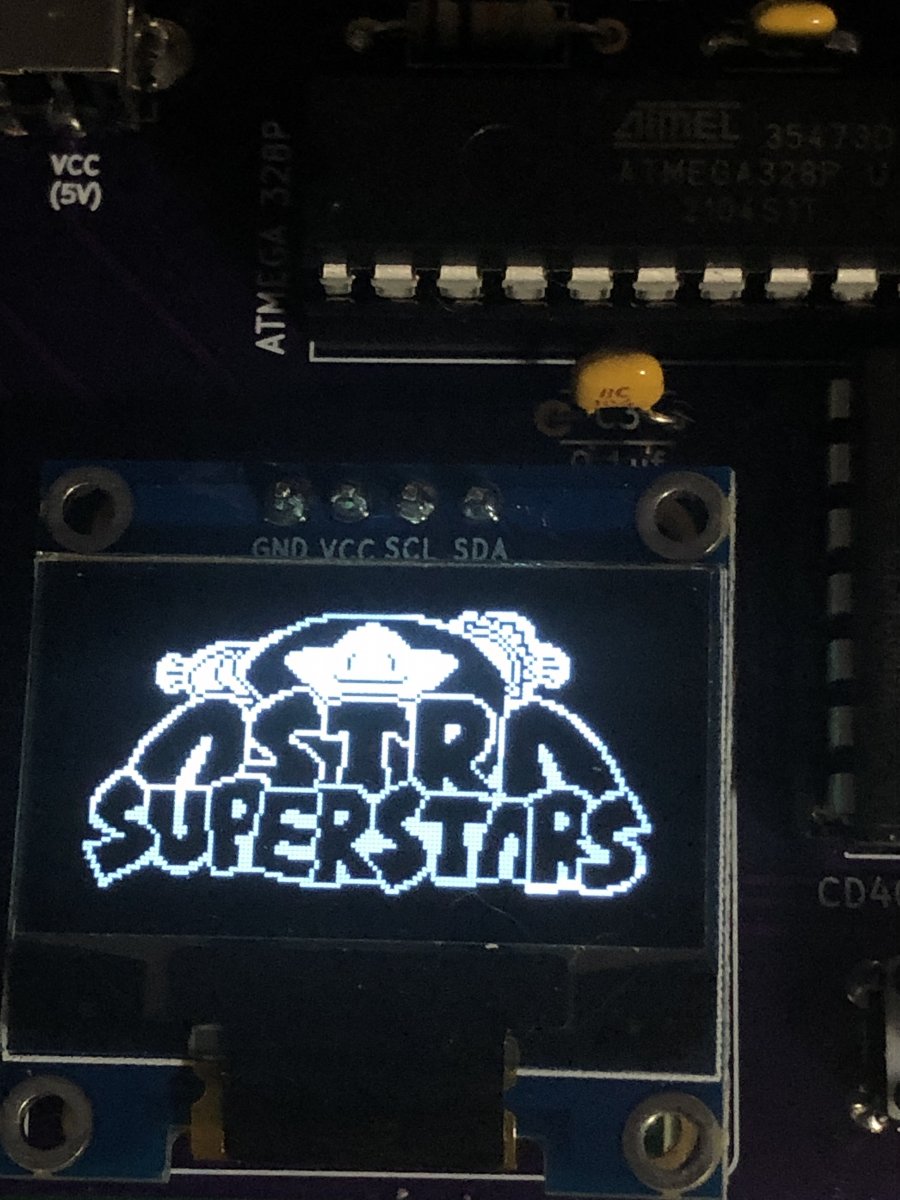

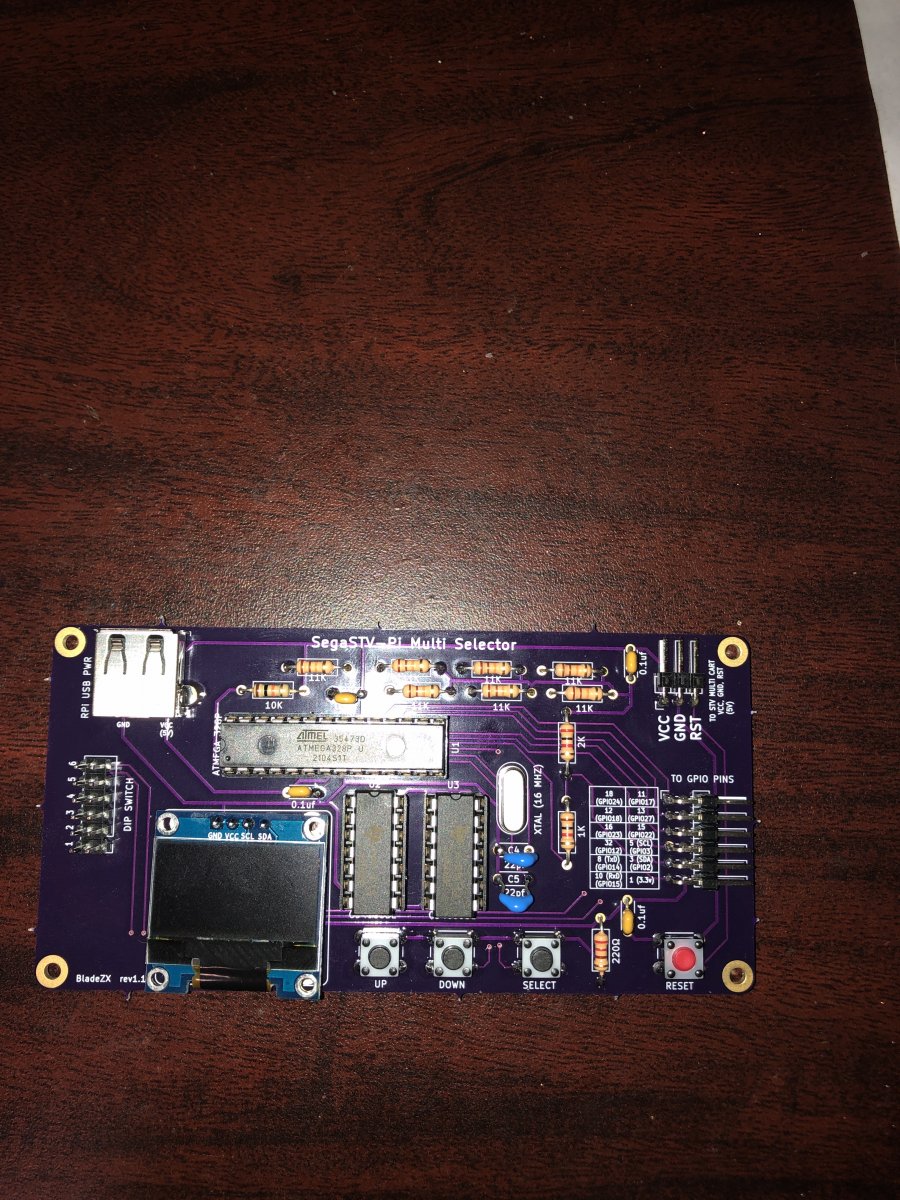

Prototype built and STV cart has arrived
Now to test it


Attachments

  • image.jpg
    276.5 KB · Views: 37

twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,130
Reaction score
9,526
Location
NH, USA
Why such a big pcb? And you're using both mcu AND a Pi? It seems like a lot of overkill


opt2not

Multi Boyz Pixeler
Enlightened
Multi Boyz
Joined
Nov 10, 2015
Messages
1,845
Reaction score
2,708
Location
California
I got busy this week and couldn’t work on more icons. But I’ll get you some more soon.


BladeZX

Professional
Joined
Jul 11, 2019
Messages
428
Reaction score
333
Location
Canada
Why such a big pcb? And you're using both mcu AND a Pi? It seems like a lot of overkill
Yea I could have used the Pi but I like working with the atmega
Using the atmega allows me to load the last game right away without waiting for the Pi to startup


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,130
Reaction score
9,526
Location
NH, USA
oh, earlier I thought you said this was going to be built on a Pi Zero, I'm glad you're going with a Mega instead.


BladeZX

Professional
Joined
Jul 11, 2019
Messages
428
Reaction score
333
Location
Canada
Pi zero will still be used for web page access
My whole goal is not to have to get into the cabinet


LazerFlux

Professional
Joined
Feb 12, 2017
Messages
335
Reaction score
267
a whole pizero seems a bit overkill at that point, IMO. Maybe you could have an ESP8266 module handle that? it's more than capable of a simple captive web page, and I bet you could feed it the bitmaps over serial if required, maybe from a separate i2c flash rom if required/more convenient

it's also like, 1usd vs 10-20usd and a whole linux environment.

Though at this point that would all require a significant redesign. Just my 2c.


LazerFlux

Professional
Joined
Feb 12, 2017
Messages
335
Reaction score
267
Got the STV multi cart installed and wired to audio and reset on the motherboard - that took a bit of time
Hooked up the STV multi selector and tested it out

Sorry for crappy video - iphone 8 camera
Here is a demo

Oooooh, now I see. You want the deluxe experience. Yeah, you can't get that from an ESP8266 lol


opt2not

Multi Boyz Pixeler
Enlightened
Multi Boyz
Joined
Nov 10, 2015
Messages
1,845
Reaction score
2,708
Location
California
Yo, I just wanted to confirm what's left to do for the Icons:


STV COMPLETED ICONS

Astra Super Stars
Die Hard Arcade
Final Fight Revenge
Golden Axe The Duel
Groove On Fight
Guardian Force
Maru-Chan de Goo
Sando-R: Puzzle & Action
Radiant Silvergun
Steep Slope Sliders
Touryuu Densetsu Elan Doreé
Virtua Fighter Kids
Final Arch

INCOMPLETE ICONS

Baku Baku Animal
Batman Forever
ChoroQ
Columns 97
Cotton 2
Cotton Boomerang
Critter Crusher
DaeJeon! SanJeonSuJeon
Danchi de Hanafuda
Decathlete
Dyanmite Deka
Ejihon Tantei Jimusyo
Funky Head Boxers
Hanagumi Taisen Columns: Sakura Wars
Karaoke Quiz Intro Don Don!
Magical Zunou Power
Mausuke no Ojama the World
Microman Battle Charge
My Fair Lady: Virtual Mahjong II
Name Club
Othello Shiryouyo
Pebble Beach Golf Links: The Great Shot
Princess Kurara Daisakusen
Print Club 2
Print Club 2 Vol.3
Print Club Pokemon B
Pro Mahjong Kiwame S
Puyo Puyo Sun
Sea Bass Fishing
Shanghai: The Great Wall
Shienryu
Soukyugurentai
Stress Busters
Suikoenbu
Super Major League
Technical Bowling
Tecmo World Cup ‘98
Virtua Fighter Remix
Virtual Mahjong
Winter Heat
Zen Nippon Pro Wrestling Featuring Virtua
Zenkoku Seifuko Bishojo Grand-Prix: Find Love


Does this list look right?

Last edited:

opt2not

Multi Boyz Pixeler
Enlightened
Multi Boyz
Joined
Nov 10, 2015
Messages
1,845
Reaction score
2,708
Location
California
Great! Thanks @nem I’ll update the previous post to keep track.
I’m working on the Cotton’s right now, since I made the logo for Cotton 1 on the Sega 16b. I can just update that logo for 2 and boomerang.


nem

Enlightened
Joined
May 29, 2016
Messages
4,028
Reaction score
3,145
Location
Finland
I kind of forgot this altogether

Quick and dirty


Columns 97

Is there any place where I can find screengrabs of title screens in original resolution uncompressed or do I need to start launching Mame?


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,130
Reaction score
9,526
Location
NH, USA
System16 often has them as does the launch oz website. Lunchbox and hyperspin actually often have high res logo only images too. Beyond that. I don't know if any other better resources.
