I need help buying the right I/O board that can make it run since I have the Taiko 10 DVD and dongle? Also, I have the Taiko Force Lv5 drum (Replica arcade size drum made for consoles) that I bought from Taobao, I'm wondering if it's straight forward to wire it to the board?

PS: I'm not really skilled in electronics

Taiko Force Lv5
Taiko Force Lv5.jpg

Back

Shock sensors circled (There are two more on the face but I cannot get a good angle)
Shock senors.jpg

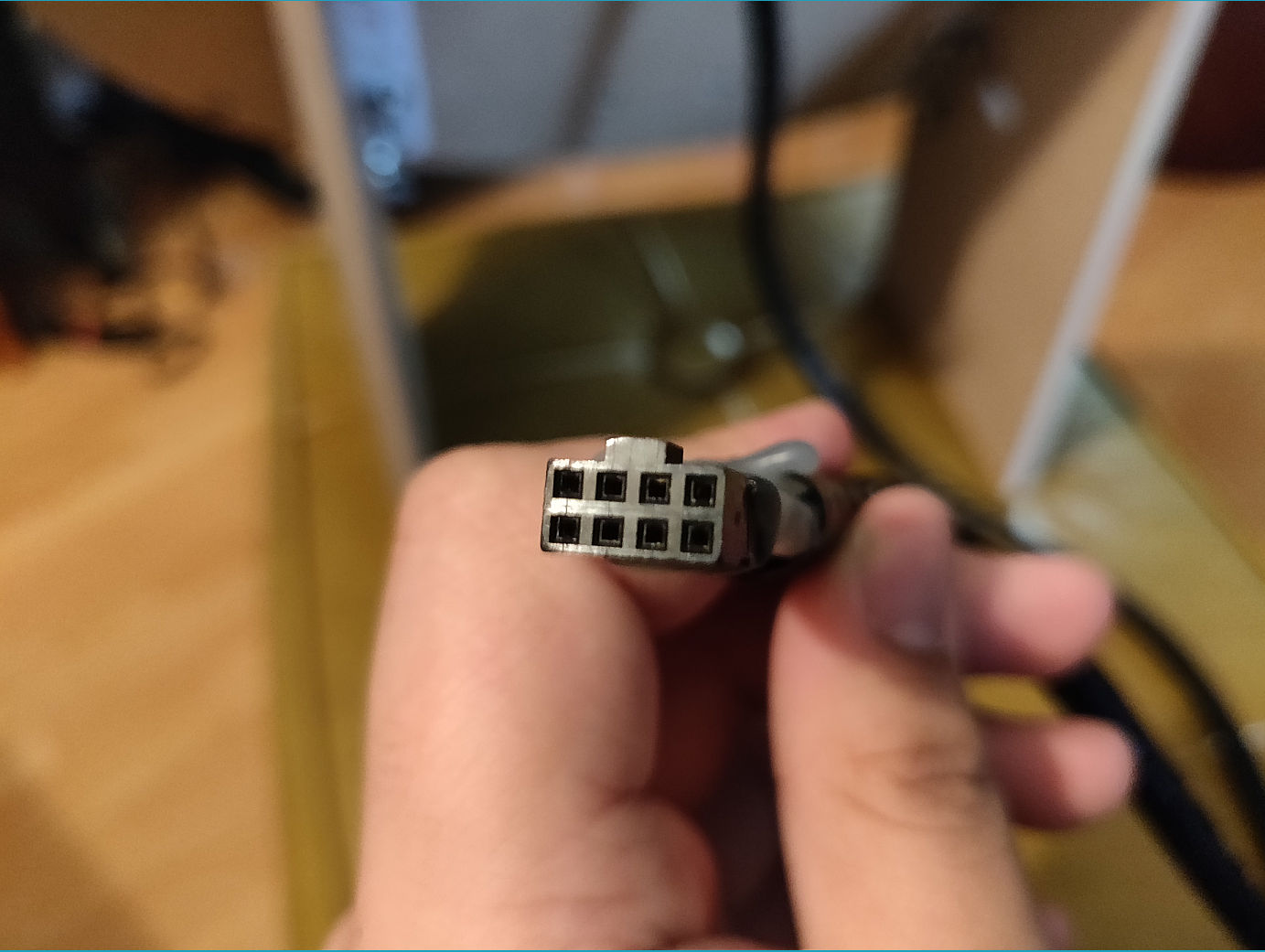

The connector from the shock sensors
Taiko Force Lv5 connector.jpg

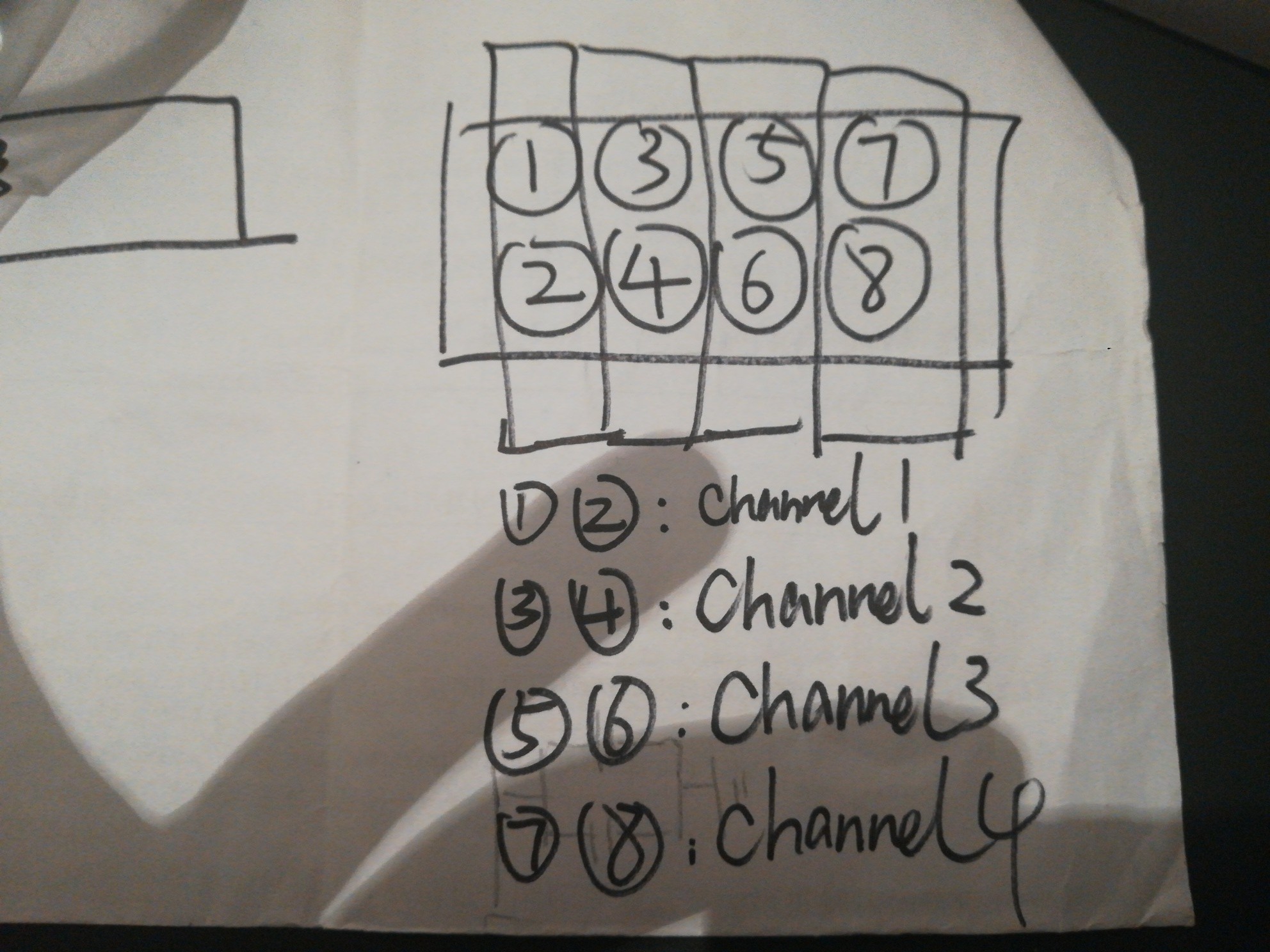

Pin out from the creator of the drum


rewrite

Multi Boyz Litigator
Legendary
Multi Boyz
Joined
Nov 9, 2015
Messages
6,537
Reaction score
4,360
Location
SoCal
You need both the SIF PCB and the IO. Both are NLA through Namco, and I've checked with just about every major arcade distributor and retailer in the English speaking world as well as all the big players in Japan. They're simply not available to purchase.

I haven't seen one to purchase on YAJ outside of a cab in about three years now. Not since I bought my two NOS drums and couldn't afford to snag the PCBs as well. I've had search alerts on ebay for not only Taiko but the exact PCB model numbers just as long, with zero hits.

Your options are pretty much either buy a whole cab for them, or luck into someone parting one out for whatever reason. Or build your own. A few people have gone that route and found success but refuse to share their information.

I know that isn't helpful really, but it's the reality of the Taiko situation as it stands.

If by the grace of God you find a source for either of these parts, let me know too. I've been searching way too long.

Last edited:

dash3296

Beginner
Joined
Nov 14, 2018
Messages
19
Reaction score
7
Location
Richmond, Canada
I saw two videos where the owners use buttons to play and it works. I'm not sure how they got it to work though.



brizzo

Staff member
Champion
Joined
Jun 21, 2017
Messages
838
Reaction score
2,390
Location
Canada
Woah I didn't know you could buy such a drum for home/diy setups....

The past few weeks we have been studying the I/O requirements for other SYS2X6 games and how to patch certain games to work with common i/o boards, but now Taiko series is even more on my radar as there is a solution for the drum :D


dash3296

Beginner
Joined
Nov 14, 2018
Messages
19
Reaction score
7
Location
Richmond, Canada
I was told that the top pins are the input and the bottom is ground


aoiddr

Enthusiast
Joined
Jul 21, 2015
Messages
360
Reaction score
121
Location
Georgia, USA
I attempted to wire up a PlayStation 2 Taiko drum to a Sega I/O a while back (and buttons before that), but hit a brick wall with the build. Here are some forum links for what I came up with, if anyone finds this helpful. I'm definitely hoping someone can figure out a solution to get these games to work one day.

The i/o pinout that I was able to figure out:
Help buying the right 256 stuff

Some wiring diagram links can be found here:
S-JIHP: Sega JVS I/O Helper PCB


dash3296

Beginner
Joined
Nov 14, 2018
Messages
19
Reaction score
7
Location
Richmond, Canada
Well unfortunately I contacted the creator of the Taiko Force Lv5 Drum, and he said that it needs the SIF board as well to work. So can anyone help me on how to wire standard arcade buttons to the analog port to make it at least playable?


dash3296

Beginner
Joined
Nov 14, 2018
Messages
19
Reaction score
7
Location
Richmond, Canada
I have a SEGA Jamma to JVS I/O board revision B but I'm not sure how to power it.

Can someone help me on what power supply I need to buy to make it work on a 256 or how to mod a PC power supply?


nem

Enlightened
Joined
May 29, 2016
Messages
3,875
Reaction score
2,934
Location
Finland
It leeches power from the jamma connector. Most likely it just needs 5V. Power draw is something negligible.

You know you can't power the 256 through it?


dash3296

Beginner
Joined
Nov 14, 2018
Messages
19
Reaction score
7
Location
Richmond, Canada
It leeches power from the jamma connector. Most likely it just needs 5V. Power draw is something negligible.

You know you can't power the 256 through it?
Yeah I know.

I actually meant to say how to power the namco 256 and the jamma. The power supply I have right now is a switching power supply.

By the way, I saw someone on twitter use a terminal block to power both and it works. Is that safe to do?


nem

Enlightened
Joined
May 29, 2016
Messages
3,875
Reaction score
2,934
Location
Finland
Yes, of course. It's actually the safer option.

If you do get separate PSUs for some weird reason, remember to tie the grounds together.

What kind of PSU is it?


dash3296

Beginner
Joined
Nov 14, 2018
Messages
19
Reaction score
7
Location
Richmond, Canada
Yes, of course. It's actually the safer option.

If you do get separate PSUs for some weird reason, remember to tie the grounds together.

What kind of PSU is it?
What I have right now is the one where you have to screw in termianls


dash3296

Beginner
Joined
Nov 14, 2018
Messages
19
Reaction score
7
Location
Richmond, Canada
By the way I'm not skilled in electronics so how do I wire it to the terminal block?

Last edited:

nem

Enlightened
Joined
May 29, 2016
Messages
3,875
Reaction score
2,934
Location
Finland
PSU looks fine.

Since it has screw in terminals, you don't need a terminal block.

Here's what you need:

Crimp on fork or ring shaped terminals (.17" should be fine),
18 AWG wire, preferably in three colours: red, yellow, black
56 pin jamma edge connector
One 6 pin VHR-6N connector + 6 pcs SVH-41T-P1.1 contacts
Heat shrink tube
Soldering iron
Crimping tool. Pliers will also suffice

Red wire is for +5V, yellow for +12V and black is for ground

Jamma pinout is here: https://wiki.arcadeotaku.com/w/JAMMA#Jamma_connector_pinout
System 2X6 power connector pinout is here: https://wiki.arcadeotaku.com/w/Namco_system_256#Connectors

Here's how I would do it:

Cut one black and one red wire to same length (at least 1' long). Solder one black wire to all four ground connector pins and one red wire to all four 5V connector pins on the jamma connector (this isn't usually recommended, but power draw on the IO is very minimal. One wire each will be fine). Put shrink tubing over the exposed contacts. Crimp your fork or ring terminals to the other ends.

Cut two red, one yellow and three black wires to same length (again, at least 1' long). Crimp your six JST contacts on each end. Put them into the plastic housing in the correct order. Crimp one fork or ring terminal to both red wires (twist tie them together), one terminal to yellow and two terminals to black (one terminal has one black wire, the other two).

Altogether you should now have two red, one yellow and three black wires with terminals on them to put under the screw in terminals on the PSU.


dash3296

Beginner
Joined
Nov 14, 2018
Messages
19
Reaction score
7
Location
Richmond, Canada
Thanks, my Taiko 10 works.

Next step is on how do I wire buttons to the 26 pin analog port on my sega i/o board?
I have this type of button and micro switch pictured below.


aoiddr

Enthusiast
Joined
Jul 21, 2015
Messages
360
Reaction score
121
Location
Georgia, USA
Thanks, my Taiko 10 works.

Next step is on how do I wire buttons to the 26 pin analog port on my sega i/o board?
I have this type of button and micro switch pictured below.
If I recall my conversations with defor when I was trying (and failing) to wire up buttons for Taiko, you need the 3-prong microswitch type as the wiring required is GND/AD/VCC.


rewrite

Multi Boyz Litigator
Legendary
Multi Boyz
Joined
Nov 9, 2015
Messages
6,537
Reaction score
4,360
Location
SoCal
My post in this thread has the JVS pinout that I was able to figure out:
I still need to get around to finding a drive/dongle combo to mess around with this myself.
