Does anyone happen to now what the OEM 1P button harness pinout is in the Vewlix Diamond Blue? I'm installing my Type X3 in my Vewlix Diamond Blue and realized I forgot to document the original harness layout before disconnecting it, which I had done so I could install a Brook UFB, so now I have no idea which wire goes to which button. I just need 1p, 2p, 3p, 1k, 2k, and 3k. Any help is much appreciated!

Does anyone happen to now what the OEM 1P button harness pinout is in the Vewlix Diamond Blue? I'm installing my Type X3 in my Vewlix Diamond Blue and realized I forgot to document the original harness layout before disconnecting it, which I had done so I could install a Brook UFB, so now I have no idea which wire goes to which button. I just need 1p, 2p, 3p, 1k, 2k, and 3k. Any help is much appreciated!

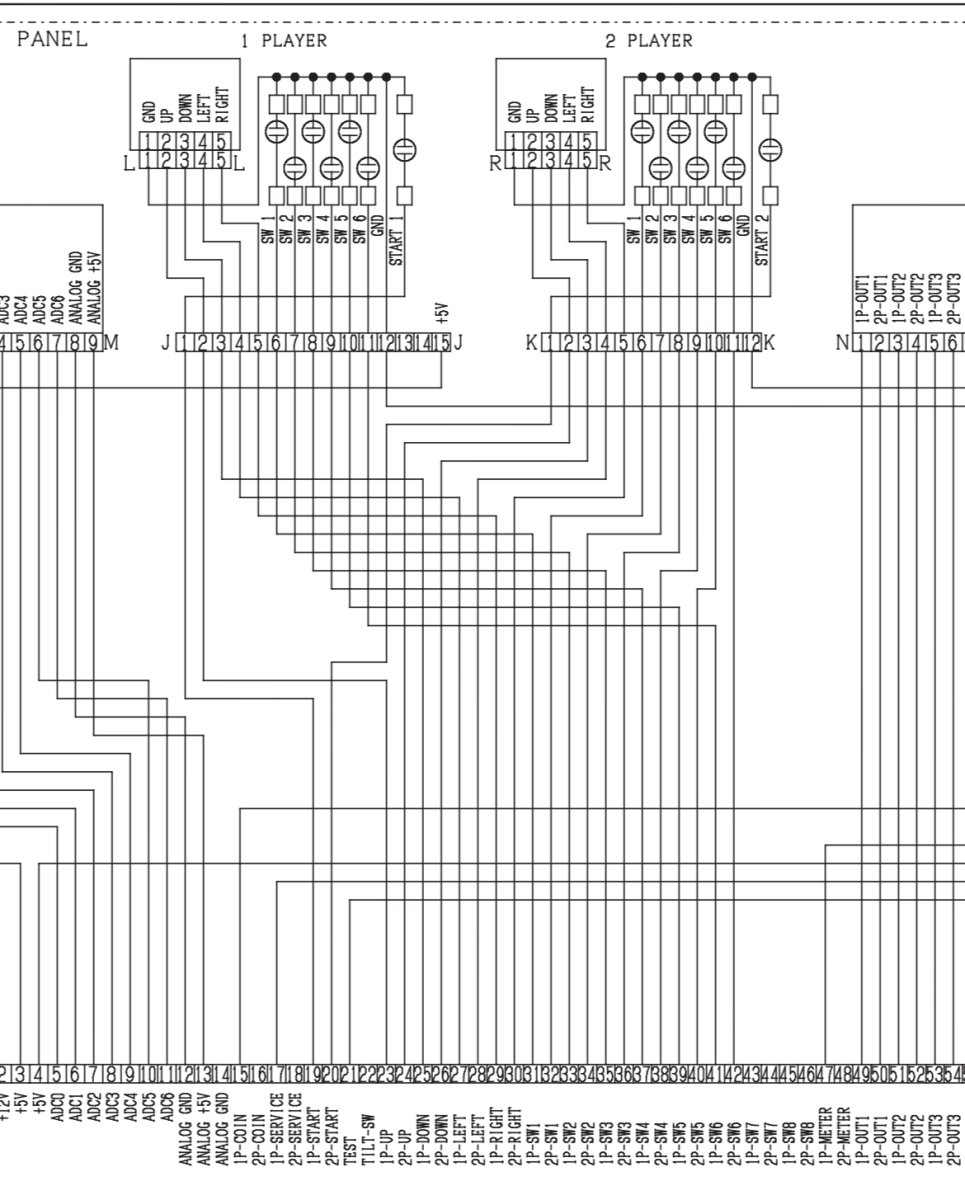

You can google vewlix manuals, here is a snippit.
