Are you sure that the mod made to that C board has been undone? I see some traces cut and some soldering blob around pin 45 from main chip in C board.


xodaraP

Legendary
Joined
Sep 21, 2016
Messages
4,644
Reaction score
3,635
Location
Gold Coast, Australia
I completely missed that. The battery looked factory and I assumed it was an unmodified C board


SubScorpion

Student
Joined
Jan 9, 2021
Messages
46
Reaction score
8
Location
USA
Are you sure that the mod made to that C board has been undone? I see some traces cut and some soldering blob around pin 45 from main chip in C board.
I didn't do anything to the board. I got it from sheep_nova on ebay this way with those pins modified and was told it was multi ready. I was under the impression the blob joining pins 44-46 was just connecting them to ground. Is that wrong and should they be desoldered and each pin returned to their original traces?

Last edited:

l_oliveira

Professional
Joined
Jun 26, 2015
Messages
515
Reaction score
573
Location
Brazil
No, the Multi writes the decryption keys to the C board every time you power up or change games. If the battery is present then the C board only retains one key and it gets in the way of the Multi changing the keys.
Actually the only reason to remove the battery is any risk of leak. The battery being present or not means nothing to the capability of the multi re-write or not the key.

Because of that, you can use the CPS Multi as a key writer for other boards.


Pinball

Enthusiast
Joined
Mar 5, 2017
Messages
180
Reaction score
72
Location
Old Blighty
Please could I check if anyone sells CPS-1 C boards without battery and without the 'desuiciding' mod?


xodaraP

Legendary
Joined
Sep 21, 2016
Messages
4,644
Reaction score
3,635
Location
Gold Coast, Australia
Where are you located? There were a couple of eBay sellers but I’m not sure if they have any remaining.

CandyCabClub run by @djsheep sells them with the multi and may still have some but shipping will be from Australia


raidenmaniac1

Student
Joined
Jul 26, 2015
Messages
106
Reaction score
53
Location
Reno NV
Could someone please PM a link to the unencrypted ROM pack ? I can not find it on archive dot org . thank you.


Pinball

Enthusiast
Joined
Mar 5, 2017
Messages
180
Reaction score
72
Location
Old Blighty
I'd like to order 2 C boards without the desuiciding mods (track cuts and wire), that are suitable for the multi. If anyone has these please could you PM me? Many thanks :)


l_oliveira

Professional
Joined
Jun 26, 2015
Messages
515
Reaction score
573
Location
Brazil
I sent you a PM, but be aware that the CPS1 Multi only runs the original Capcom ROMs.
Actually, it runs anything but it has to be on the original Capcom ROM format. The team converted a couple of hacks/bootlegs to the format the CPS1 multi needs. Some bootlegs are not actually CPS1 hardware but custom pirate boards with extra code added to the ROMs. Those won't run on the multi indeed.


Darksoft

Staff member
Immortal
Joined
Jun 12, 2015
Messages
10,597
Reaction score
15,092
Location
Poland
Exactly what Leo said. Those bootlegs kind of "guessed" how the original worked. Sometimes with more success than others, so the hacks need to be modified to work on a original CPS1!
Yes, you read it right. It sounds a bit crazy to have to hack bootlegs so they work on original CPS1, but that's what it is. In some cases they even used some weird bootlegs of B21 that worked completely different to the original ones, adding an extra layer of complexity. If someone with the time and skills could fix those, I'm sure that they could be included.

Last edited:

solderchicken

New User
Joined
Nov 7, 2019
Messages
7
Reaction score
0
Location
UK
Hi all

I have two CPS1 A+B+C.
One is a mint original SF2CF that I would like to preserve

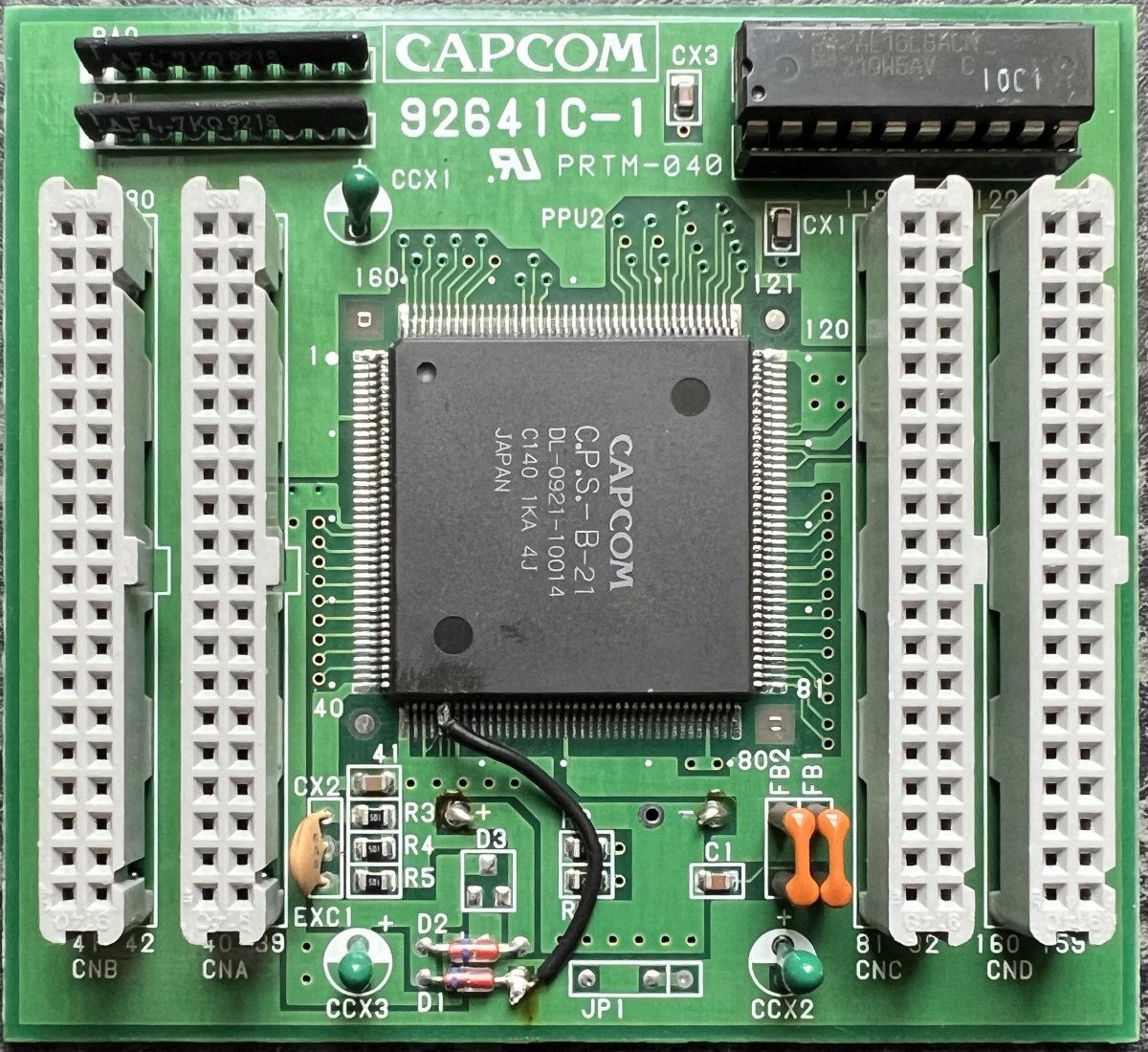

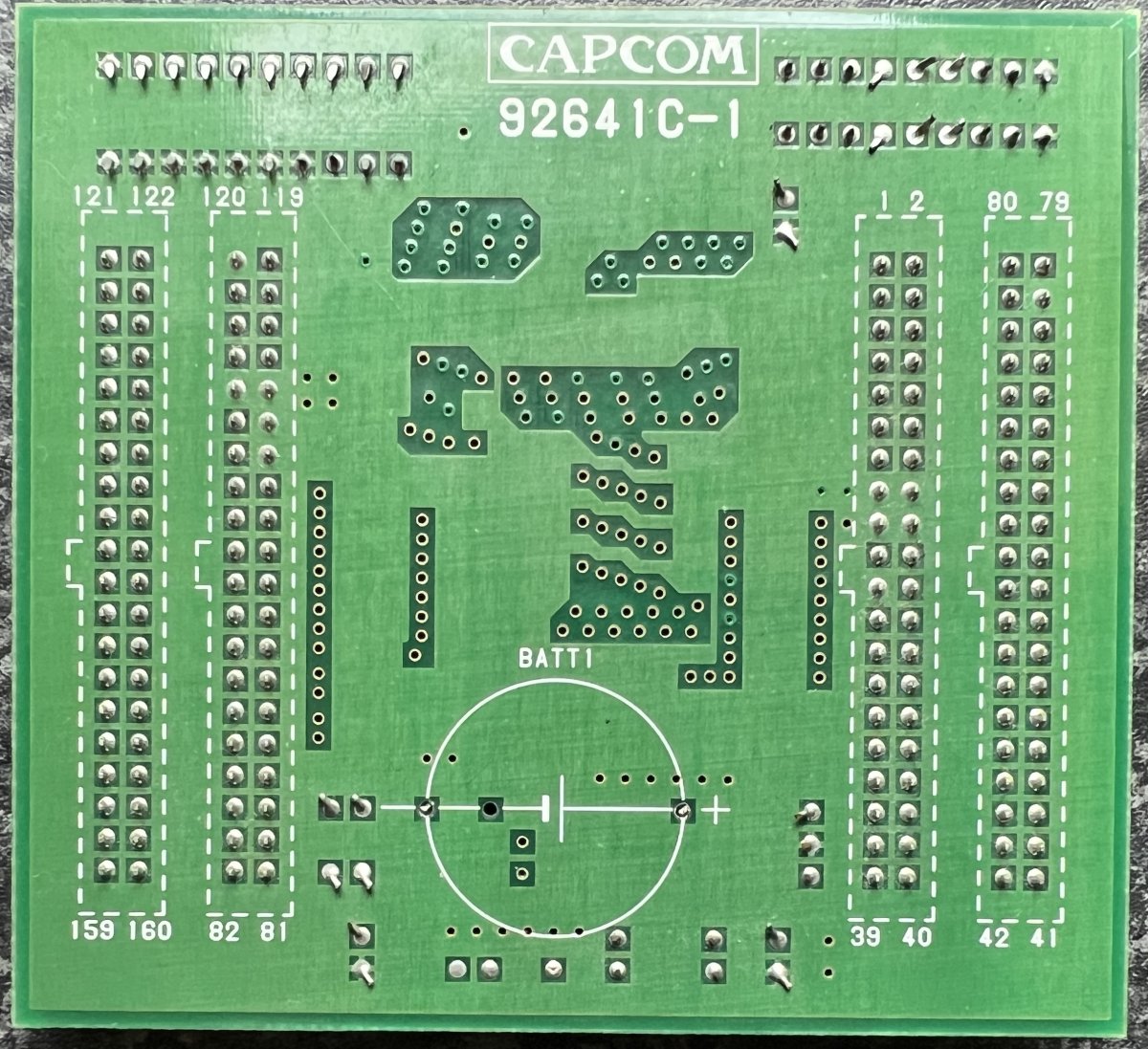

The other (bought recently with a multi in mind) is a 12mhz DASH A with a 3 Wonders conversion B and a modified 92641C-1 C board. (Pics attached)

I believe the instructions in the post
https://www.arcade-projects.com/thr...e-for-the-cps1-multi.13106/page-7#post-299448
tell me I need to tie pins 45 & 46 to GND to restore the bodge.

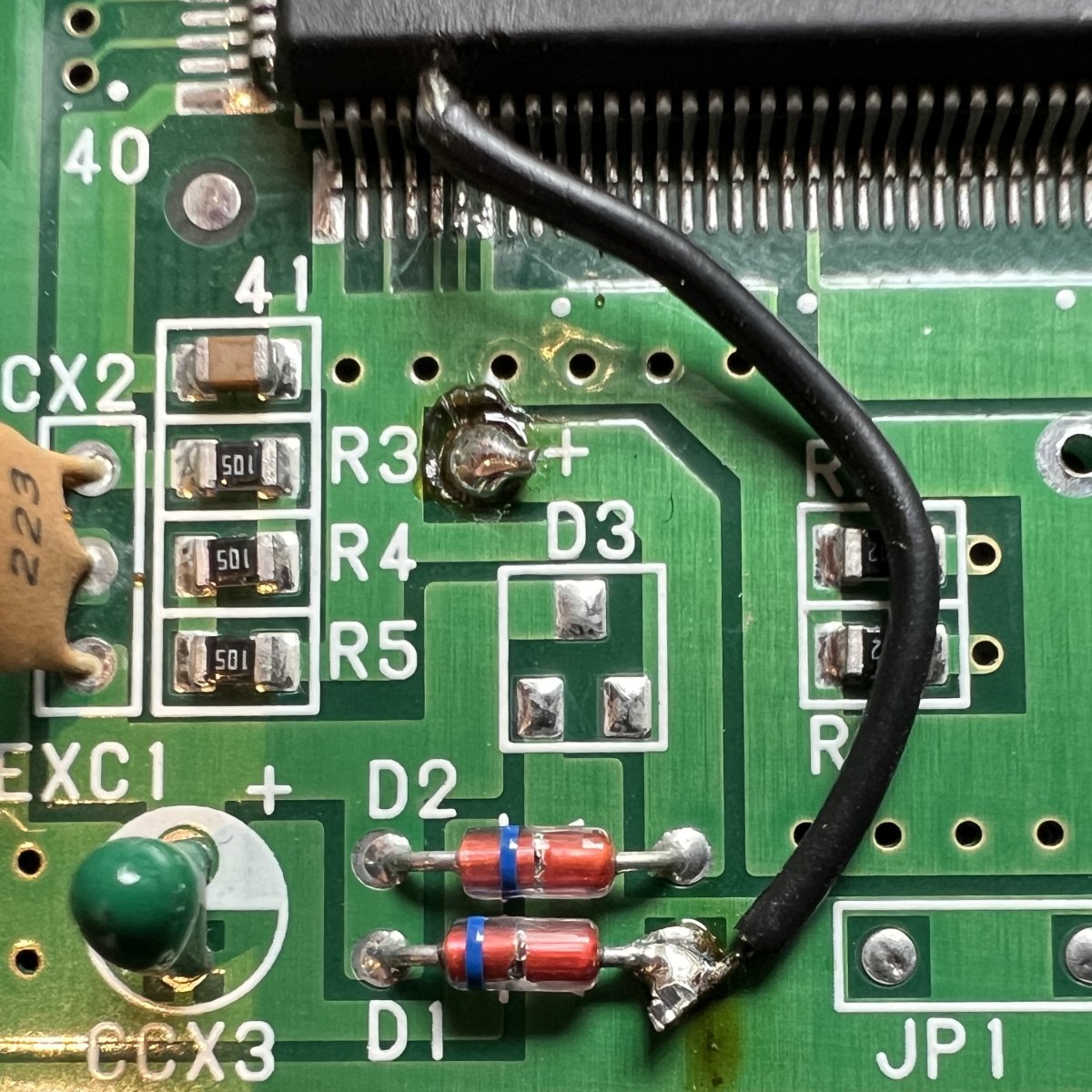

I think my 45/46 have been lifted and tied to +5V on the diode D1?

Could I simply tie this bodge wire to GND? The vias beneath pins 41-49 look like GND? Havent got the meter out yet...

It looks like the original traces for pins 45/46 were originally tied to GND? I could solder these pins back down but am worried I may break them in doing so.

Am I on the right track here, and what would be the easiest/least dangerous way to restore this C board to unmodified.

Thank you in advance! :)


Attachments

  • CPS1-C board-1.jpg
    CPS1-C board-1.jpg
    302.4 KB · Views: 23
  • CPS1-C board-2.jpg
    CPS1-C board-2.jpg
    309.9 KB · Views: 24
  • CPS1-C board-3.jpg
    CPS1-C board-3.jpg
    285.6 KB · Views: 24

SMD88

Student
Joined
Nov 9, 2022
Messages
62
Reaction score
34
Location
Australia
Just curious about something here.

Can the multi be used to re-programme suicided C boards? As in, use the un-modified C board with battery to load the related game, thus writing the keys back to the battery?
