Can someone with a AES 3-5 confirm that the latest version of the Firmware and menu works well for them with no glitches?


theafterparty

Beginner
Joined
Mar 9, 2021
Messages
8
Reaction score
2
Location
Knoxville
I have a 3-5 console with a fresh recap and unibios 4.0 and get graphical glitches on the latest firmware and menu. I rolled back to the previous firmware and it seems to have fixed all the constant glitches within games. However, I can get this repeatable garbled screen (1st picture) on games if I'm in MVS mode and let the Neo Geo splash screen play and don't hit start. It's the screen that comes up next. The particular game pictured is Last Blade 2 but it happens on other games as well. The latest firmware had the same issue. I also get no sound on the splash screen when in MVS mode even after restoring soft dip settings to default.

These issues are no big deal to me, but would like to confirm if you think they're software related. I recently bridged the pins in my cartridge and I'm wondering if that had anything to do with it, or it's just coincidence that I didn't notice that garbled screen til now. I usually play in AES mode so there's a decent chance I've just never discovered it.

One question... After bridging the pins I noticed the wire sits just below the black plate that the pcbs slide through (2nd picture). I now know I should have ideally made a "U" shape and gone above the pins, but would really love to not have to open the cart again. Does this look scary to anyone who has knowledge of how far down these sit into the connector on the AES? It did to me at first but after careful examination I see no signs it's hitting anything. Continuity is good on both sets of bridged pins. Thanks for any info.


Attachments

  • IMG_7543.PNG
    309 KB · Views: 23
  • IMG_7545.PNG
    309.2 KB · Views: 21

theafterparty

Beginner
Joined
Mar 9, 2021
Messages
8
Reaction score
2
Location
Knoxville
And sorry if I side-tracked your question Darksoft. I'll be happy to test any other firmware or menu combinations with a 3-5 if you need it.


Darksoft

Staff member
Immortal
Joined
Jun 12, 2015
Messages
9,226
Reaction score
10,786
Location
Poland
@theawhich is the one that you went back to that had no GFX glitches?


Darksoft

Staff member
Immortal
Joined
Jun 12, 2015
Messages
9,226
Reaction score
10,786
Location
Poland
OK, so same console 3-5, same Firmware but in some cases there is glitches on screen and sound. This would discard a problem with the Firmware or the cartridge, in my opinion.

It must be the PSU or some components on the motherboard reaching End Of Life.


ivan.caregnato

Beginner
Joined
Feb 16, 2021
Messages
13
Reaction score
4
Location
Italy
With RGB bypass, the solution suggested by JNX, not the one from retrorgb, I've solved a few problems. The most annoying was the one that sometime screen flashes (brightness increases for a second then returns back to normal).


theafterparty

Beginner
Joined
Mar 9, 2021
Messages
8
Reaction score
2
Location
Knoxville
The firmware I went back to is r1110. No rgb bypass here and I’m running the triad power supply.

@Ivan when you recapped did you source the caps yourself or go with something like console5?


theafterparty

Beginner
Joined
Mar 9, 2021
Messages
8
Reaction score
2
Location
Knoxville
I wonder if the RGB bypass mod is freeing up that last little bit of power needed for glitchless operation?

When I was on the latest firmware they did mostly clear up immediately after I sprayed some contact cleaner in the slot on the aes. Came back shortly after though.


ivan.caregnato

Beginner
Joined
Feb 16, 2021
Messages
13
Reaction score
4
Location
Italy
The firmware I went back to is r1110. No rgb bypass here and I’m running the triad power supply.

@Ivan when you recapped did you source the caps yourself or go with something like console5?
Console5 is ok, but I've replaced mine with caps bought from other sellers (for 2200 I've bought the one suggested in the previous page)


theafterparty

Beginner
Joined
Mar 9, 2021
Messages
8
Reaction score
2
Location
Knoxville
Hmm interesting, I almost went that route on the 2200. I may still try that at some point. I’d love to know if that does it.


ivan.caregnato

Beginner
Joined
Feb 16, 2021
Messages
13
Reaction score
4
Location
Italy
as NEOGEO is my favorite and most expensive console I own (and I own basically every console since Megadrive), when I recapped I bought the best caps I could. About RGBBypass, doing it the way JNX suggests, I've basically removed 4 410uF caps from video output (and cut off composite signal)...maybe that could be the reason I don't have any glitches


Chalks

Beginner
Joined
Dec 16, 2020
Messages
12
Reaction score
1
Location
Thailand
Hi,
I'm looking for some advice:

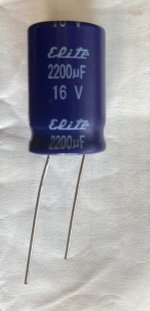

I am trying to replace the front capacitor on my AES 3-5 (light blue cap in the picture). I have bought a replacement capacitor (dark blue cap in other picture) but it looks like the legs are too thick to go through the holes. Am I right? I want to check before I start trying to replace it.
If it's unsuitable, I could order the "Panasonic 2200uf Fg 16v or 25v low ESR".
Any help is appreciated.


Attachments

  • IMG_7246.jpg
    198.4 KB · Views: 5
  • IMG_7312.jpg
    178.6 KB · Views: 5
  • IMG_7314.jpg
    113.4 KB · Views: 6

Chalks

Beginner
Joined
Dec 16, 2020
Messages
12
Reaction score
1
Location
Thailand
I haven't removed the old capacitor, yet. I am being cautious as I am a beginner.

The old capacitor legs look thinner than the new capacitor (see picture). Do you think this capacitor will fit? I want to check before I start desoldering.


Attachments

  • IMG_7315.jpg
    294.4 KB · Views: 6

ivan.caregnato

Beginner
Joined
Feb 16, 2021
Messages
13
Reaction score
4
Location
Italy
I haven't had any problem with the size of the caps' legs so far...only with the space between them (that is easily fixable). I don't know that cap you bought, I'm sorry, in any case if you remove the old cap in a proper way you can put it back...be careful not put much heat on it.


Chalks

Beginner
Joined
Dec 16, 2020
Messages
12
Reaction score
1
Location
Thailand
Ok thanks,

Can you confirm if the holes for this capacitor are bigger than the other holes in the picture? It definitely won't fit in those other holes pictured.
