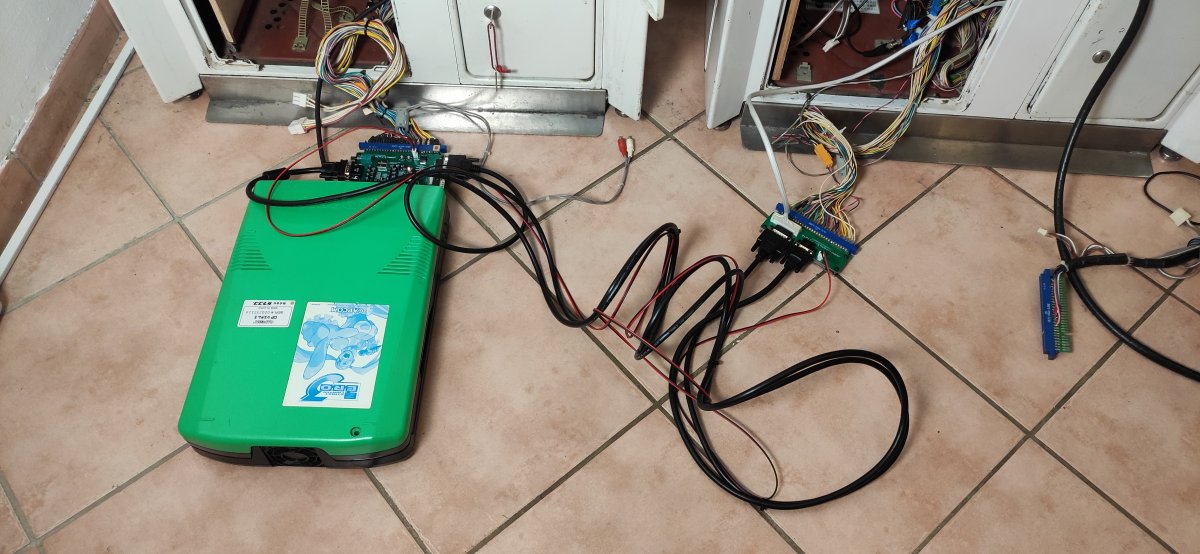

So I just hooked the Extractor up and just want to confirm by @Axun
if didn't missconnect anything

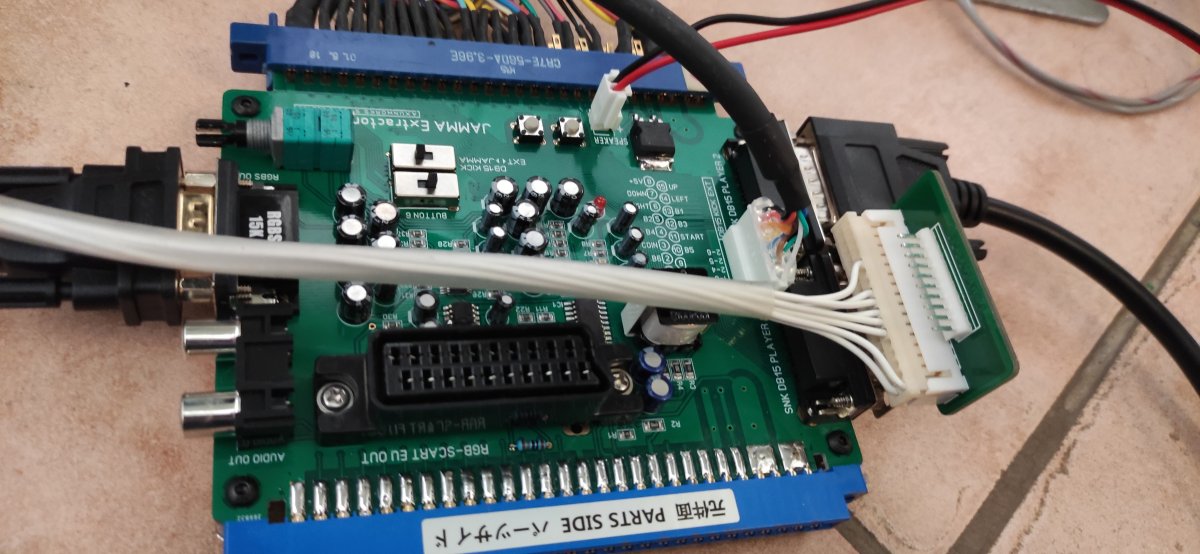

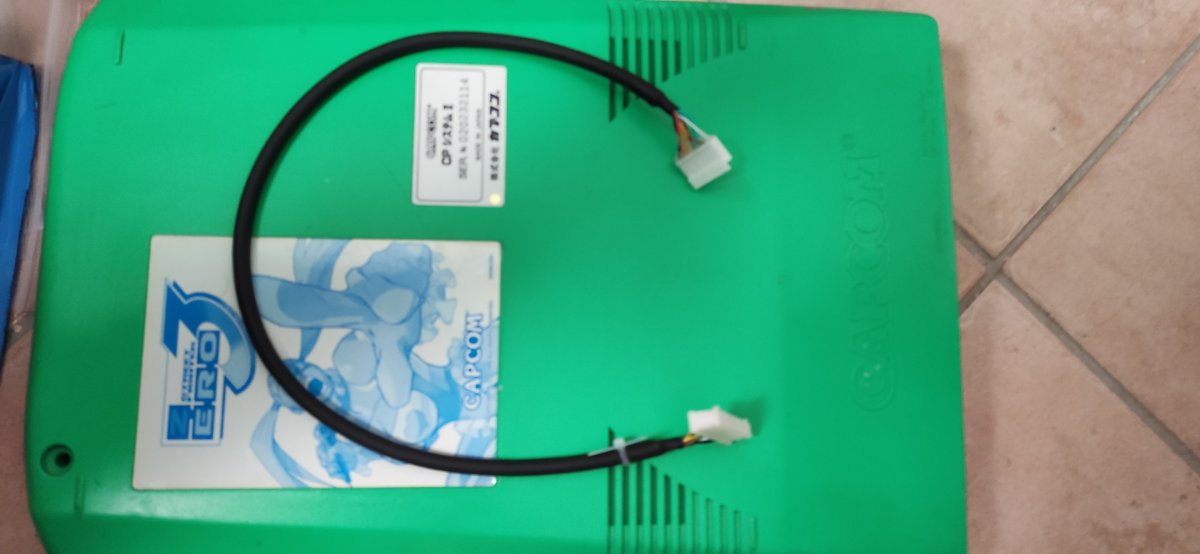

So I put the Cps2.3 Kickharness in the EXT pinout on the Extractor


Then I use the Player 1 EXT PCB hook up another Cps2.3 Kickharness that goes into the cab

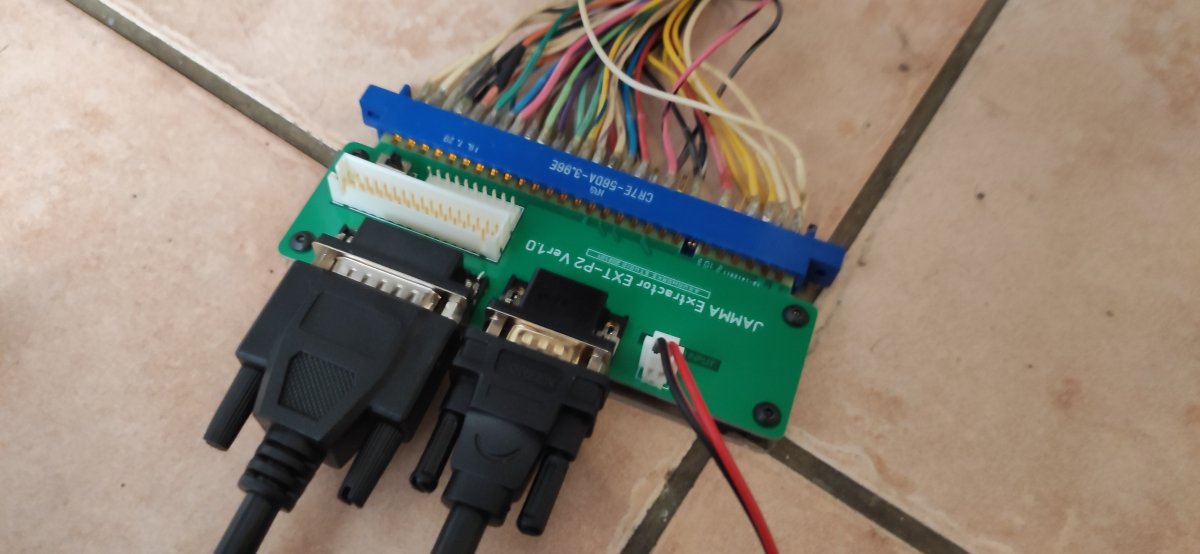

Hook up RGB out, Speakers and Player2 inputs to the P2 ext board.

Hook up another Cp2.3 Kickarness to the P2 Board that leads into the cabinet ( I did reuse the same harness from the P1 picture since I ran out of cables)

Am I doing this right?
I also did a Imgur post with descriptions here
https://imgur.com/a/gQdcPKo



Apart from the Brightness issue that has been already adressed I ran some quirks


[B4 and B6 simultaniesly pressed, on the player 2 side everything is fine.
But I guess that's just my wiring since I have B4 and B5 loomed together so I don't always have to mount and dismount Kickharness in the CP.]


Don't mind this, as I suspected my wiring had a flaw and the device is working properly

Test vid:



I hooked up an Atomiswave that ran absolutly fine on both player sides. But I noticed that the IMages goes up even brighter (no surprise here) on 31khz

My Questions apart from the hook up:

Will your updated Jamma Extractor version take in account for 31khz on the Jamma Edge too?


Unessential

Beginner
Joined
Sep 26, 2015
Messages
28
Reaction score
2
The domain appears to be down right now, And following up on my previous inquiry. Is the shipping option still ambiguous? it actually is a *significant* difference in terms of cost, and headache in receiving the package/paying for import fees depending on what service is used. it is literally make and break for me in terms of purchasing many products. this is one of them.


Axun

Student
Joined
Apr 26, 2021
Messages
46
Reaction score
81
Location
China
The domain appears to be down right now, And following up on my previous inquiry. Is the shipping option still ambiguous? it actually is a *significant* difference in terms of cost, and headache in receiving the package/paying for import fees depending on what service is used. it is literally make and break for me in terms of purchasing many products. this is one of them.
Sorry, the shipping options are not fixed. But they are all transported in the most suitable way. In response to circumstances, sometimes the best transportation company may encounter the possibility of delays in storage in China, so it is necessary to update other companies' transportation. For example, I just learned that Russia can only use EMS, because the Russian customs are strict, the return rate is very high, and the return requires additional fees. In fact, for the sake of packaging reliability and replacement of the transportation company, I did not ask the buyer for additional costs when producing the excess transportation costs at this time, unless the price was exaggerated twice. I know that handling these details very delicately may be more reasonable for both parties, but it will increase my workload. I am a person and have limited abilities. Of course this is not my excuse, I just want to make the two sides understand each other.
Japanese buyers will be more careful. They are more willing to choose to find an agent buying company to buy directly from my TAOBAO website. Because the agency buying company will handle transportation more comprehensively. There are also more affordable options.
If there is no corresponding country option, please let me know.
Sorry, my English is not good. If I have ignored your question and did not answer, please remind me again.


LemmyBarnett

Student
Joined
Feb 29, 2020
Messages
79
Reaction score
59
Location
UK
Mine arrived a week or two ago, and I finally got round to trying it out yesterday. Works really well, and I used it to record some Golden Axe clears using my S16B multi. Here's one of the videos so you can see how it looks (I think I may have had the brightness slightly high, but that is something that can be tweaked on the capture board easily):
View: https://www.youtube.com/watch?v=KCcJNKo_nMU


drfunk2k

Grand Master
Joined
Dec 31, 2018
Messages
599
Reaction score
875
Location
From USA / Nanjing, China
The domain appears to be down right now, And following up on my previous inquiry. Is the shipping option still ambiguous? it actually is a *significant* difference in terms of cost, and headache in receiving the package/paying for import fees depending on what service is used. it is literally make and break for me in terms of purchasing many products. this is one of them.
OK, so its like this man. If we use cheap shipping like on Alibaba it will take months to get to you and it might not get to you.
We use guaranteed shipping which is MORE expensive, also the terms of FEES and taxes well take that up with your legislative government, because this is the fact if you watch the news....
NOONE is playing nice with China right now. I ordered two books from my university PENN State in PA, USA. The cost of the 2 books was like $100, the shipping was about $212.00 and still took over 30 days. PLUS, i had to pay tax when it got here.....

covid has changed the world, and i dont want to seem rude but this hobby is not cheap :p


drfunk2k

Grand Master
Joined
Dec 31, 2018
Messages
599
Reaction score
875
Location
From USA / Nanjing, China
Mine arrived a week or two ago, and I finally got round to trying it out yesterday. Works really well, and I used it to record some Golden Axe clears using my S16B multi. Here's one of the videos so you can see how it looks (I think I may have had the brightness slightly high, but that is something that can be tweaked on the capture board easily):
View: https://www.youtube.com/watch?v=KCcJNKo_nMU
great capture, there is a slight brightness issue that is being fixed. i followed you. video @ 1080p and great sound!
love it!


drfunk2k

Grand Master
Joined
Dec 31, 2018
Messages
599
Reaction score
875
Location
From USA / Nanjing, China
FROM AXUN:
For 16 users who have received the goods, I will resend the retuned JAMMA Extractor to you for free tomorrow. Thank you for your feedback and valuable suggestions

https://twitter.com/i/status/1390682003930976262

Thank you and sorry for the inconvenience. We hope this actions keeps you in good faith with us! <3


drfunk2k

Grand Master
Joined
Dec 31, 2018
Messages
599
Reaction score
875
Location
From USA / Nanjing, China
16 replacement JAMMA extractors were sent out today. THESE ARE OLD ORDER NUMERS with LAST NAME.

SQ202--------------1 . Tedeschi
SQ202--------------7 . Monin
SQ202--------------2 . Jaakola
SQ202--------------6 . Stroup
SQ202--------------5 . Dalu
SQ202--------------6 . Lewis
SQ202--------------0 . Thompson
SQ202--------------7 . Girard
SQ202--------------3 . ALHAMLI
SQ202--------------1 . Mikawa
SQ202--------------4 .Alexander
SQ202--------------1 . Pont
SQ202--------------0 . Kang
SQ202--------------4 . Wiley Sittler
SQ202--------------5 . Fukuhara
SQ202--------------1 .Kempen

Last edited:

kingcar

Enthusiast
Joined
Oct 26, 2015
Messages
172
Reaction score
75
Location
Solingen, Germany
Recieved mine also yesterday.

The output level on the cabs is fine now.
Scart is still giving me a too bright image. Axun suggestet chaning these to 150OHM's to get it a bit darker.
As the Knob on the extractor will affect all 3 Images if can't really do much about it.

If you are using also all 3 Outputs and your Scart Output is hooked up on an OSSC you can go into
Video Proc --> Pre ADC Gain and set it down to your liking, but at even set at 0 will be a little too bright.

So for me I have to go an change those resistors.


drfunk2k

Grand Master
Joined
Dec 31, 2018
Messages
599
Reaction score
875
Location
From USA / Nanjing, China
@kingcar i just got my new unit too. My Pre ADC Gain is set to default 8 and I really like the results, gonna upload some clips today


drfunk2k

Grand Master
Joined
Dec 31, 2018
Messages
599
Reaction score
875
Location
From USA / Nanjing, China
This is using the JAMMA Extractor v2.5, I think the brightness bleed has been handled and I am using SCART > OSSC > Capture card, more details below

View: https://youtu.be/HmDJQEPKkF4


Devices:
Neo-Geo MVS Darksoft Multi-Cart \
Darksoft CPS2 Multi-kit \
Axunworks JVS-JAMMA Supergun \
Sony PVM

CAPTURE SETUP:
Neo-Geo MVS Darksoft Multi-Cart \
Darksoft CPS2 Multi-kit \
Axunworks JAMMA Extractor 2.5 \
Axunworks SCA-101 \
OSSC \
Magewell 4K capture card

* No RGB or brightness adjustments made.
*No OSSC tweaks made.
- You can tweak these for personal optimal settings.
- I just did default settings to show you what you get.

RESOLUTIONS:
Video Resolution = 1600 x 1200
Captured Video Resolution from MVS / CPS2 to OSSC LINE x5 = 1600x1200

PRODUCTS USED:
Axunworks JVS/JAMMA SUPERGUN
Axunworks SCA-101 SCART SWITCHER
Axunworks JAMMA Extractor
http://axunworks.com/

OSSC Video Scaler:
https://videogameperfection.com/produ...

Capture Card:
Magewell USB-Capture-HDMII 4K
http://www.magewell.com/products/usb-...

VIDEO SPECS:
Format : AVC
Format/Info : Advanced Video Codec
Format profile : Main@L4.1
Duration : 18 min 8 s
Bit rate : 5 148 kb/s
Width : 1 600 pixels
Height : 1 200 pixels
Display aspect ratio : 4:3
Frame rate mode : Constant
Frame rate : 59.940 (60000/1001) FPS
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Progressive
Bits/(Pixel*Frame) : 0.045


Audio
Format : AAC LC
Format/Info : Advanced Audio Codec Low Complexity
Codec ID : mp4a-40-2
Duration : 18 min 8 s
Bit rate mode : Constant
Bit rate : 128 kb/s
Channel(s) : 2 channels
Channel layout : L R
Sampling rate : 48.0 kHz
Frame rate : 46.875 FPS (1024 SPF)
Compression mode : Lossy
Stream size : 16.6 MiB (2%)
Title : Stereo

Come and visit us at the Arcade Projects Forum: https://www.arcade-projects.com/forum...


drfunk2k

Grand Master
Joined
Dec 31, 2018
Messages
599
Reaction score
875
Location
From USA / Nanjing, China
Here is my IMage with OSSC pre gain set to 8 ( rest is set to default)

View: https://www.youtube.com/watch?v=WmRqKJGD0uo


View: https://www.youtube.com/watch?v=EBvyOJN9HDU


will do some better footage in the next days

Using A Avermedia C127 OSSC is set to 2x

This is waht it looked before using Jamma extractor.
View: https://www.youtube.com/watch?v=R0436iHX79w
Our results are much different

ADJ1 adjustment: JAMMA+SCART+VGA
ADJ2 adjustment: SCART+VGA

are you using them?

so what your saying is on the CABs its all good but on the OSSC via SCART you get the super white bleed right?
