MITSU CPS1.X Multi Dual Crystal

[LittleLarrySellers]

I saw a box with the familiar Arcade Projects packing tape on the porch and knew what arrived! Hopefully I'll get to it this weekend. Thx again, guys.



[Wraith]

my install went good but on my A-Board, I don't think your top solder point for reset has a pad. It's just dark and wouldn't take any solder. Had to use original underside spots for reset and qsound.



[Derick2k]

my install went good but on my A-Board, I don't think your top solder point for reset has a pad. It's just dark and wouldn't take any solder. Had to use original underside spots for reset and qsound.

Happy to know the install went well. Can you post pics of your A board? Maybe we can find alternate solder points on the top side, could help others with similar boards.



[mathewbeall]

my install went good but on my A-Board, I don't think your top solder point for reset has a pad. It's just dark and wouldn't take any solder. Had to use original underside spots for reset and qsound.

Interesting - my two boards both had a pad there.... Maybe slight differences in A boards.



[Wraith]

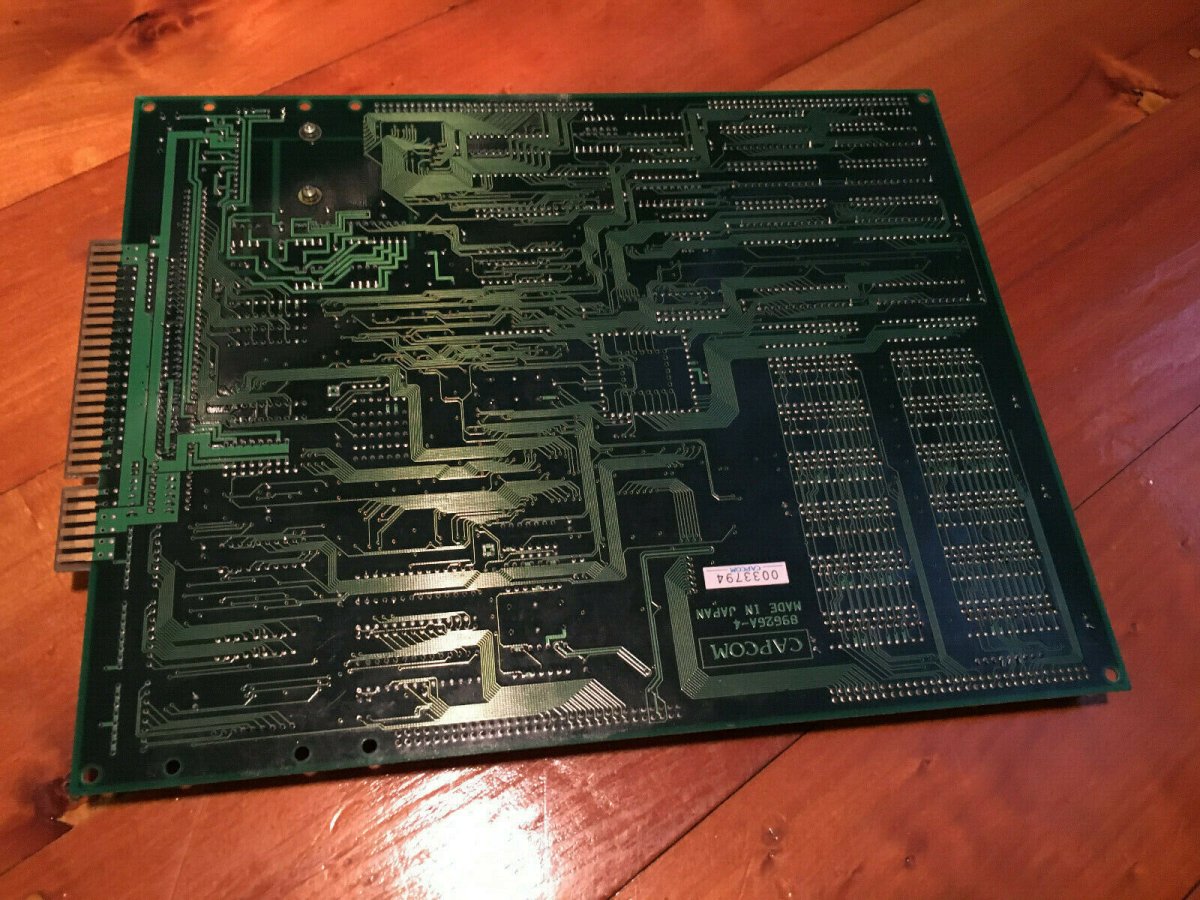

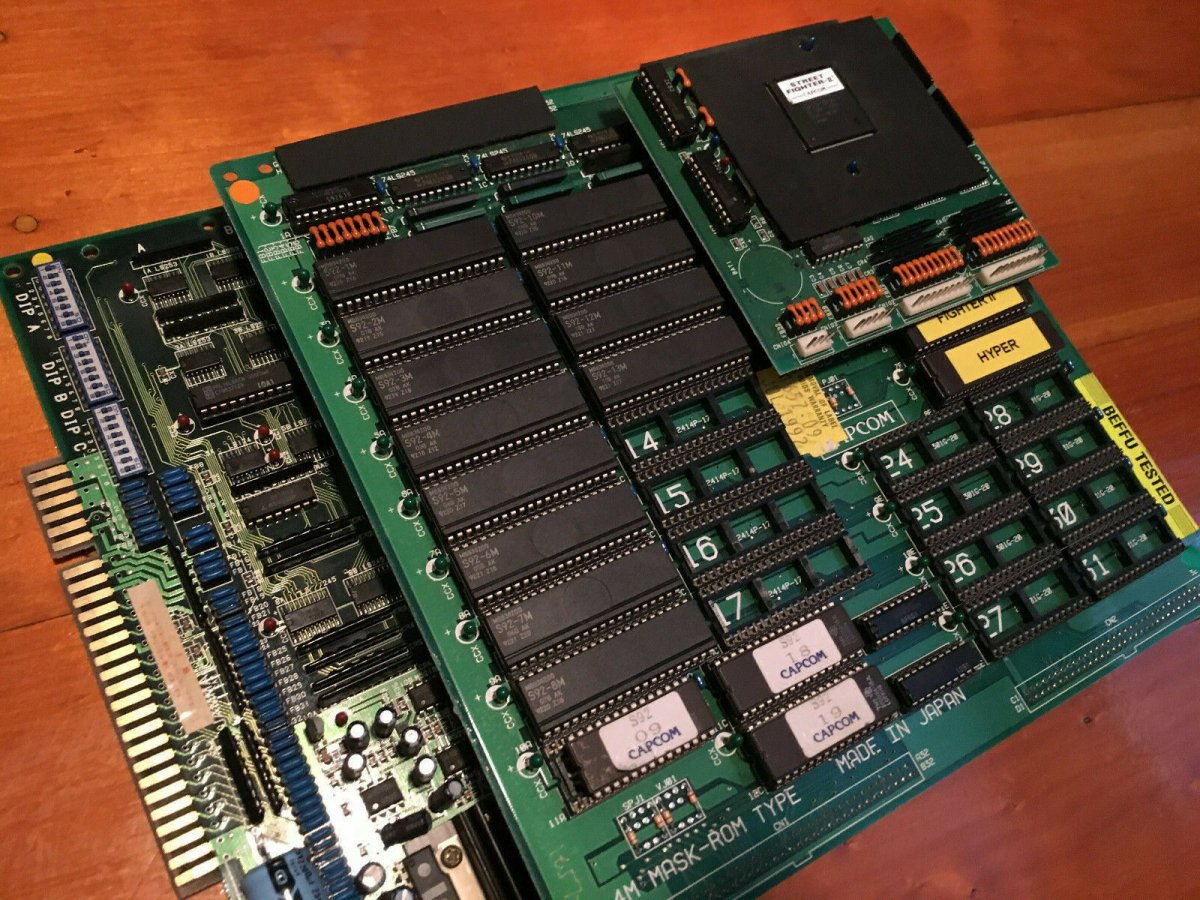

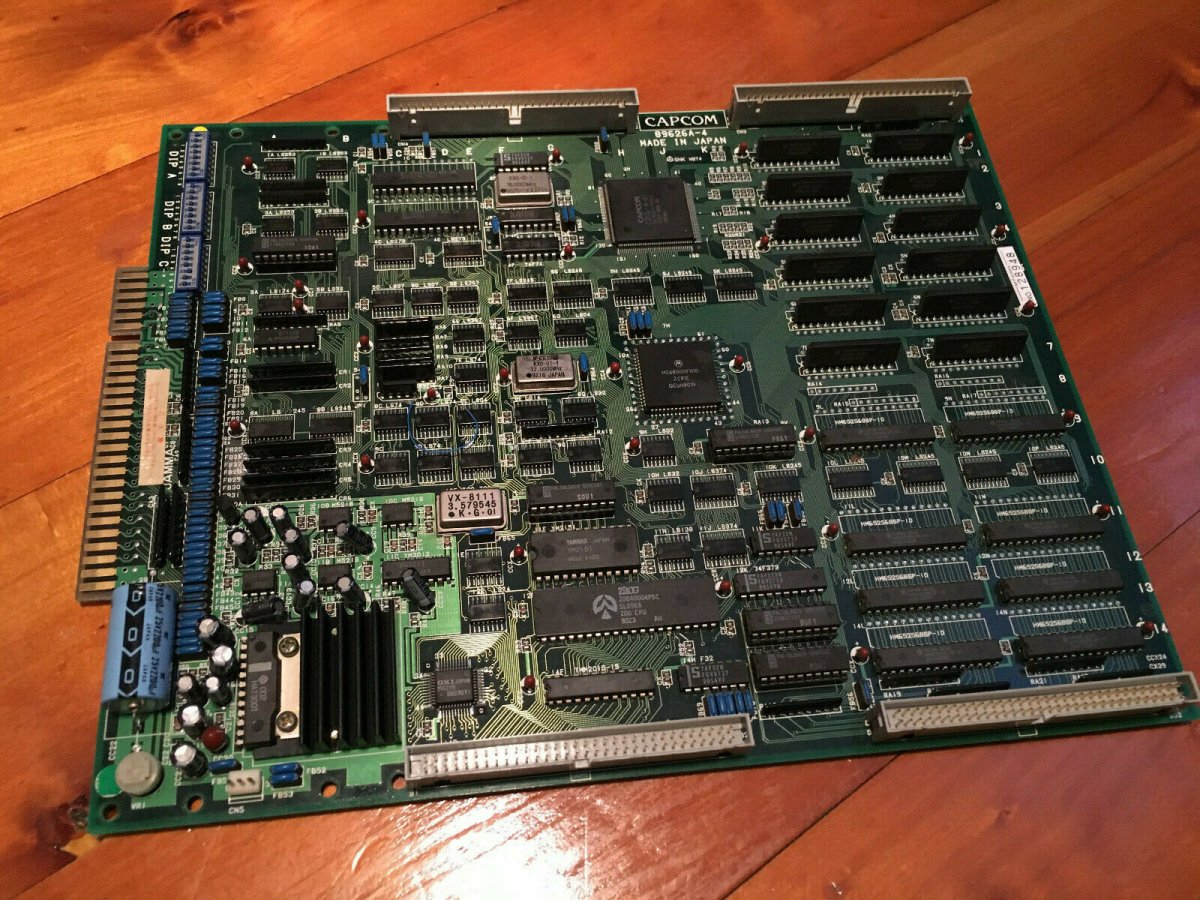

From a hyper fighting board I got from djsheep



[Wraith]

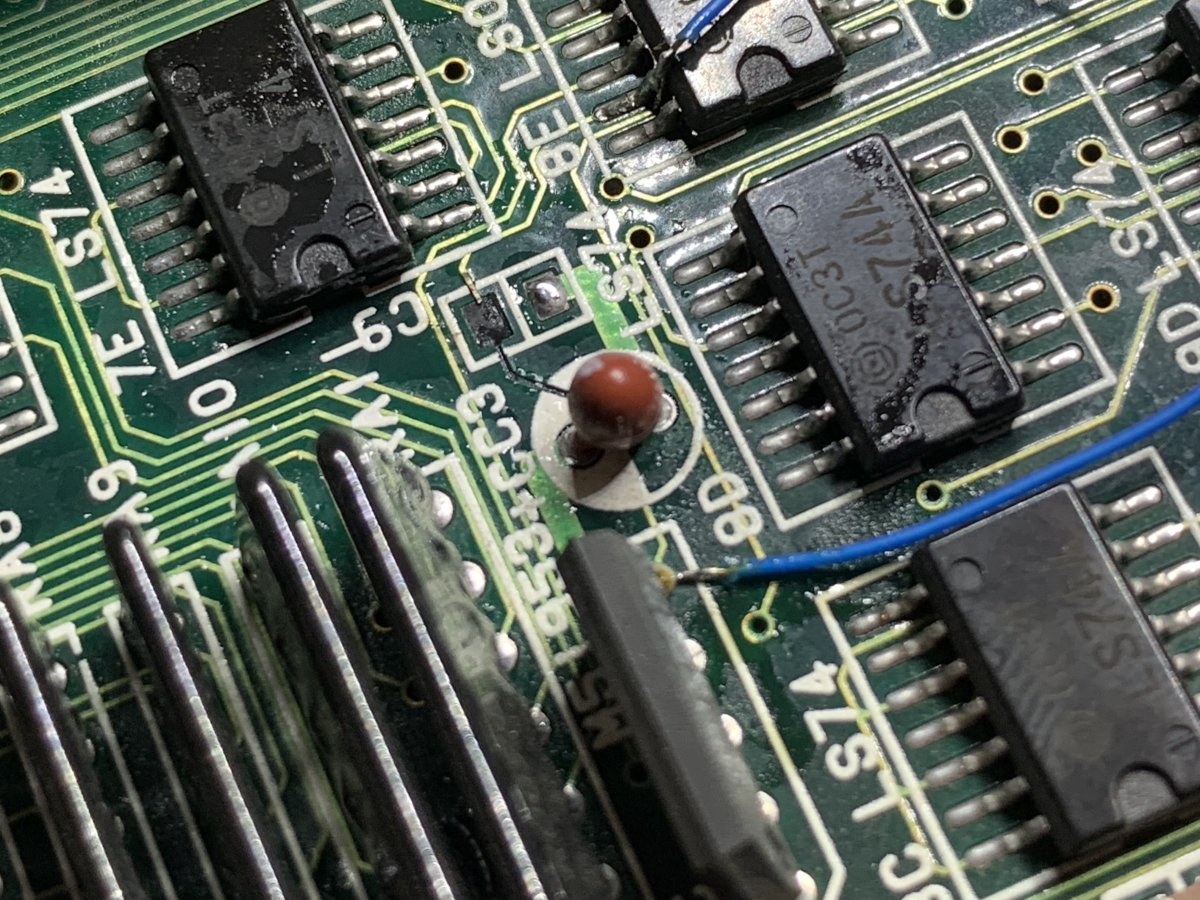

One more up close after isopropyl scrub



[twistedsymphony]

One more up close after isopropyl scrub

That's a damaged trace/pad, it looks like it was ripped completely off.



[astro_zombie138]

That's a damaged trace/pad, it looks like it was ripped completely off.

Yup, the blue wire is bridging the connection.



[twistedsymphony]

easy enough to just solder to one end of the blue wire.



[Wraith]

Thanks guys, already used the underside connections. Took all day to dissemble the lion3 case, install the duel xtal and re-assemble. Everything testing ok! How does it know what to do when the roms are loaded ?



[mathewbeall]

In each game directory - there is a config file - pretty sure that sets the flag for whether it was originally a 10mhz or 12mhz game.



[Wraith]

do I need to update my rom set? Mine is the very first available that had every single version of each game



[mathewbeall]

I don't think so - as I am also running the first - when you go into the game directory - do you see a "config" file?



[Wraith]

Yes. Set is labeled “2022 05 11” in the filename



[mathewbeall]

I was wrong - it looks like if you go into the directory - if the game ran originally on a dash board (12mhz) you will see a zero byte file called "dash" - which is the switch.



[snakeGrave]

Hi, are any full kits still available for purchase?



[Mitsurugi-w]

Yup. PM me.



[kuze]

I got my kit installed and installation was a breeze, thanks again!



[ForestOfDreams]

Pm sent!



[tom5151]

Awesome,1 full kit for me please
