tiff_lee
Grand Master

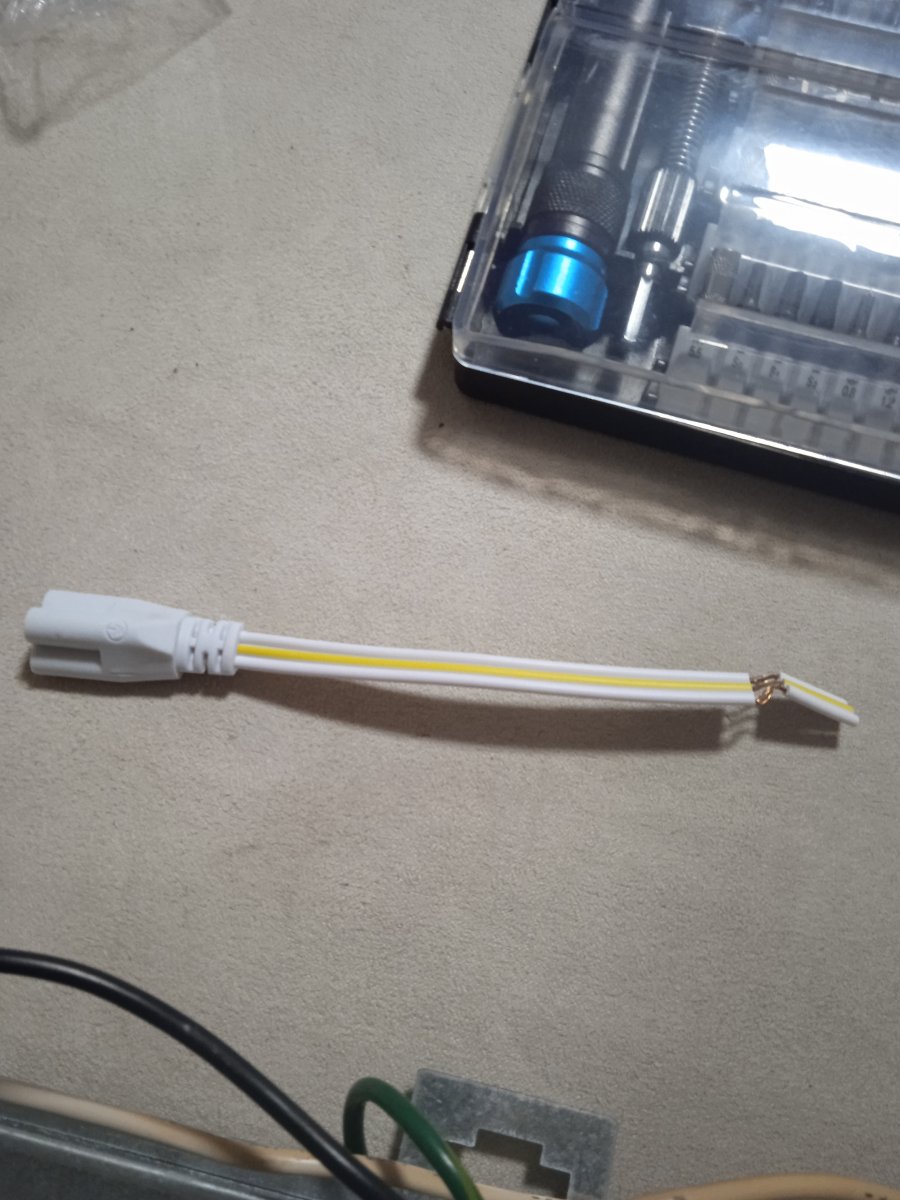

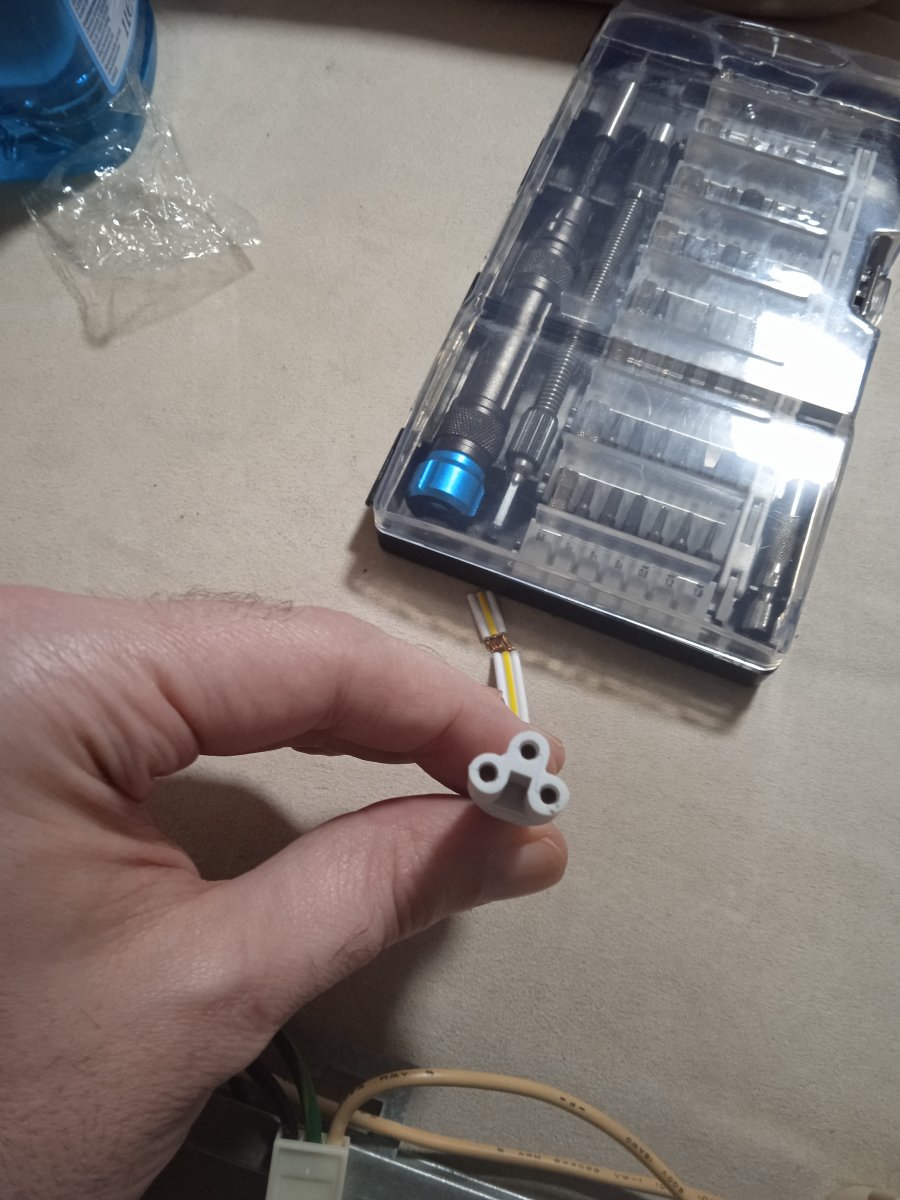

That's an IEC C5 connector, as you face the 'socket' end of the cable which you are holding live is on the right, neutral left and earth top.
https://www.electronics2000.co.uk/pin-out/iec.php
For the blast side double check the schematic for it but i'm pretty certain black is live/hot and white is neutral. Although in this application it's going to a switch mode power supply for the LEDs so it isn't going to make any difference (you could fit a C7 connector without the earth pin and its reversible).
https://www.electronics2000.co.uk/pin-out/iec.php
For the blast side double check the schematic for it but i'm pretty certain black is live/hot and white is neutral. Although in this application it's going to a switch mode power supply for the LEDs so it isn't going to make any difference (you could fit a C7 connector without the earth pin and its reversible).
