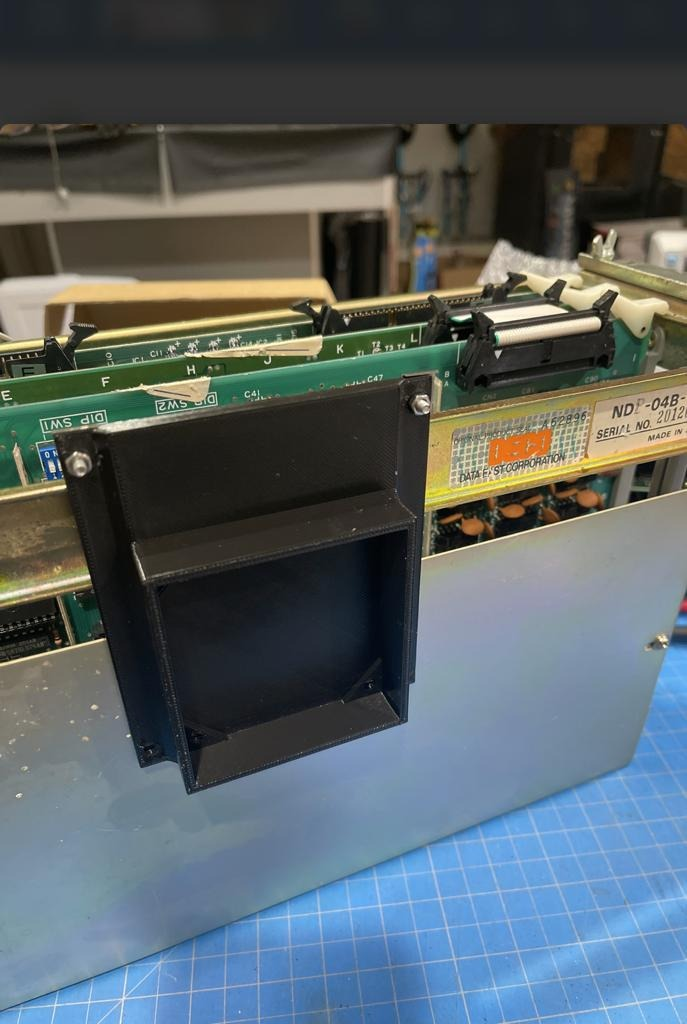

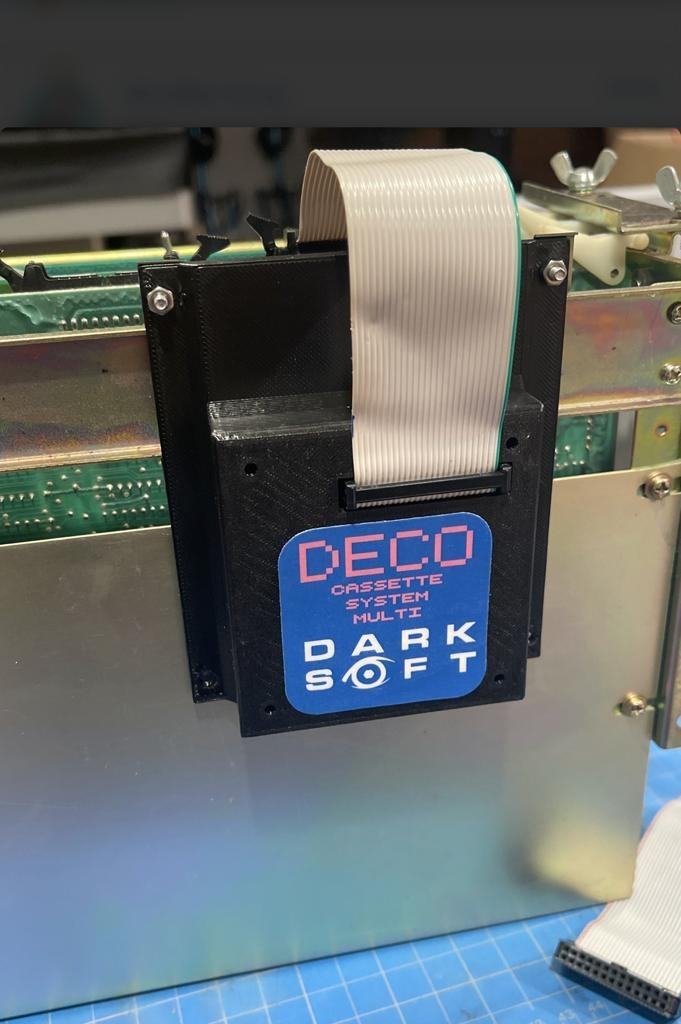

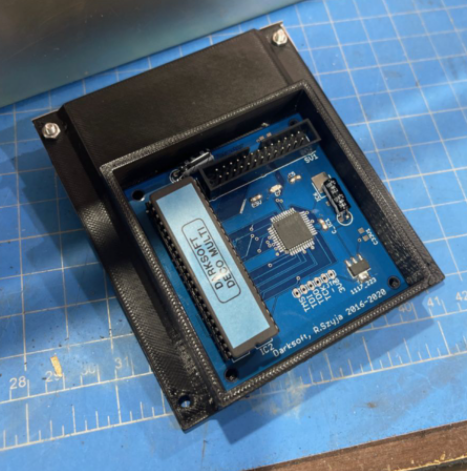

I just wanted to post a pic of the 3D printed case I designed to use the clips from an original Security dongle to house the Multi PCB.
The final revision is being tweaked and will be done soon, but @Darksoft asked me to post.

What a great multi for such an interesting part of arcade history.


Attachments

  • 1667457474844.png
    625.2 KB · Views: 36
  • 1667457519771.png
    610.7 KB · Views: 37
  • 1667457535299.png
    326.6 KB · Views: 32
  • 1667457548001.png
    421.4 KB · Views: 38

SCUBA King

Student
Joined
Feb 6, 2022
Messages
41
Reaction score
35
Location
South Lyon
I ordered some black finish nyloc nuts and will build up a full / final Revision.
Will keep everyone posted.


SCUBA King

Student
Joined
Feb 6, 2022
Messages
41
Reaction score
35
Location
South Lyon
@SCUBA King if you dont plan to sell them, can you upload the files so people can print this case locally?
@Darksoft after all the cool shit you have done for the hobby (I have F3, DECO and CPS2 myself) the least I can do is offer up these designs for others to print if they want to supe up their Darksoft Deco Cassette multi.

I may add an extra hole in the side rails in case people don't have the original clips from a dongle, or don't want to strip one to use them, then they could zip-tie through instead.

Once I am happy with the final design I will post up and put the link here for download.

Thanks again to @Darksoft and @Mitsurugi-w for the support and cool stuff.


Darksoft

Staff member
Immortal
Joined
Jun 12, 2015
Messages
10,699
Reaction score
15,331
Location
Poland
@Darksoft after all the cool shit you have done for the hobby (I have F3, DECO and CPS2 myself) the least I can do is offer up these designs for others to print if they want to supe up their Darksoft Deco Cassette multi.

I may add an extra hole in the side rails in case people don't have the original clips from a dongle, or don't want to strip one to use them, then they could zip-tie through instead.

Once I am happy with the final design I will post up and put the link here for download.

Thanks again to @Darksoft and @Mitsurugi-w for the support and cool stuff.
Thanks!!


Mitsurugi-w

Arcade Admini-Moderator
Staff member
Immortal
Joined
Jun 12, 2015
Messages
7,384
Reaction score
8,485
Location
New Bern, NC USA
The sticker should have my logo instead of Darksoft's.





Just kidding. ;)


SCUBA King

Student
Joined
Feb 6, 2022
Messages
41
Reaction score
35
Location
South Lyon

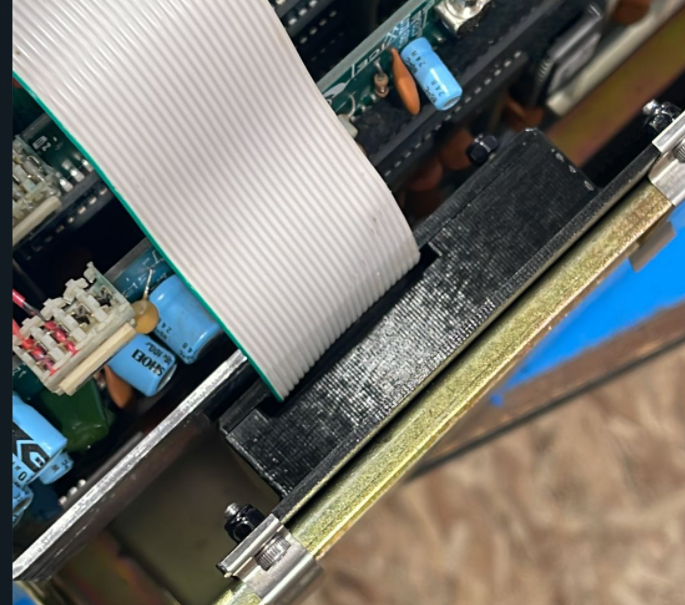

Next Revision is complete.

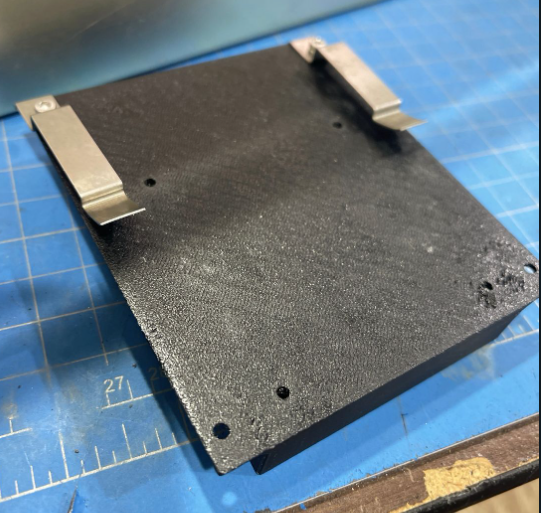

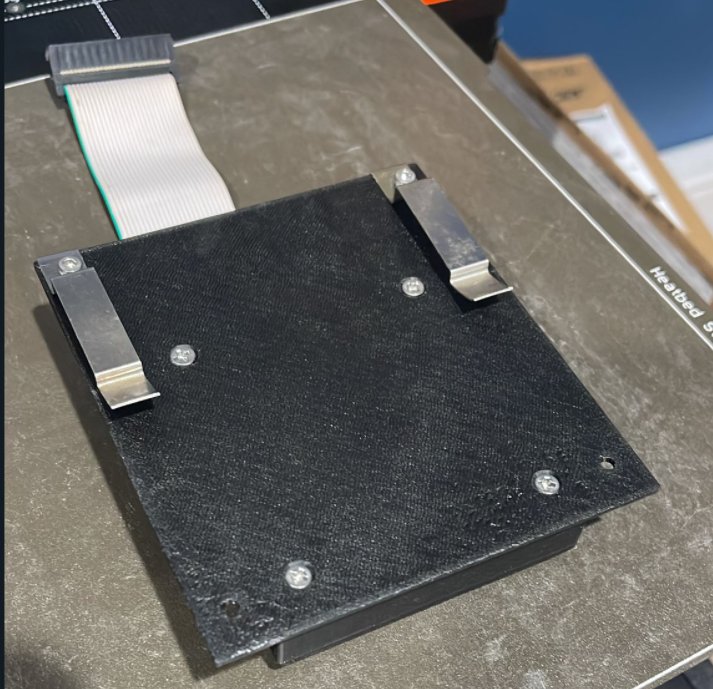

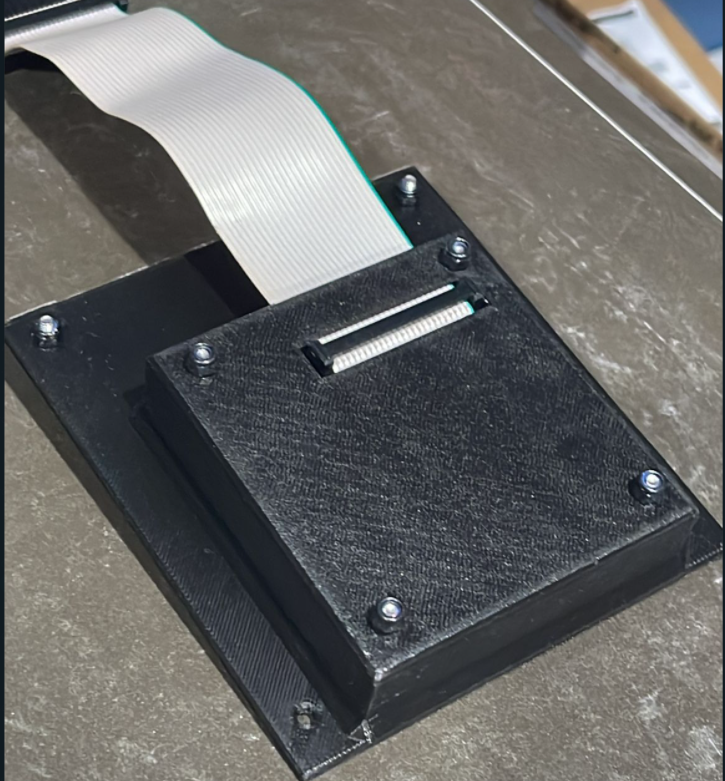

Assembled using the metal clips from security dongle.
Before assembly I used countersink on the back side so the flathead screws will sit flush with the back.
If i get more time, I will add the countersink to the design

I used:
3pc M3x25 flathead screws (do not install screw in hole closest to ribbon cable at the top)
2pc M3x5 socket head screw to hold clips
5pc M3 nyloc nuts.


Attachments

  • 1667810903869.png
    329.5 KB · Views: 25
  • 1667811159773.png
    792.9 KB · Views: 22
  • 1667811197273.png
    657.8 KB · Views: 24
  • 1667811241092.png
    726.8 KB · Views: 24

LostCaws

New User
Joined
Feb 21, 2023
Messages
1
Reaction score
1
Location
MN
So I know this is an old thread but are these done and ready for purchase?

Thanks in advance guys!
