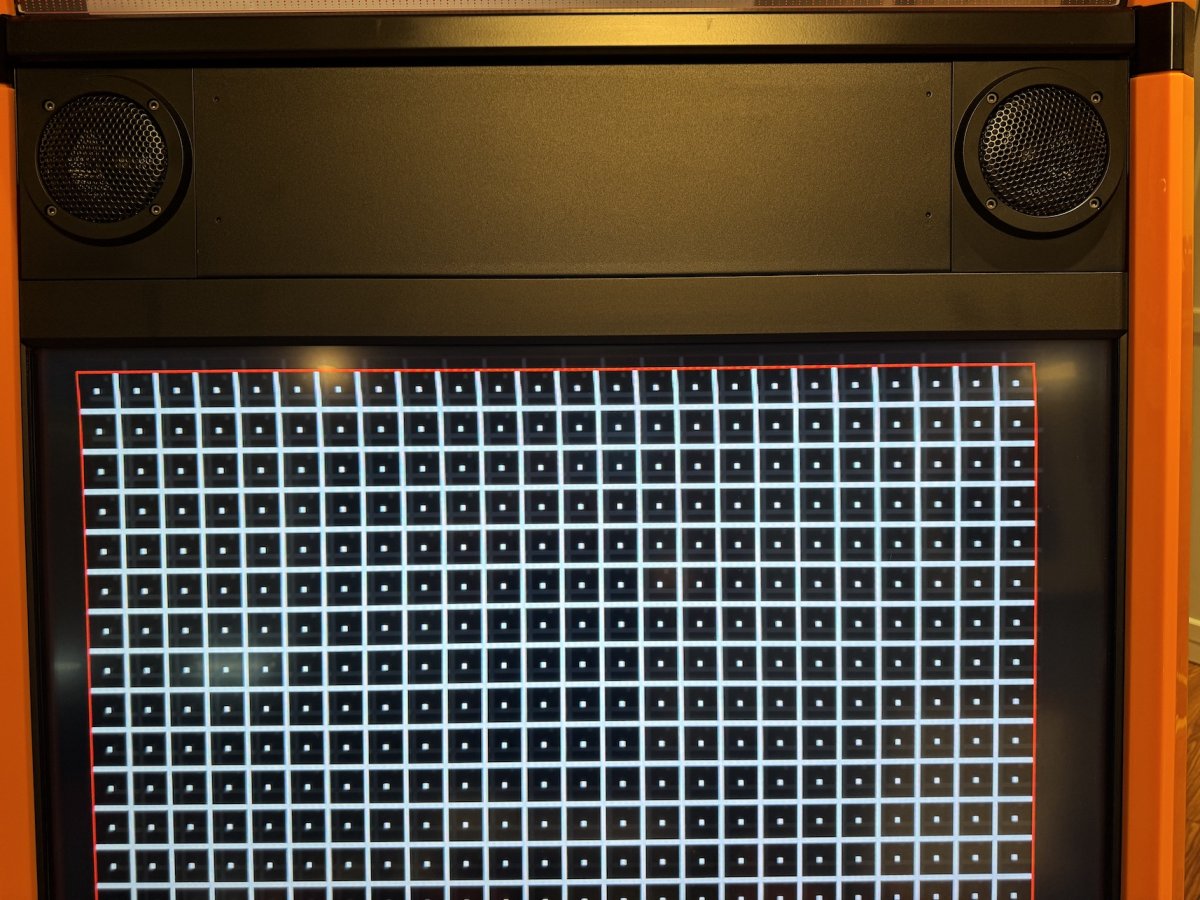

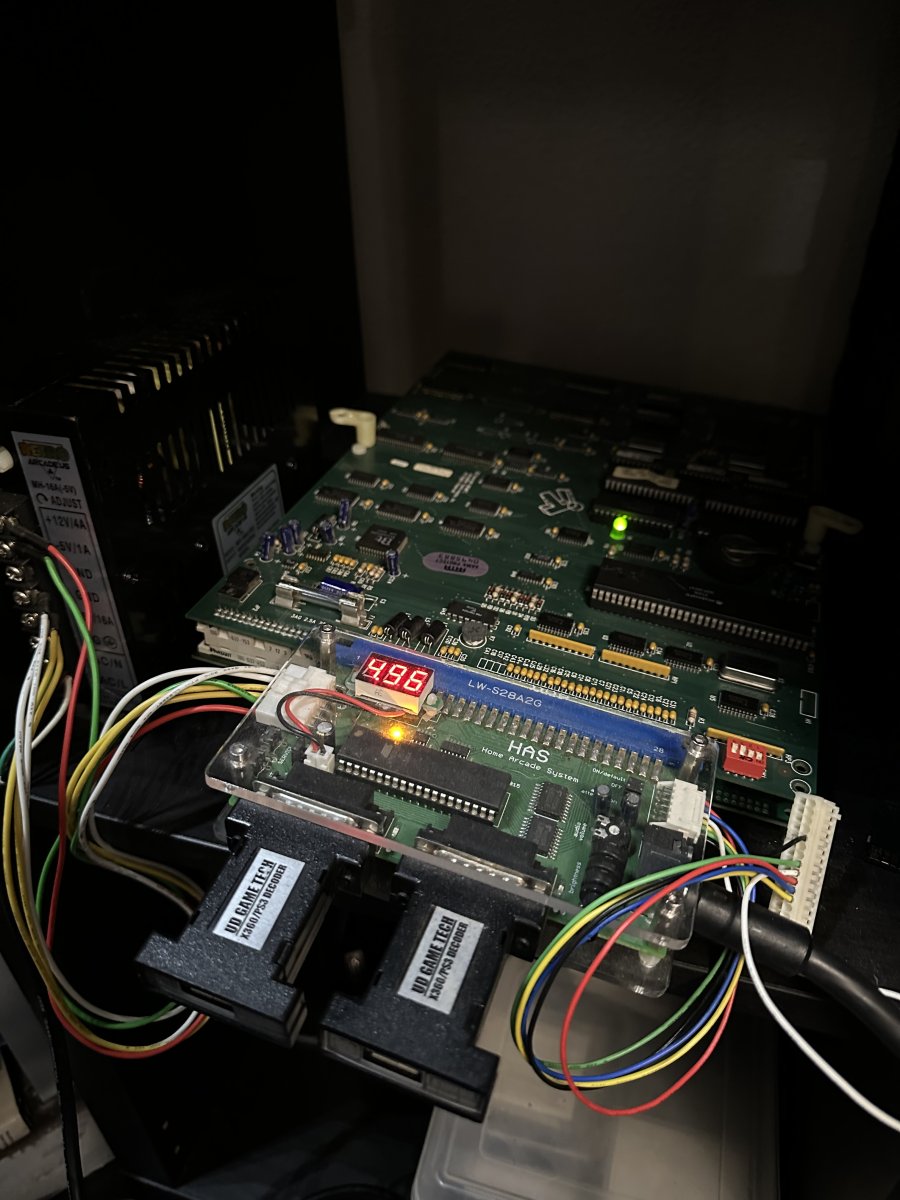

I have a video output issue I've been trying to diagnose and I thought I'd ask here. The top lines of the image is shifted slightly to the left. My setup is H.A.S. V3 (2016) > OSSC (0.90 firmware) > Vewlix Diamand orange stock display. I have an 8pin miniDIN to SCART connecting to the OSSC. I tested with both a CPS2 board and MV1FZ and the issue remained the same. When the default OSSC test pattern is displayed, it looks perfect. I am including a pic of the CPS2 test pattern to show the issue. Apologies in advance if this is something stupid or obvious, I couldn't find anything in my searching of arcade projects or the internet at large.





Thanks,
Matt

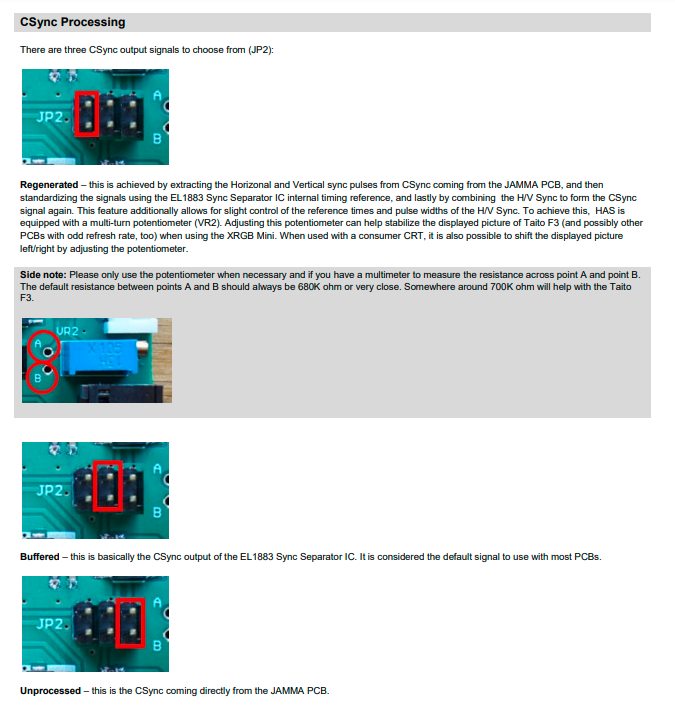

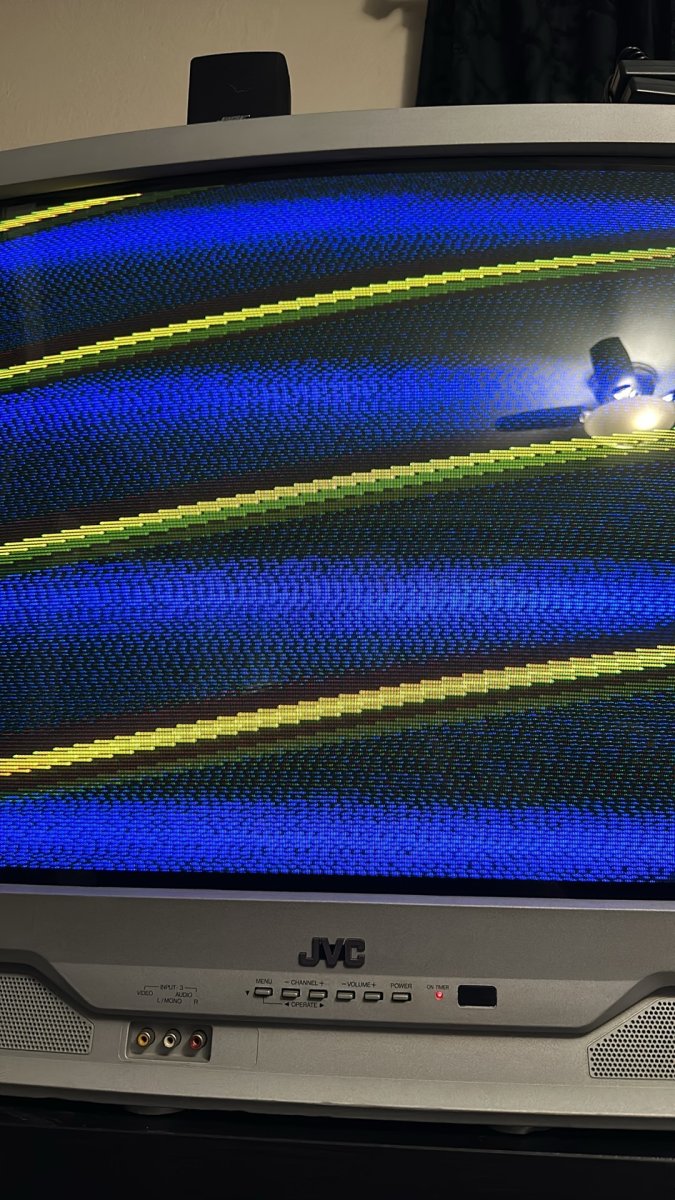

This is embarrassing but I can't figure out where I stored my old manual for it. I tried to compare to the current gen, but seem to recall V3 is jumper based for Cysnc setting.

Hello, I got the meanwell RT-85A power supply for my HAS and all is working well but I have a question and concern. Is this power supply OK to use with a Naomi set-up? I want to play MvC2 but the normal power supply for that system is a little more hefty.

And One said:
Hello, I got the meanwell RT-85A power supply for my HAS and all is working well but I have a question and concern. Is this power supply OK to use with a Naomi set-up? I want to play MvC2 but the normal power supply for that system is a little more hefty.
Click to expand...
Naomi also requires 3.3v so you would need a separate PSU that supplies that. You can use a RT-85 to power the HAS with a SEGA JVS JAMMA IO connected for controls and power the Naomi directly with something like a Sun PSU or a Meanwell QP-150-3A. Video can be output in 15Khz with the proper dips flipped over the JAMMA IO or you can output 31Khz directly to a monitor.

  • Like
Reactions: RGB
clintkolodziej said:
Naomi also requires 3.3v so you would need a separate PSU that supplies that. You can use a RT-85 to power the HAS with a SEGA JVS JAMMA IO connected for controls and power the Naomi directly with something like a Sun PSU or a Meanwell QP-150-3A. Video can be output in 15Khz with the proper dips flipped over the JAMMA IO or you can output 31Khz directly to a monitor.
Click to expand...
Will a Capcom I/O make a difference?

And One said:
Is this the set-up you use and it works fine?
Click to expand...

Yes that's what I use for power, although Naomi isn't JAMMA so you'll also need to use something to adapt the JVS controls to JAMMA.

Honestly, IMHO running Naomi or any other JVS board through the HAS is a headache. Consider instead connecting a USB controller using a JVS adapter like the MP07-IONA-US and for video run the VGA output from the Naomi to a computer monitor.

So let me understand this better, using a HAS for NAOMI is not preferable? Even with a Capcom I/O board it's not a good supergun for naomi?

And One said:
So let me understand this better, using a HAS for NAOMI is not preferable? Even with a Capcom I/O board it's not a good supergun for naomi?
Click to expand...
Not what is being said. The HAS is one of the best superguns out there I have used and still use to this day. I own several. And yes I use it with a Naomi 2 Netdimm setup with a capcom io.

What @ShootTheCore is saying is you can cut out some of the gear you are planning on using to a simpler setup that will get you similar results. Again it all depends on how you plan on setting things up/use case.

ShootTheCore said:
Yes that's what I use for power, although Naomi isn't JAMMA so you'll also need to use something to adapt the JVS controls to JAMMA.

Honestly, IMHO running Naomi or any other JVS board through the HAS is a headache. Consider instead connecting a USB controller using a JVS adapter like the MP07-IONA-US and for video run the VGA output from the Naomi to a computer monitor.
Click to expand...
Or a shameless plug for the Darksoft MultiJVS as an option too, you can power that off the header on the Naomi and use DB15 connectors for fight sticks like you would normally use on a supergun, then just power the Naomi with an ATX PSU or Meanwell QP-150-3A and run video/sound to a monitor.

Derick2k said:
Not what is being said. The HAS is one of the best superguns out there I have used and still use to this day. I own several. And yes I use it with a Naomi 2 Netdimm setup with a capcom io.

What @ShootTheCore is saying is you can cut out some of the gear you are planning on using to a simpler setup that will get you similar results. Again it all depends on how you plan on setting things up/use case.
Click to expand...
Let me ask you this then, what psu are you using for your set-up? Specifically the one or ones powering your HAS that is used with the Naomi 2 netdimm set-up? My setup is HAS using a OSSC for video. I was using a meanwell 606 psu but I don't see those for sale anymore so I got a meanwell RT-85A which was recommended from members on this site. For Naomi I'm using capcom I/O board for MvC2 cart on Naomi 1. What is proper psu for this?
