Would someone be able to burn me a bios H for my pi force tools? I don't think I have the correct bios on this Naomi I can't get the pi force tools to boot on the lcd. There's a black bar over where the text would read. It used to work on a different Naomi I had but I no longer have it and i believe the bios chip went with it 😅


Sp33dFr34k

Champion
Joined
Nov 8, 2015
Messages
1,535
Reaction score
1,260
Location
The Netherlands
Would someone be able to burn me a bios H for my pi force tools? I don't think I have the correct bios on this Naomi I can't get the pi force tools to boot on the lcd. There's a black bar over where the text would read. It used to work on a different Naomi I had but I no longer have it and i believe the bios chip went with it 😅

I could, but I'm not in the US so not that cost efficiënt. Anyways, I doubt it has something to do with the bios tbh. Piforcetools doesn't really interface that way with the Naomi. You should be able to boot it even without connecting it to a Naomi.


Kujako

Grand Master
Joined
Jun 3, 2020
Messages
923
Reaction score
510
Location
USA, California
Would someone be able to burn me a bios H for my pi force tools? I don't think I have the correct bios on this Naomi I can't get the pi force tools to boot on the lcd. There's a black bar over where the text would read. It used to work on a different Naomi I had but I no longer have it and i believe the bios chip went with it 😅
I'd have to see what EPROMs I have around, but let's diagnose things a bit first. Any reason you're after revision H vs a mutli-region BIOS? Can you post pictures of your setup, including the dip switches and the LCD?


Kidkaos

Professional
Joined
Feb 7, 2019
Messages
409
Reaction score
287
Location
Northern California
I'd have to see what EPROMs I have around, but let's diagnose things a bit first. Any reason you're after revision H vs a mutli-region BIOS? Can you post pictures of your setup, including the dip switches and the LCD?
I think I do need the multi bios. I had read revision H but now that you mention probably do need the multi bios. I got the zero pic key from DOS on here. I can't get my set up to work with my new Naomi and new retro pi 1. My old retro pi broke, the small cap snapped off. So I got a new pi 1.


Kujako

Grand Master
Joined
Jun 3, 2020
Messages
923
Reaction score
510
Location
USA, California
I think I do need the multi bios. I had read revision H but now that you mention probably do need the multi bios. I got the zero pic key from DOS on here. I can't get my set up to work with my new Naomi and new retro pi 1. My old retro pi broke, the small cap snapped off. So I got a new pi 1.
Revision F or higher of the original BIOS versions will work with net-booting, or the multi-bios. On the ebays you can get the multi-region BIOS for ~10$. I'll keep looking, but I don't think I have an appropriate EPROM handy, but I'll keep looking.

All of that being said, the Pi and LCD should work independently of the Naomi. So we really should try and diagnose that first and foremost.

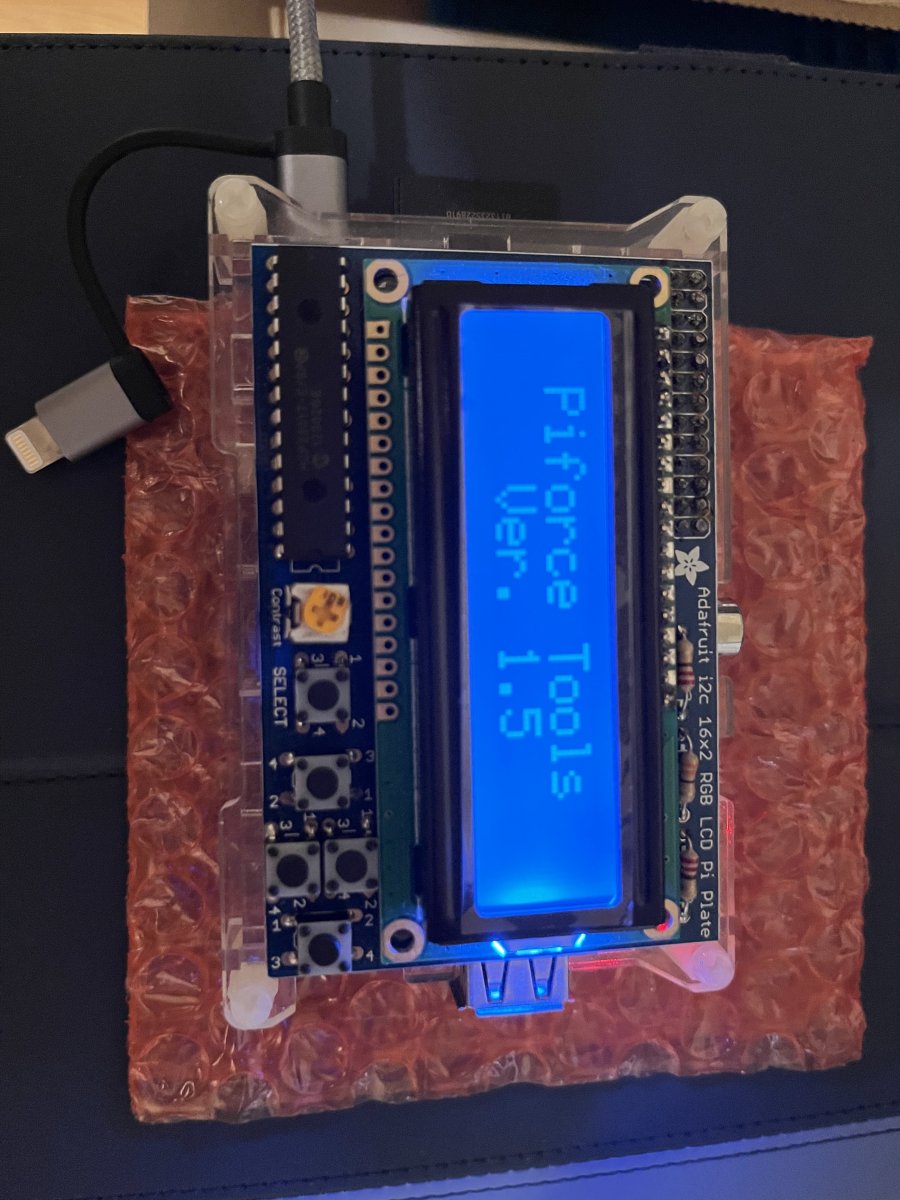

I dug out my old piforce running on a raspberry pi v1. With just power and no Naomi in sight it still boots to the LCD menu.

Last edited:

Lemony Vengeance

Grand Master
Joined
Jul 21, 2015
Messages
789
Reaction score
1,154
Location
Mormon Mecca
Would someone be able to burn me a bios H for my pi force tools? I don't think I have the correct bios on this Naomi I can't get the pi force tools to boot on the lcd. There's a black bar over where the text would read. It used to work on a different Naomi I had but I no longer have it and i believe the bios chip went with it 😅
I can. Send me a pm.


Kidkaos

Professional
Joined
Feb 7, 2019
Messages
409
Reaction score
287
Location
Northern California
Revision F or higher of the original BIOS versions will work with net-booting, or the multi-bios. On the ebays you can get the multi-region BIOS for ~10$. I'll keep looking, but I don't think I have an appropriate EPROM handy, but I'll keep looking.

All of that being said, the Pi and LCD should work independently of the Naomi. So we really should try and diagnose that first and foremost.

I dug out my old piforce running on a raspberry pi v1. With just power and no Naomi in sight it still boots to the LCD menu.
Yeah, mine definitely doesn't do that anymore. It's just a black bar where the text is... maybe my image got corrupt??


Kujako

Grand Master
Joined
Jun 3, 2020
Messages
923
Reaction score
510
Location
USA, California
Yeah, mine definitely doesn't do that anymore. It's just a black bar where the text is... maybe my image got corrupt??
What you’re describing is what it would look like if the contrast was off. Can you post a picture?

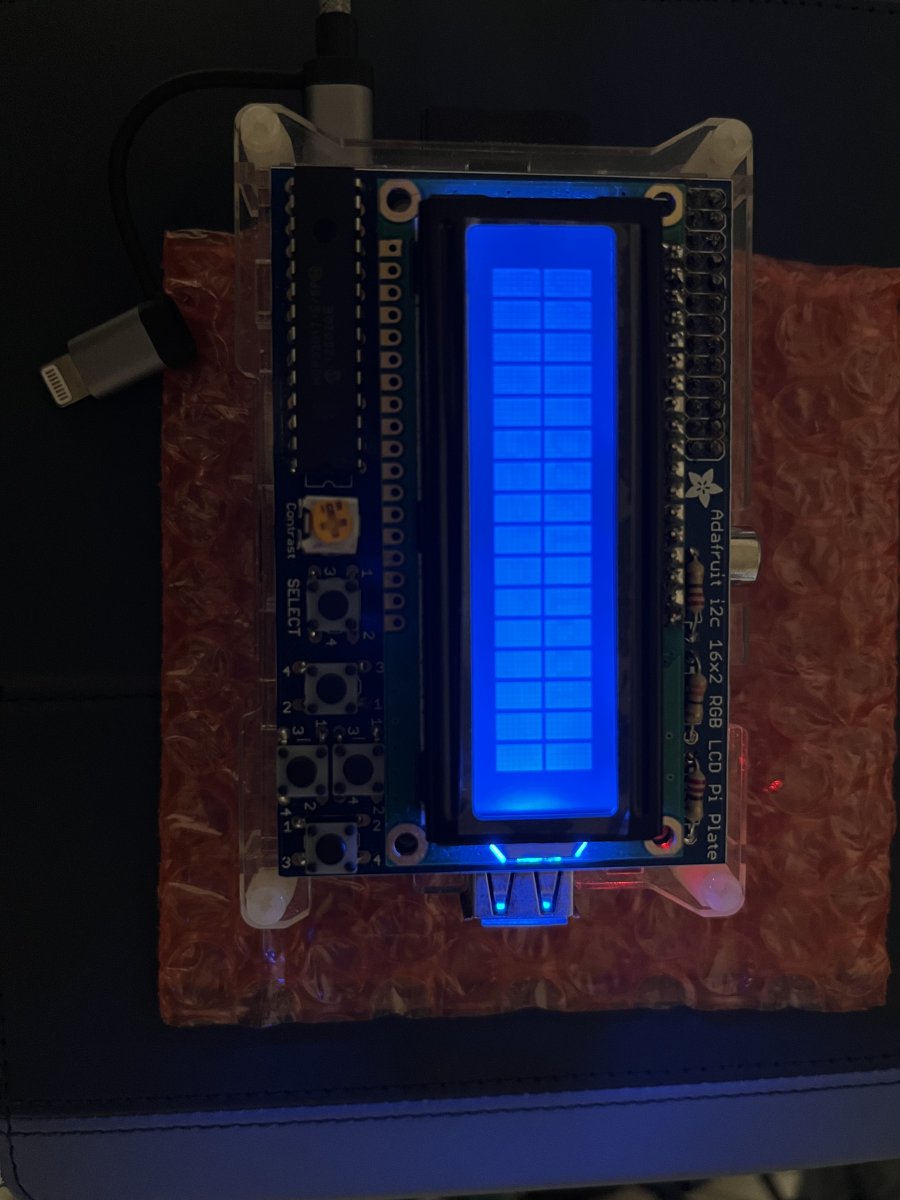

Example: mine with the contrast potentiometer cranked all the way to the left.

Last edited:

Kidkaos

Professional
Joined
Feb 7, 2019
Messages
409
Reaction score
287
Location
Northern California

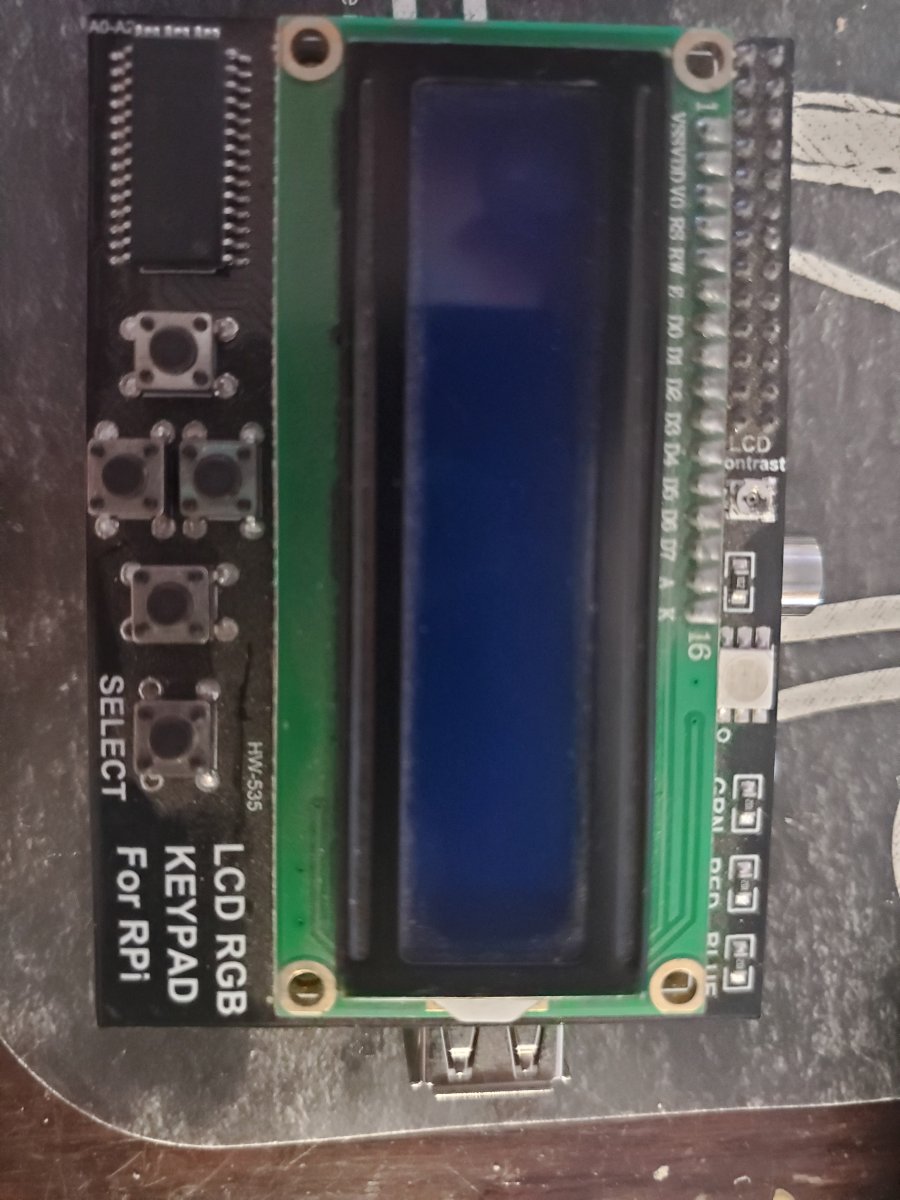

Mine is a tad different. I see the contrast pot to the top but have no idea how or with what to turn it. 🤔


Attachments

  • 20220724_090251.jpg
    136.8 KB · Views: 18

Kujako

Grand Master
Joined
Jun 3, 2020
Messages
923
Reaction score
510
Location
USA, California
Mine is a tad different. I see the contrast pot to the top but have no idea how or with what to turn it. 🤔
With it powered on, gently twist the potentiometer in both directions with a screwdriver to see what happens. Not seen that variant of the LCD so not sure which way would be which. On mine, there is a small “sweet spot” to find where the contrast correctly shows the characters. Note it takes a bit for it to boot. Wait until the backlight turns on and it seems like something should be displayed.


Kidkaos

Professional
Joined
Feb 7, 2019
Messages
409
Reaction score
287
Location
Northern California

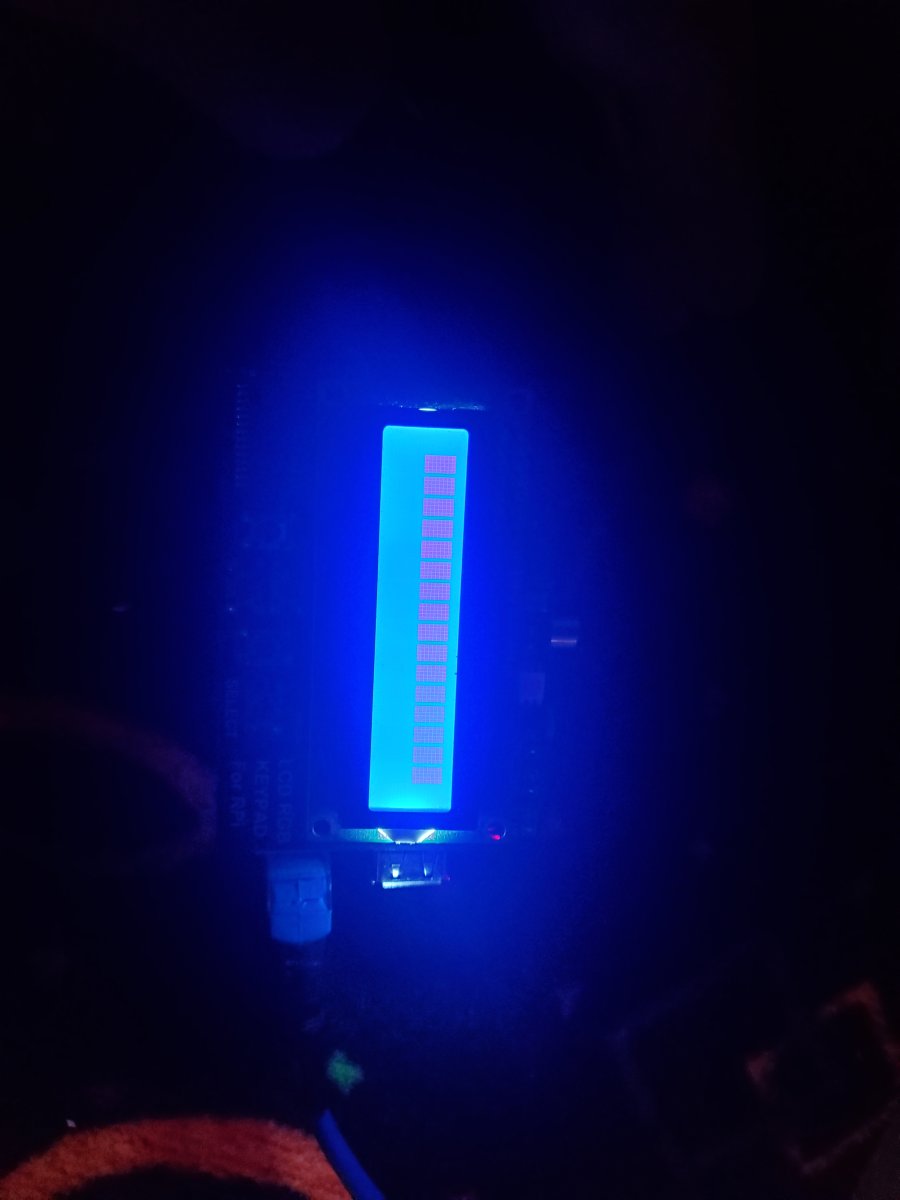

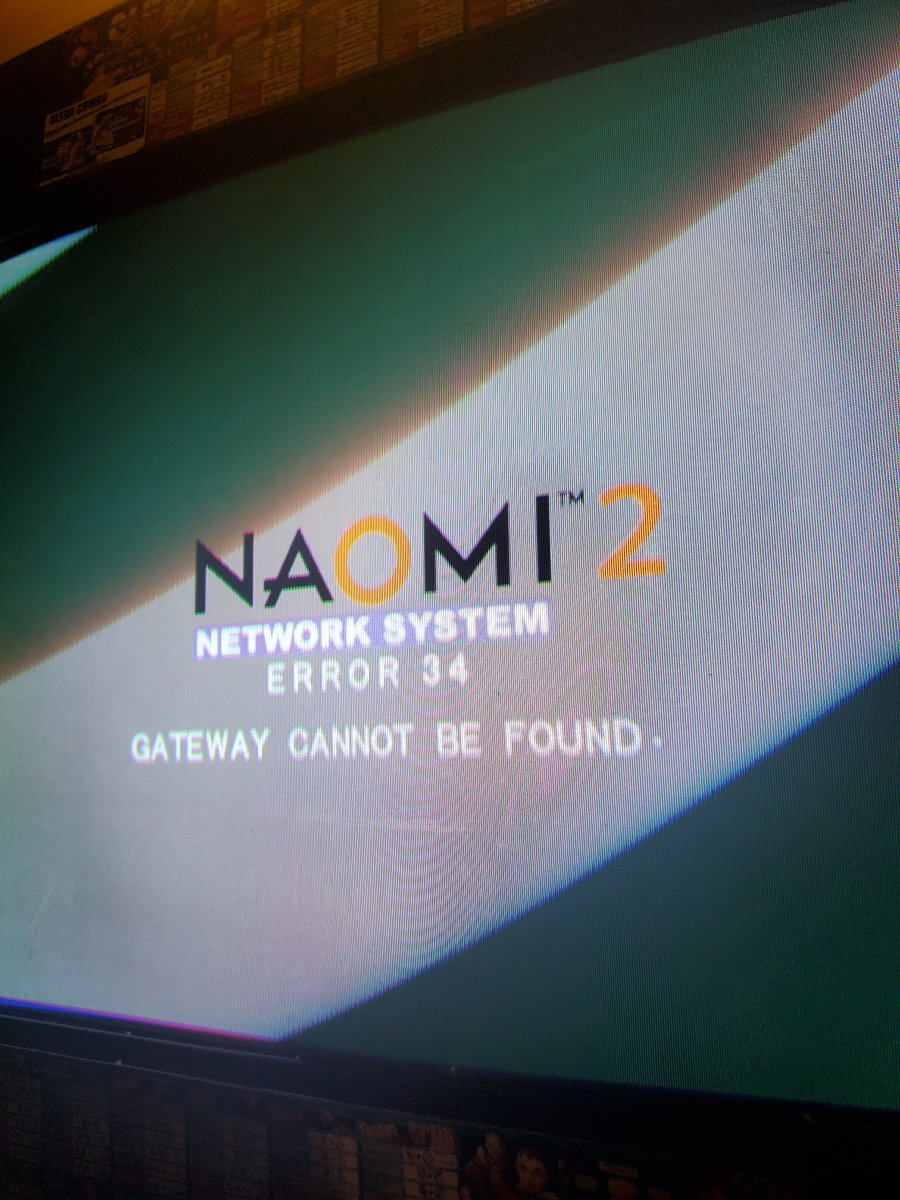

I've turned it and there's no sweet spot just either faint bar artifact or a white bar. Nothing shows letters nothing even remotely close and I've turned it slow with a plastic tool. I'm kinda stumped. I'm betting it's the Naomi bios


Attachments

  • 20220724_093340.jpg
    46.4 KB · Views: 17
  • 20220724_093619.jpg
    190.4 KB · Views: 16
Last edited:

Kujako

Grand Master
Joined
Jun 3, 2020
Messages
923
Reaction score
510
Location
USA, California
I've turner it and there's no sweet spot just either faint artifacts or a black bar. Nothing shows letters nothing even remotely close and I've turned it slow with a plastic tool
Anything showing from the pi’s hdmi output that would indicate a software or serial communication failure?

If I had it here I could swap out hardware to narrow down the issue. Can be sure I could find the problem or fix it but we can leave that as an option if nothing else works.


Kidkaos

Professional
Joined
Feb 7, 2019
Messages
409
Reaction score
287
Location
Northern California
Anything showing from the pi’s hdmi output that would indicate a software or serial communication failure?

If I had it here I could swap out hardware to narrow down the issue. Can be sure I could find the problem or fix it but we can leave that as an option if nothing else works.

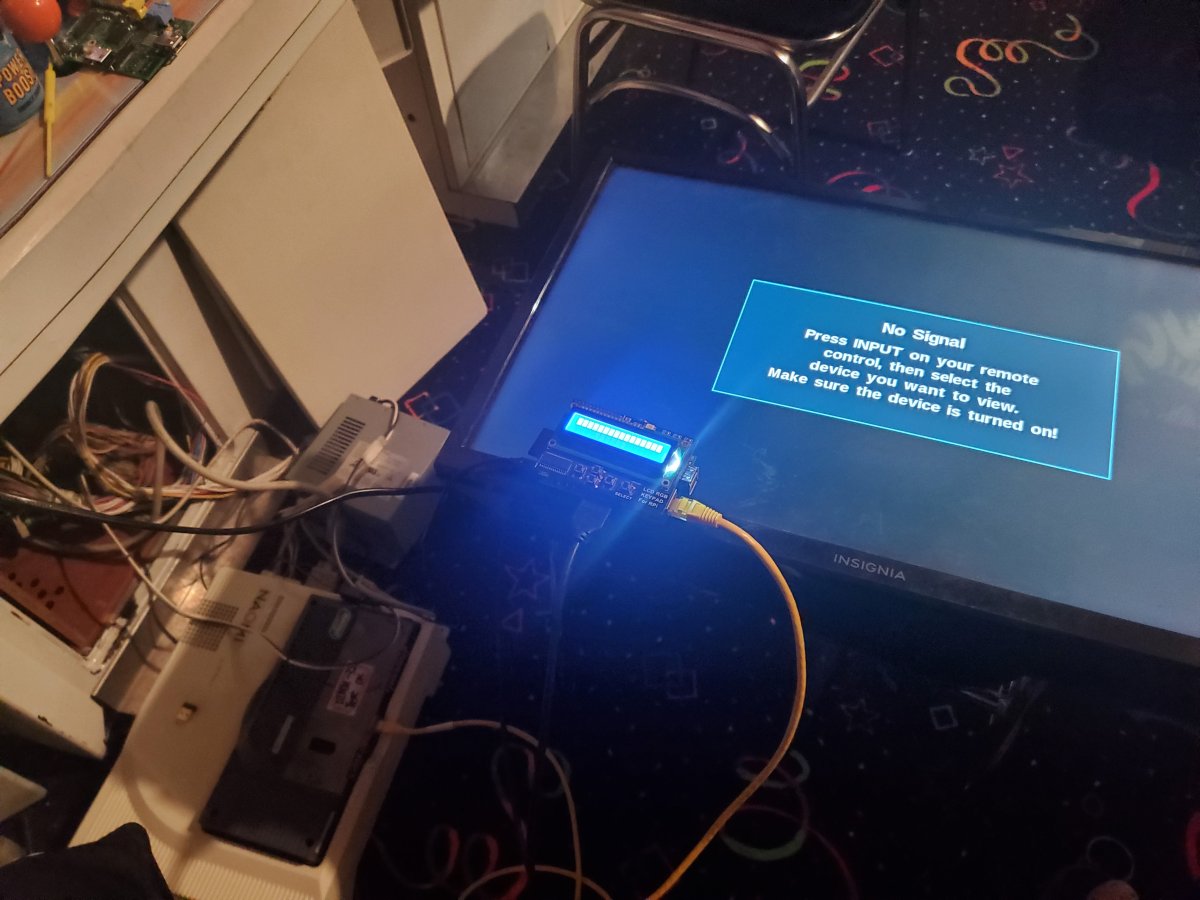

I have not tried hooking it up to hdmi yet. I'll try that next

***edit
Nothing is displaying to HDMI


Attachments

  • 20220724_104556.jpg
    127.2 KB · Views: 17
Last edited:

Evan

Student
Joined
Aug 11, 2020
Messages
46
Reaction score
18
Location
USA
J
Just the blue lcd screen and the RED led under PWR. Thats it
Where you able to fix this? I have the same issue. After not touching it for a bit this has happened to my pi. Also does anyone have the piforce.img file? It seems to me that the original download no longer works


Kujako

Grand Master
Joined
Jun 3, 2020
Messages
923
Reaction score
510
Location
USA, California
Where you able to fix this? I have the same issue. After not touching it for a bit this has happened to my pi. Also does anyone have the piforce.img file? It seems to me that the original download no longer works
I took a look at @Kidkaos's setup and the issue was the micro sd card adapter. The Raspberry Pi simply wasn't posting. Using a different micro sd to sd card adapter solved the issue.

The piforce-tools download link and instructions on the git-repo are still good (just built a fresh install last week). https://github.com/travistyoj/piforcetools
