Ignignxkt's Vewlix Diamond Black Build!

Ignignxkt

Ignignxkt

Enthusiast
Joined
May 28, 2024
Messages
114
Reaction score
92
Location
Maricopa, AZ
Hey everyone! First post (past my intro) and I figured I'd dive right into it.



Originally started with the idea of buying Unico's Nova Blast; after pushing out their release date, admitting their pcb (where jamma / hdmi / kick harnesses) didn't even fully work post og release date, watching how they screwed over early adopters of their Phoenix monitors (the same monitors in the Nova Blast), and falling out of love with the idea of purely going the JAMMA pbc route.... here we are.

It didn't take long to come to the idea of a Vewlix with my needs: no CRT (I just went through CRT hell with recaps and other issues, and I don't want to keep doing repairs, i just want to play the games on my free time), easy upgradability with modern parts, wasn't too large, and could play JAMMA if I chose to use a board or two in the future. Vewlix was the obvious answer!

I then started my research into Chewlix and Vewlix, essentially realizing that one of the Diamonds was my best choice, preferably the Diamond Black. After a botched deal where I got screwed over on the cab I picked out, I was actually reached out to by someone else who had a Diamond Black in really nice shape ready to go. I'm not naming names on either, I'm not here to create drama...but just sharing my process.

I'm going on a short vacation, and the Vewlix will be arriving shortly after I get back mid next week. In the meantime, here are the parts I've purchased for the build. I'll mark which have arrived and which I'm waiting on:

Arrived:

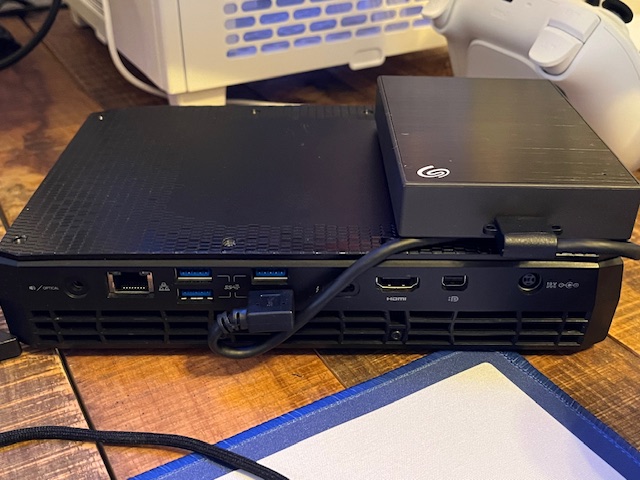

  • Intel NUC Phantom Canyon - This is the heart of the build, running both classic and modern games. I had two separate builds, prior, with an HP Elite Desk as my classic arcade game machine, but condensed the two. It's incredibly tiny and quiet and handles everything via emulation or modern fighting / shooter game wise with ease. In a weird bit of luck, it ended up being an engineering sample. I'm not sure how it got out into the public but, I'll take it!
  • Right Angle Micro B USB 3.0 Cable - Cleans up the cables from my 5TB hdd to the NUC

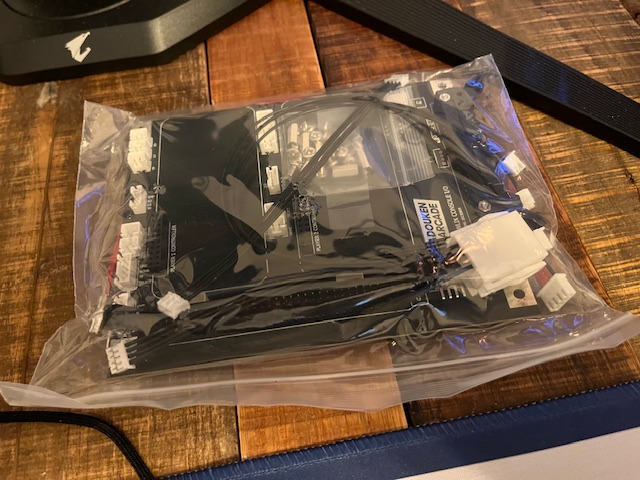

  • Hadouken Custom IO - This will translate my stock control panel harness to modern hardware
  • TNP 4 Port KVM Switch - Comes with a remote control, so I can switch devices on the fly. While I don't exactly have a use for this atm, I bought it just in case I wanted to put a PS4/5 in there or something (depends how badly I get the urge to play Virtua Fighter I suppose...)
  • Brook UFB - Plugs into the custom IO which translates Player 1 into USB for the PC
  • A big ol' pile of 100 yen coins
Not yet arrived:
  • Vewlix Diamond Black
  • Couples stool
  • Crown / Samducksa SDB-202 30MM Buttons in White - As someone who grew up with American arcade machines, I prefer clicky buttons and sticks, but while I love the feel of HAPP hardware, they're ugly as sin and likely too tall to fit in this control panel. Crown buttons allow me to install Cherry MX switches, in which I put in Cherry MX Blues for the most annoying, wife rage inducing clicks money can buy. These also screw in, not snap in, and thus will last longer than equivalent Sanwas (in case I want to change them out in the future to switch up colors).
  • Crown / Sanducksa SDB-202 24MM Button in White - for 1P button
  • Seimitsu Bullet Lever Handle in White - I'm not personally a fan of balltops, and this allows me to grip like an American Stick AND a wineglass grip, both of which I tend to do. And the Seimitsu is very clicky, which will help with the wife enragement fetish
  • Seimitsu All in One Universal Joystick Mounting Plate (allows Seimitsu sticks to Vewlix mounts)
  • Sub Control Panel with volume knob
  • Mini wireless keyboard / trackpad to control the PC
  • Stream Deck Mini (to quickly launch Big Box and Steam games)
  • Silent replacement fans for the cabinet
Since I have a Black model, I'm going to hope the monitor is good enough to not have to immediately replace. It has the HDMI port out I need for the PC, and should look better than older models (better resolution, contrast and color). But we'll see. If I need to, I have Acrycadegear's monitor mount I can buy along with an LG monitor.


So yeah, that's step one! I'll include some pictures below of some of the parts I've received so far:












Did I plug in the correct C connectors from the board to the Brook? Also, the JVS connector to the 3 small connectors, I'm assuming that's for the Coin, Service and Test? How do I know which plug goes into which socket on this thing? None of the plugs seem to be labeled, and nothing on the board mentions coin, service or test, just R3, L3, TP, etc.

Thanks

Thank you!

Does anyone have into on the DISIGN DO320LNN13 monitor? It's what's in my cabinet. I went on their site (japanese monitor company for commercial purposes), but I can't find it listed on their site in the discontinued section. They've only listed two 32" monitors, both made in 2018. So I'm assuming this might have been a late replacement? Has VGA and DVI out.

Next, I'm making my own "move list" artwork. I'm going with a Rival Schools theme, and it'll be black and white to match the cab.

For those who keep asking about my Bubble Bobble figurine, you can find them here. They're very affordable, but limited to 99 pc worldwide per color, so it's kinda a "it's available while it lasts" sort of deal. Shipping from Taiwan was like 5 bucks to America, so it's stupid cheap. Don't buy them from resellers on ebay as they charge more than double.

https://store.mivi.com.tw/index.php?route=product/category&path=60&page=2

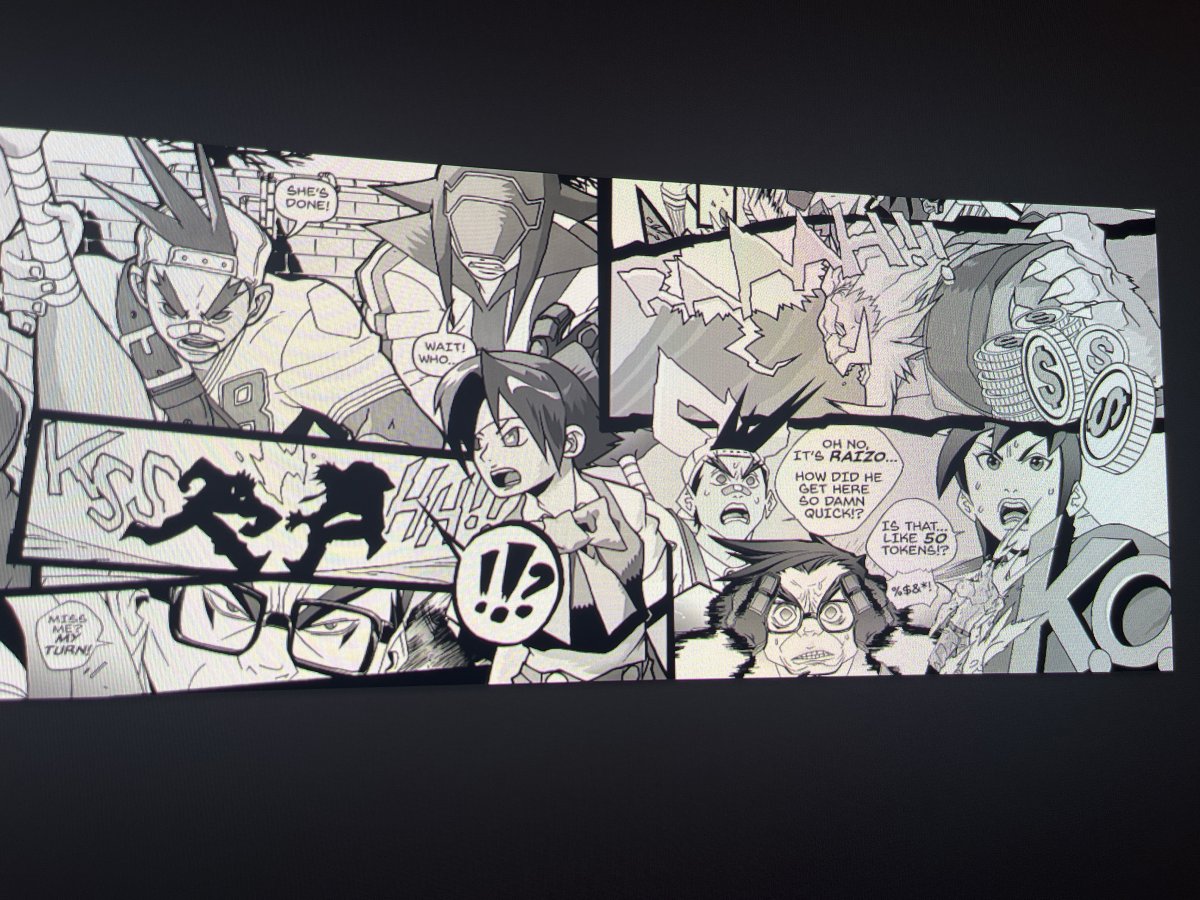

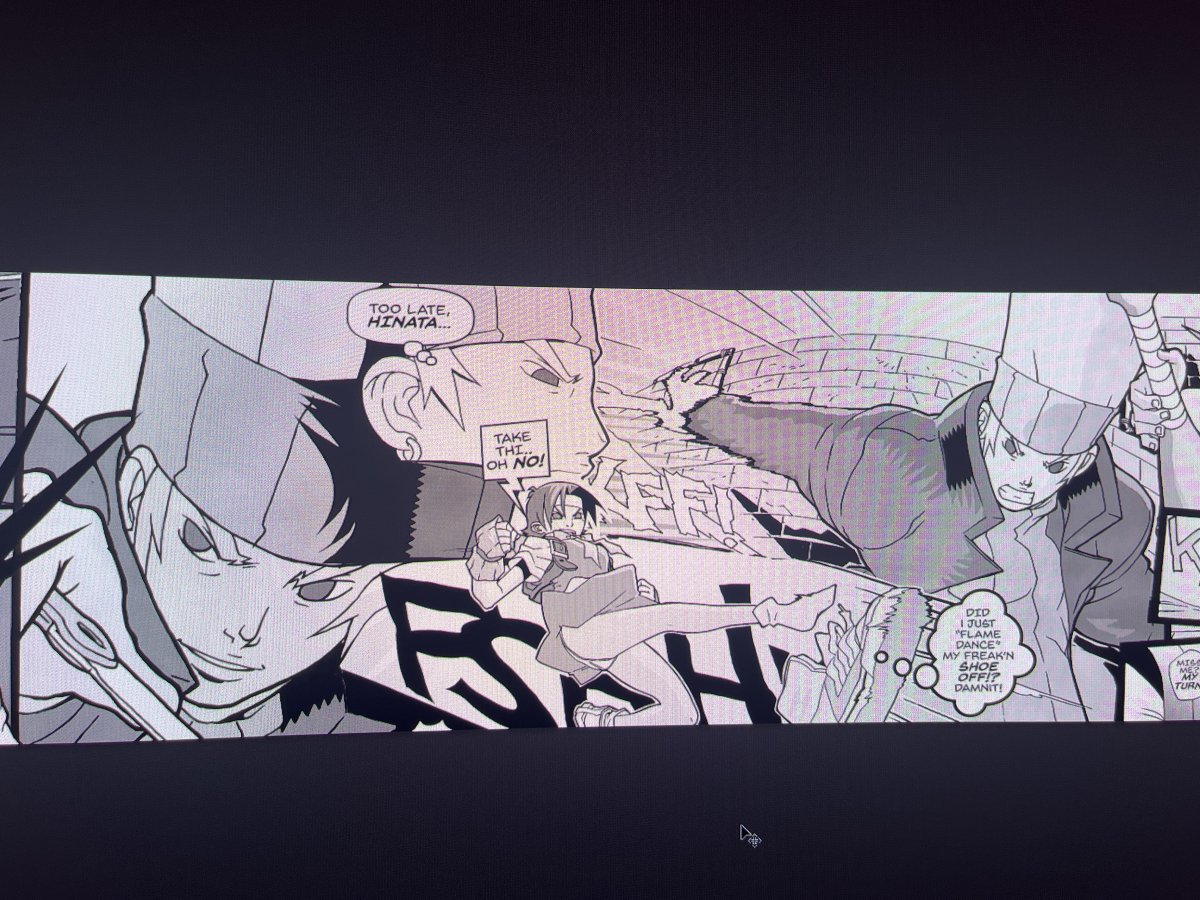

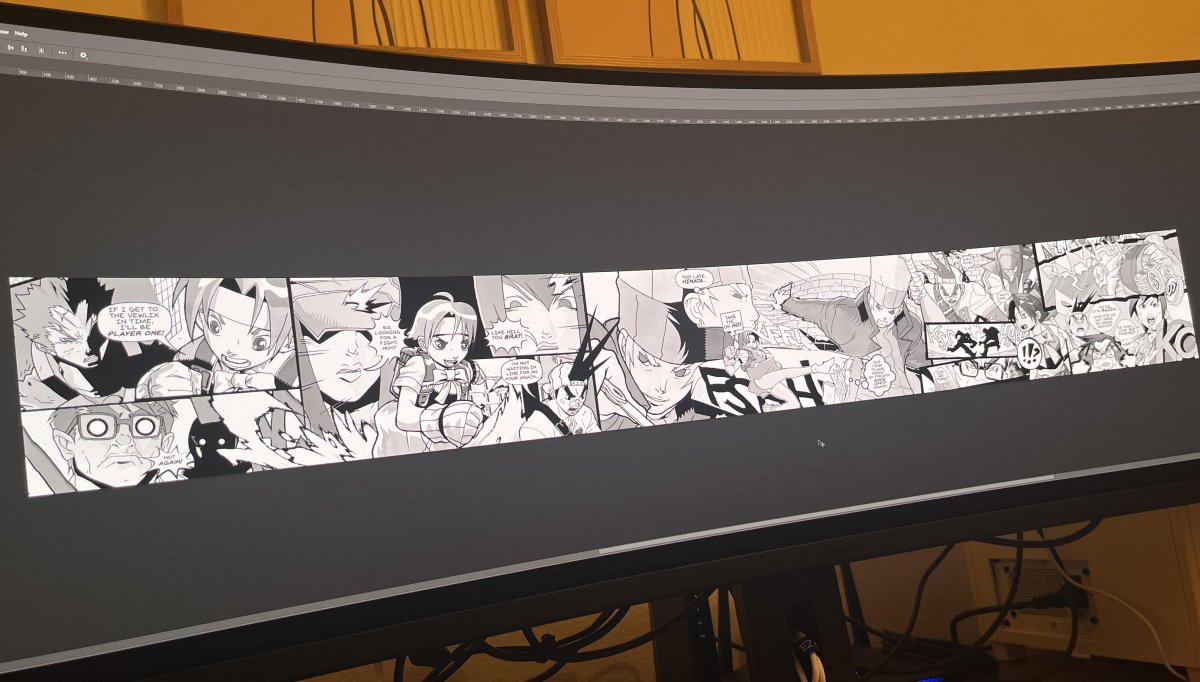

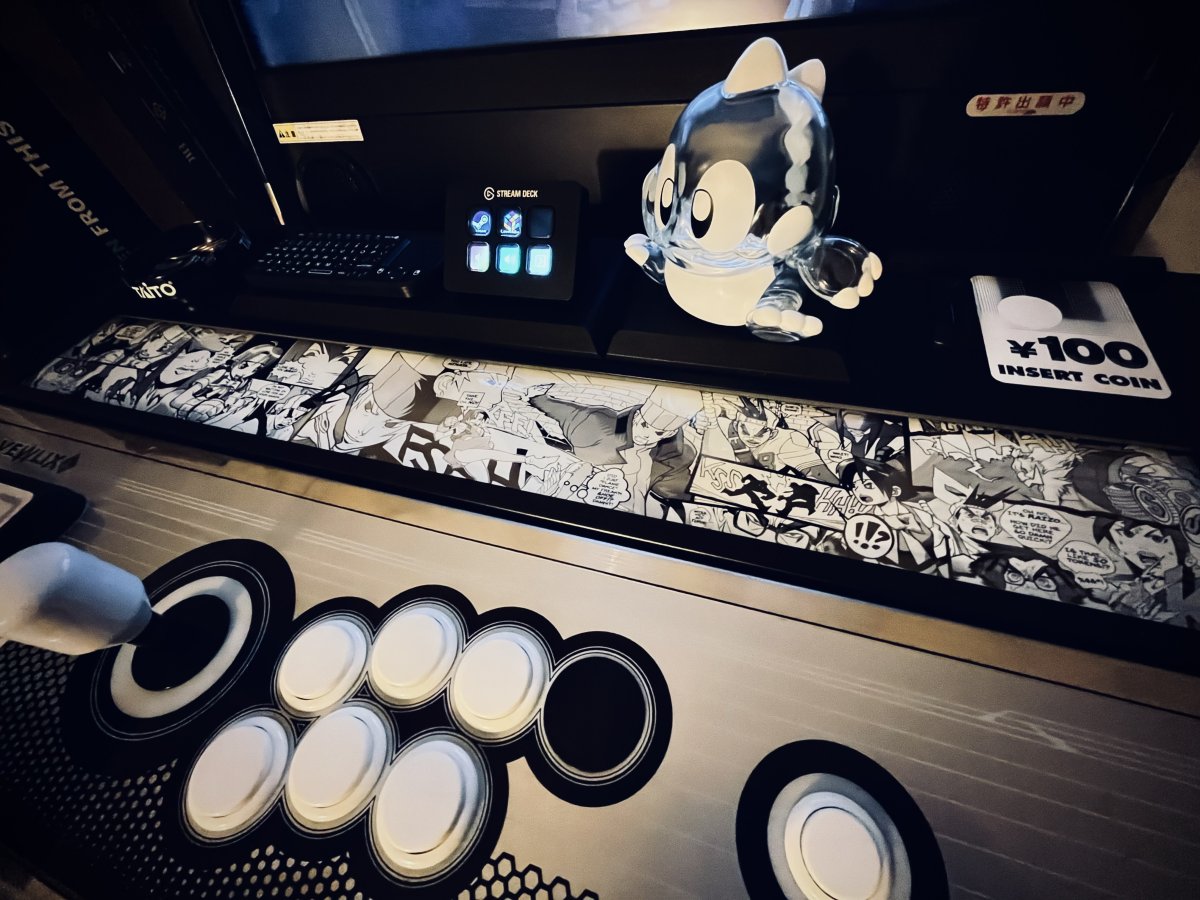

After several hours, recompiled some Rival Schools art for the Vewlix control panel’s ‘move list’ art. Had to redraw a lot of it where art had been cut off or just included words or people they didn’t work for the context. Eiji in the center is nearly all redrawn. I usually do skateboard art and packaging, so this was a nice change of pace. :)

I’ll get it printed this week.



Looks great! Rival Schools has been a bit of a blind spot for me as far as Capcom fighters go and I was thinking about checking out the series, what's a good place to start?

Mirkvid said:
Looks great! Rival Schools has been a bit of a blind spot for me as far as Capcom fighters go and I was thinking about checking out the series, what's a good place to start?
Click to expand...

Well, there's only technically 3 games, with "2" being more of an expansion of the 1st game than anything else. Personally, I think the first game is simply the best. Be it arcade or PS1, it's just a stellar game. The Naomi/DC sequel is good, and plays well. I don't really like the art style as much, but that's personal preference, I suppose.

Ignignxkt said:
Next, I'm making my own "move list" artwork. I'm going with a Rival Schools theme, and it'll be black and white to match the cab.
Click to expand...
i have a 1200dpi scan of the rival schools art set if you'd like it. would make a good source material to craft your own custom art for the marquee and instruction space
edit. i didnt see u already made it lol looks dope
