Jamma Fingerboards

[roy]

first of all thank you for your effort.

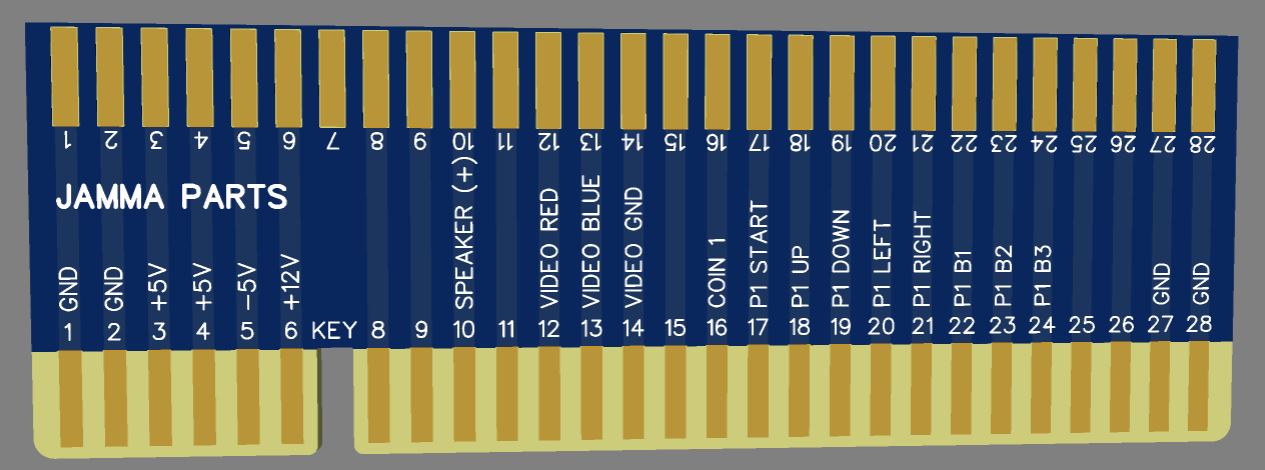

the problem is with the short pads...they need to be like the ones on the pcb side(longer)
any way I will try to make the changes myself



[RealMFnG]

Still a 3 minute effort. Check the download link in my previous post.



[mR_CaESaR]

Excuse my ignorance, but why does the cps1.5 need a longer pad?

Aren't the short pads designed for an edge connector?



[xodaraP]

Having used several of them, I can tell you the @Frank_fjs design works fine on CPS1.5 as would the @acblunden2 design above



[roy]

it does work but I had connections issues plus the extra length cause excessive flex on the fingerboard pcb



[pacoarcade]

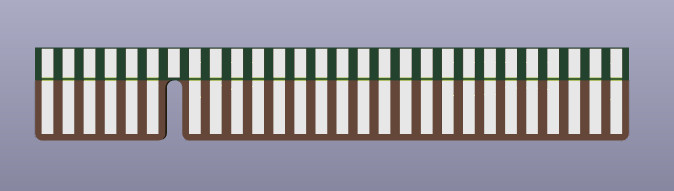

I'm working in these. The original idea is to make bootleg boards friendly with key lock at pin 7, but it also allows to attach a Sync processing board based on Martin Jones Sync Stabilizer or just preserve the edge of precious boards.

AllPCB can make bevel in so small boards.



[Cheapneogeo]

These are great! Thanks Frank_fjs for designing these.



[Lemony Vengeance]

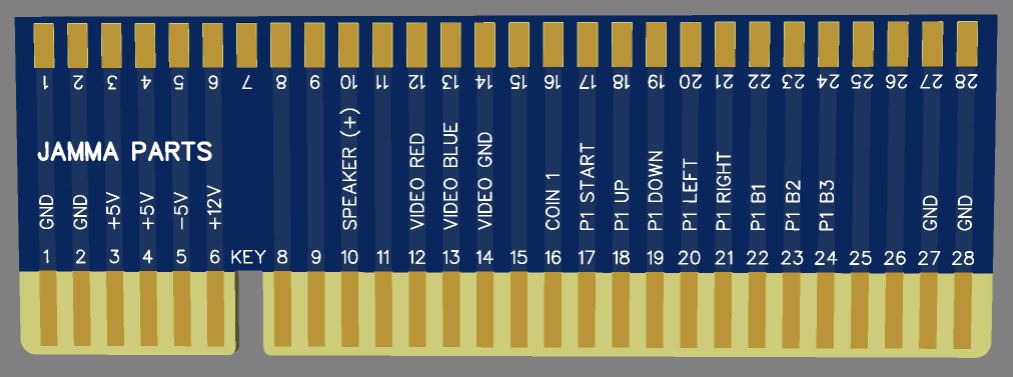

Here you go dawg. 3 minute effort. If you need other changes, I'll leave that to you.

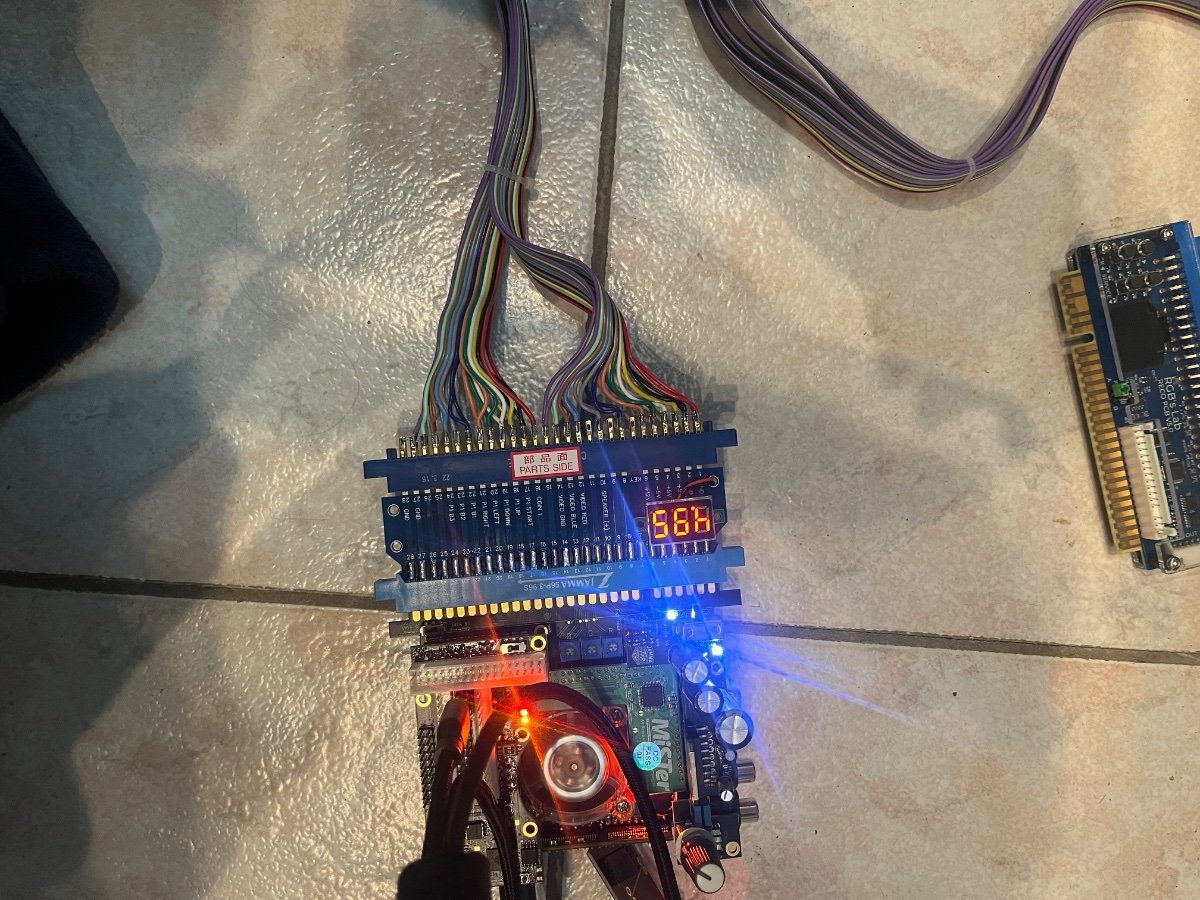

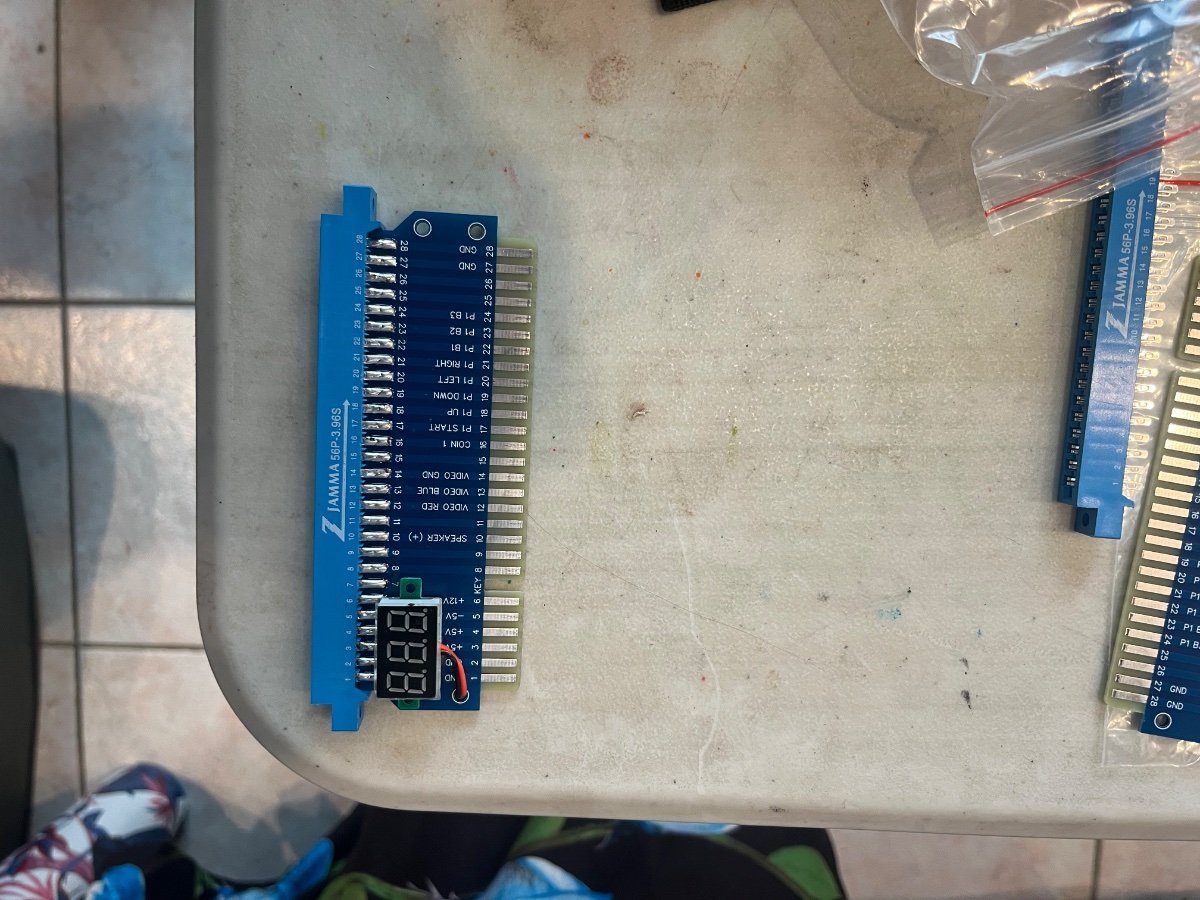

necrobump for sure, but I want to say thank you for this design. I'm struggling with Arcaniac/Shadows running out of his stock for this. I burn through quite a few of these in my adventures in adapter making, and being able to have these sourced and fabbed en masse is very beneficial for me. I have no intention of selling these on their own, only used as components for adapters I make.

I'm going to shoot you a pm to talk about this more, but I feel like I should do something as a thank you to you and @Frank_fjs for this work
